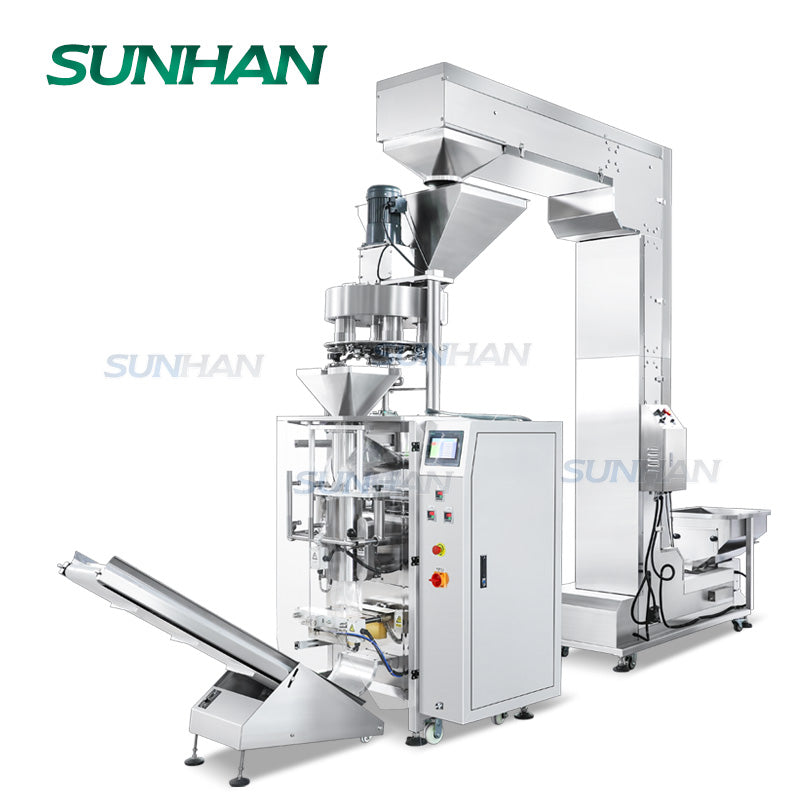

granule vertical bagging machine

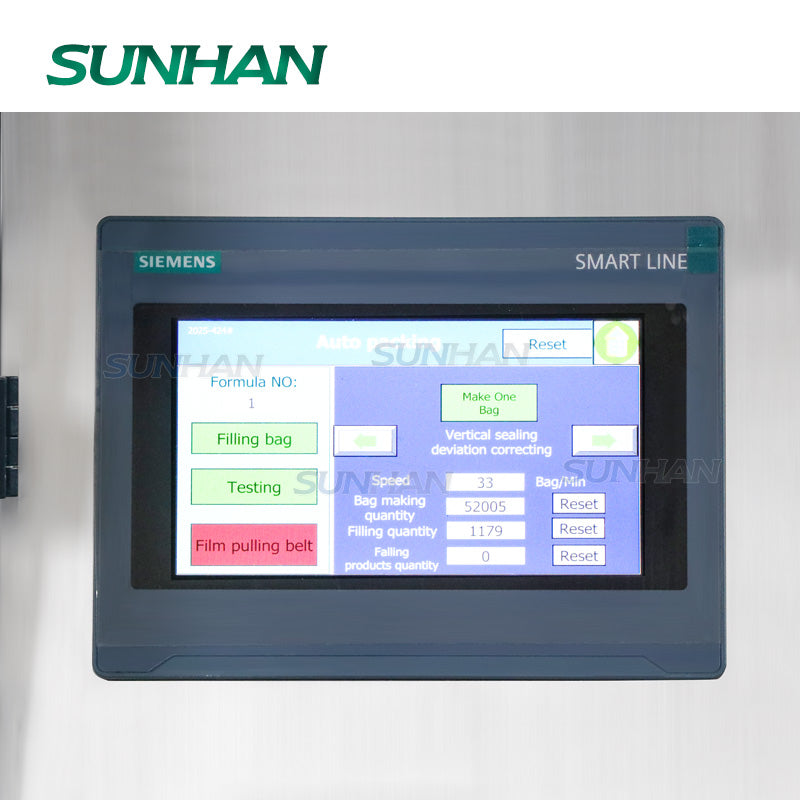

control panel of granule pouch packing machine-1

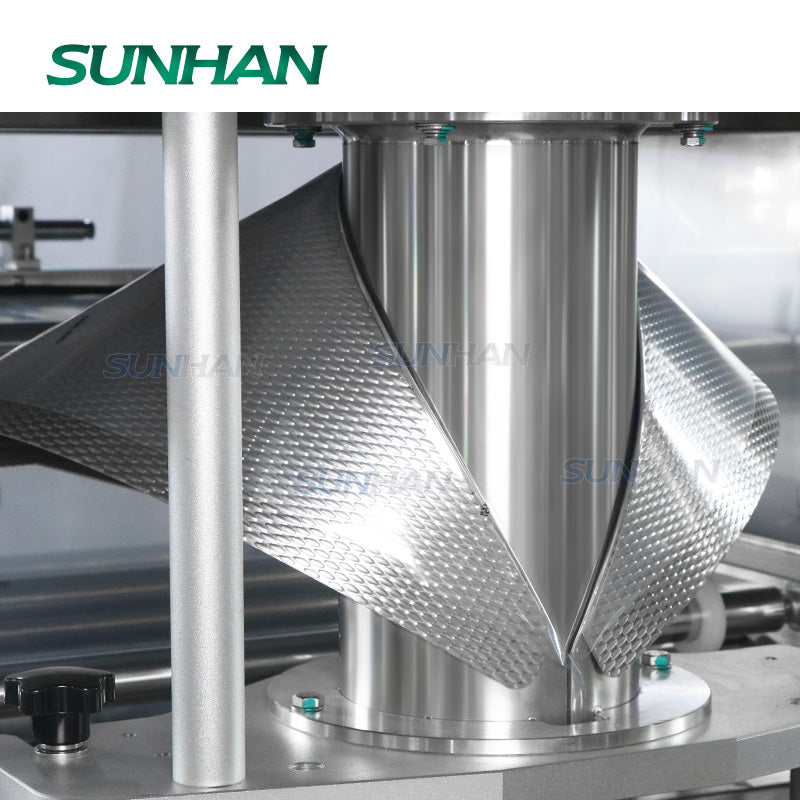

bag forming structure of granule pouch packing machine-2

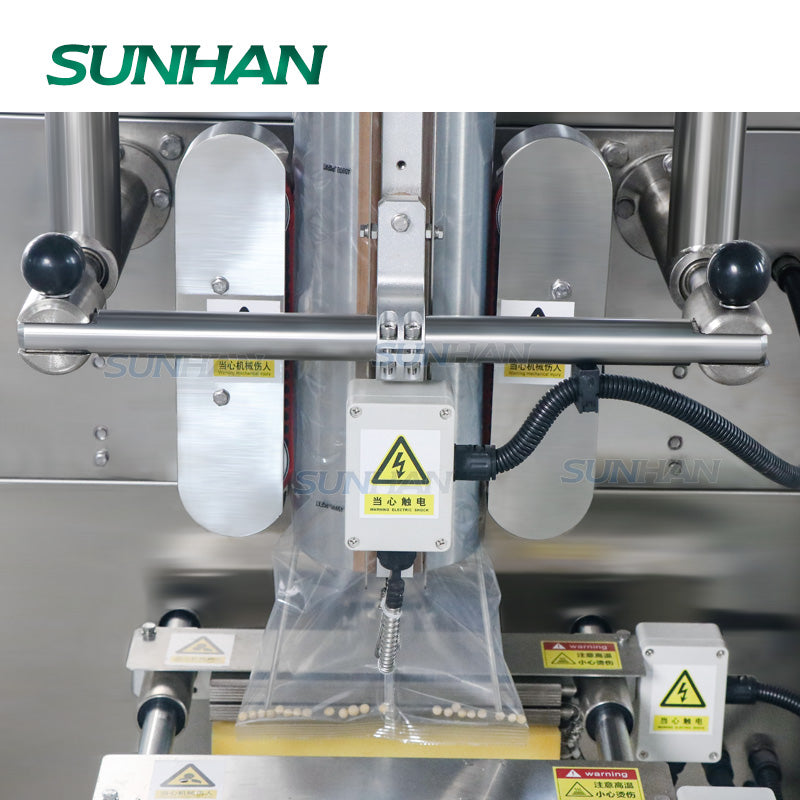

vertical and horizontal sealing structure of granule pouch packing machine-3

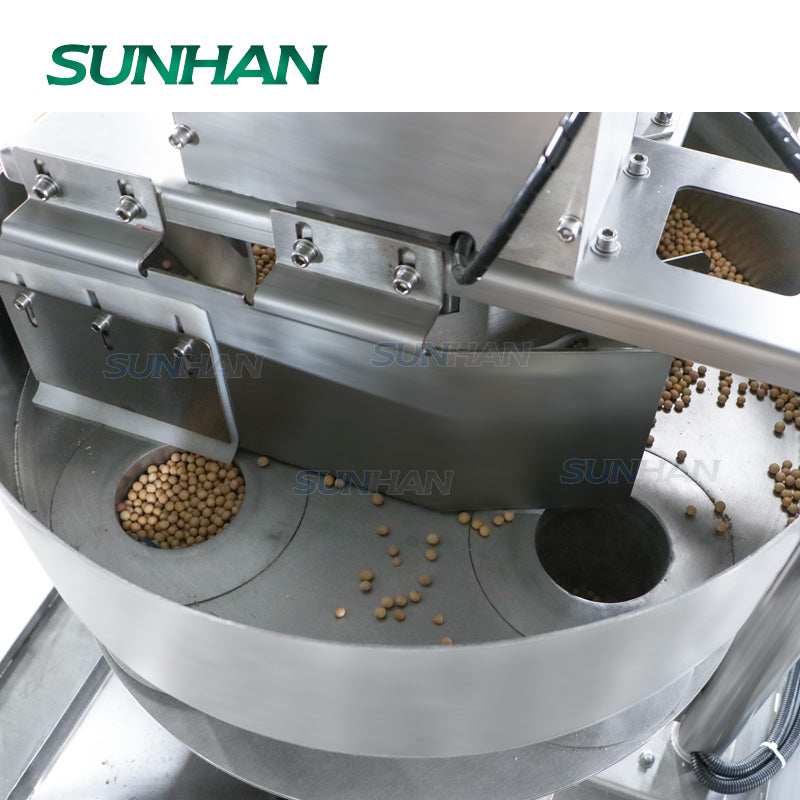

volumetric cup of granule pouch packing machine-4

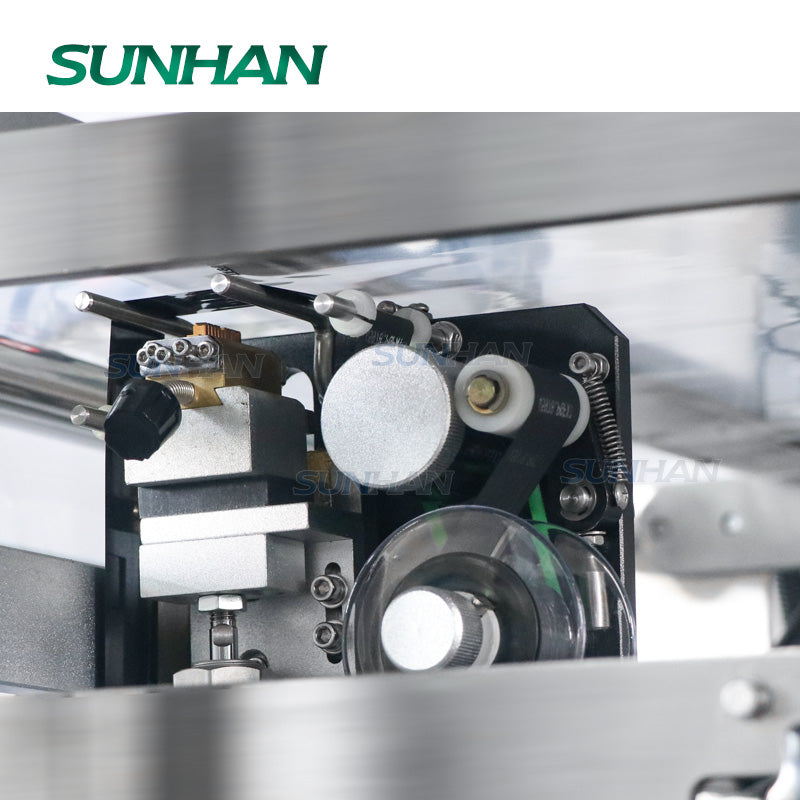

ribbon coding printer of granule pouch packing machine-5

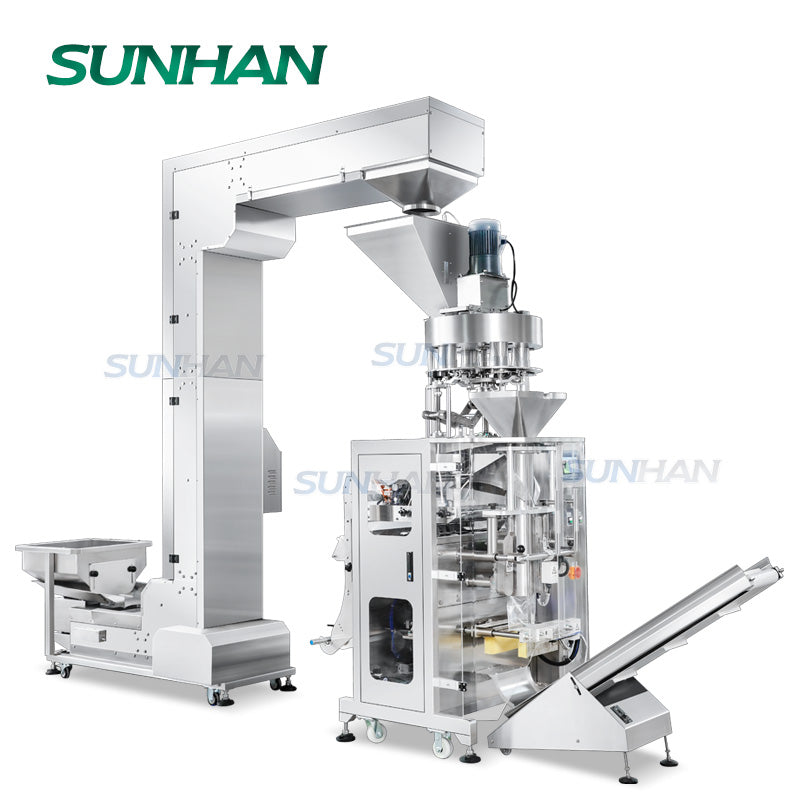

automatic granule bagging machine
VFFS granule filling sealing machine
granule vertical bagging machine
video of granule vertical bagging machine
control panel of granule pouch packing machine-1
bag forming structure of granule pouch packing machine-2
vertical and horizontal sealing structure of granule pouch packing machine-3
volumetric cup of granule pouch packing machine-4
ribbon coding printer of granule pouch packing machine-5
automatic granule bagging machine
VFFS granule filling sealing machine

SUNHANPACK

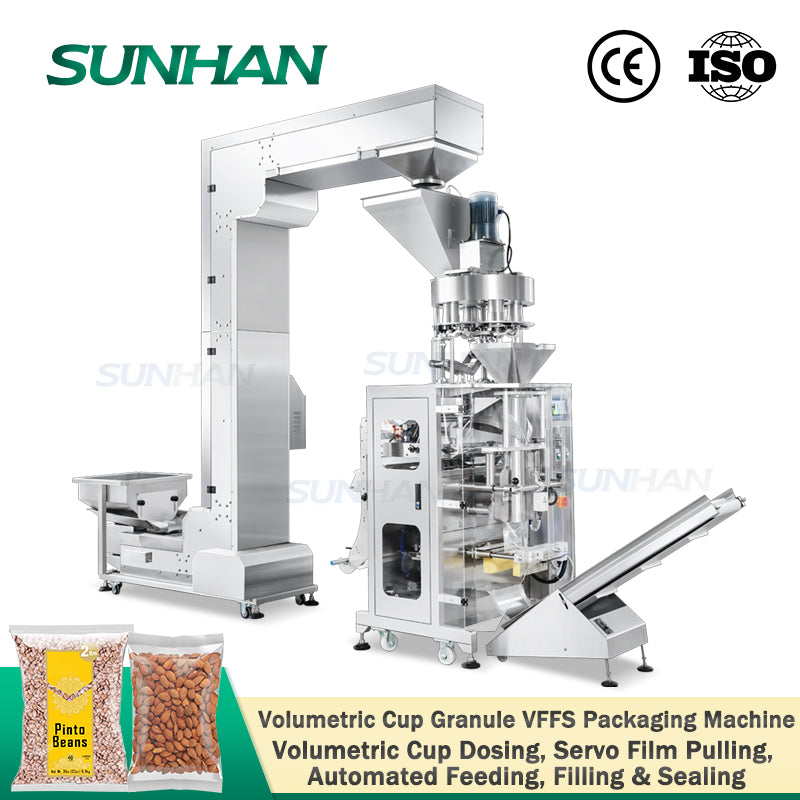

SUNHAN SH-MCQ520 Full Automatic VFFS Volumetric Cup Granule Grain Beans Nuts Pouch Bagging Filling Sealing Packing Machine

Shipping calculated at checkout.
Voltage: 110V
Specification: With Material Feeder
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Uses adjustable volumetric cups for precise and stable measurement of granular products, ensuring reliable performance.
▶With servo film pulling system to ensure smooth film feeding and precise positioning.
▶Equipped with a Z-type bucket elevator for continuous feeding, improving efficiency.
▶Independent temperature control for vertical and horizontal sealing ensures strong and consistent sealing quality.

Parameter

  • Model:SH-MCQ520
  • Power Supply:220/380V 50-60HZ
  • Power:3 kW
  • Air consumption:0.8ps 0.3m³/min
  • Sealing Method:Back side sealing
  • Measurement Range:Customizable
  • Bag Size:80-350mm(L)*70-250mm(W)
  • Roll Film Width:160*520mm
  • Film Thickness:0.04-0.09mm
  • Packing Speed:30-60 packs/min
  • Machine Size:About 1160*4050(3000+1050)mm*3200mm(L*W*H)
  • Packing Weight:About 480 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of grain vffs bagging machine
machine component of automatic granule bagging machine
machine details of granule pouch packing machine-1
machine details of granule pouch packing machine-2
machine details of granule pouch packing machine-3
real shot of VFFS granule filling sealing machine
