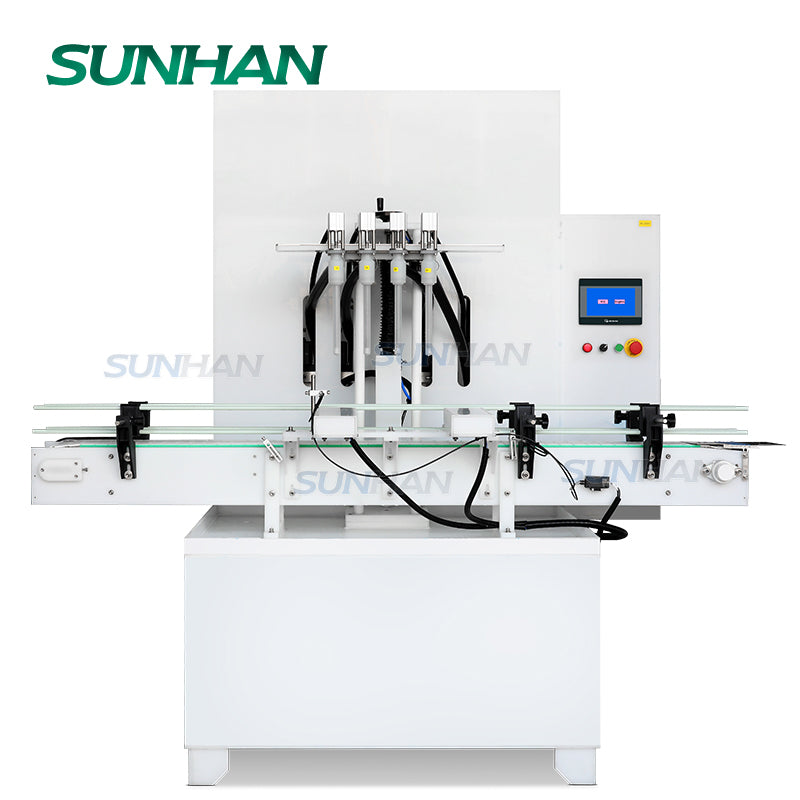

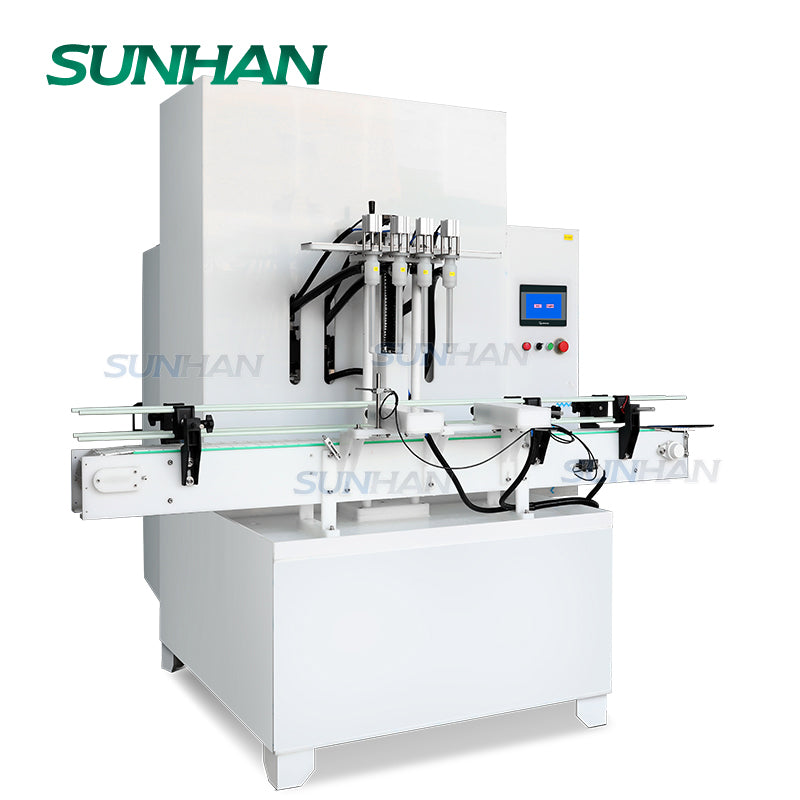

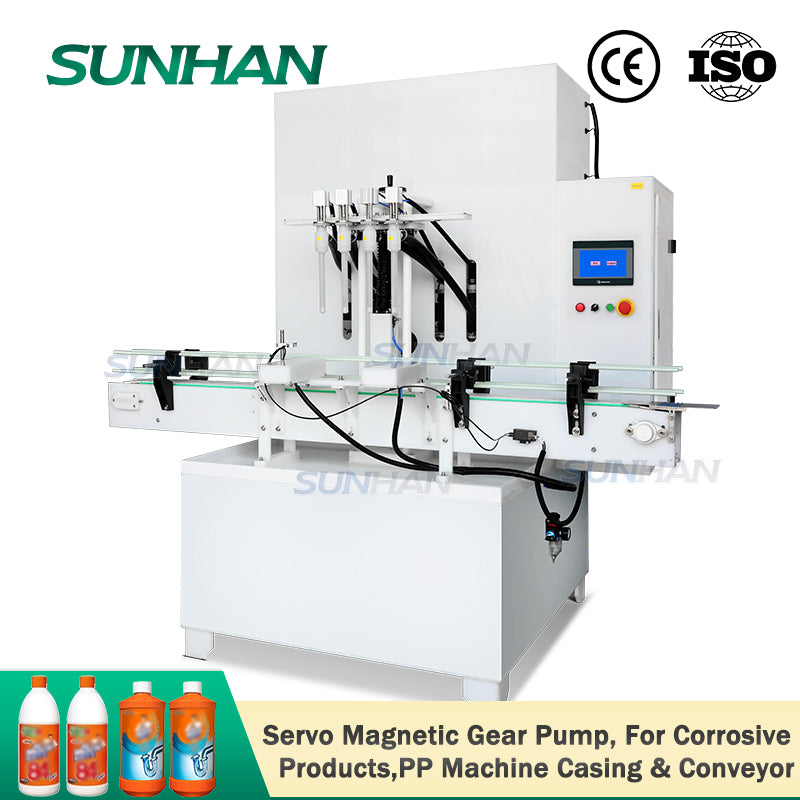

SUNHAN SH-GYCR4A Automatic Servo Magnetic Gear Pump Chemical Bleach Detergent Acids Corrosive Liquid Filling Machine

Main Feature

▶Designed for filling corrosive liquids like bleach, disinfectants, toilet cleaners, detergents & acids, etc.

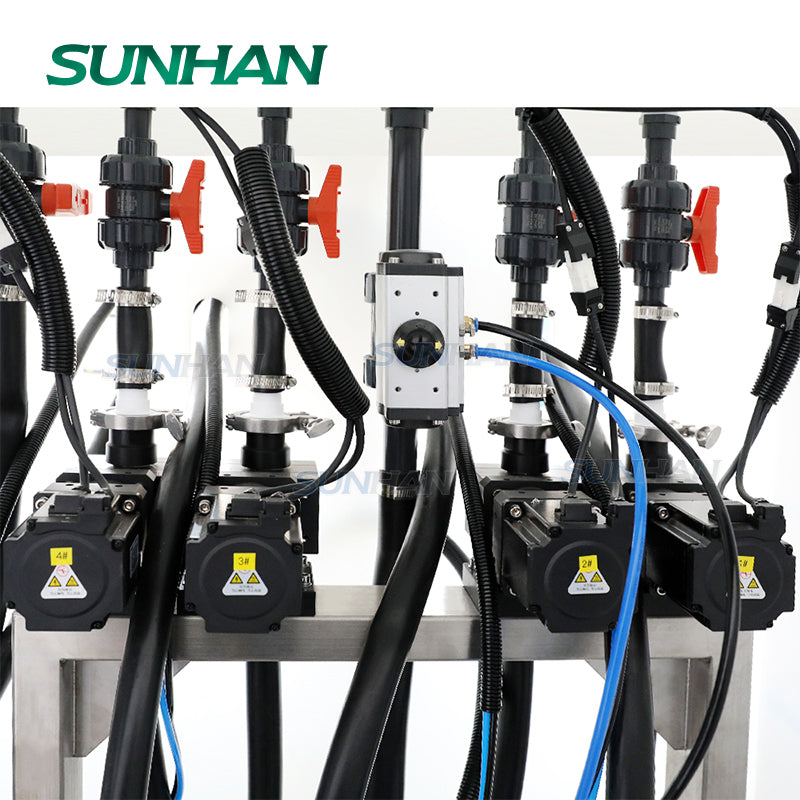

▶Servo-driven magnetic gear pump controls filling, ensuring  filling precision and stability. Quantity of filling nozzles can be customized according to your production needs.
▶Built with PP structure and fluororubber hoses for long-term durability.

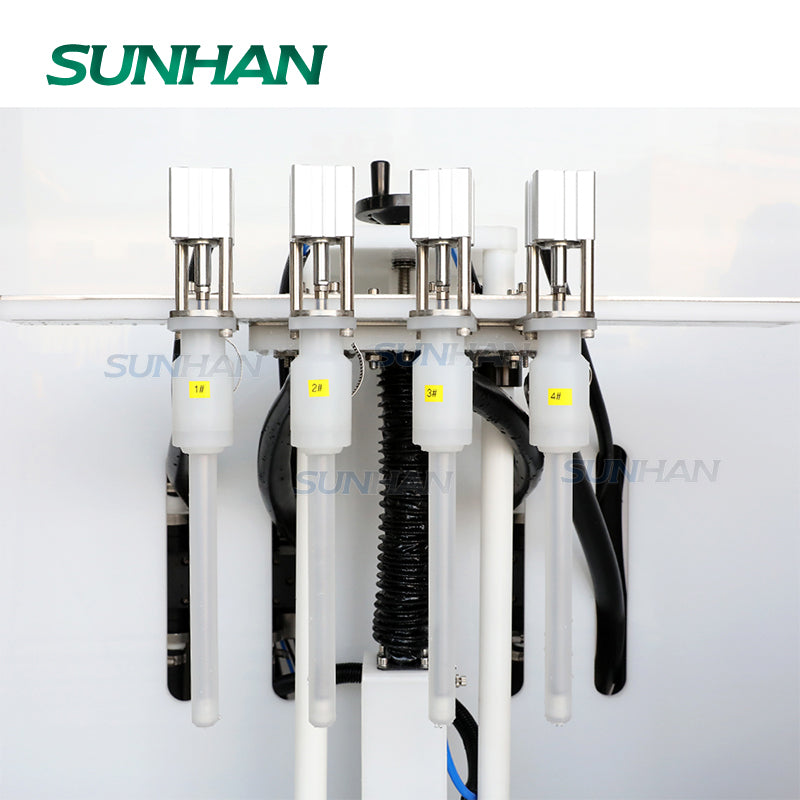

▶With anti-dripping filling nozzles, effectively preventing leakage and maintaining cleanliness.

Parameter

• Machine Model:SH-GYCR4A

• Voltage / Power:110V / 220V, 50–60 Hz, 5000 W

• Air Pressure Requirement:0.4–0.7 MPa

• Suitable Bottle Diameter:φ50–φ110 mm

• Suitable Bottle Height:60–300 mm

• Hopper Capacity:About 120 L

• Recommend Filling Range:300 ml – 10L

• Max Flow Rate:27L/min

• Filling Material Temperature Range:Room Temperature(Customizable for high-temperature materials)

• Filling Material Viscosity:0-1000cps(Customizable for higher viscosity)

• Filling Speed:200–2500 BPH (based on filling volume)

• Machine Size:About 2000 × 1300 × 1900 mm (L×W×H)

• Machine Weight:About 280 kg
