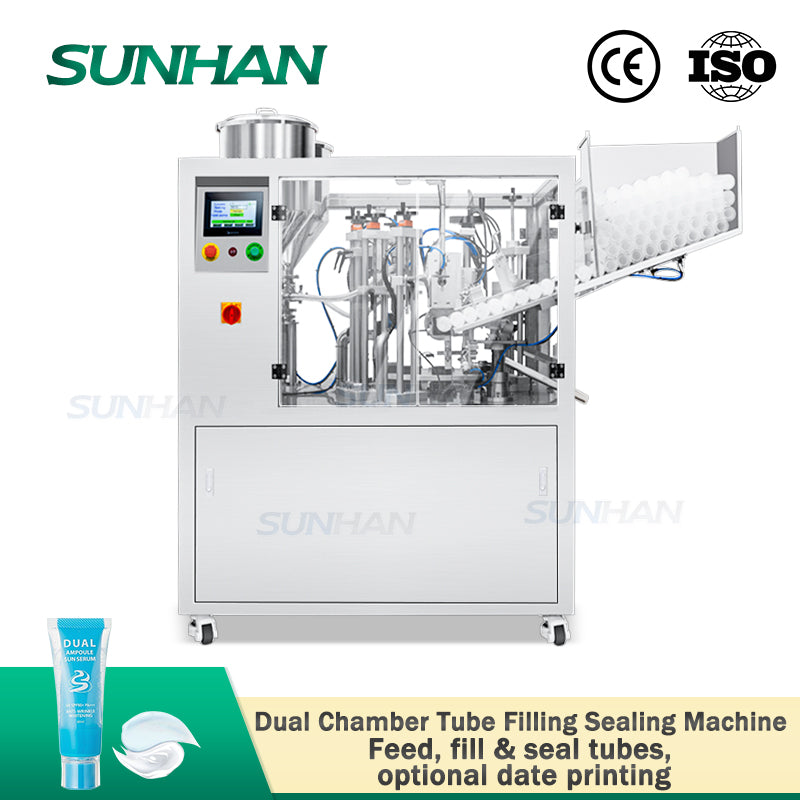

dual chamber cosmetic tube filling machine

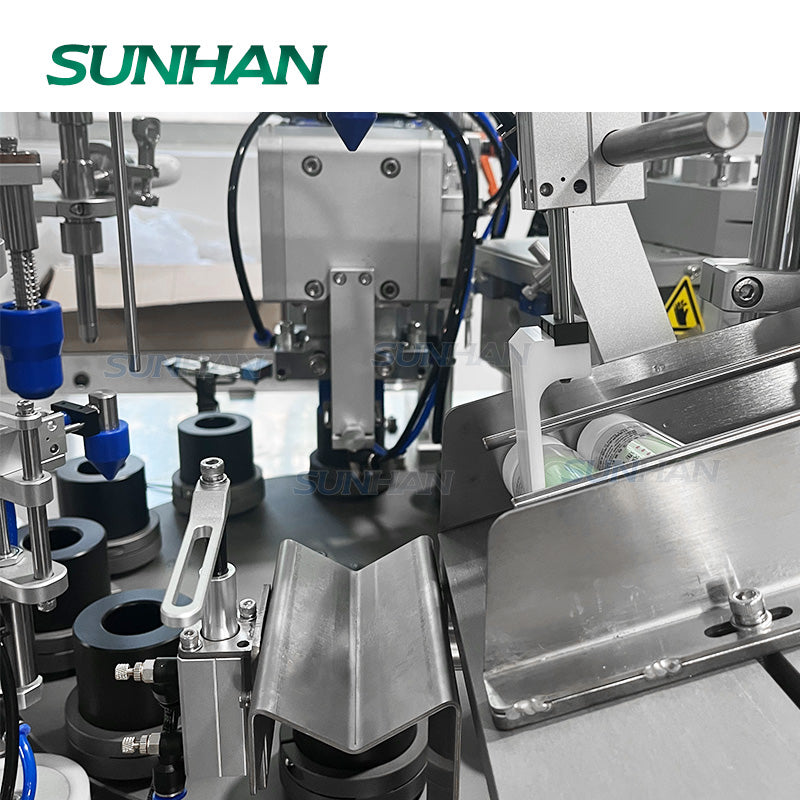

tube feeding structure of ultrasonic dual tube filling sealing machine-1

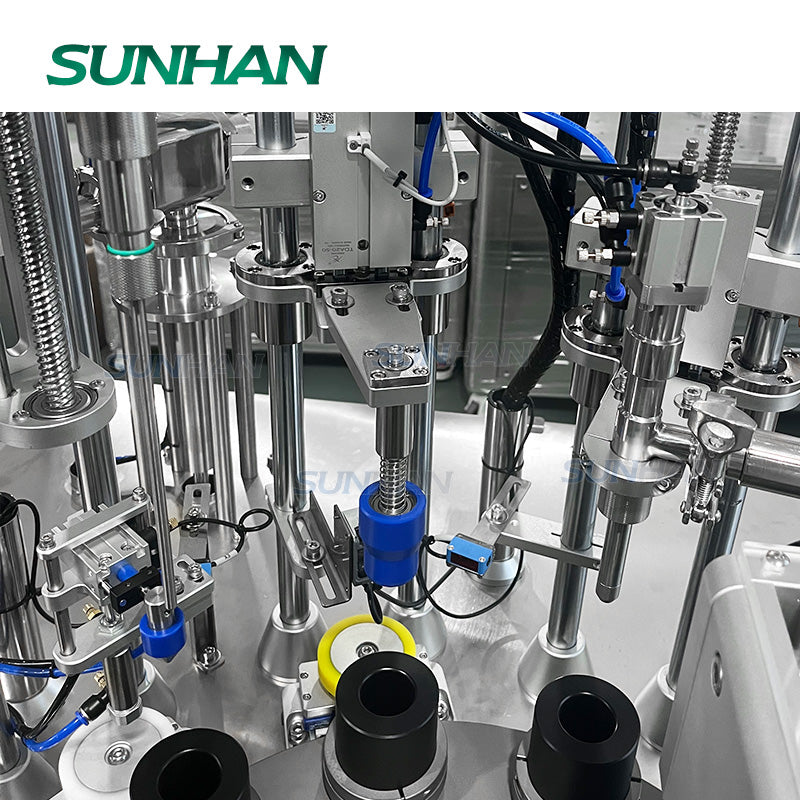

double filling machine of ultrasonic dual tube filling sealing machine-2

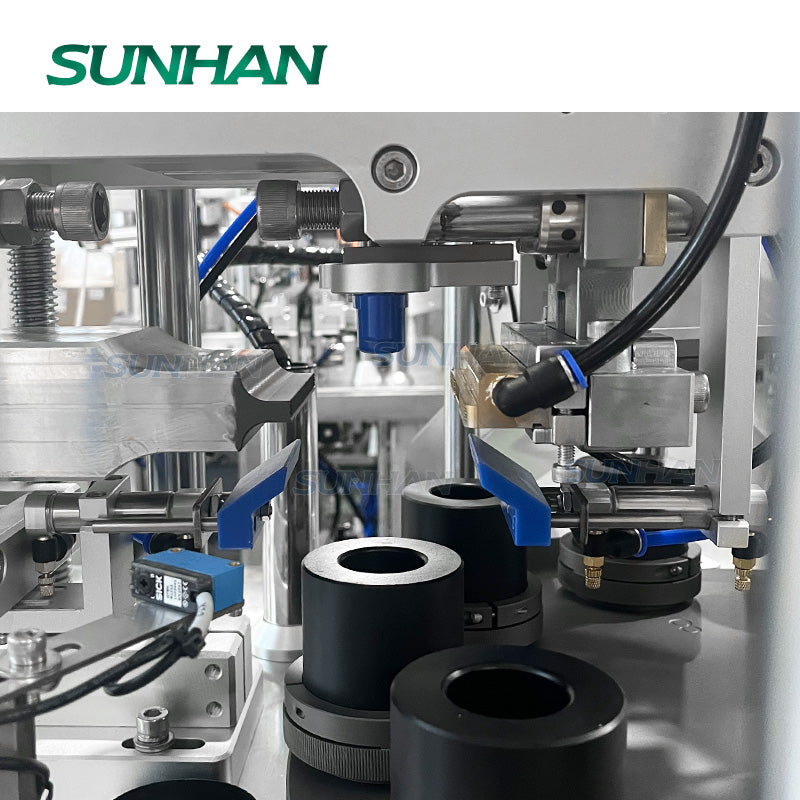

sealing structure of ultrasonic dual tube filling sealing machine-3

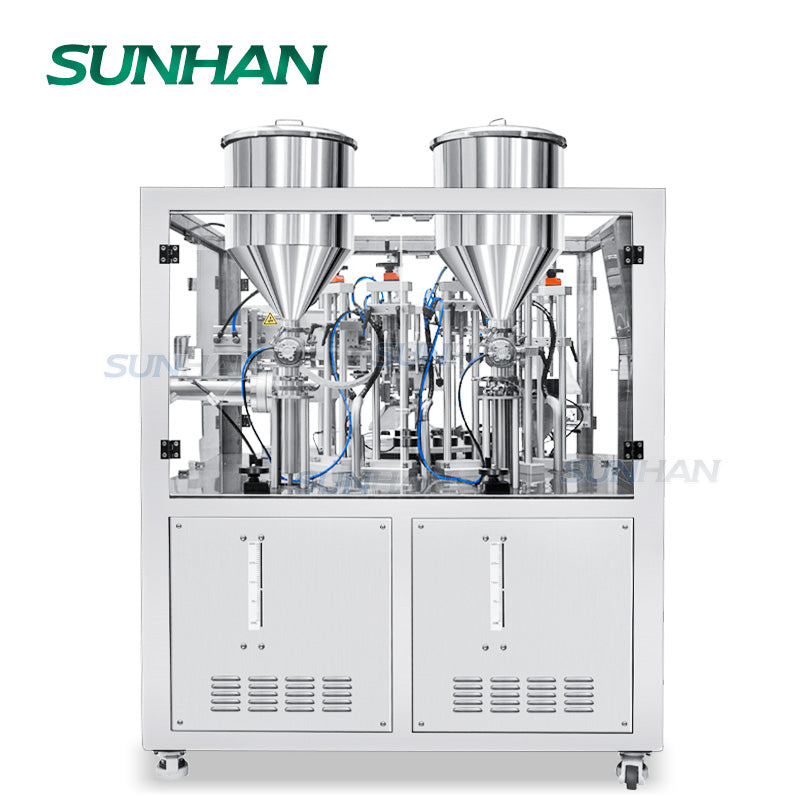

two layer tube filling sealing machine

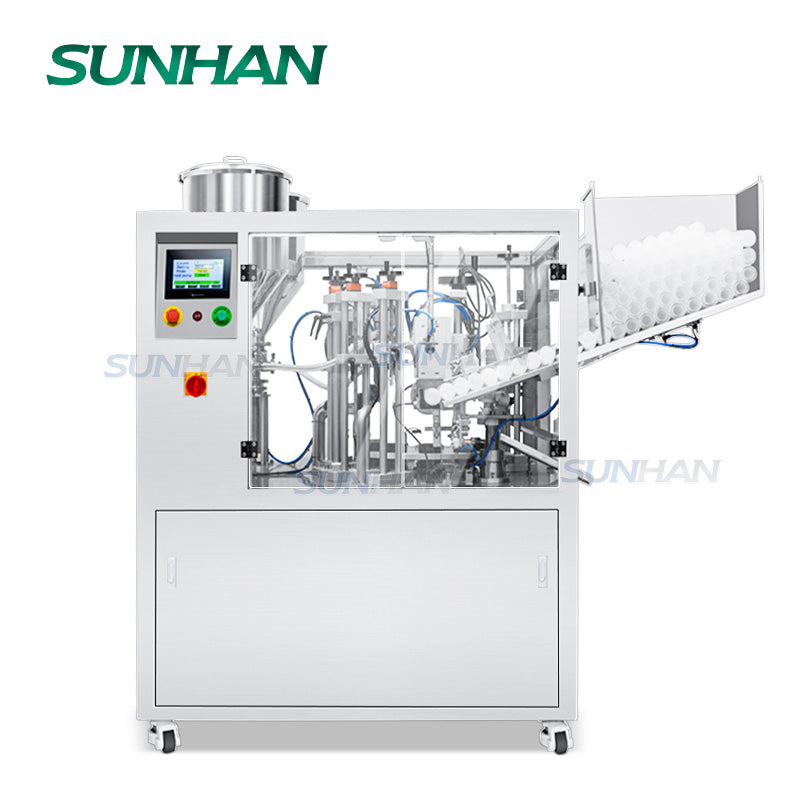

dual chamber tube filling sealing machine

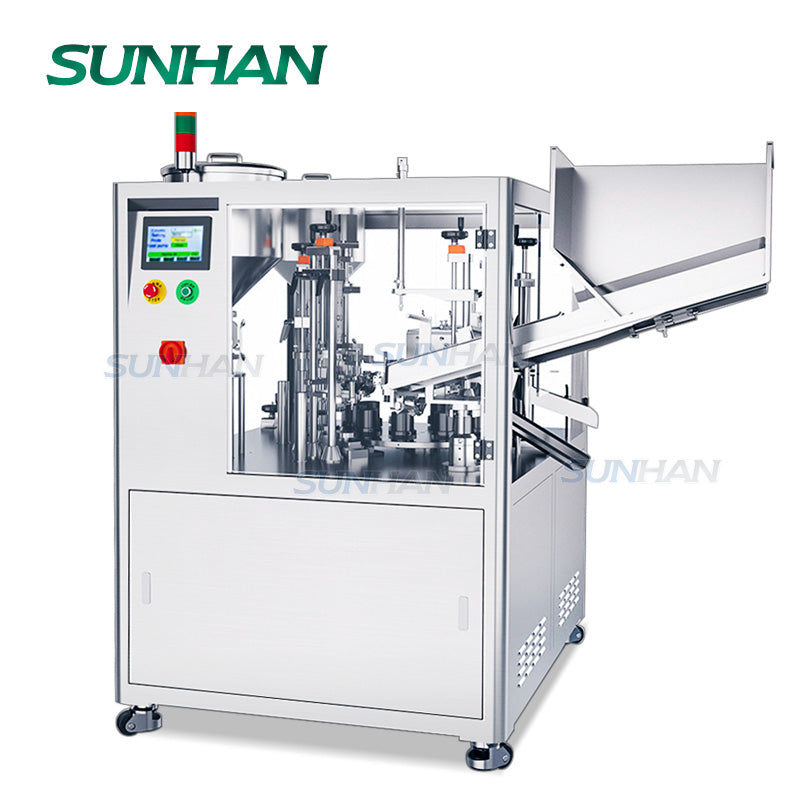

ultrasonic dual tube filling sealing machine
dual chamber cosmetic tube filling machine
tube feeding structure of ultrasonic dual tube filling sealing machine-1
double filling machine of ultrasonic dual tube filling sealing machine-2
sealing structure of ultrasonic dual tube filling sealing machine-3
two layer tube filling sealing machine
dual chamber tube filling sealing machine
ultrasonic dual tube filling sealing machine

SUNHANPACK

SUNHAN SH-FS009D Automatic Servo Ultrasonic Cosmetic Hand Cream Dual Layer Chamber Soft Tube Paste Filling Sealing Machine

Shipping calculated at checkout.
Voltage: 110V
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

▶Integrated design completes tube feeding, filling, and sealing in one machine to improve efficiency.
▶Servo piston pump control ensures accurate filling with ±1% accuracy.
▶Ultrasonic Sealing, provides firm, clean, and reliable sealing with stable performance.
▶Can be equipped with letter molds to print production date or batch during sealing.
▶Suitable for packaging cosmetic product like hand cream, body lotion, dual serum, toothpaste, etc.

Parameter

  • Machine Model:SH-FS009D
  • Power Supply:220V/110V 50-60Hz 2.6kW
  • Filling Range:10-120ml/25-250ml(customizable)
  • Filling Pump:Servo piston pump
  • Filling Accuracy:±1%
  • Working Speed:About 10-13pcs/min(depending on tube size)
  • Sealing Height:50-210mm
  • Sealing Diameter:25-50mm
  • Ultrasonic Frequency:20KHz
  • Hopper Size:30L*2
  • Air Pressure:0.6MPa
  • Machine Size:About (L)1830*(W)1400*(H)1780mm
  • Machine Weight:About 530kg
application of two layer tube filling sealing machine
datasheet of dual chamber cosmetic tube filling machine
machine component of dual chamber cosmetic tube filling machine
machine details of ultrasonic dual tube filling sealing machine-1
machine details of ultrasonic dual tube filling sealing machine-2
real shot of dual chamber tube filling sealing machine
