SUNHANPACK

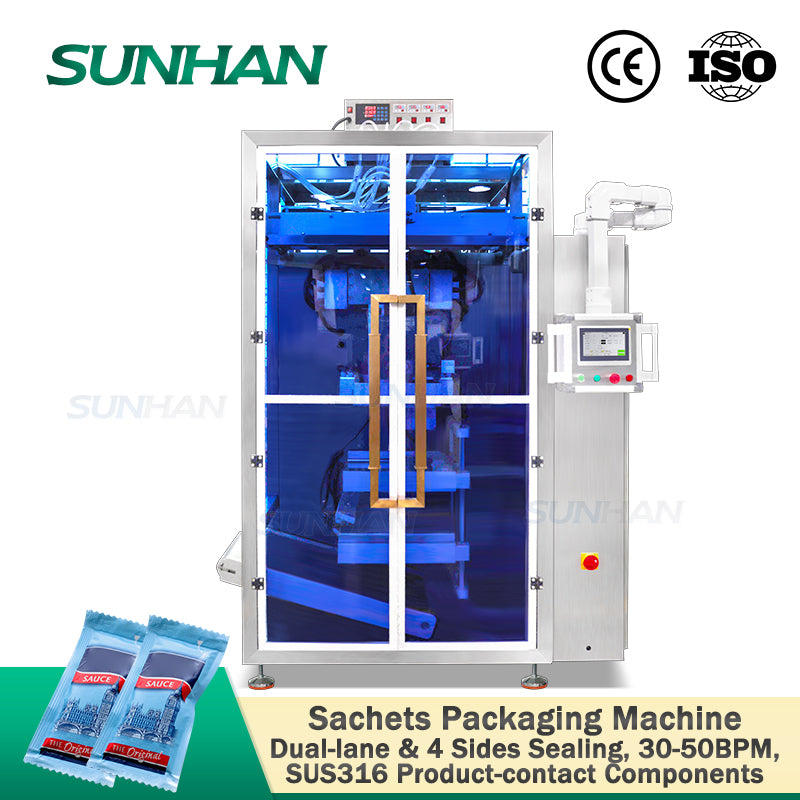

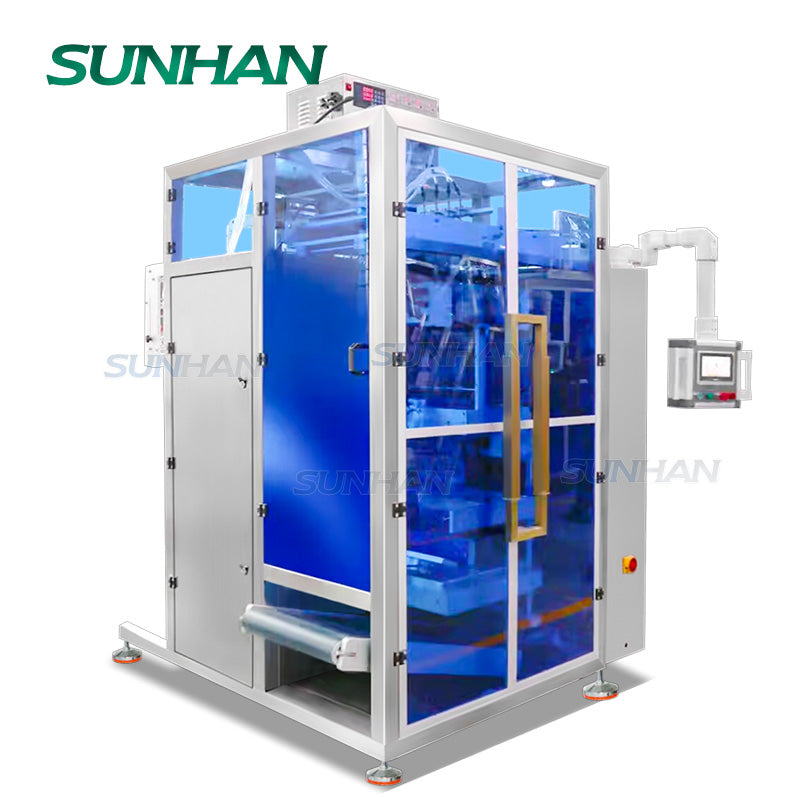

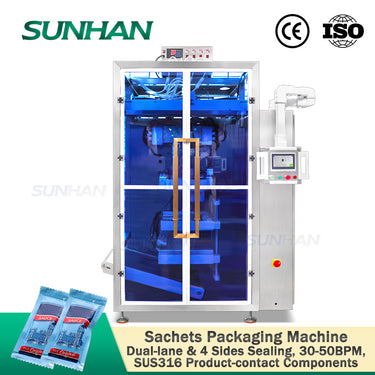

SUNHAN SH-FS350Y-2 Automatic Servo Double Lanes 4 Sides Seal Shampoo Conditioner Lotion Sachets Filling Sealing Machine

Shipping calculated at checkout.
Voltage: 110V
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

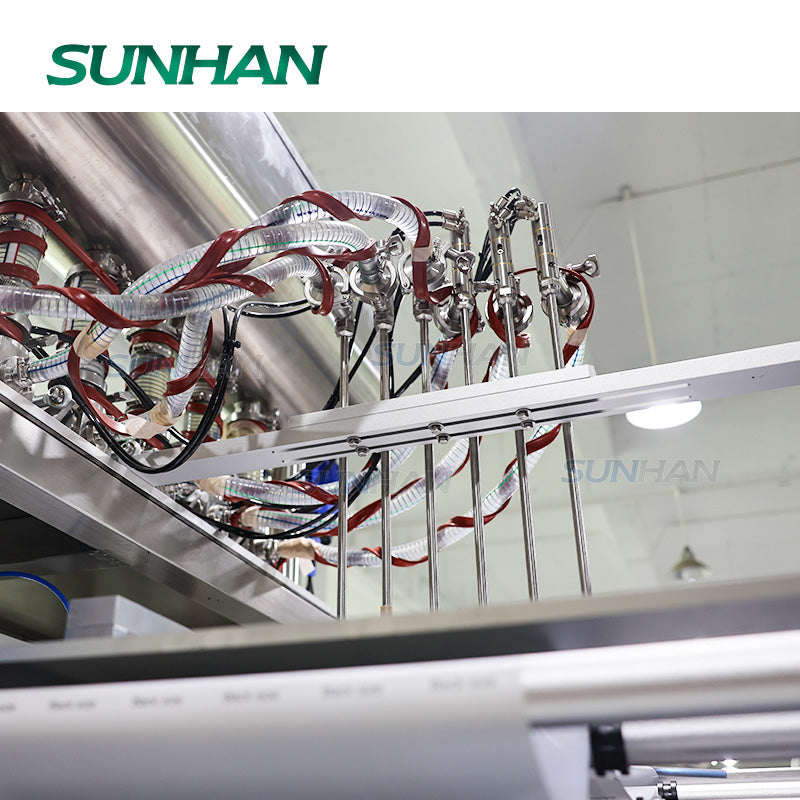

▶Pneumatic ceramic piston pump ensures accurate filling from 1-12 ml, ideal for small-dose liquid packaging.
▶Dual-lane & four-side seal design with production speed of 30-50 sachets/min, improving packaging efficiency.

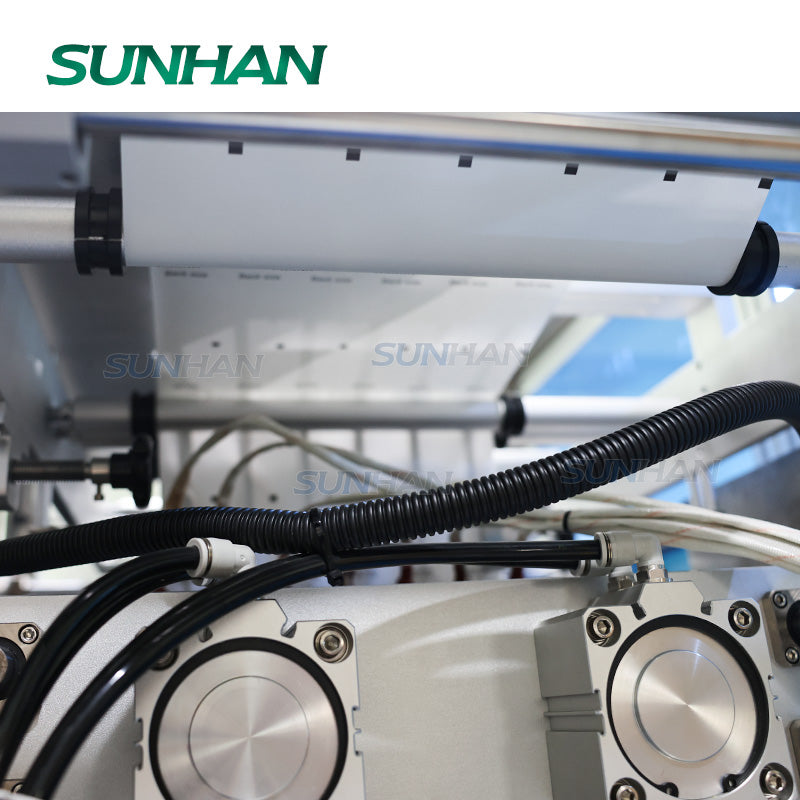

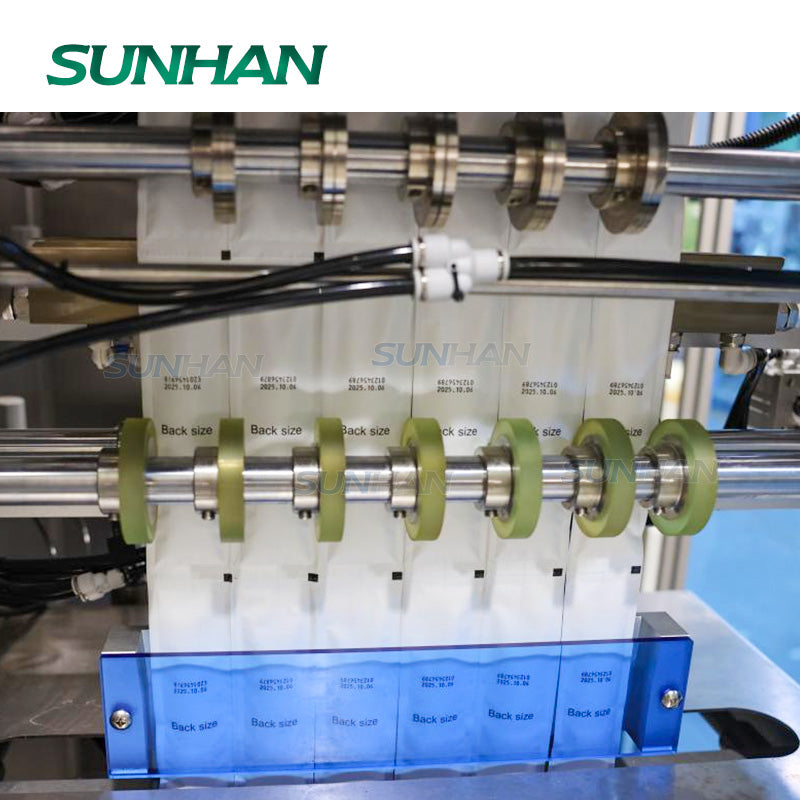

▶Photoelectric color mark tracking & servo film pulling system ensures stable film pulling and consistent sachet length.

Parameter

  • Machine Model:SH-FS350Y-2
  • Power Supply:AC 380V / 50Hz / 60Hz
  • Packaging Type:Four-side seal
  • Dosing Method:Pneumatic ceramic piston pump(Customizable as needed)
  • Filling Range:1-12 ml
  • Filling Accuracy:±5-7% (depending on product and packaging material)
  • Bag Length:40-180 mm
  • Bag Width:60 mm
  • Packaging Speed:30-50 bags/min (depending on product and packaging material)
  • Power Consumption:6.8 kW
  • Air Pressure Requirement:≥0.6 MPa
  • Machine Dimensions:1645*1279*2642 mm(L*W*H)
  • Machine Weight:800 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of liquid oil sachets filling sealing machine
datasheet of lotion sachet filling and sealing machine
machine details of conditioner sachet packing machine-1
machine details of conditioner sachet packing machine-2
real shot small bag shampoo filling sealing machine

Our Workshop

Cover area 7000 ㎡ • ISO9001 Quality Assurance System • Quality Control Team
