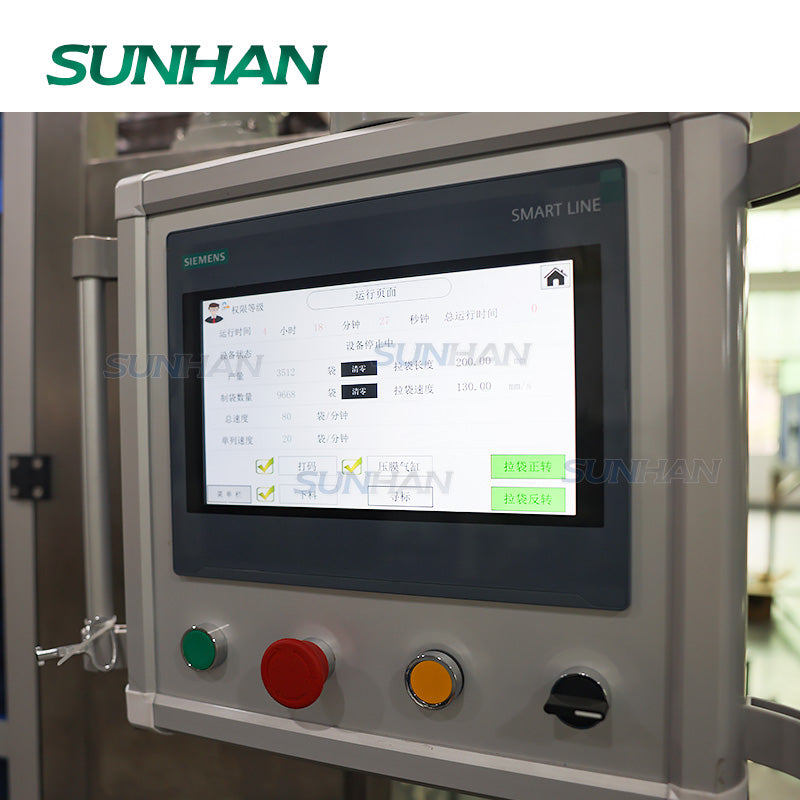

control panel of automatic sachet packing machine-1

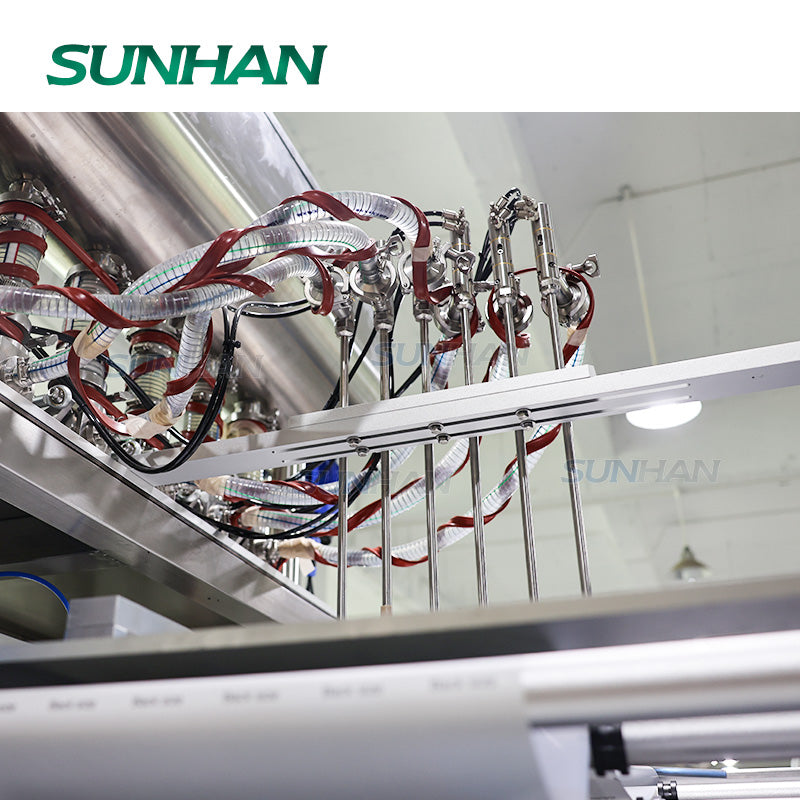

filling system of automatic sachet packing machine-2
lane separation assembly of automatic sachet packing machine-3

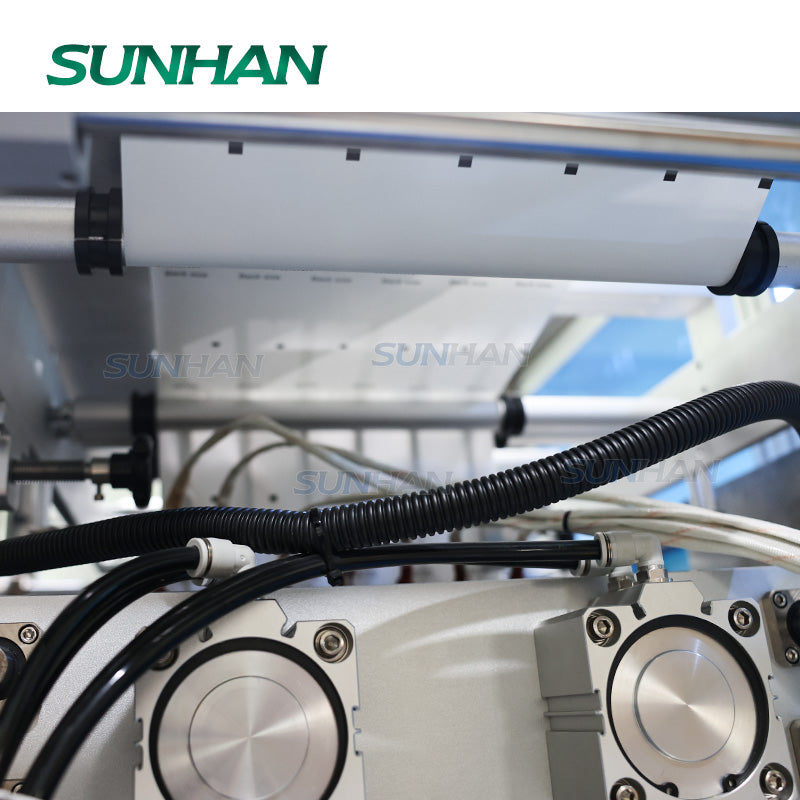

film pulling system of automatic sachet packing machine-4
sauce sachet filling sealing machine
sachet filling machine
control panel of automatic sachet packing machine-1
filling system of automatic sachet packing machine-2
lane separation assembly of automatic sachet packing machine-3
film pulling system of automatic sachet packing machine-4
sauce sachet filling sealing machine

SUNHANPACK

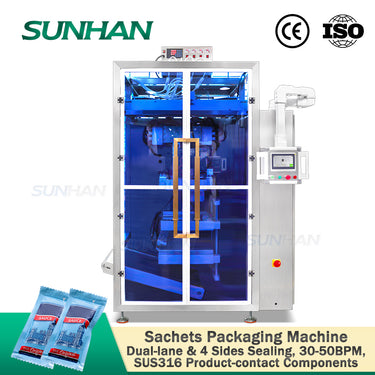

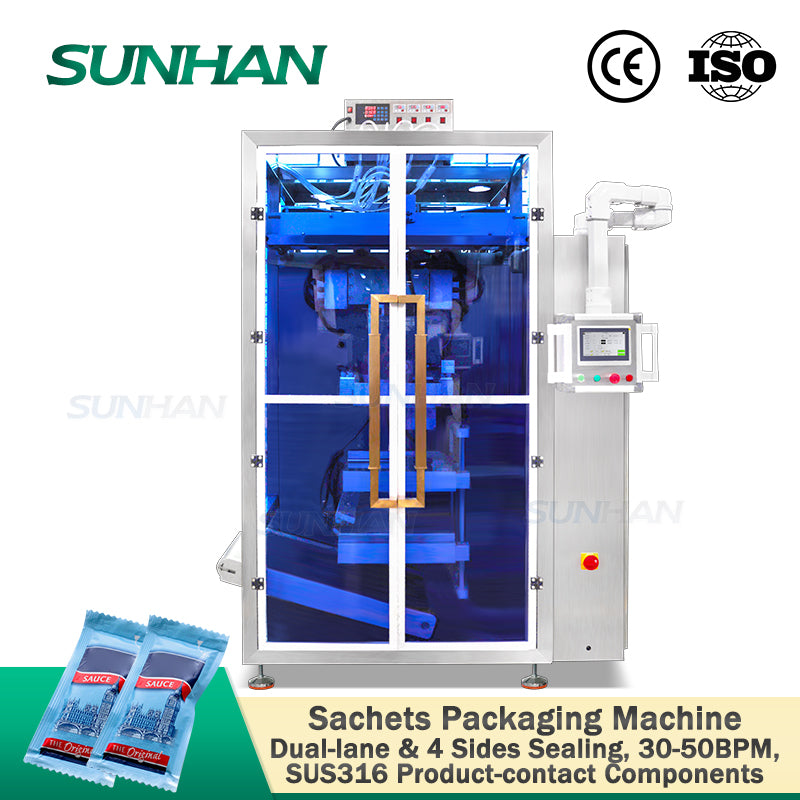

SUNHAN SH-FS350Y-2 Automatic Servo Ceramic Piston Pump Double Lanes Four Sides Sauce Paste Sachet Filling Sealing Packaging Machine

Shipping calculated at checkout.
Voltage: 110V
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

▶With dual-lane, four-side seal design: Doubles output efficiency while ensuring strong, leak-proof sachet sealing.
▶High-precision ceramic piston filling: pneumatic ceramic pumps deliver accurate 1–12 ml dosing, ideal for small-volume liquids.
▶Servo-driven film pulling system: Ensures accurate color mark tracking, consistent bag length, and clean pattern alignment.

Parameter

  • Machine Model:SH-FS350Y-2
  • Power Supply:AC 380V / 50Hz / 60Hz
  • Packaging Type:Four-side seal
  • Dosing Method:Pneumatic ceramic piston pump(Customizable as needed)
  • Filling Range:1-12 ml
  • Filling Accuracy:±5-7% (depending on product and packaging material)
  • Bag Length:40-180 mm
  • Bag Width:60 mm
  • Packaging Speed:30-50 bags/min (depending on product and packaging material)
  • Power Consumption:6.8 kW
  • Air Pressure Requirement:≥0.6 MPa
  • Machine Dimensions:1645*1279*2642 mm(L*W*H)
  • Machine Weight:800 kg
application of sachet packaging machine
datasheet of sachet filling machine
machine details of sauce sachet filling sealing machine-1
machine details of sauce sachet filling sealing machine-2
real shot of automatic sachet packing machine
