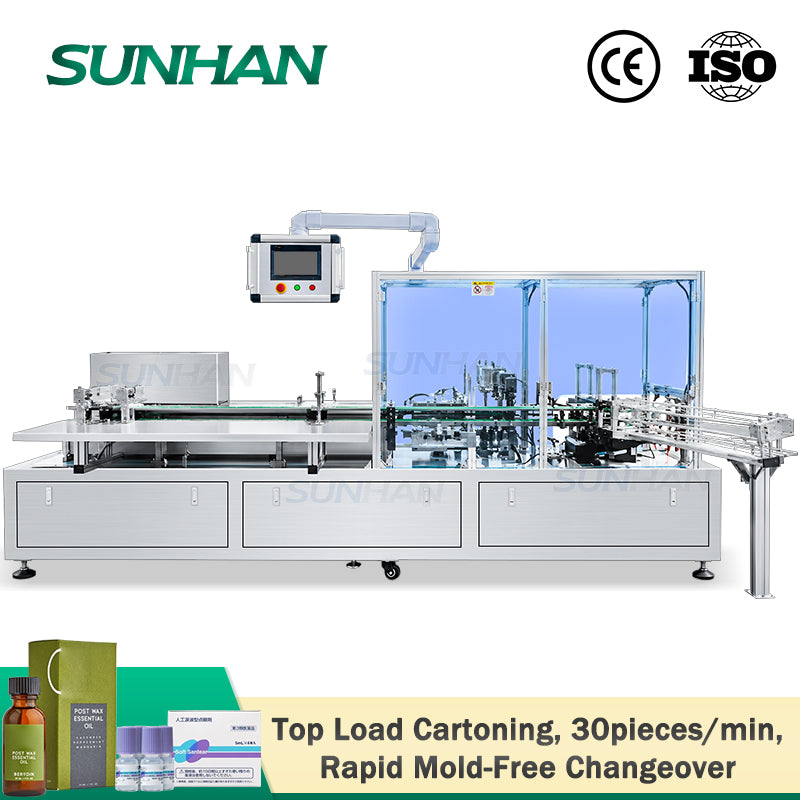

SUNHAN SH-MSZH30L Vertical Automatic Hot Melt Glue Sealing Granule Eye Drops Bottle Carton Box Form Top Load Cartoning Machine

Main Feature

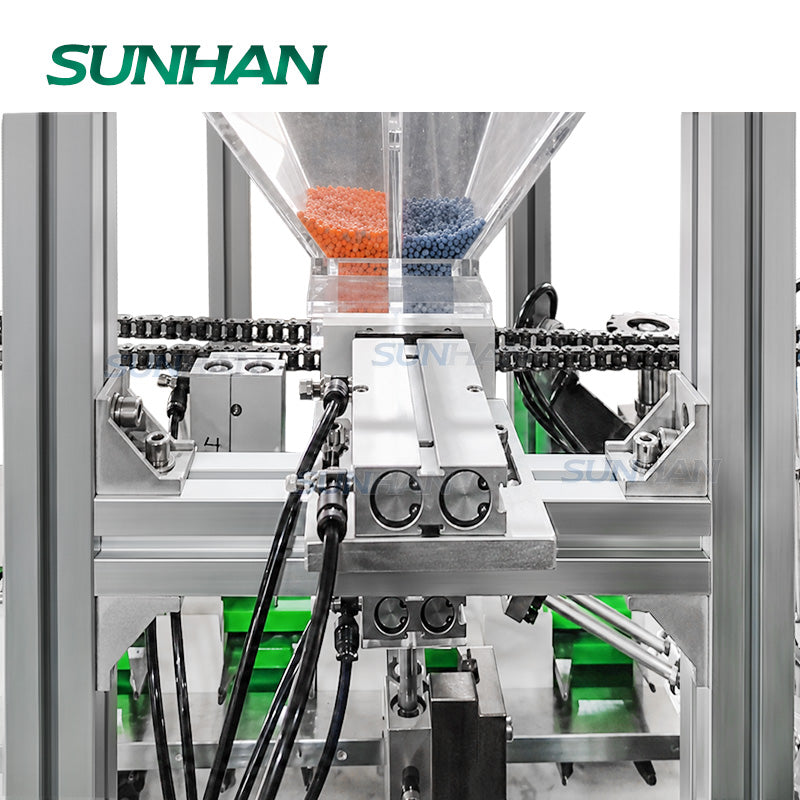

▶Supports tailored feeding and loading solutions, including granule feeding from an external multihead weigher and bottle loading by gripping.

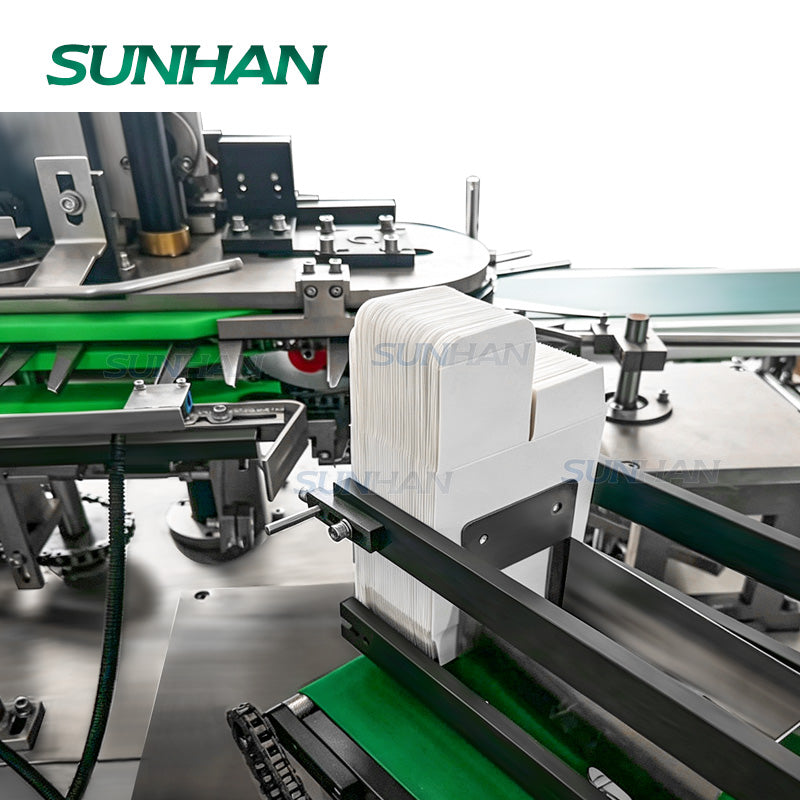

▶Adjustable guides and holding components allow carton size changes without replacing molds.
▶Uses standard tuck-in closure, with optional hot-melt glue sealing to meet different packaging requirements.
▶Can be integrated into a complete production line.

Parameter

• Machine Model:SH-MSZH30L

• Power Supply:220 V / 380 V, 50 Hz

• Rated Power:1.5 kW

• Line Speed:30 cartons/min (actual speed depends on products per carton)

• Carton Material:250-400 g/m² paperboard

• Carton Loading:Customized by product type

• Carton Closure:Tuck-in closure (optional hot-melt glue sealing)

• Air Pressure:≥0.6 MPa

• Air Consumption:20 m³/h

• Format Changeover:Rapid adjustment without mold replacement

• Machine Dimensions:About 3500*1500*1800 mm(L*W*H)

• Machine Weight:About 200 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Frequently Asked Questions of Automatic Top Load Cartoning Machine

Q1. What products can the Automatic Top Load Cartoning Machine handle?

A: The machine can be customized to handle different products, including granules and bottles. The loading system is designed according to the product type and feeding requirements.

Q2. Can the machine handle different carton sizes?

A: Yes. The adjustable carton guides support changeover between different carton sizes without replacing a dedicated mold. The compatible size range should be confirmed based on the carton dimensions.

Q3. Can the machine be customized for bottle loading?

A: Yes. The loading system can be configured with a gripping mechanism to pick up and load bottles into cartons. The gripping structure is customized according to the bottle shape, dimensions, and loading requirements.

Q4. Can the machine handle tuck-end cartons?

A: Yes. The machine can be customized for tuck-end cartons. The carton dimensions, flap structure, and closing requirements should be provided for configuration confirmation.

Q5. Can the machine be integrated into an existing production line?

A: Yes. The machine configuration can be adapted to different production line requirements. Upstream feeding equipment, downstream conveying equipment, available space, and production speed should be evaluated before integration.

Q6. How are machine settings adjusted during operation?

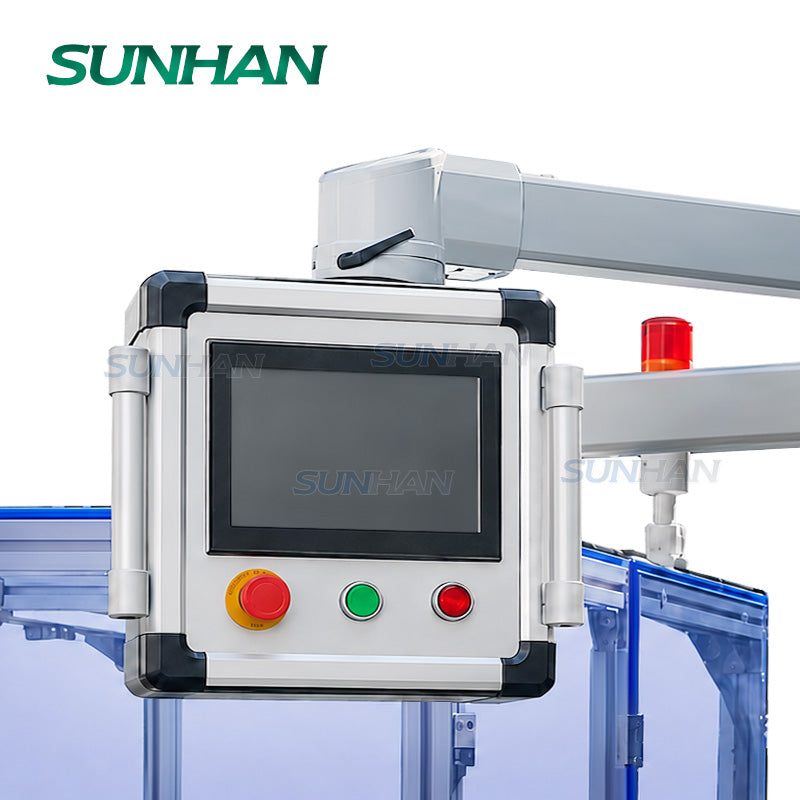

A: The swing-arm touchscreen provides access to machine operation, parameter adjustment, and status monitoring. The available settings depend on the machine configuration.

Q7. What information is needed to customize a cartoning machine?

A: Please provide the product samples or dimensions, carton drawings and dimensions, required packaging speed, loading method, and preferred carton sealing method. These details help determine the appropriate machine configuration.
