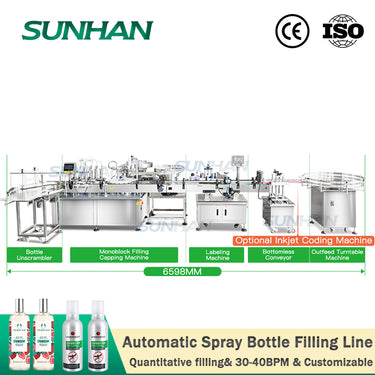

SUNHAN SH-FAL180G8 Automatic Servo Piston Pump Cosmetic Fragrance Perfume Body Mist Spray Bottle Filling Capping Labeling Machine Line

Main Feature

▶Can finish bottle unscrambling, liquid filling, spray cap feeding & crimping, capping and labeling in one line.
▶Suitable for packaging body mist, perfume, etc. Can be equipped with a date coder to print production date or batch automatically.

Parameter

Monoblock Filling Capping Machine

• Machine model:SH-AFC46

• Machine voltage:110/220V 50-60HZ 3KW

• Filling range:100ml (Customizable)

• Working capacity:30-40BPM

• Filling pump:Servo Piston Pump

• Quantity of filling nozzle:6

• Filling accuracy:±1%

• Suitable bottle size:Customizable

• Suitable cap size:Customizable

• Machine size:About 2608*1769*1448mm(L*W*H)

• Machine weight:About 600kg

• Package size:2760*1110*1720mm(Main Machine)
  1550*1560*900(Vibratory Bowl Sorter)

• Package weight:945kg(Main Machine)
  330kg(Vibratory Bowl Sorter)

Labeling Machine

• Model:SH-TB260R

• Power supply:AC220V 50Hz/60Hz 1000 W

• Labeling capacity(bottles/min):25-50 bottles/min(depends on bottle size)

• Labeling accuracy(mm):±1.0 mm

• Suitable Bottle Size:Φ=30-100 mm H=30-200mm

• Label size(mm):(L)20-300 mm* (H)12-130 mm(Can be customized)

• Roll inside diameter(mm):Φ76mm

• Roll outside diameter(mm):Φ350mm

• Conveyor Size:112*2000mm(W)

• Machine size:About (L)2000*(W)820*(H)1380(mm)

• Machine weight:About 180kg

• Packing Size:About (L)2100*(W) 890*(H)1520(mm)

• Package weight:About 250 kg
