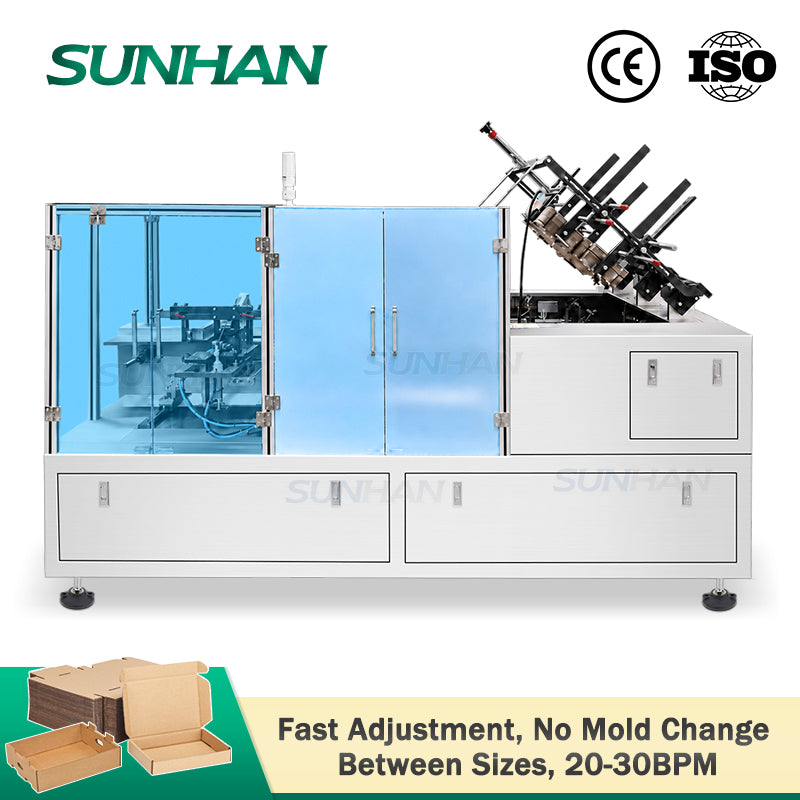

mailer box forming folding machine

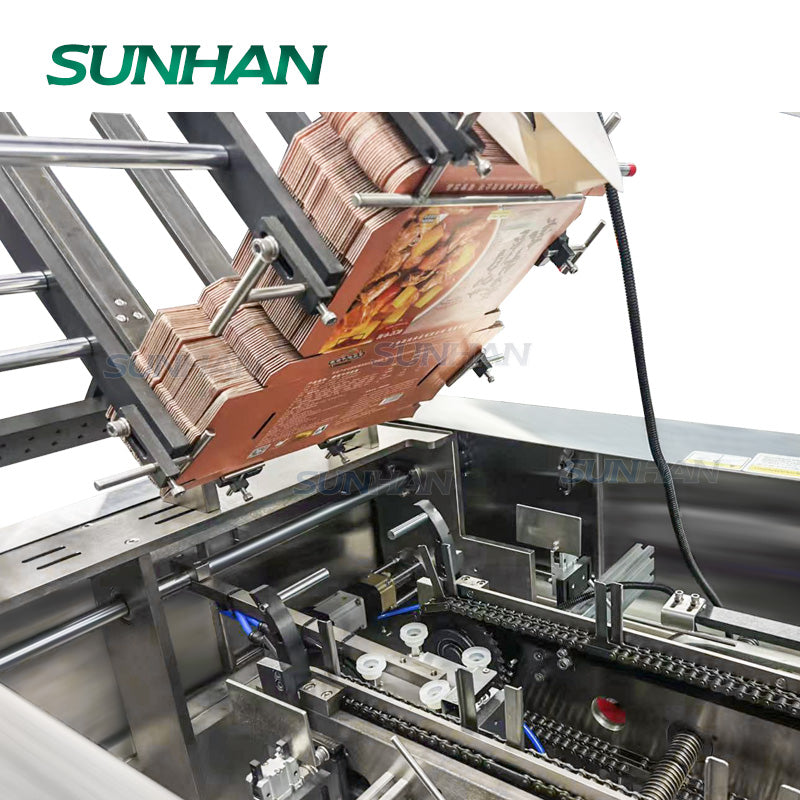

vacuum box picking structure of automatic folding carton erector-1

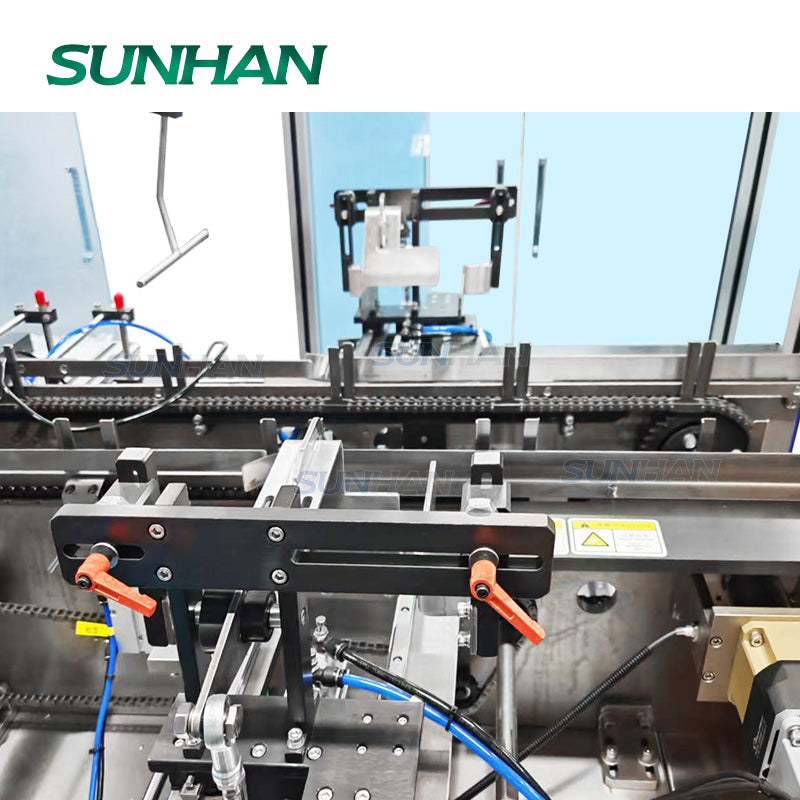

adjustable box holding structure of automatic folding carton erector-2

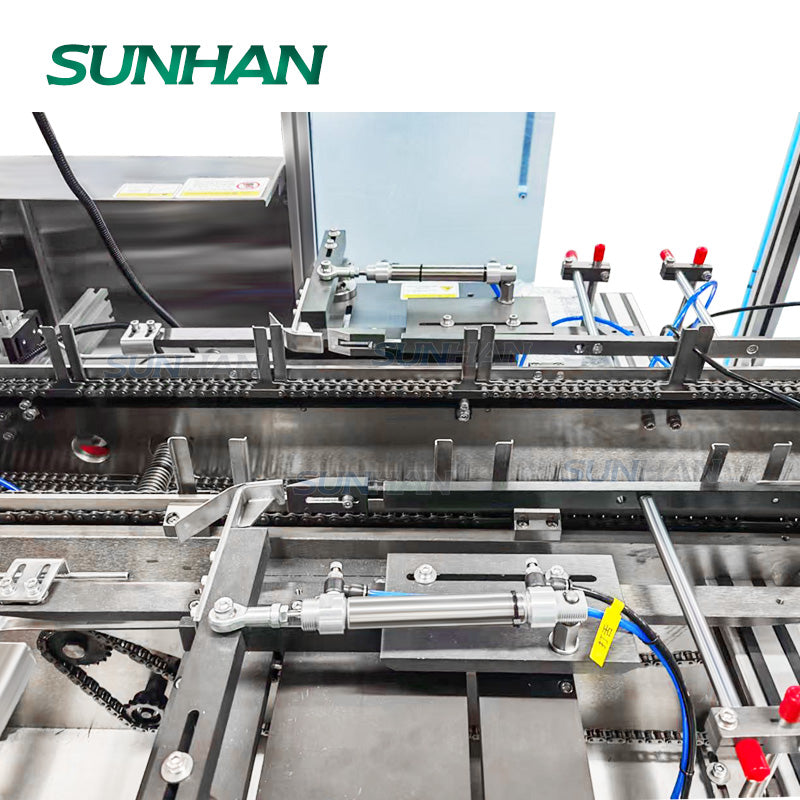

bottom box forming structure of automatic folding carton erector-3

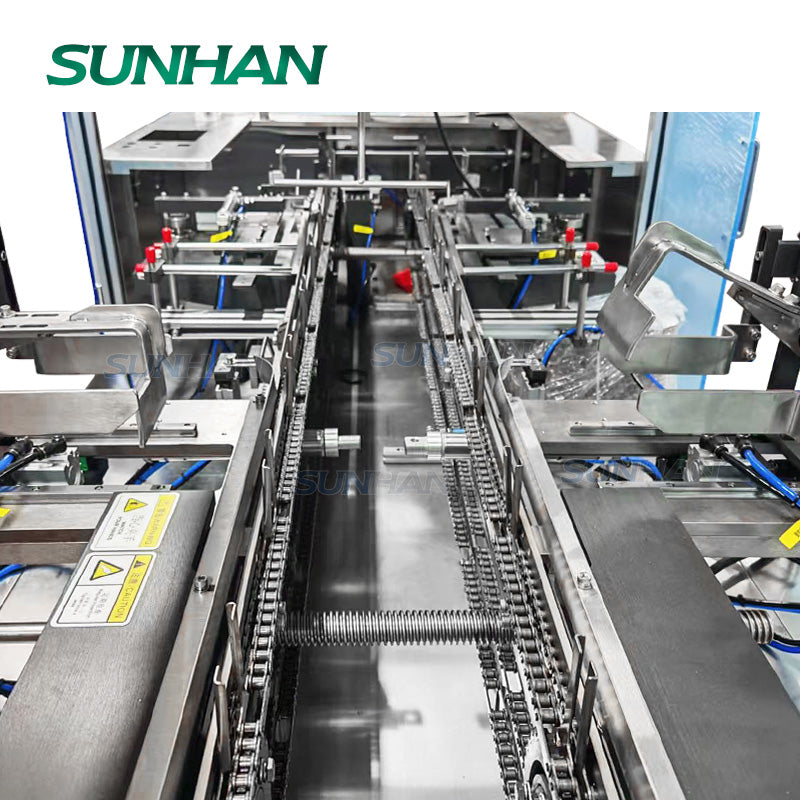

side folding structure of automatic folding carton erector-4
cardboard tray erecting machine
mailer box forming folding machine
video of mailer box forming folding machine
vacuum box picking structure of automatic folding carton erector-1
adjustable box holding structure of automatic folding carton erector-2
bottom box forming structure of automatic folding carton erector-3
side folding structure of automatic folding carton erector-4
cardboard tray erecting machine

SUNHANPACK

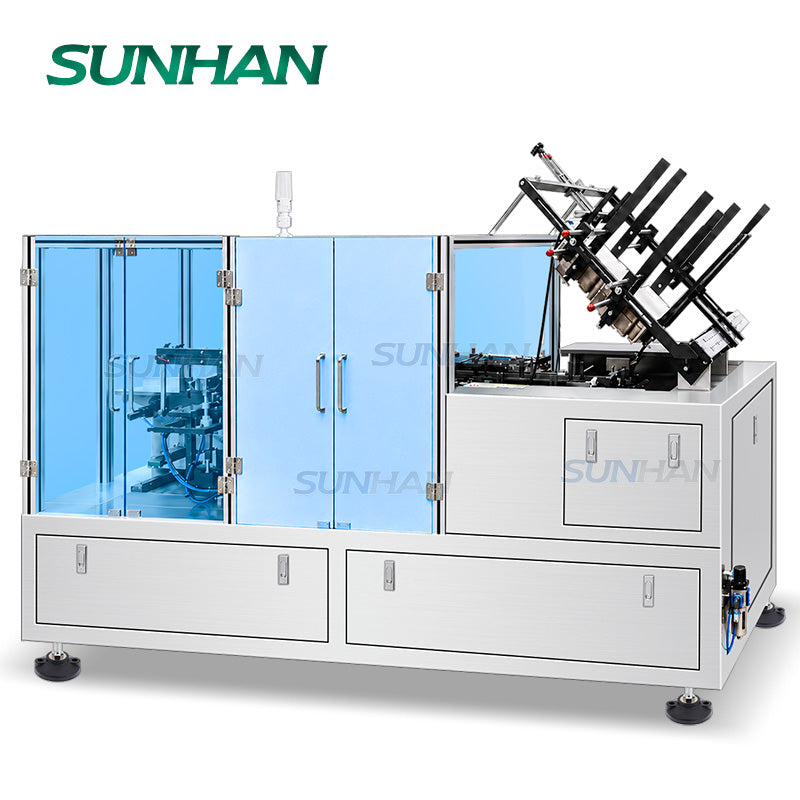

SUNHAN SH-MSZH20L High Speed Automatic Servo Mailer Carton Box Erector Corrugated Cardboard Tray Forming Folding Machine

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Continuous vacuum box picking, forming and folding support a working speed of 20-30 boxes per minute.
▶Servo motor control allows quick adjustment for different mailer box specifications, reducing setup time between sizes.
▶Adjustable box holding structure accommodates different box sizes without replacing forming molds.
▶Bottom forming, side folding and tab insertion are completed automatically to form finished mailer boxes.

Parameter

  • Machine Model:SH-MSZH20L
  • Voltage:220 V / 380 V, 50 Hz
  • Power:2.5 kW
  • Production Speed:20–30 pcs/min
  • Paper Box Requirements:220–450 g/m²
  • Paper Box Size:150*100*45 mm, 150*150*50 mm, 250*130*55 mm
  • Air Pressure:≥0.6 MPa
  • Air Consumption:20 m³/h
  • Machine Dimensions:About 2200*1000*1500 mm(L*W*H)
  • Machine Weight:About 1000 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of automatic folding carton erector
machine component of mailer box forming folding machine
machine details of cardboard tray erecting machine-1
machine details of cardboard tray erecting machine-2
real shot of corrugated box folding erector
