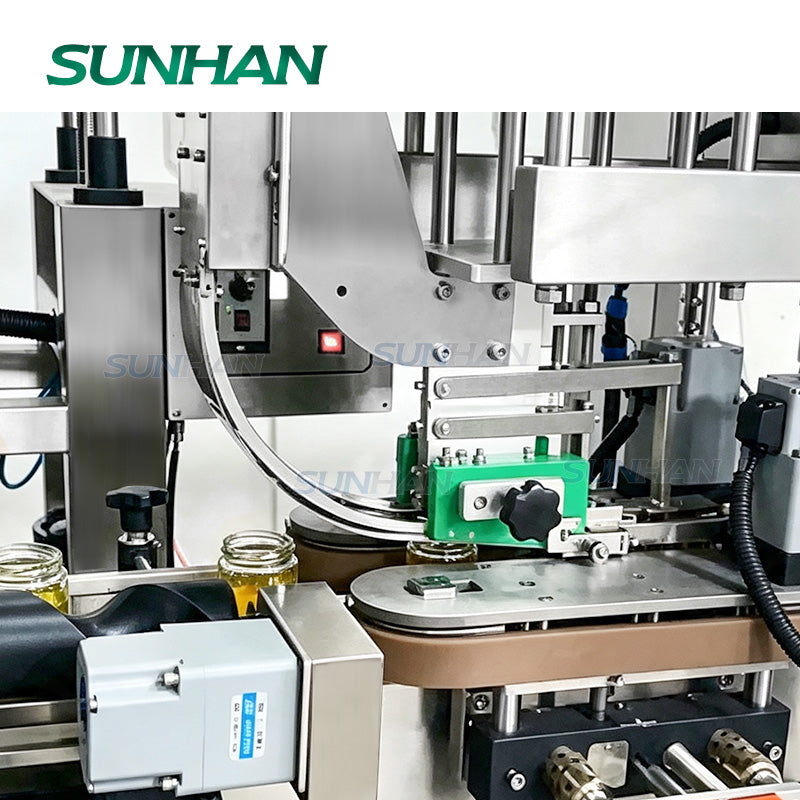

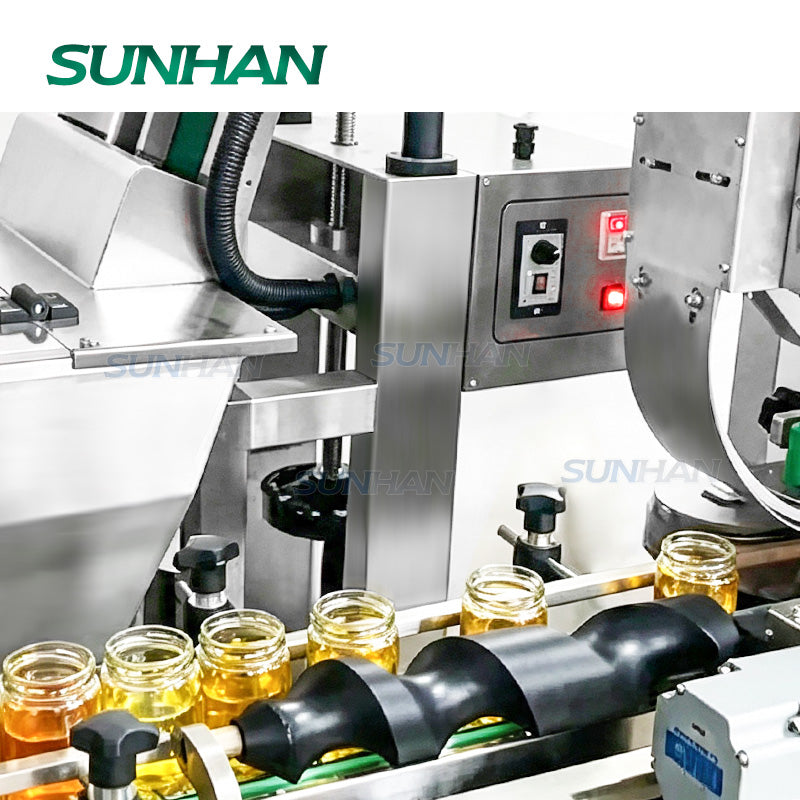

sorting and orientation of tracking lug capping machine-1

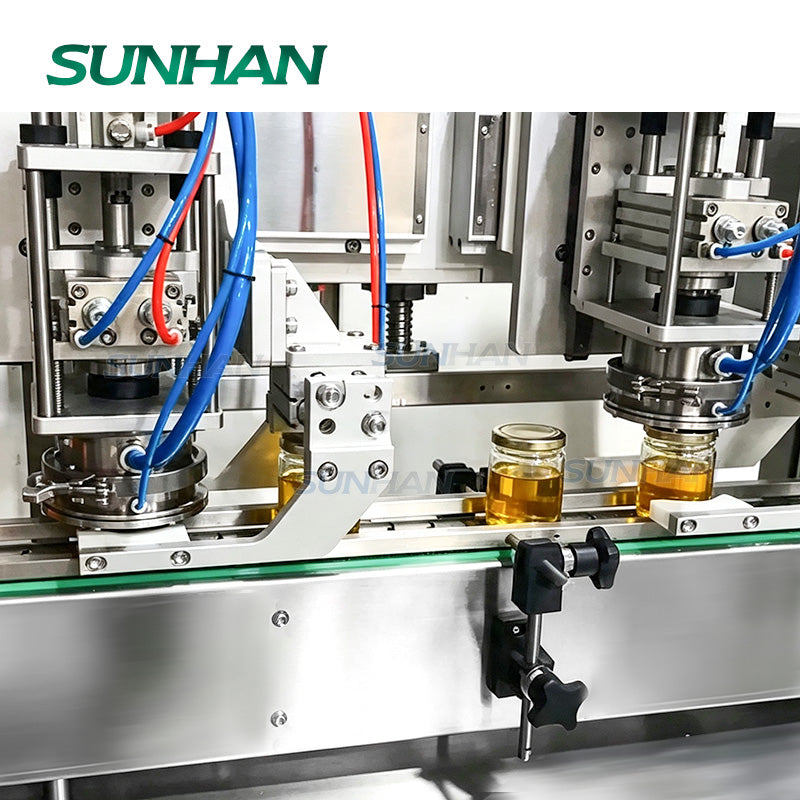

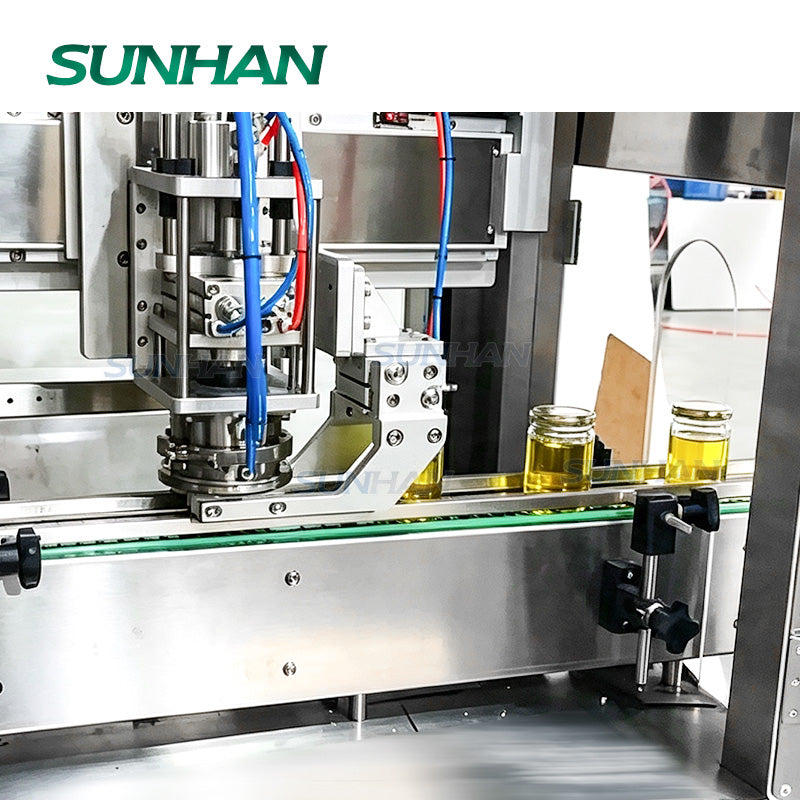

tracking capping of tracking lug capping machine-2

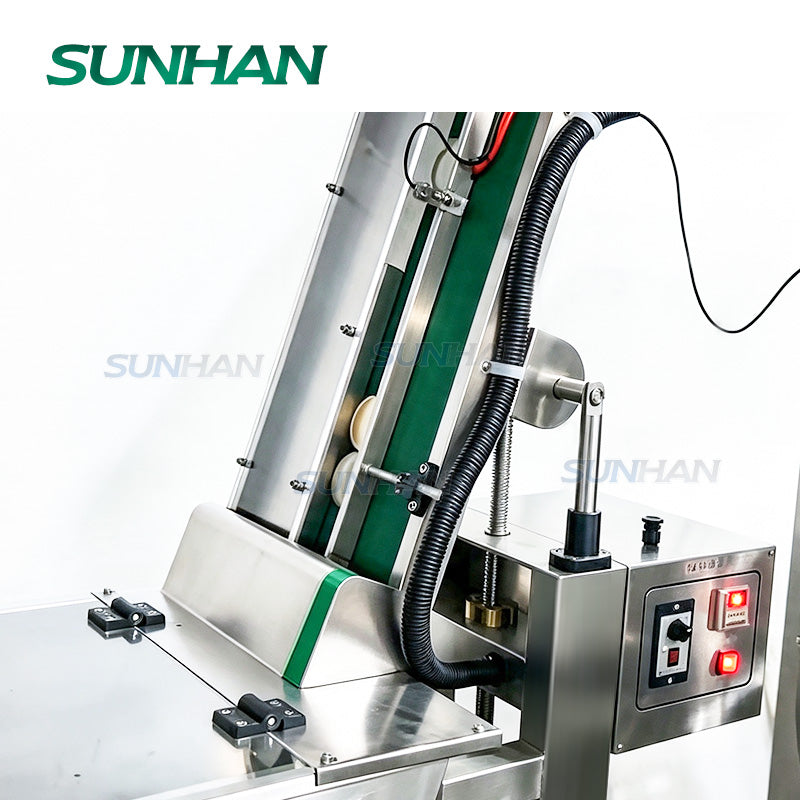

cap placing structure of tracking lug capping machine-3
vacuum sealing of tracking vacuum capping machine-4
tracking lug capping machine

SUNHANPACK

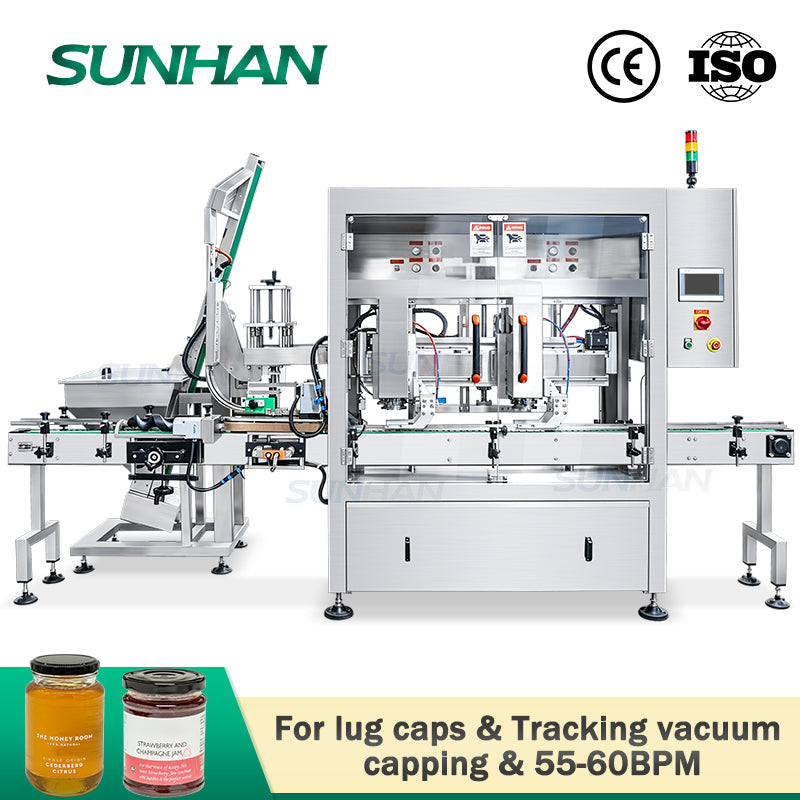

SUNHAN SH-AFK180 Automatic Double Heads Twist-off Caps Glass Bottle Vacuum Lug Tracking Capping Machine

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Equipped with 2 tracking capping heads, achieving 55-60 BPM with synchronized bottle movement for fast and accurate cap tightening.
▶Creates a controlled vacuum before sealing to remove air and achieve the preset vacuum level for reliable vacuum sealing.
▶Applies consistent capping torque while tracking the bottles, ensuring stable sealing performance.

Parameter

  • Machine model:SH-AFK180
  • Power supply:AC380V 50Hz  5KW
  • Capping heads:2 tracking heads
  • Production capacity:About 55-60BPM(depending on product size)
  • Suitable cap diameter:φ38-φ80mm
  • Suitable bottle size:φ50-φ80mm * Height 65-200mm
  • Capping torque:5-25kg·cm
  • Vacuum level:-50KPa to -70KPa
  • Conveyor height:800±30mm
  • Air pressure:>0.5MPa, 0.3m³/min
  • Machine size:About 3800*1133*2030mm(L*W*H)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of glass bottle tracking capping machine
machine component of automatic vacuum lug capping machine
machine details of tracking lug capping machine-1
machine details of tracking lug capping machine-2
real shot of tracking vacuum capping machine
