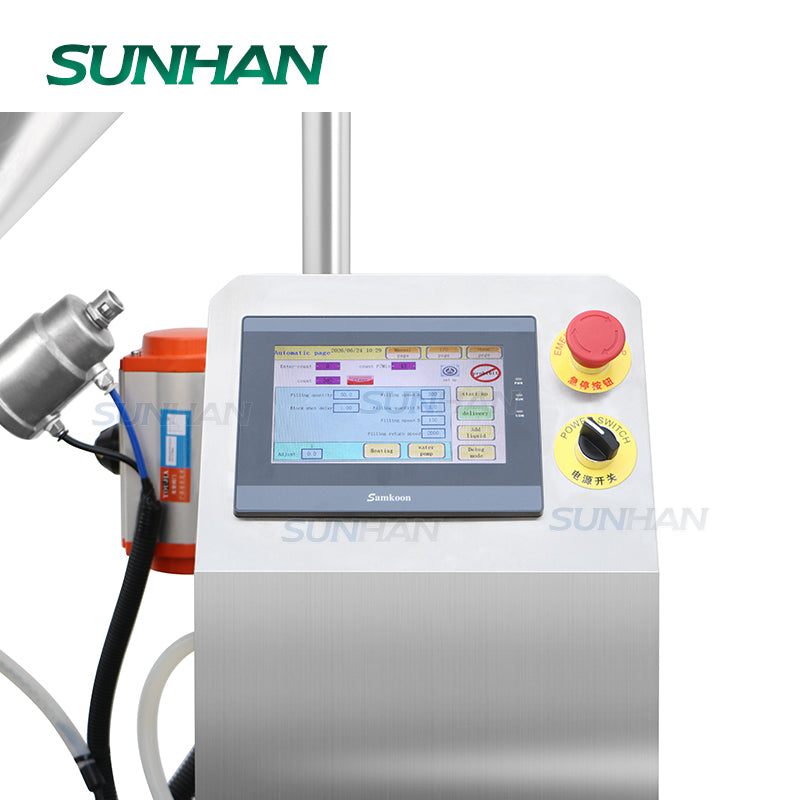

control panel of candle wax filling machine-1

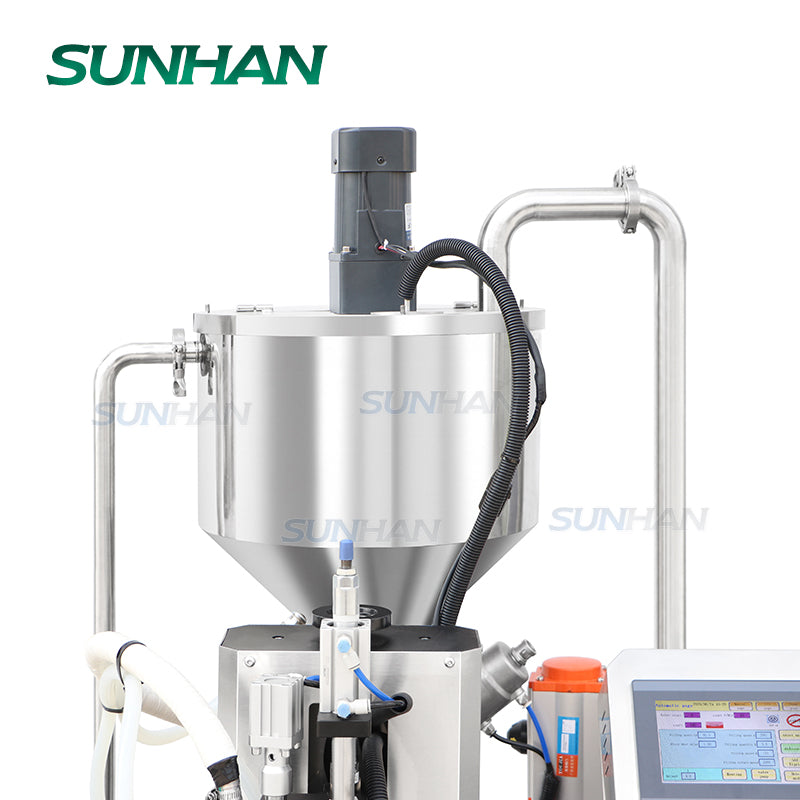

jacketed material hopper of candle wax filling machine-2

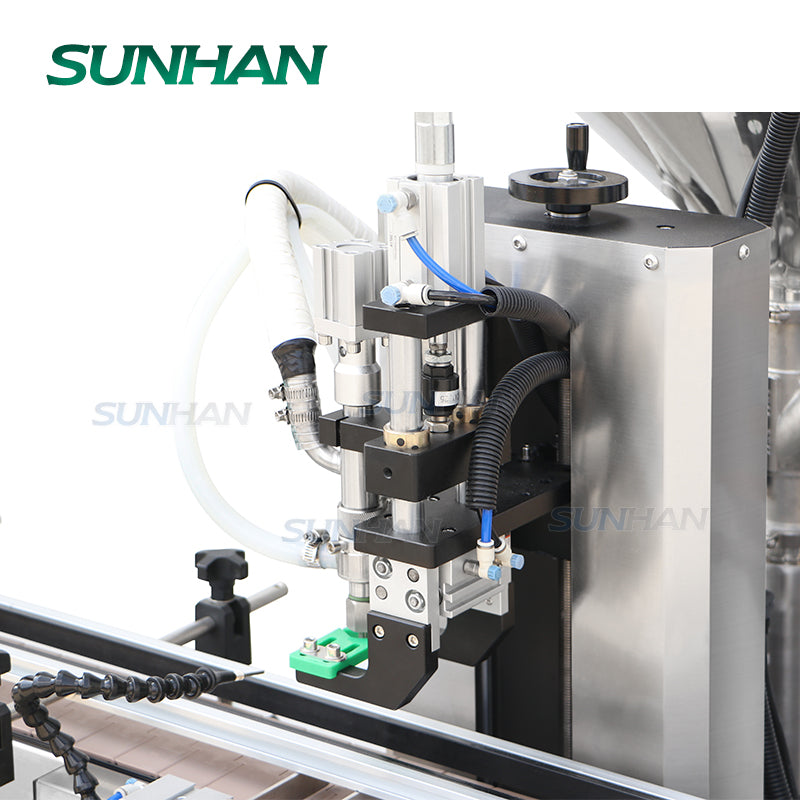

filling nozzle of candle wax filling machine-3

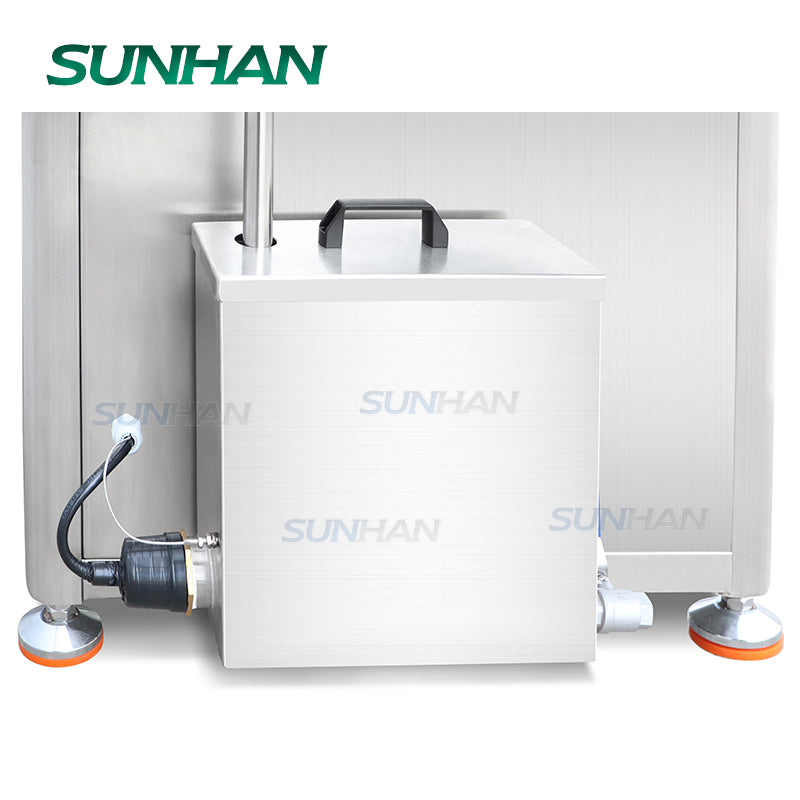

water circulation heating tank of Water Circulation Heating Tank-4
piston pump feeding system of Water Circulation Heating Tank-5

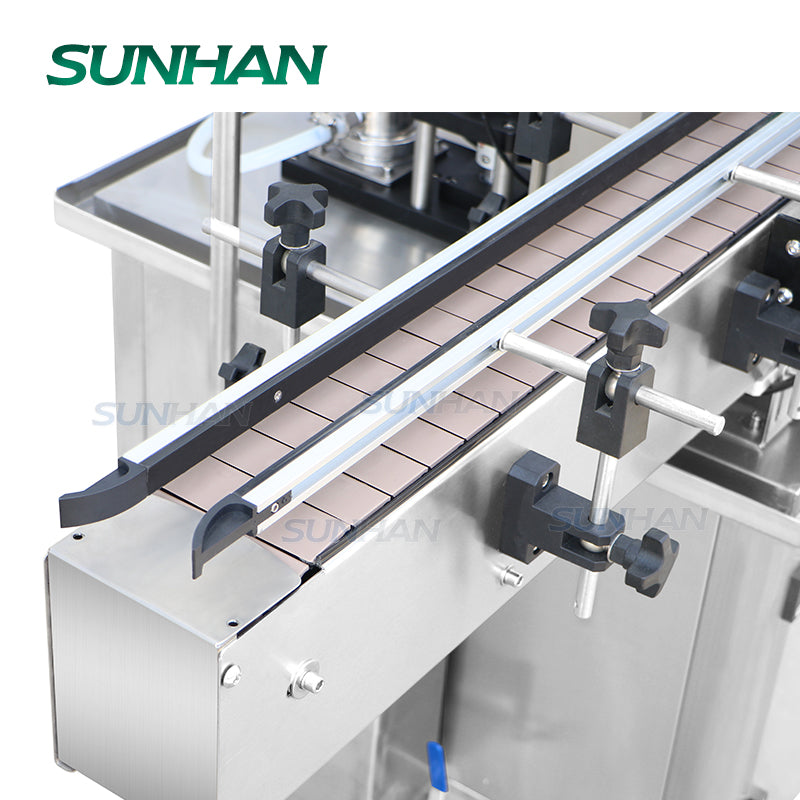

conveyor of Water Circulation Heating Tank-6
consistent heater paste filling machine
candle wax filling machine

SUNHANPACK

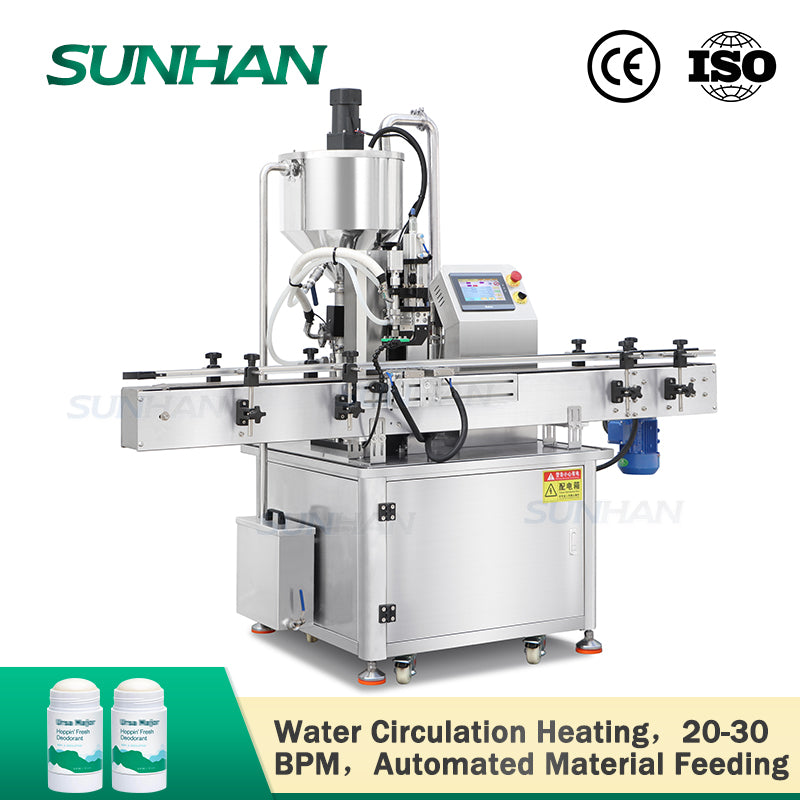

Automatic Piston Pump Viscous Liquid Ointment Cosmetic Cream Filling Machine Shoes Wax Filler With Consistent Heater

Shipping calculated at checkout.
Voltage: 110V
Specification: With Feeding Pump
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Water circulation heating method is adopted to keep the filling material at a constant temperature, improving the filling quality.
▶Filling controlled by piston pump, it has high filling accuracy, error ≤0.5%.
▶It adopts a large-capacity hopper with mixing function, which is suitable for handling viscous products.

Parameter

  • Machine Model:SH-WCHJ1C
  • Power Supply:220V/110V 50-60Hz 4kW
  • Filling Speed:About 20-30 bottles/min (depending on filling range and filling materials)
  • Suitable Bottle Diameter:4-150 mm
  • Suitable Bottle Height:10-200 mm
  • Filling Range:5-150 ml (Can be Customized)
  • Filling Error:≤0.5%
  • Filling Pump:Piston Pump
  • Air Pressure:5-8 kg/cm²
  • Material Contact Part:SUS304
  • Machine Size:About 2050*875*2060mm
  • Package Size:About 1730*940*1970mm
  • Package Weight:About 327kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
application of consistent heater paste filling machine
machine component of consistent heater paste filling machine
machine details of candle wax filling machine
machine details of filling machine for shoes wax
machine details of cosmetic cream filling machine
real shot of piston pump filling machine-1
real shot of piston pump filling machine-2
