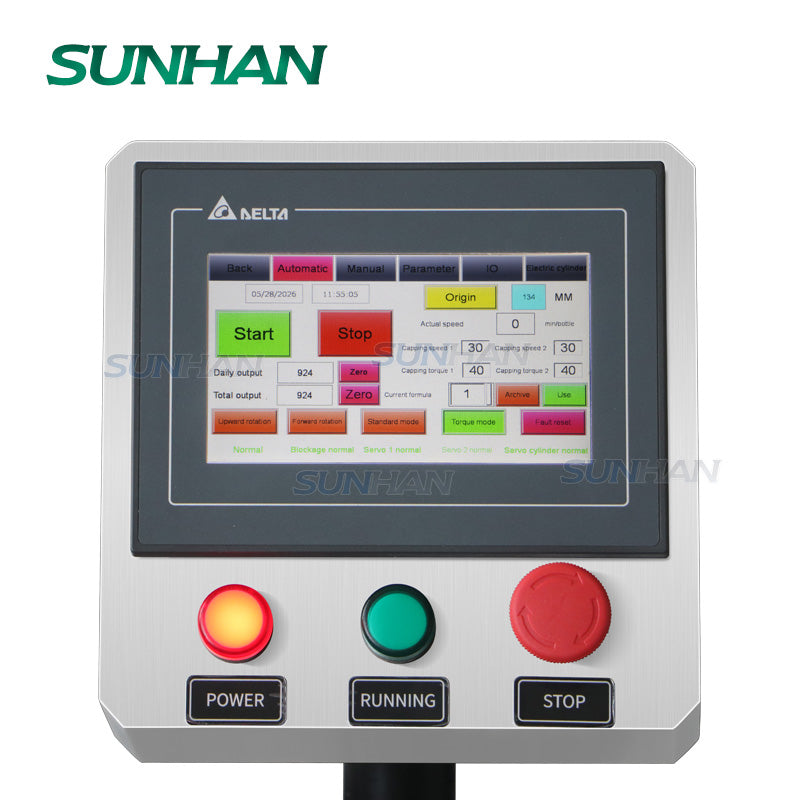

control panel-1

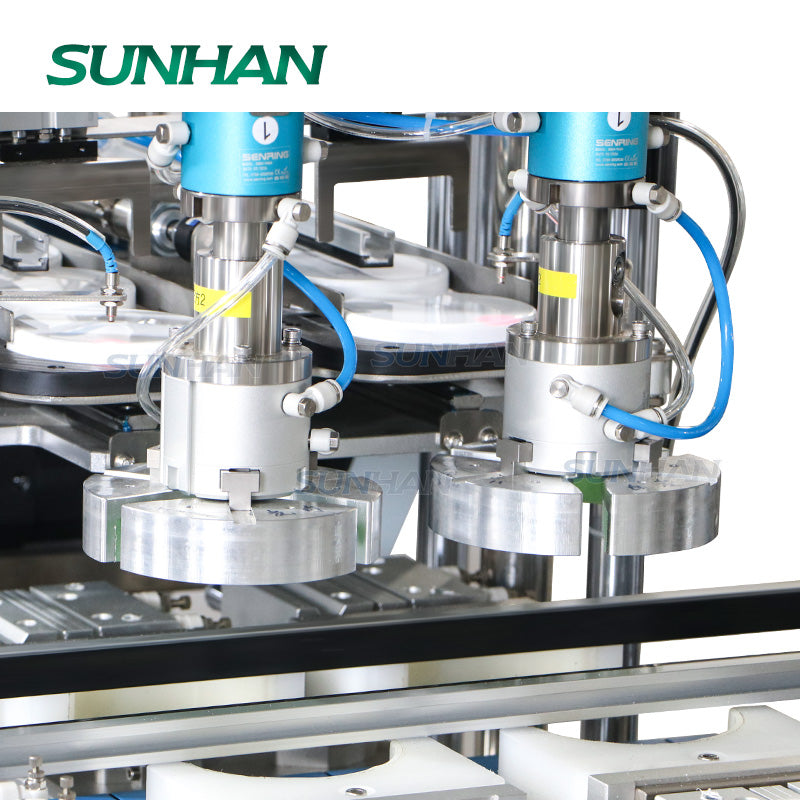

cap passing and capping structure-2

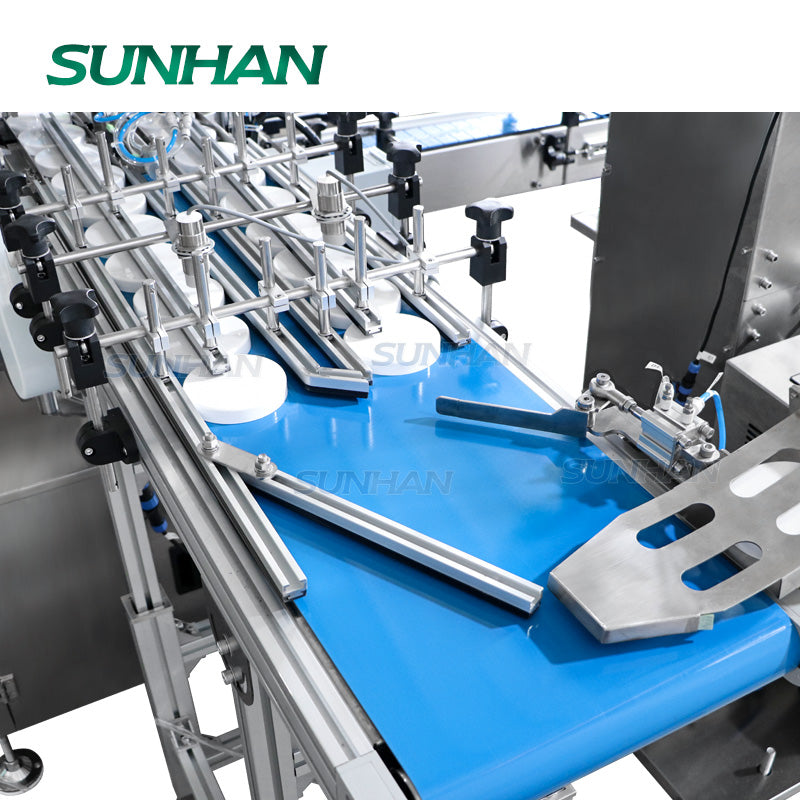

bottle clamping structure-3

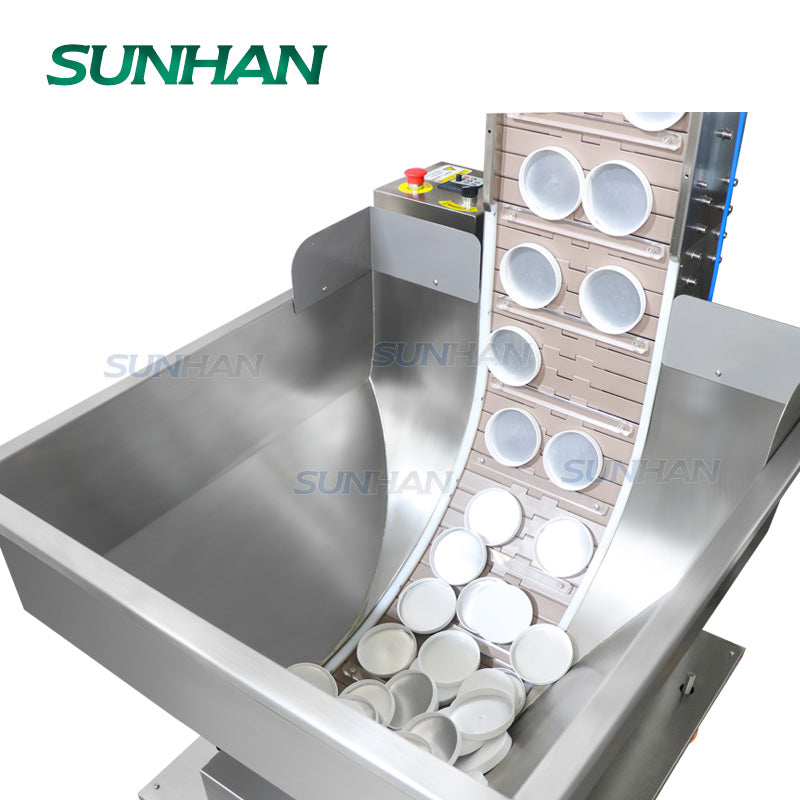

cap elevator-4
cosmetic cream jar capping machine

SUNHANPACK

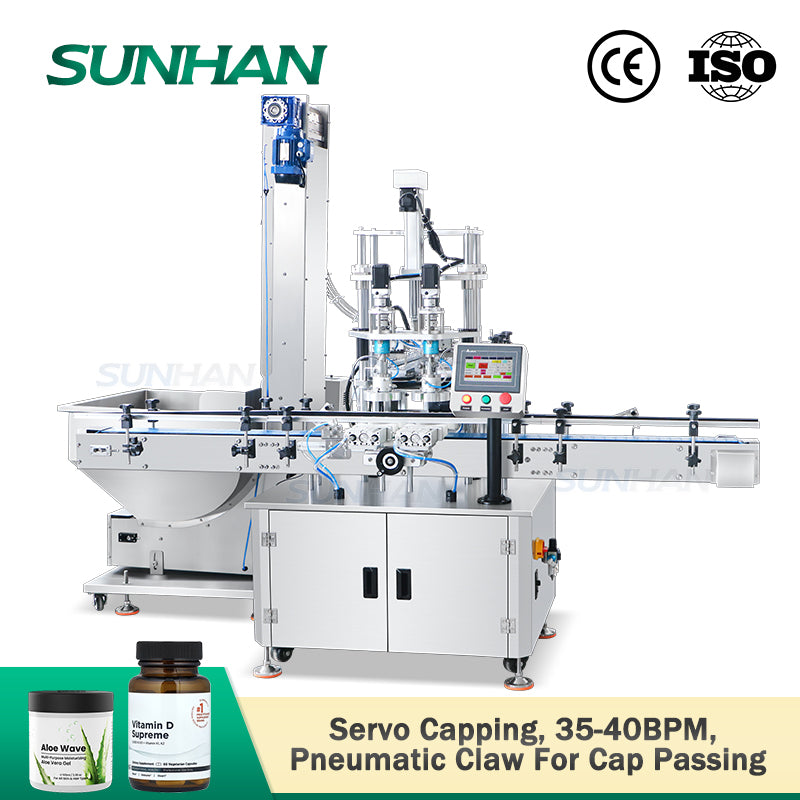

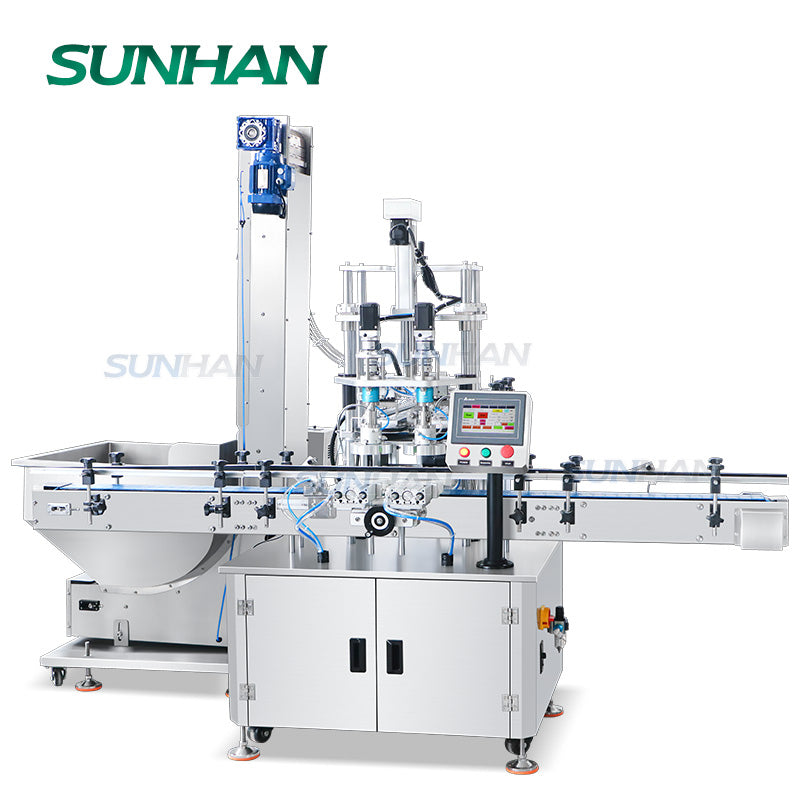

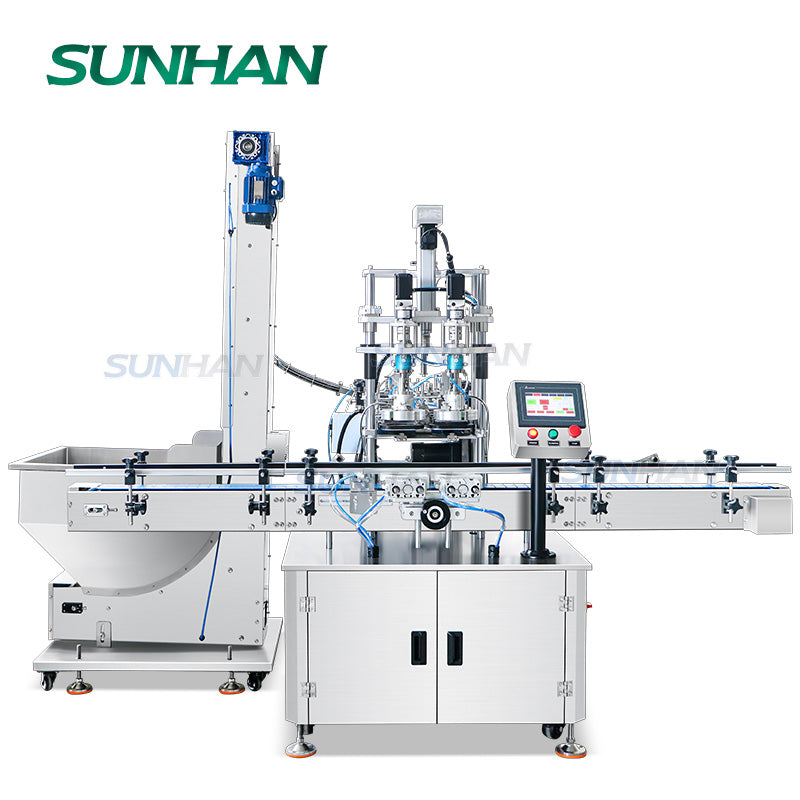

SUNHAN SH-SVXG01 Automatic Double Heads Cosmetic Cream Jar Servo Screw Capping Machine With Cap Elevator

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶This capping machine can realize cap feeding, bottle clamping, conveying and capping automatically.

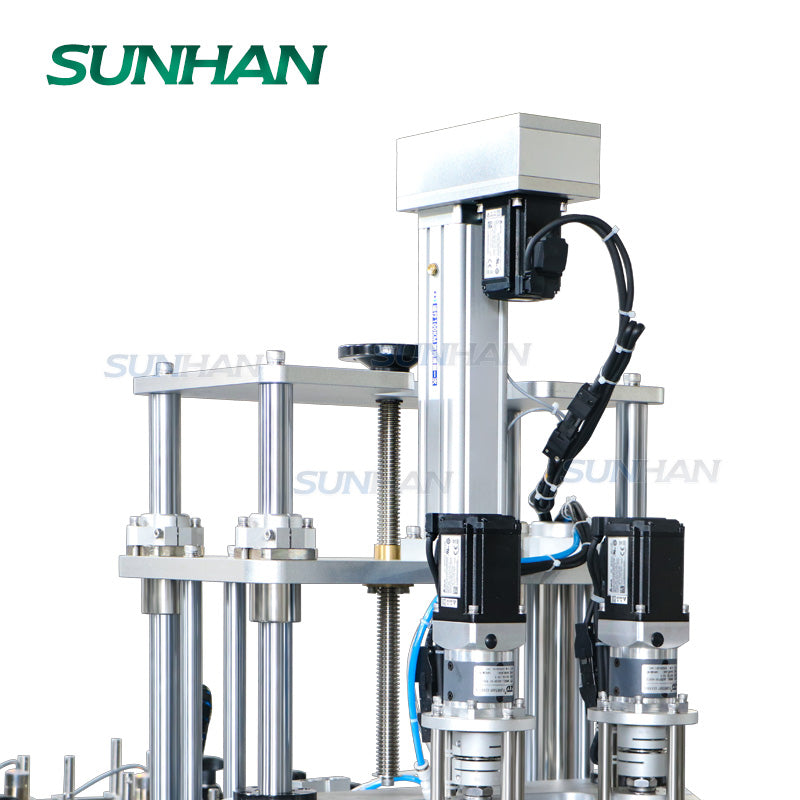

▶Capping work is controlled by servo motor, the capping torsion can be controlled more accurately to ensure the capping efficiency.
▶Suitable for packaging seasoning, daily chemical and cosmetics jar.

Parameter

  • Machine model:SH-SVXG01
  • Machine voltage:110/220V 50-60HZ 1.5KW
  • Suitable bottle size:φ=20-150mm H=20-220mm
  • Suitable cap size:customizable
  • Working capacity:2100-2300BPH
  • Conveyor size:2000*114mm(L*W)
  • Working Height=850mm
  • Machine casing material:SUS304
  • Air consumption:0.4-0.6MPa
  • Machine size:About 3000*900*1550mm
  • Machine weight:About 260kg
application of servo capping machine with cap elevator
datasheet of hand cream jar bottle capping machine
machine details of double heads screw capping machine-1
machine details of double heads screw capping machine-2
real shot of cosmetic cream jar capping machine

Our Workshop

Cover area 7000 ㎡ • ISO9001 Quality Assurance System • Quality Control Team
