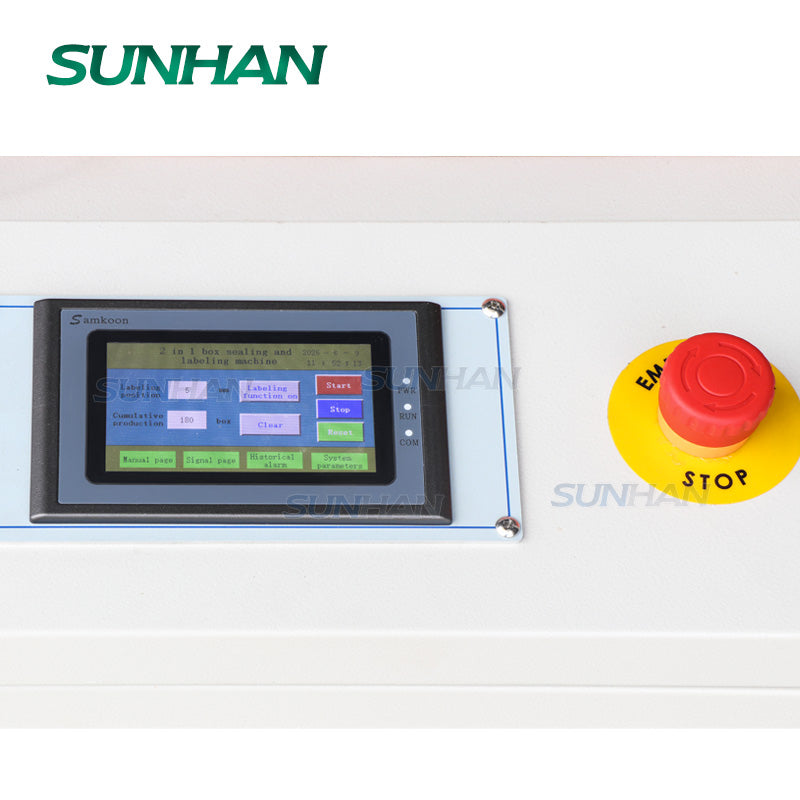

operation panel of carton tape sealing labeling machine-1

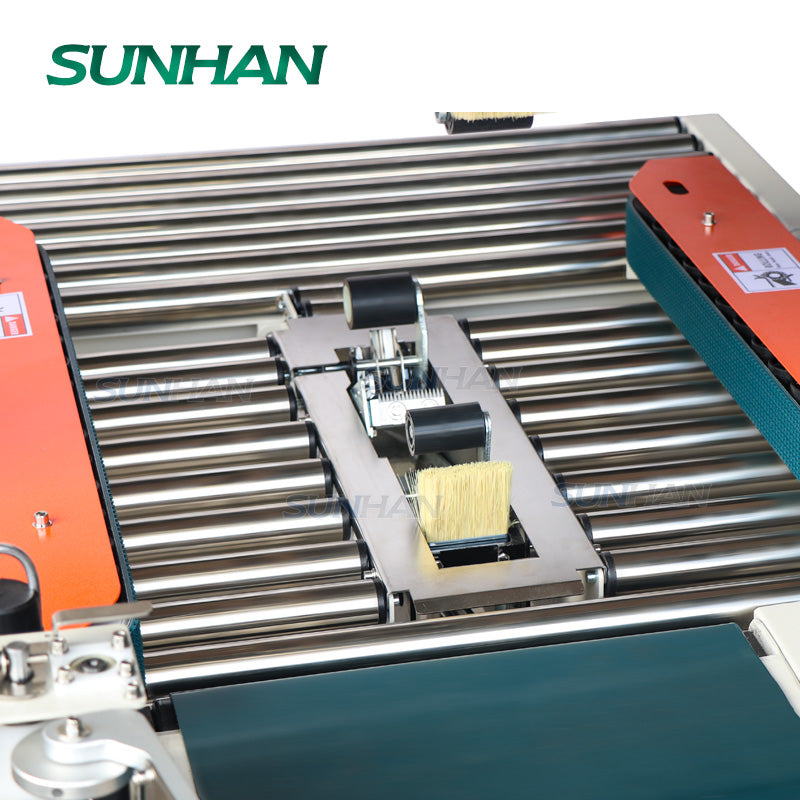

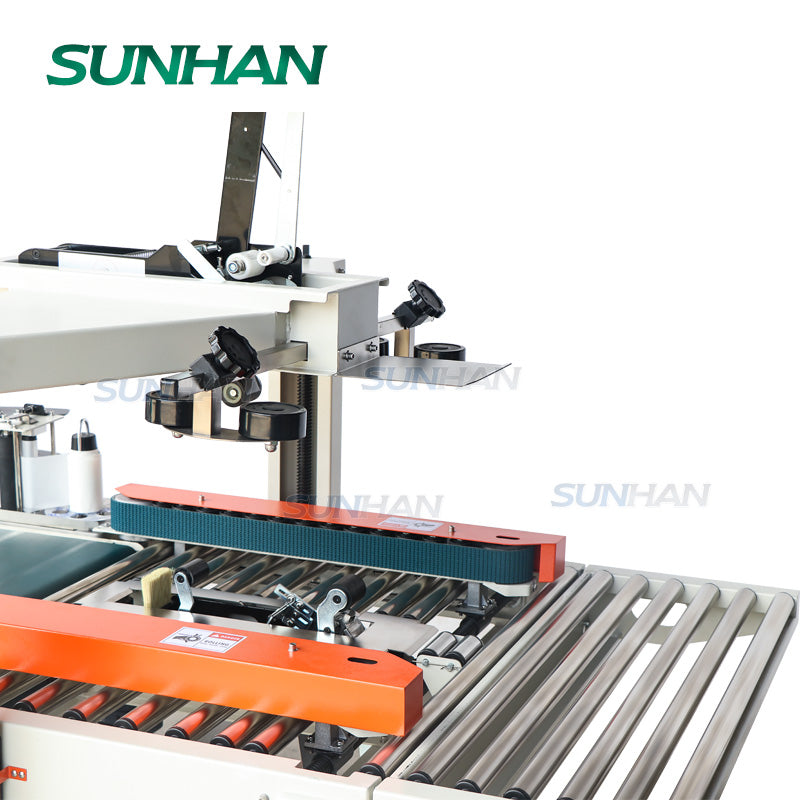

carton sealing structure of carton tape sealing labeling machine-2

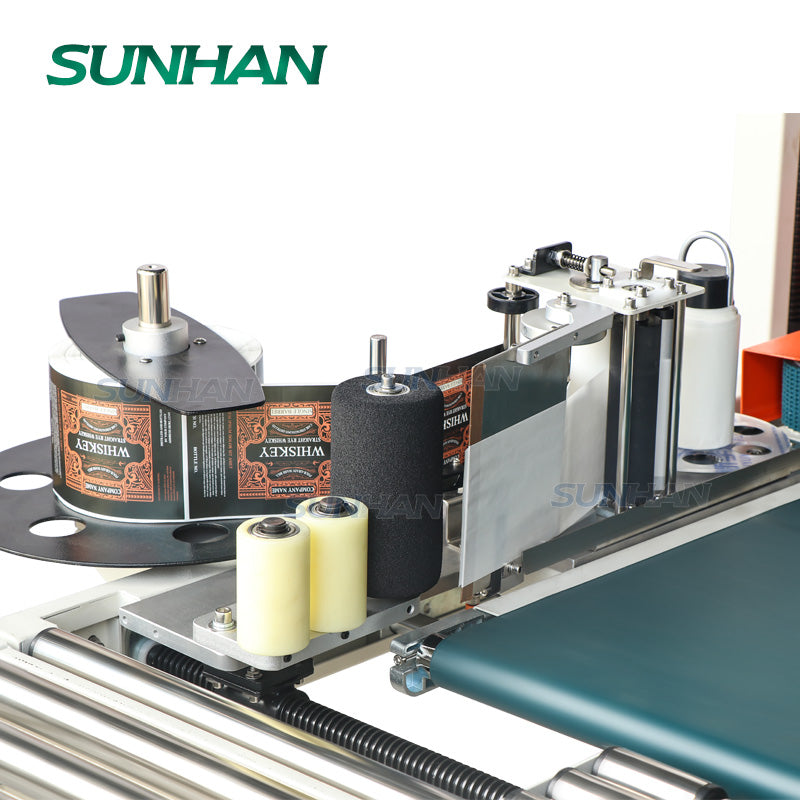

labeling structure of carton tape sealing labeling machine-3
dual side-belt conveyor of carton tape sealing labeling machine-4
carton case tape sealing labeling machine
carton adhesive tape sealer machine
automatic box taping labeling machine
video of carton tape sealing labeling machine
operation panel of carton tape sealing labeling machine-1
carton sealing structure of carton tape sealing labeling machine-2
labeling structure of carton tape sealing labeling machine-3
dual side-belt conveyor of carton tape sealing labeling machine-4
carton case tape sealing labeling machine
carton adhesive tape sealer machine

SUNHANPACK

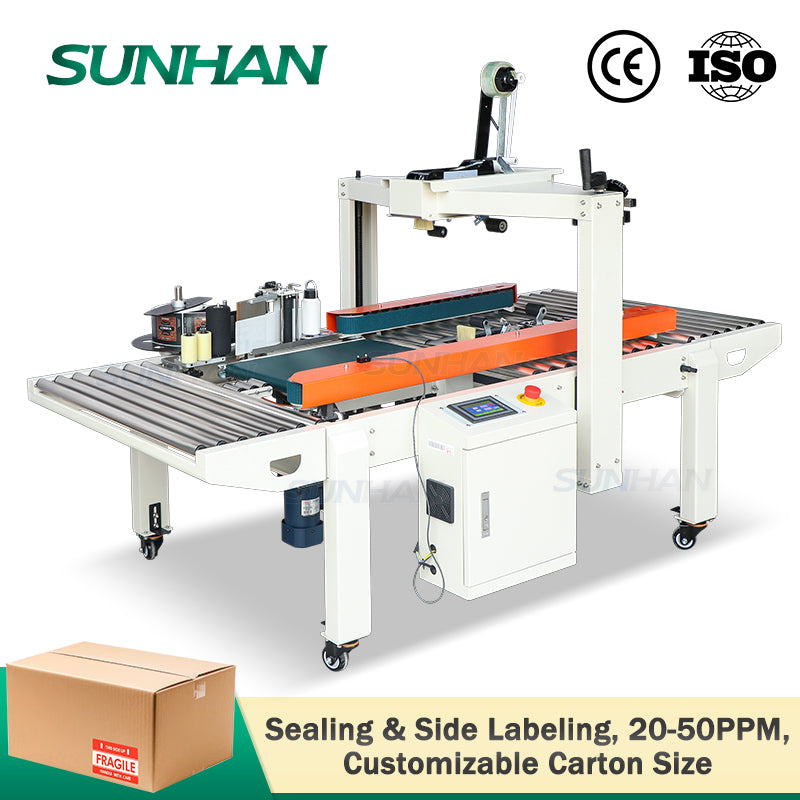

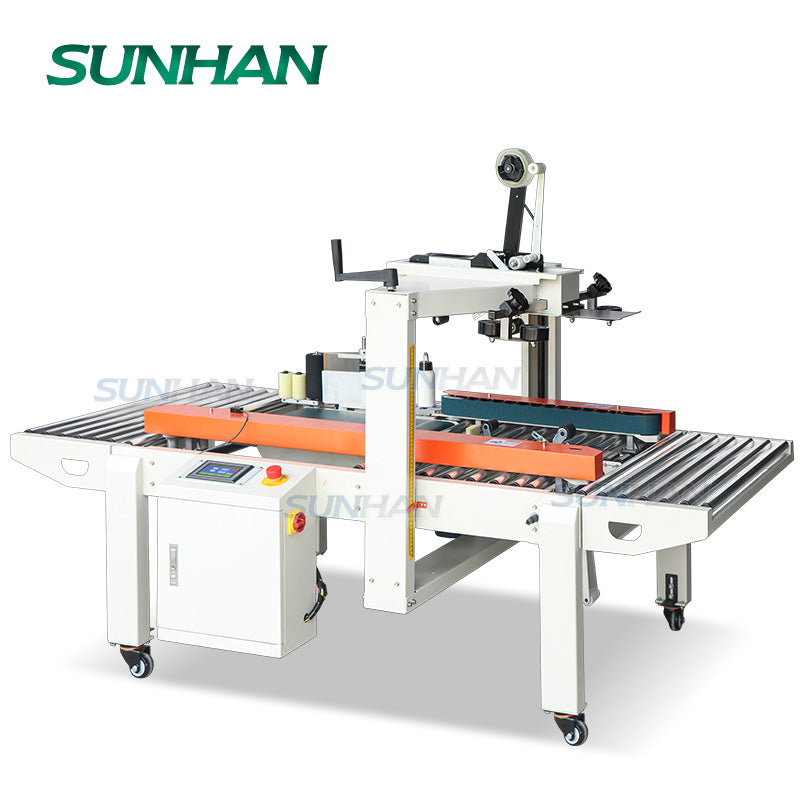

SUNHAN SH-FKC4650S Automatic Self-adhesive Taping Sealer Carton Case Top and Bottom Tape Sealing Side Labeling Packaging Machine

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Integrates top and bottom tape sealing and labeling in a single continuous process, improving efficiency.
▶Compatible with pre-printed labels, supports side labeling and optional top labeling.
▶Dual side-belt conveyor ensures smooth transport and center alignment during operation.
▶Machine can be customized according to your carton size.

Parameter

  • Machine Model:SH-FKC4650S
  • Voltage:220V/110V 50-60Hz
  • Power:About 500 W
  • Production Capacity:About 20-50 pcs/min(depending on product size)
  • Sealing Speed:24 m/min
  • Maximum Carton Size:460 mm(W)*500 mm(H) (Length is unlimited)(Customizable)
  • Adhesive Tape Width:30-45 mm
  • Height of Worktable:600-700 mm
  • Machine Size:About 2070*1360*1400mm(L*W*H)
  • Package Size:About 1520*1430*1050mm(L*W*H)
  • Package Weight:About 300kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of carton adhesive tape sealer machine
machine component of carton tape sealing labeling machine
machine details of automatic box taping labeling machine-1
machine details of automatic box taping labeling machine-2
machine details of automatic box taping labeling machine-3

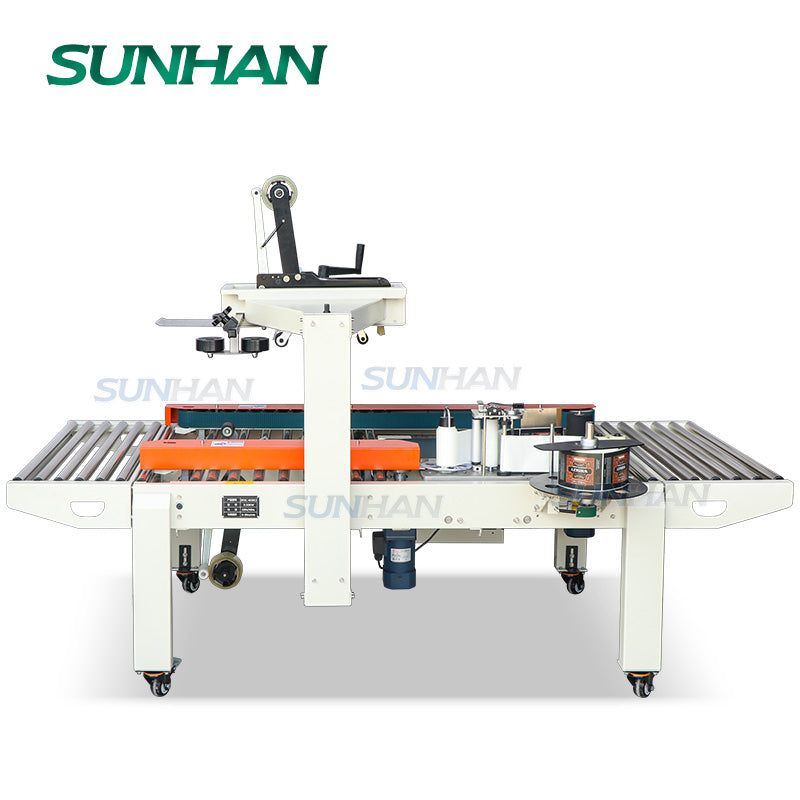

real shot of carton case tape sealing labeling machine
