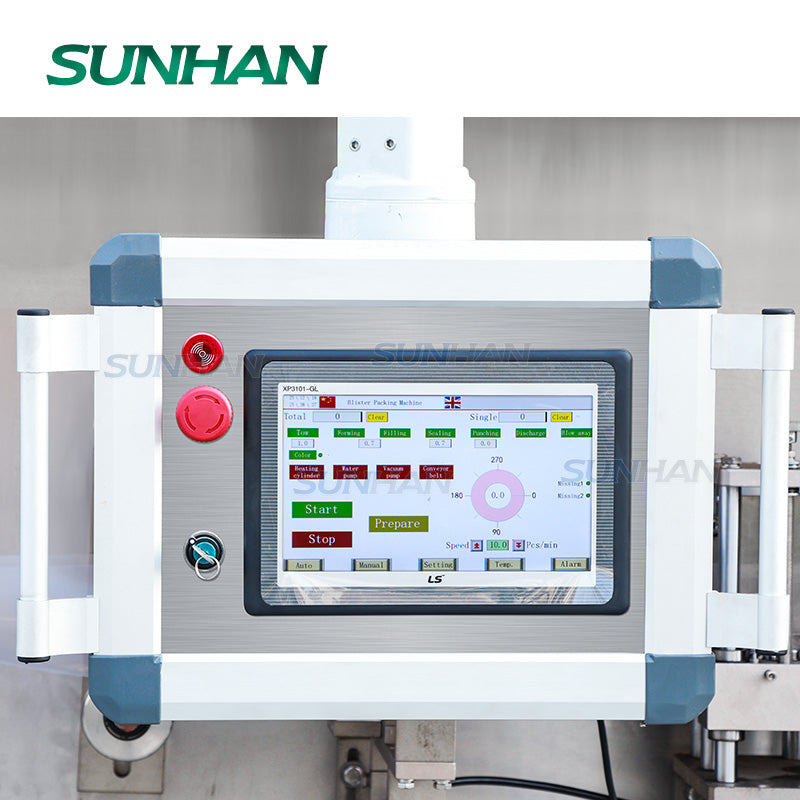

control panel of automatic blister packing machine-1

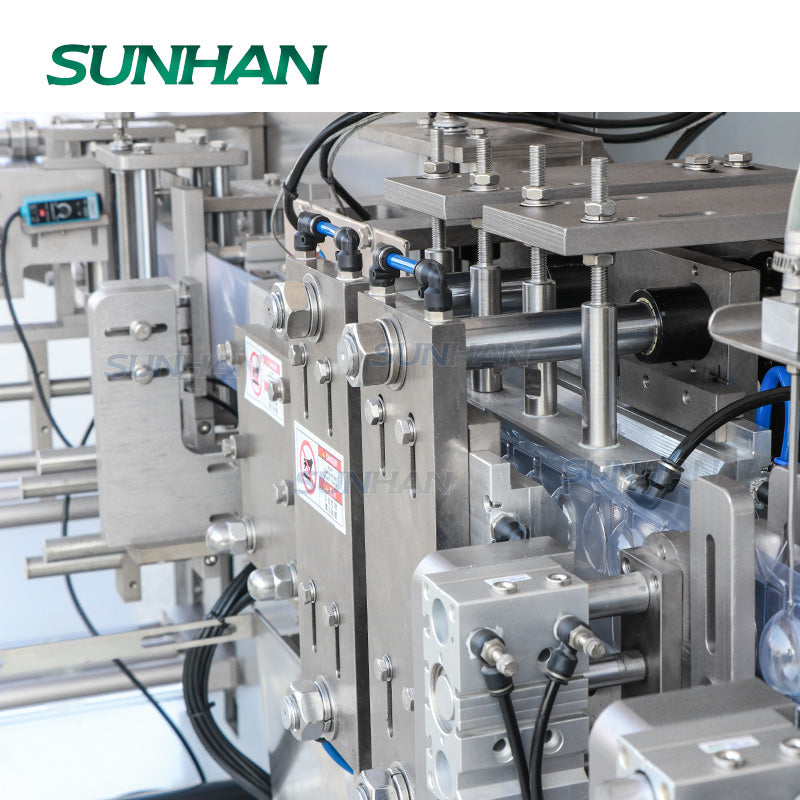

blister forming structure of automatic blister packing machine-2

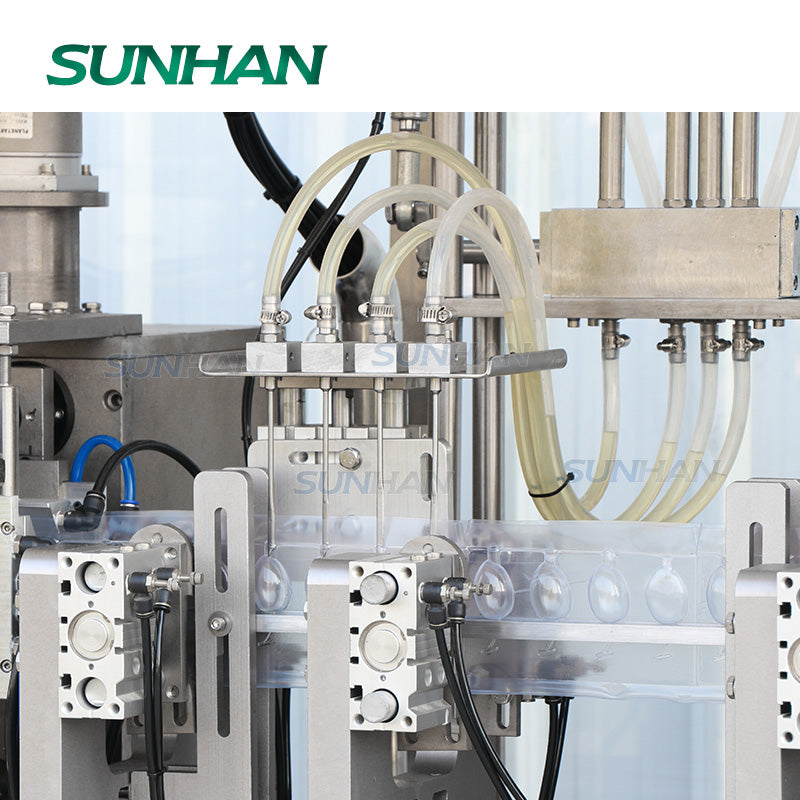

filling structure of automatic blister packing machine-3

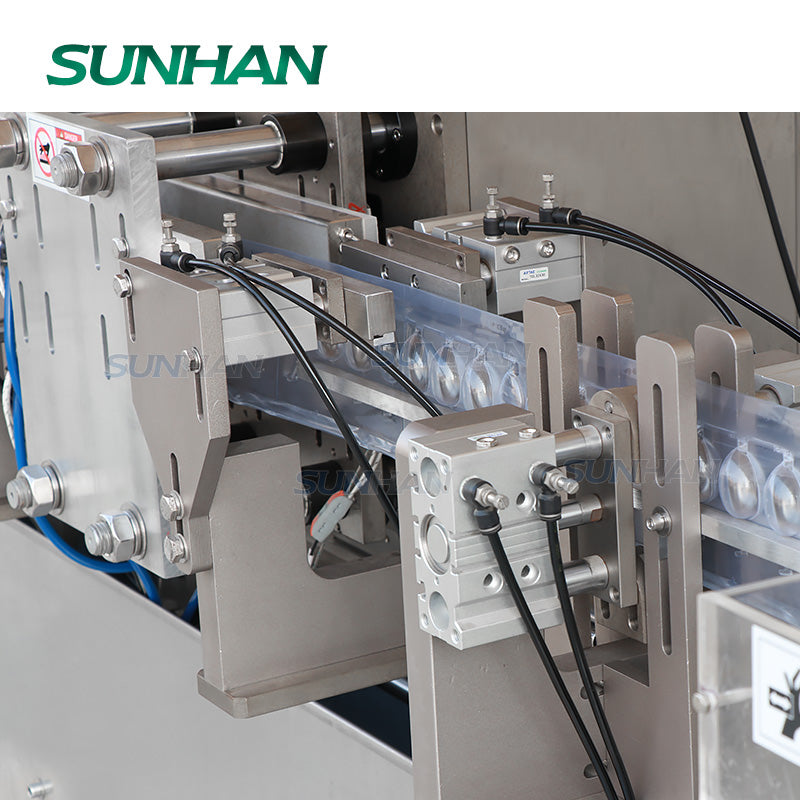

sealing structure of automatic blister packing machine-4

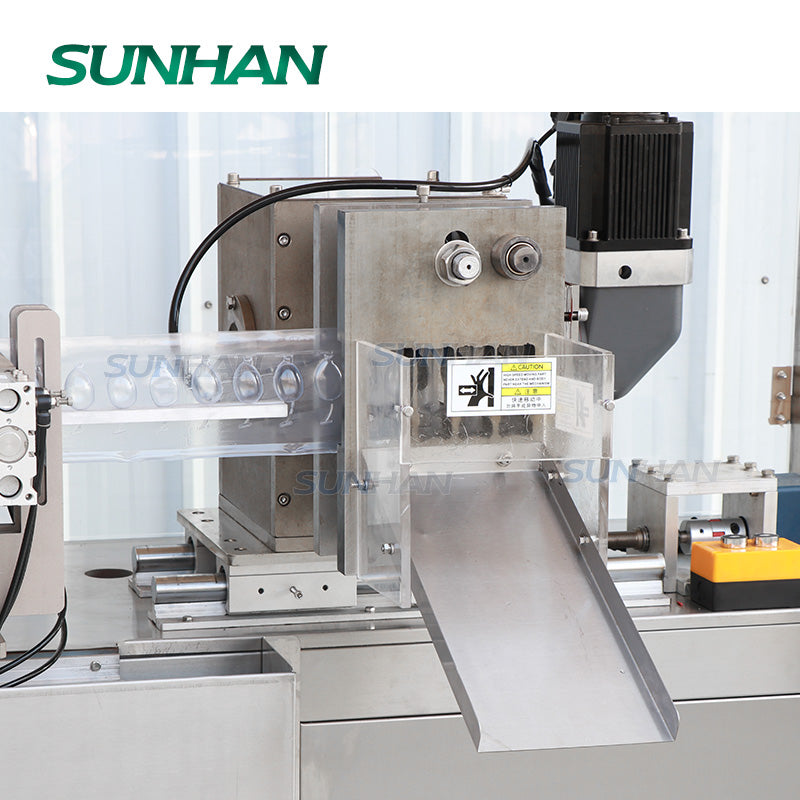

multi-lane cutting structure of automatic blister packing machine-5
liquid blister packaging machine
oil blister filling sealing machine-2
oil blister filling sealing machine
control panel of automatic blister packing machine-1
blister forming structure of automatic blister packing machine-2
filling structure of automatic blister packing machine-3
sealing structure of automatic blister packing machine-4
multi-lane cutting structure of automatic blister packing machine-5
liquid blister packaging machine
oil blister filling sealing machine-2

SUNHANPACK

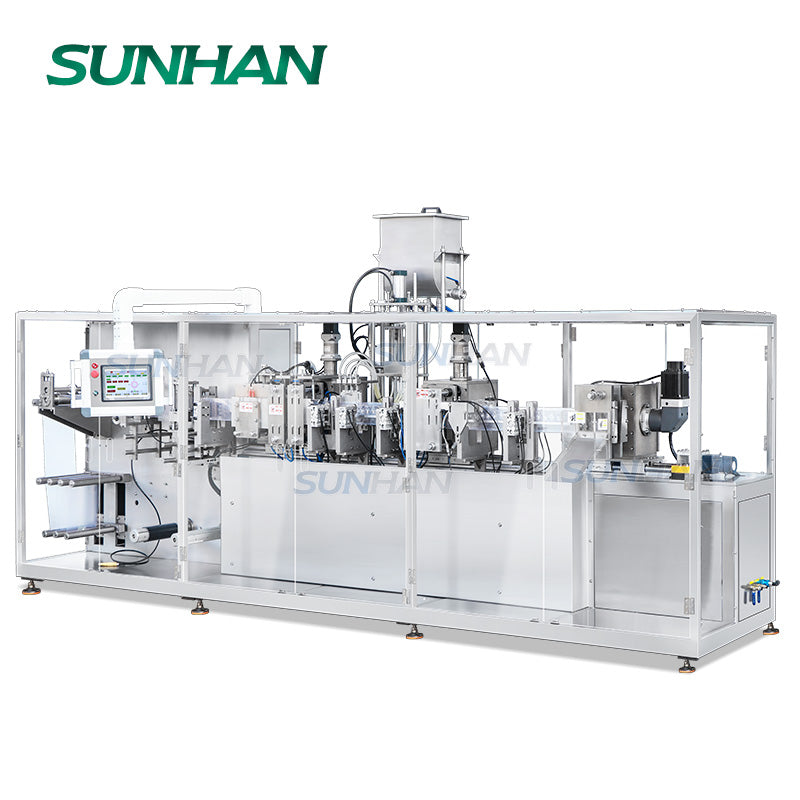

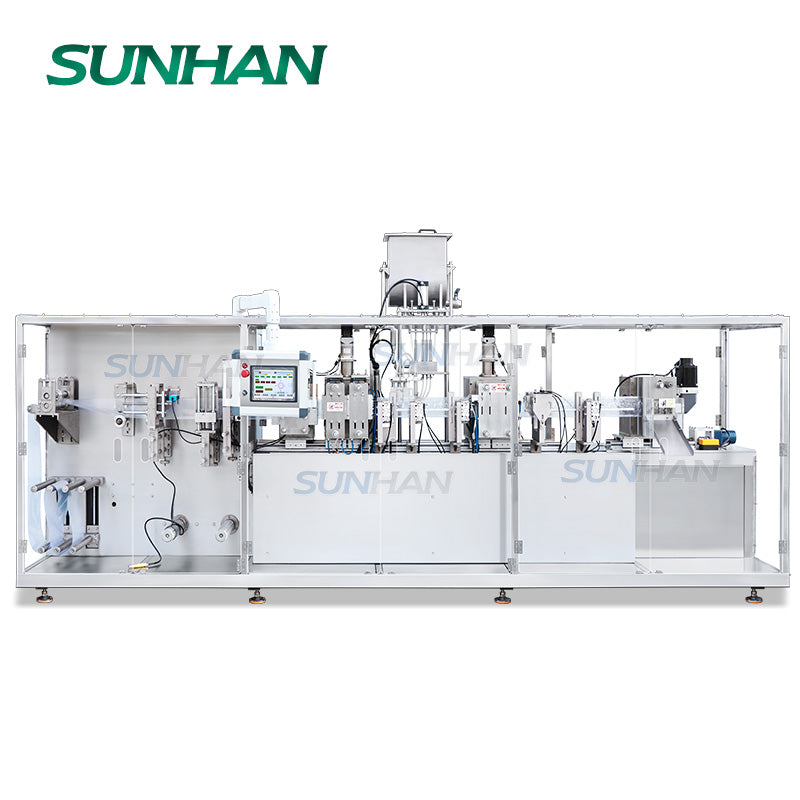

SUNHAN SH-DDP300 Full Automatic 4 Heads Servo Hair Serum Olive Oil Blister Form Liquid Filling Sealing Packaging Machine

Shipping calculated at checkout.
Volatge: 110V
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution


Main Feature

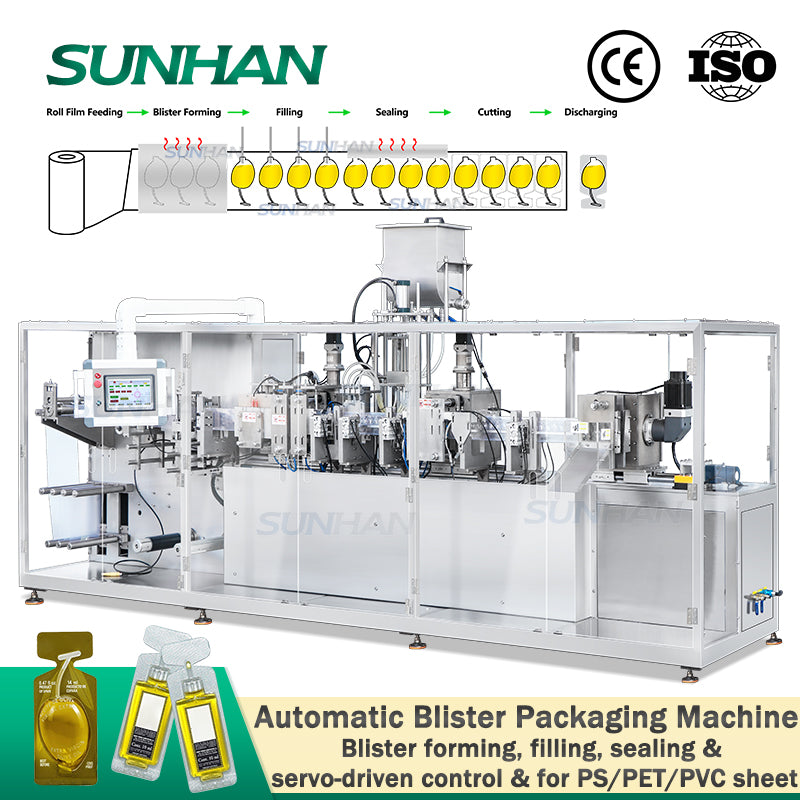

▶Integrates blister forming, liquid filling, sealing, cutting, and discharge in one machine, reducing labor and improving efficiency.
▶PLC control with independent servo motors for each station ensures accurate forming, filling volume, sealing, and cutting.
▶Multi-lane cutting structure produces four blister packs per cycle; cutting shapes and molds are customizable.
▶Supports PS, PET, and PVC blister sheets, suitable for various packaging requirements.

Parameter

  • Model:SH-DDP300
  • Cutting Frequency:About 10–15 times/min
  • Motor Power:16 kW
  • Air Pressure:0.8 MPa
  • Packaging Volume:Customizable
  • Air Consumption:≥ 1 m³/min
  • Mould Cooling:Tap water or recycling water
  • Max Shaping Area & Depth:160 x 200 x 20 mm
  • Machine Size (L×W×H):About 4925 * 1300 * 2190 mm(L*W*H)
  • Machine Weight:About 1500 kg
application of hair serum blister packing machine
datasheet of oil blister filling sealing machine
machine details of liquid blister packaging machine-1
machine details of liquid blister packaging machine-2
machine details of liquid blister packaging machine-3
real shot of automatic blister packing machine
