SUNHANPACK

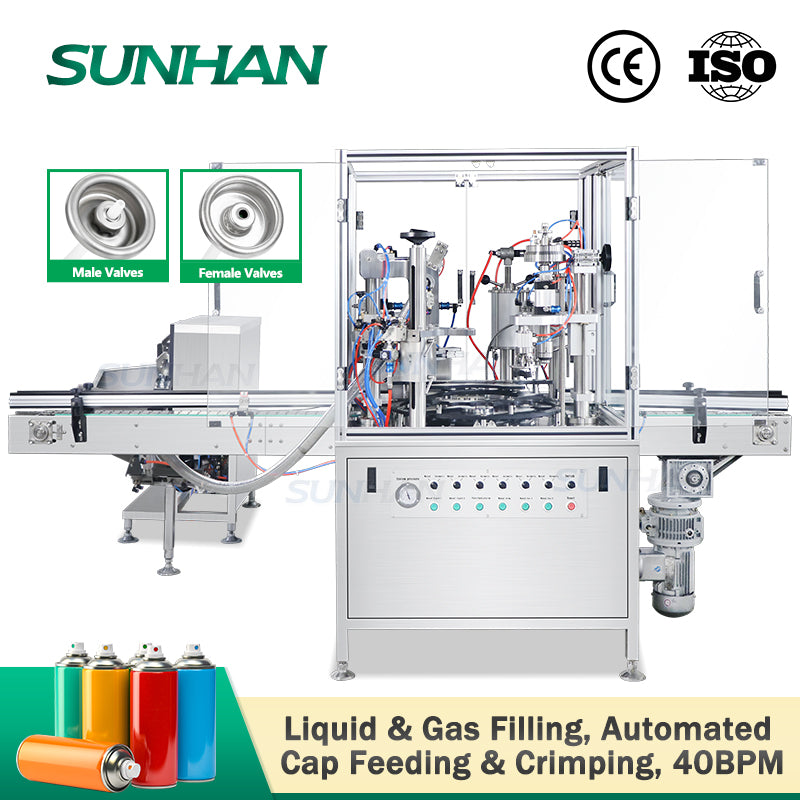

SUNHAN SH-QW1600D Monoblock Full Automatic Rotary Valve Aerosol Spray Can Liquid and Gas Filling Crimping Machine With Valve Feeder

Shipping calculated at checkout.
Voltage: 110V
Machine Type: Male Valves
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Integrates liquid and gas filling, automatic valve sorting and feeding, and two-stage valve crimping.

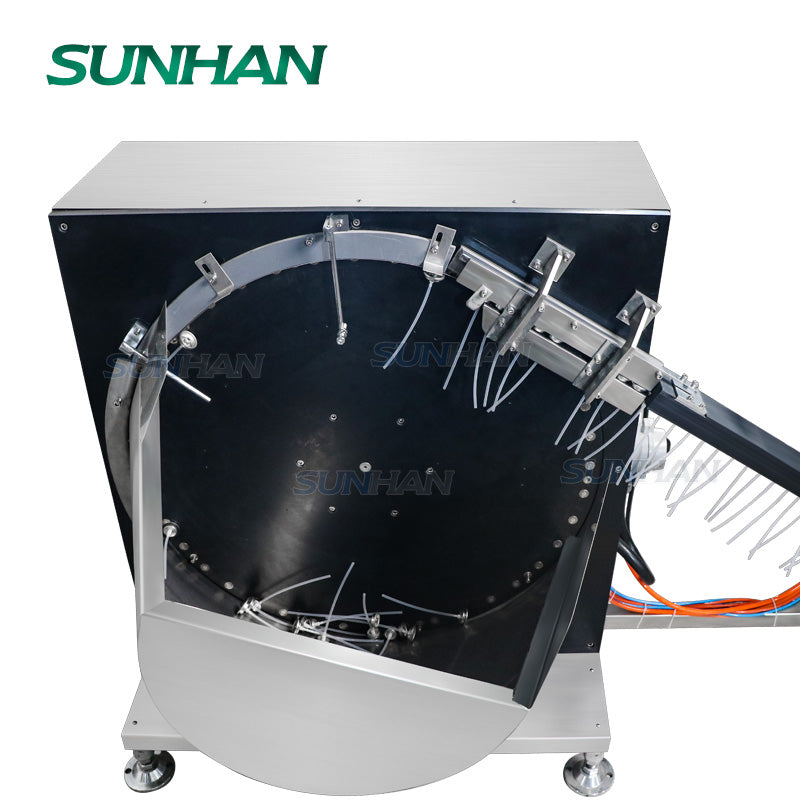

▶Scraper sorting, pneumatic separation and rotary insertion continuously feed individual valves into aerosol cans.
▶Supports both male and female aerosol valves for different packaging requirements.

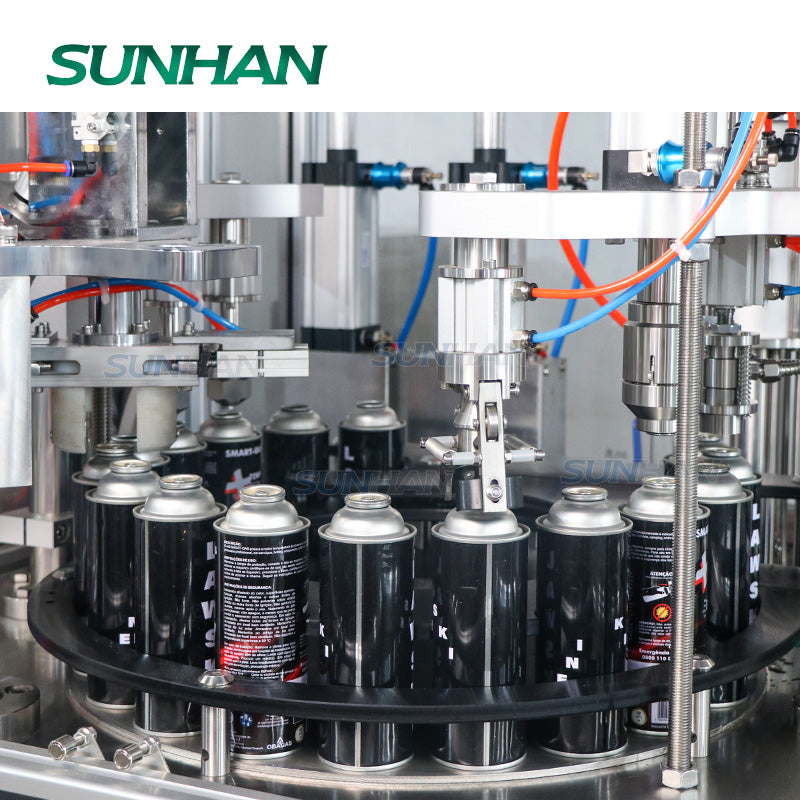

▶Precisely transfers cans between stations, with replaceable star wheels for different can diameters.

Parameter

  • Machine Model:SH-QW1600D
  • Valve Size:Customized
  • Filling Range:10-250 ml (Customizable)
  • Working Capacity:About 30-40 Bottles/min
  • Working Air Pressure:0.5-0.8 MPa
  • Suitable Aerosol Can Diameter:35-66 mm
  • Suitable Aerosol Can Height:70-330 mm
  • Machine Size:About 3000*2770*1730 mm
  • Package Size:
    About 1200*1120*1870mm(main machine)
    About 2050*310*260mm(booster pump)
    About 1690*960*1200mm(valve feeding machine)
  • Package Weight:About 502+26+340=868kg(main machine+booster pump+valve feeding machine)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of aerosol can liquid filling crimping machine
machine component of aerosol liquid gas filling capping machine

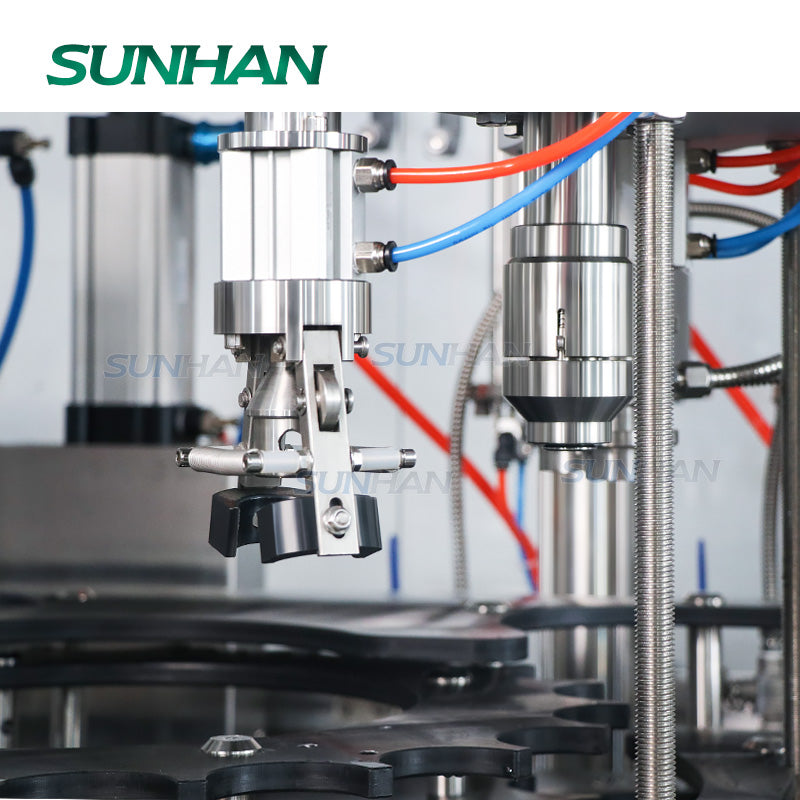

machine details of rotary aerosol spray packaging machine-1

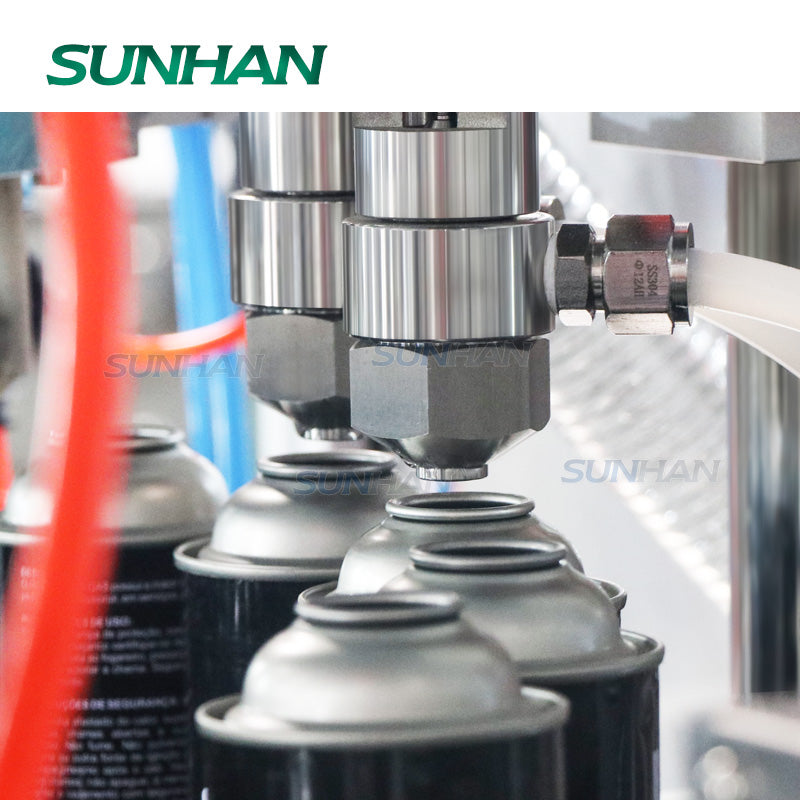

machine details of rotary aerosol spray packaging machine-2

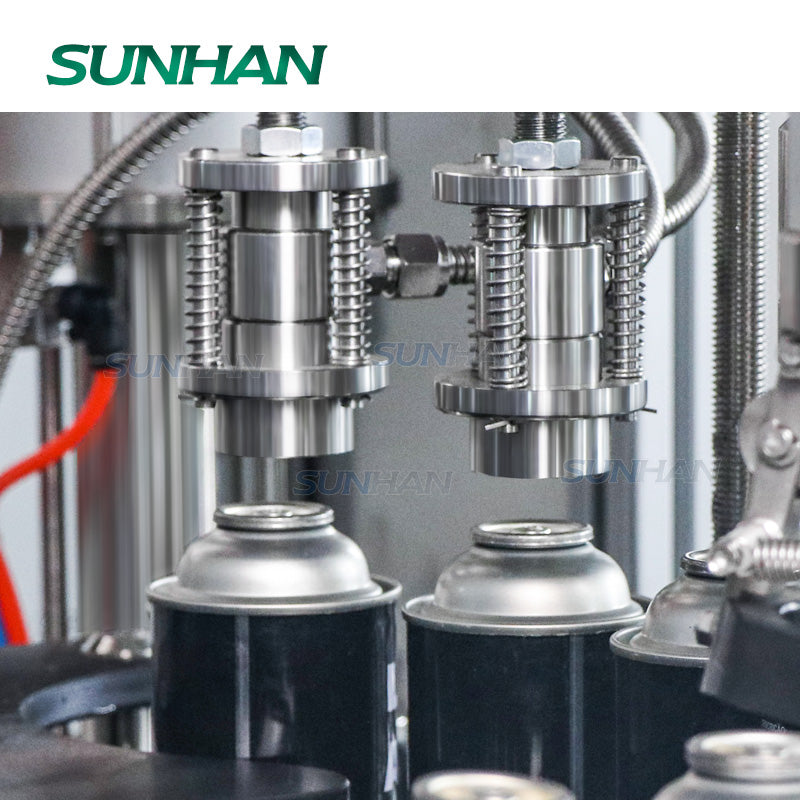

machine details of rotary aerosol spray packaging machine-3

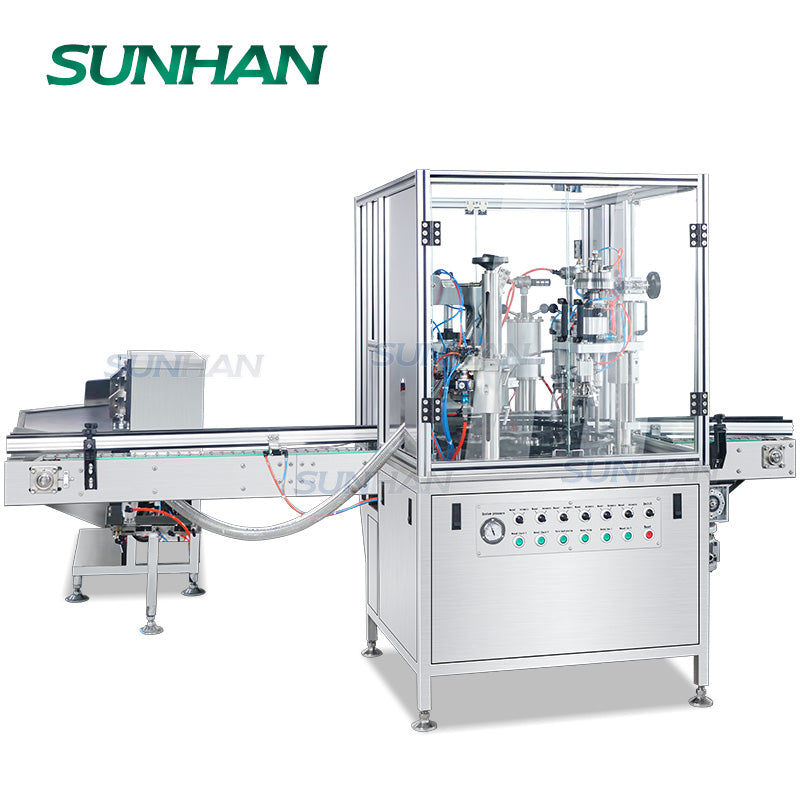

real shot of aerosol spray filling crimping machine
