automatic paste filling machine
filling heads-1
feeding pump-2
electric eye-3
servo motor-4
conveyor belt-5
automatic paste filling machine
filling heads-1
feeding pump-2
electric eye-3
servo motor-4
conveyor belt-5

SUNHANPACK

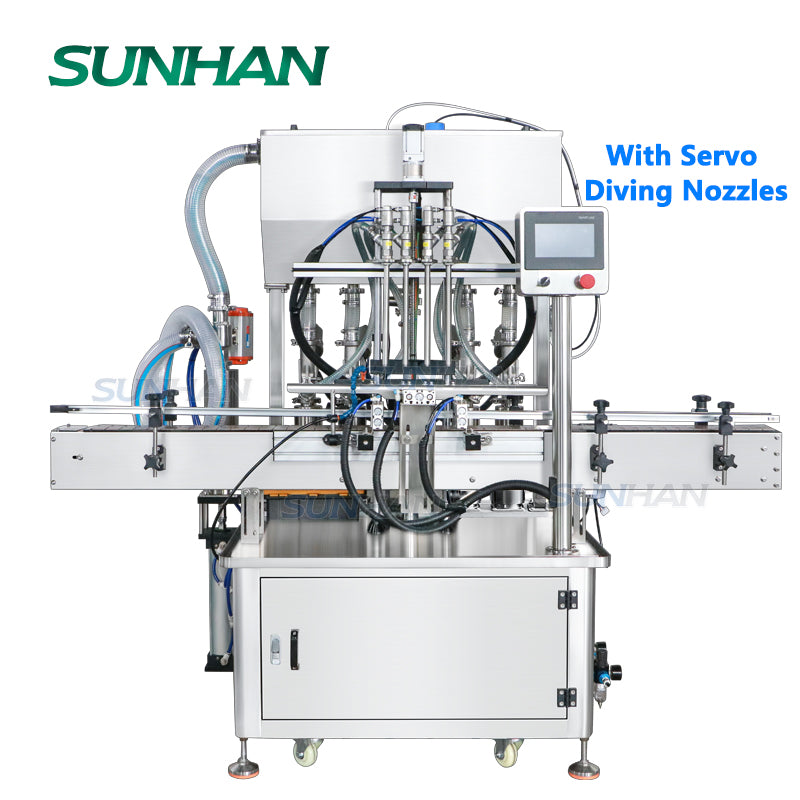

Automatic 4 Heads Piston Pump Bottled Sauce Honey Chocolate Jam Filler Servo Motor Paste Filling Machine With Feeding Pump

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Video



Description

This piston pump filling machine is with feeding pump, which can feed filling material in time and saves working labor. Multiple filling nozzle sand extra mixing and heating function can be realized as production need.It is widely used in cosmetics (essential oil, face cream, hair spray, hair color cream) and food ( honey, hot sauce, jam) industries.

Main Feature

▶Multiple filling nozzle can be customized as production need.
▶Equipped with feeding pump to feed filling material in time.
▶Can be customized with food grade stainless steel when filling food like jam, honey.
▶Can work with automatic capping machine and labeling machine to realize automated production.

Parameter

  • Voltage:110/220V 50-60HZ 1KW
  • Filling range:10-180ml/30-500ml/100-1000ml
  • Working speed:About 30-50bottles/min
  • Filling pump:Piston pump
  • Air pressure:0.6-0.8MPa
  • Filling accuracy:±1%
  • Filling Nozzle:4(can be customized)
  • Machine size:About 2000*800*1800mm
  • Machine weight:About 200kg
  • Packaging size:About 2070*960*2010mm(100-1000ml)
  • Packaging weight:About 392kg(100-1000ml)
Application of Honey Jar Filling Machine
Machine Component of Honey Jar Filling Machine
Machine Details of Honey Jar Filling Machine-1
Machine Details of Honey Jar Filling Machine-2
