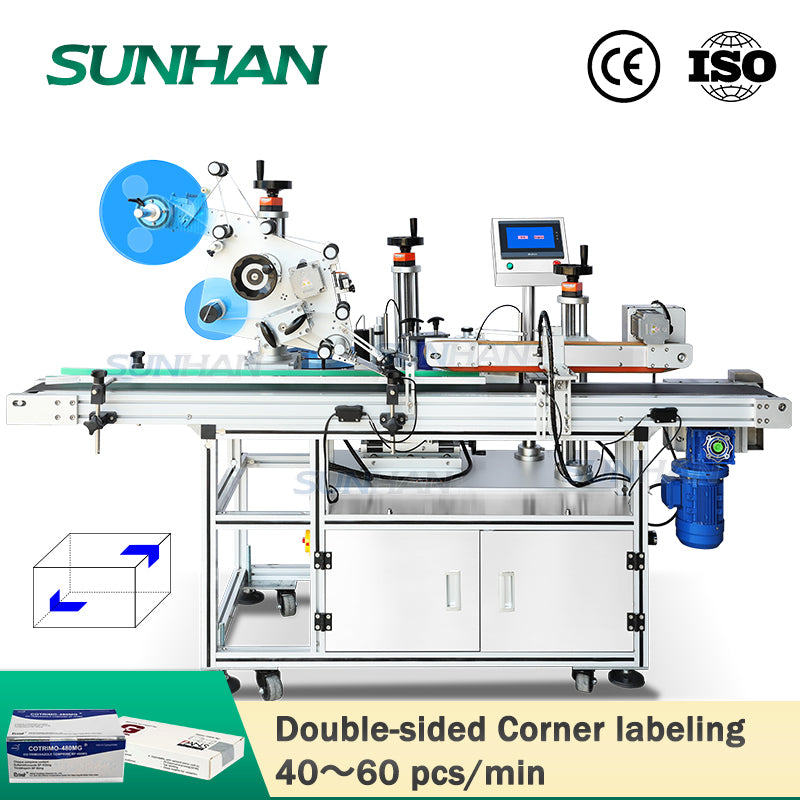

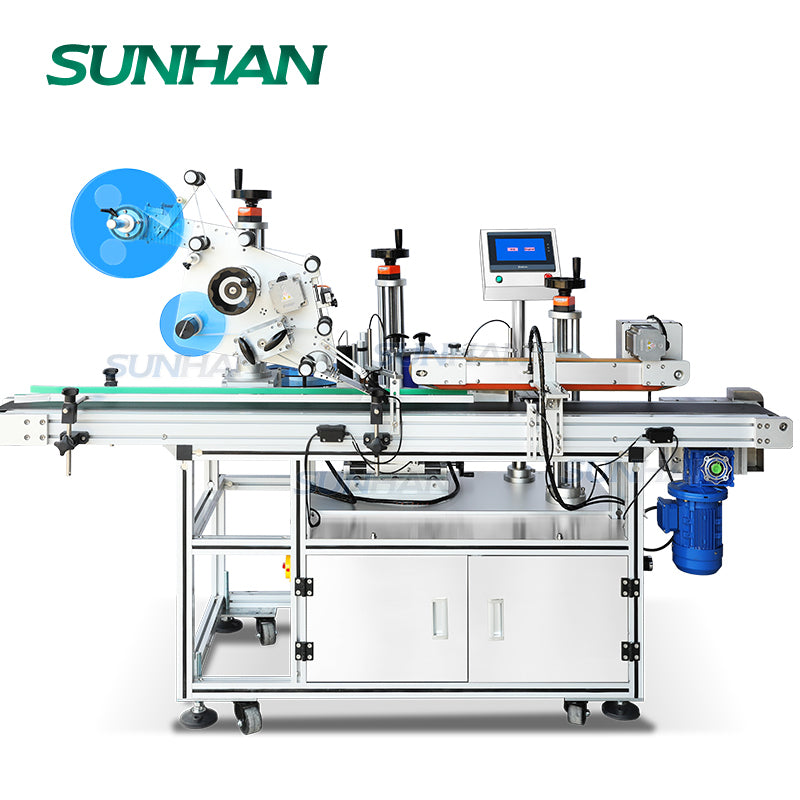

corner wrap labeling machine

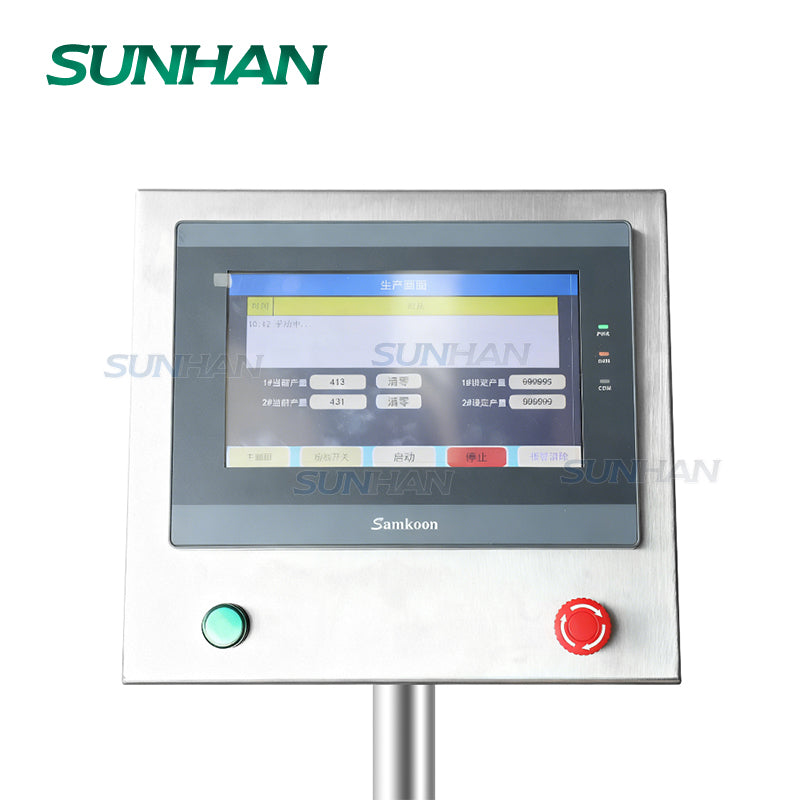

control panel of carton box corner wrap labeler-1

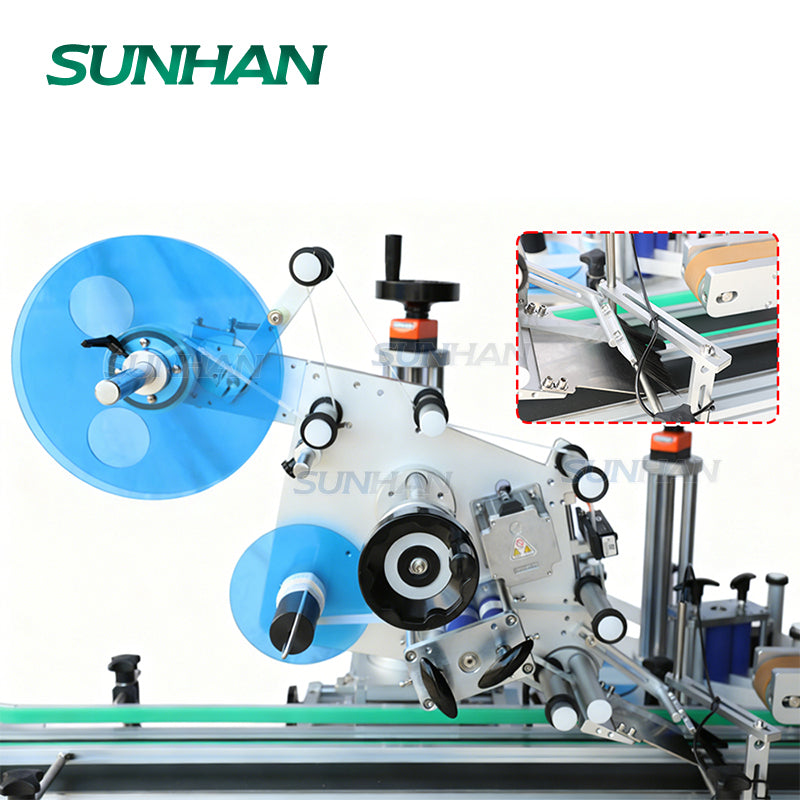

label roll & peeling plate of carton box corner wrap labeler-2

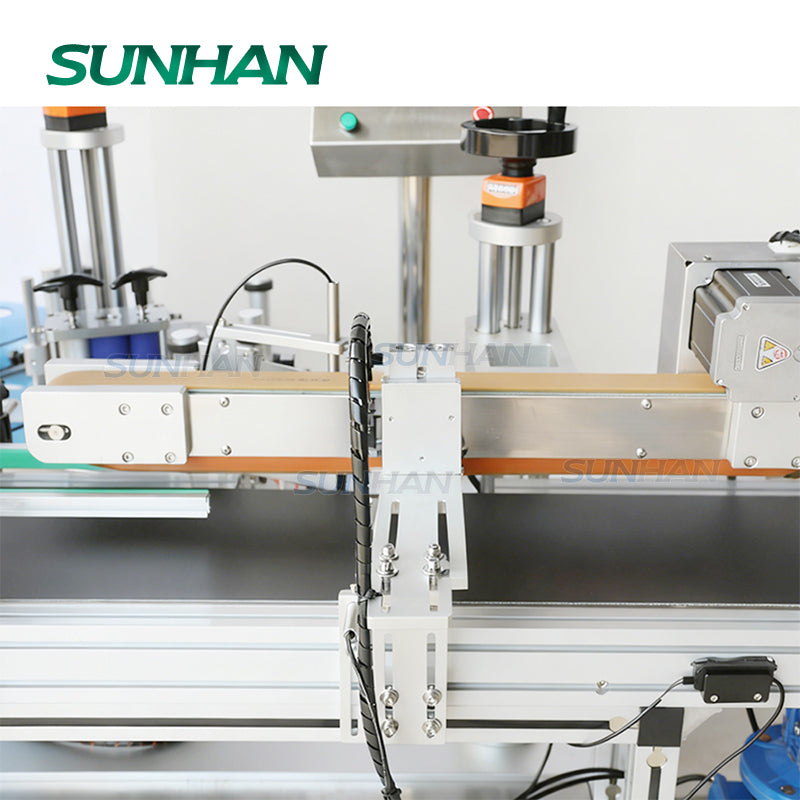

corner labeling structure of carton box corner wrap labeler-3
guiding conveyor of carton box corner wrap labeler-4

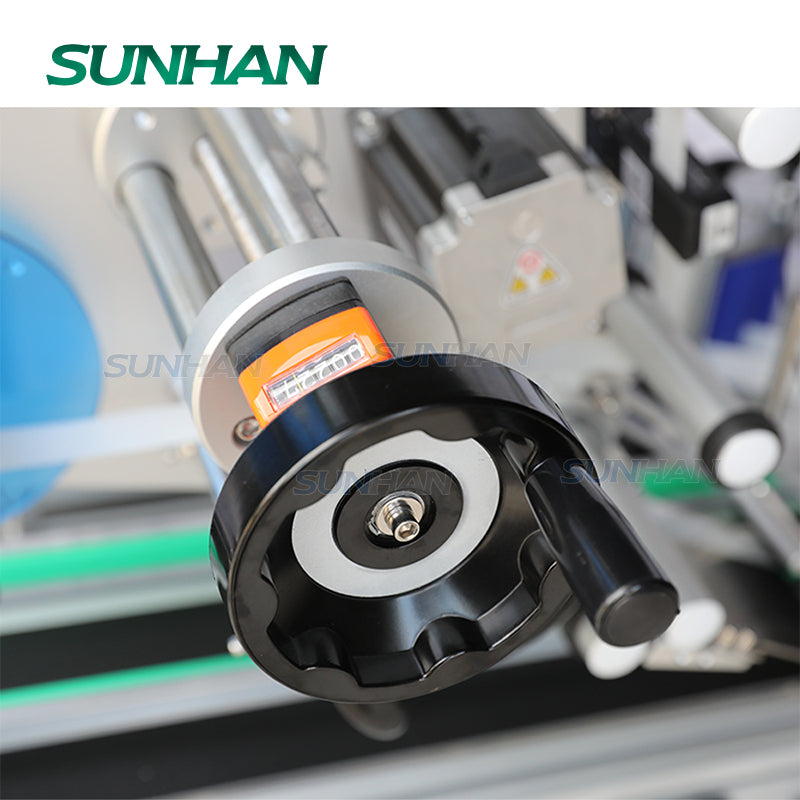

adjustment wheel of carton box corner wrap labeler-5

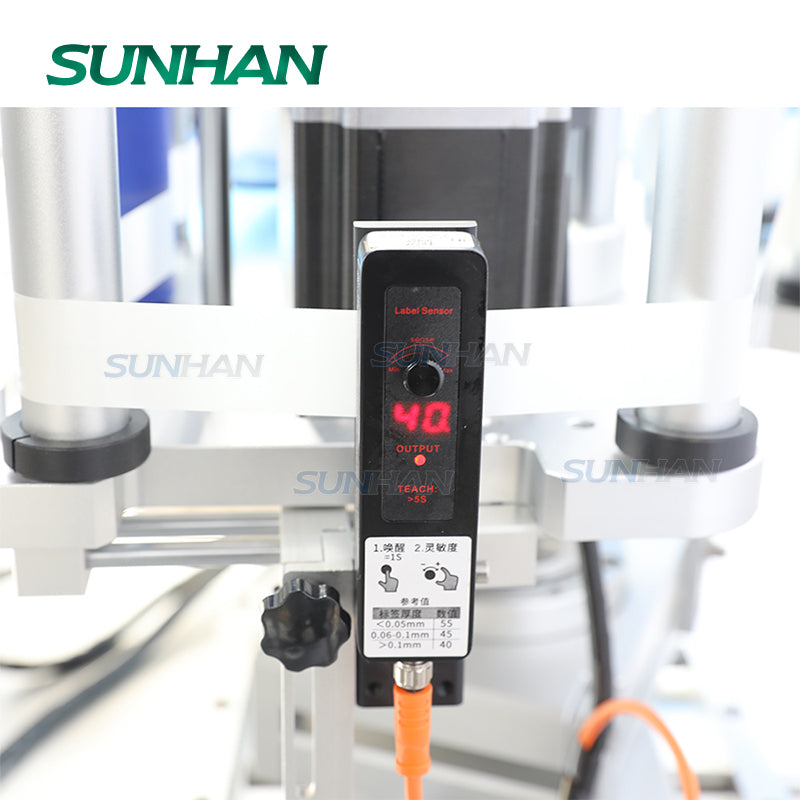

label sensor of carton box corner wrap labeler-6

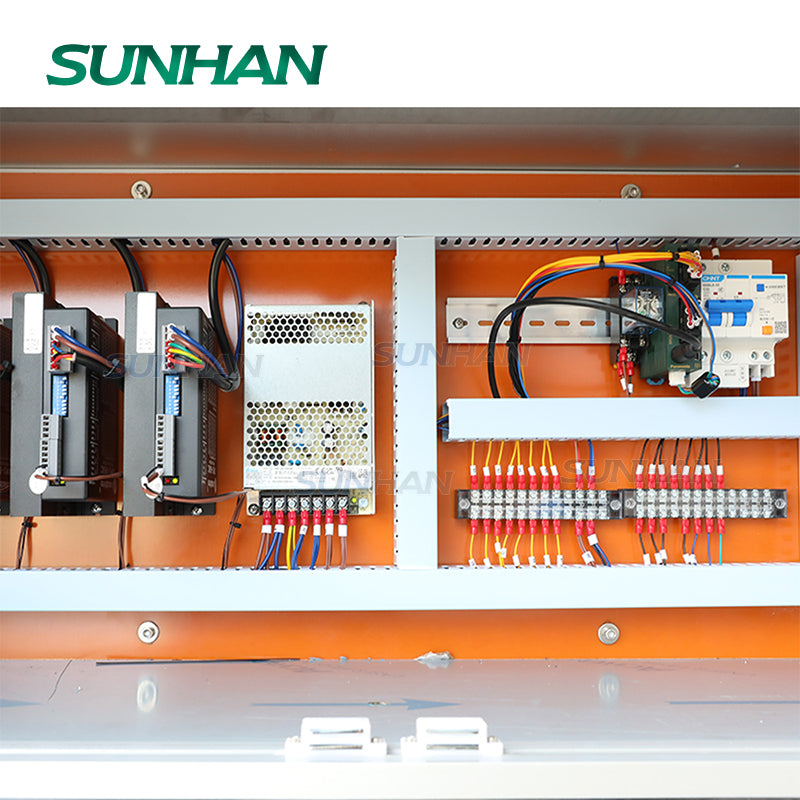

electrical cabinet of carton box corner wrap labeler-7

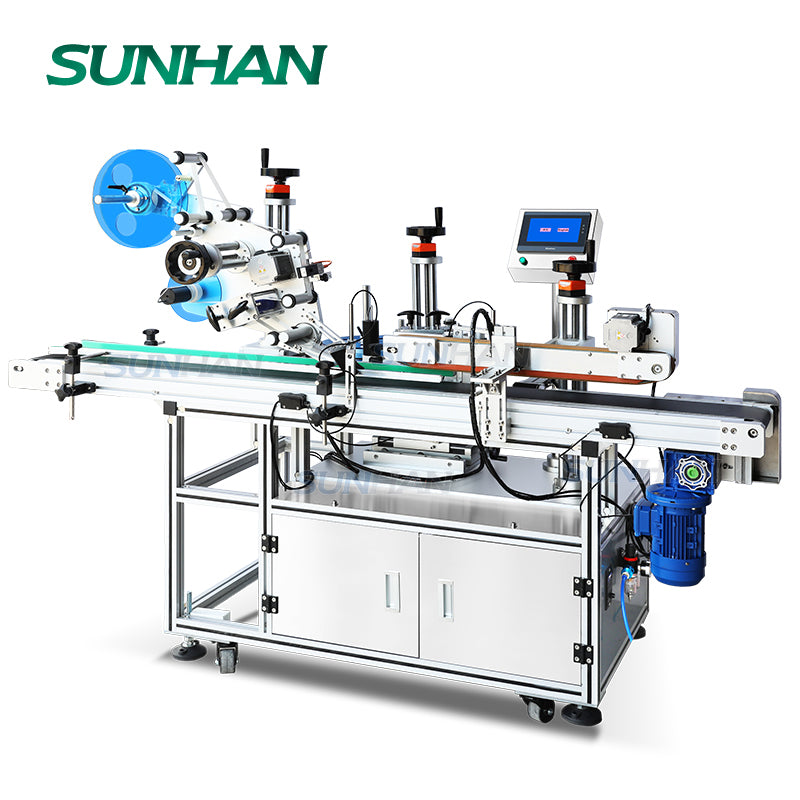

anti tamper corner labeling machine
automatic corner wrap label applicator
corner wrap labeling machine
control panel of carton box corner wrap labeler-1
label roll & peeling plate of carton box corner wrap labeler-2
corner labeling structure of carton box corner wrap labeler-3
guiding conveyor of carton box corner wrap labeler-4
adjustment wheel of carton box corner wrap labeler-5
label sensor of carton box corner wrap labeler-6
electrical cabinet of carton box corner wrap labeler-7
anti tamper corner labeling machine
automatic corner wrap label applicator

SUNHANPACK

SUNHAN SH-TB833R2 Automatic Carton Box Double Sided Angle Anti Tamper Corner Sticker Sealing Wrap Labeling Machine

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶This anti-tamper corner wrap labeling machine applies labels across corners to provide tamper-evident sealing and enhanced product security.
▶Capable of processing up to 30-60 BPM for efficient and stable labeling performance.
▶High-sensitivity sensor prevents missing or skipped labels during operation.
▶Easy manual adjustment allows quick changeover for different sizes.

Parameter

  • Machine model:SH-TB833R2
  • Machine power:220V,50Hz/60Hz
  • Labeling speed:40-60 pcs/min (depends on product size)
  • Labeling Accuracy:±1mm
  • Suitable product size:L:40-280mm; W:40-200mm; H:0.2-150mm
  • Suitable label size:Length: 10-250mm Height: 10-150mm
  • Roll inside diameter:76mm
  • Roll outside diameter:350mm
  • Air pressure:0.4-0.6Mpa
  • Conveyor size:112*2000mm (W)
  • Machine size:About 2200*980*1400mm
  • Machine weight:About 200kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of automatic corner wrap label applicator
machine component of corner wrap labeling machine
machine details of anti tamper corner labeling machine-1
machine details of anti tamper corner labeling machine-2
machine details of anti tamper corner labeling machine-3
real shot of carton box corner wrap labeler
