SUNHAN SH-FAL180V7 Automatic Servo Natural Gel Canned Odor Air Freshener Liquid Filling Capping Production Line

Main Feature

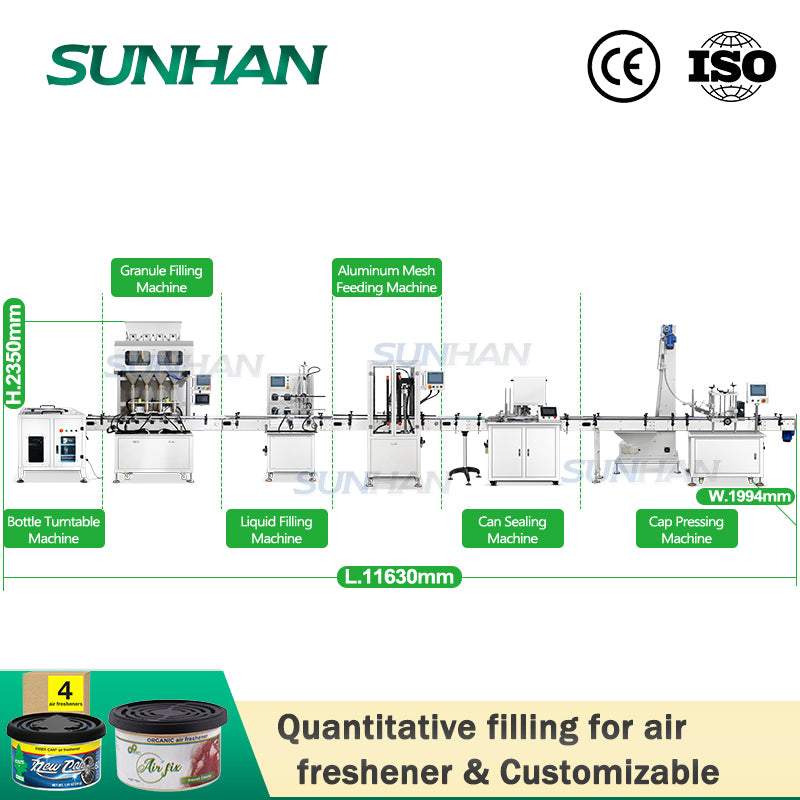

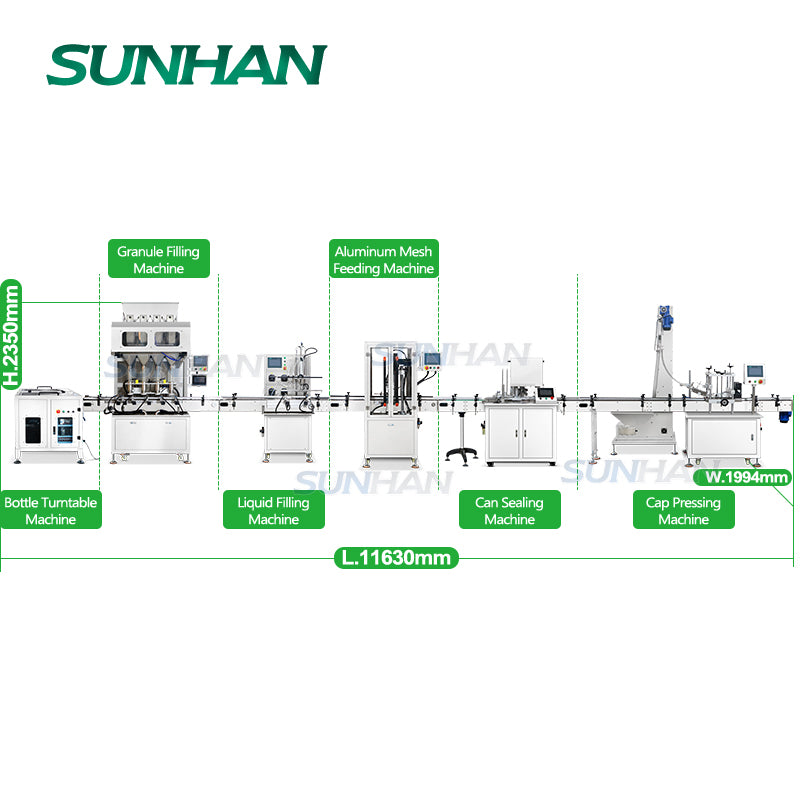

▶Consists of a bottle turntable machine, a granule filling machine, a liquid filling machine, aluminum mesh feeding machine, a can sealing machine and a cap pressing machine.

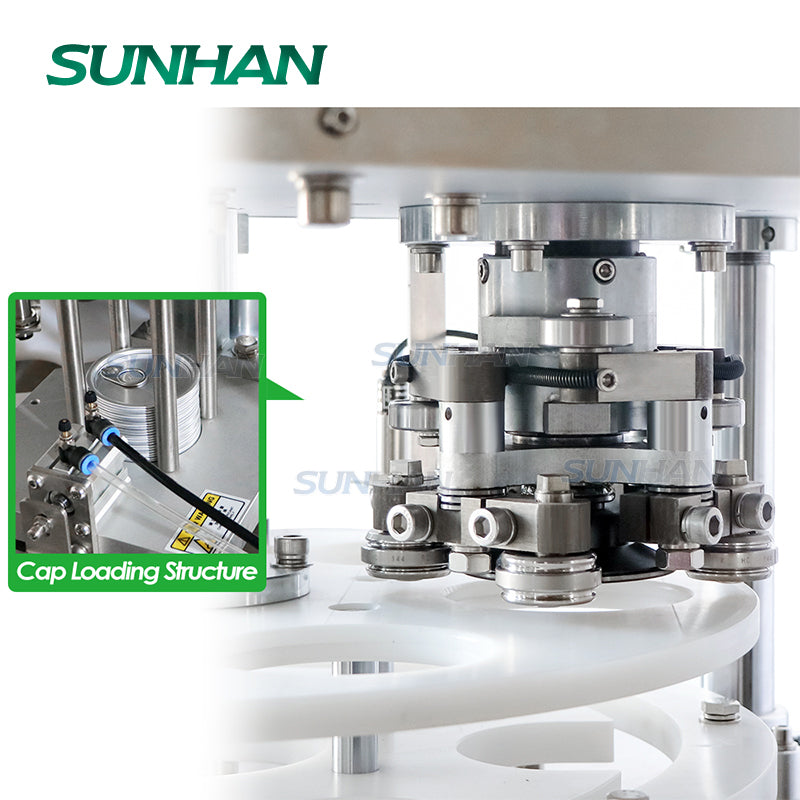

▶Can finish bottle unscrambling, granules filling, liquid filling, aluminum mesh feeding, cap feeding, can caps sealing, outer cap feeding and pressing automatically.
▶This line can be customized according to your production needs.

Parameter

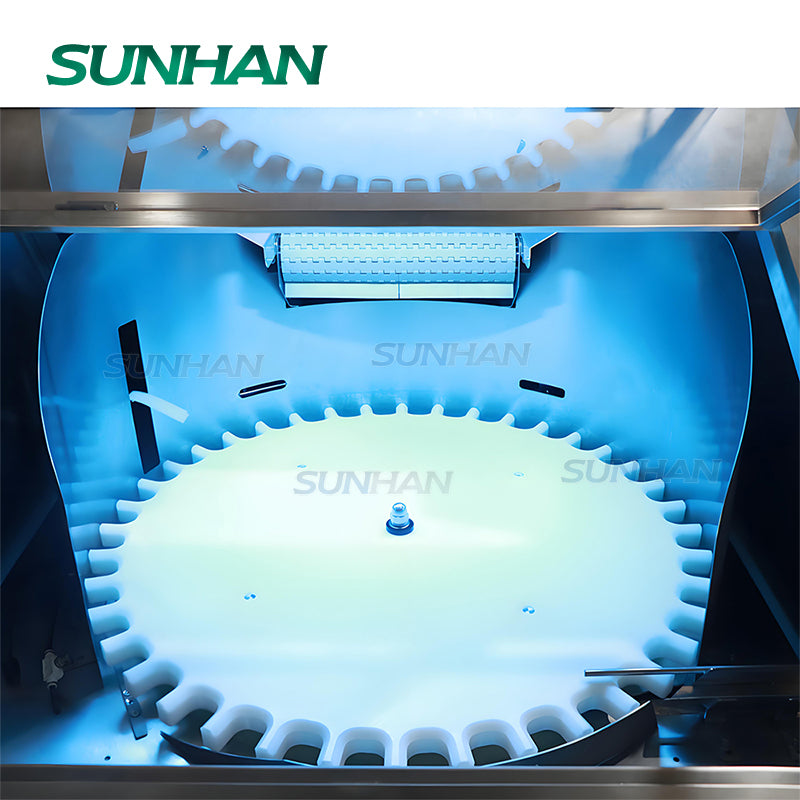

>Bottle Turntable Machine

• Machine model:SH-LP150

• Machine voltage:220V 50Hz

• Machine power:1000W

• Working speed:30-60 bottles/min

• Suitable bottle size:(Φ)20-100mm*(H)20-150mm

• Machine size:About 1100*1616*1163mm

• Machine weight:About 260kg

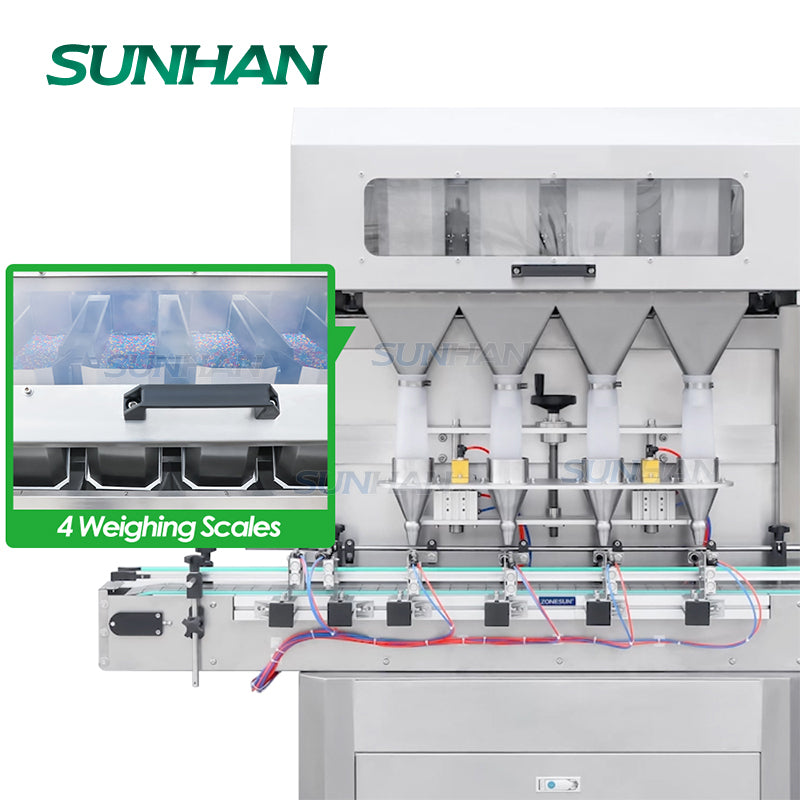

>Granule Filling Machine

• Machine Model:SH-GW4

• Voltage:110/220V 50-60Hz

• Power About:3kW

• Working Speed:About 20-30 bottles/min (depending on bottle size and filling material)

• Weighing Range:2-50g/10-1000g/10-2000g/10-3000g/100-10000g (can choose other weighing range)

• Weighing Error:±1-2g(depends on filling range)

• Air Pressure:0.4-0.6MPa

• Machine Size:About 1950mm*1100mm*2270mm

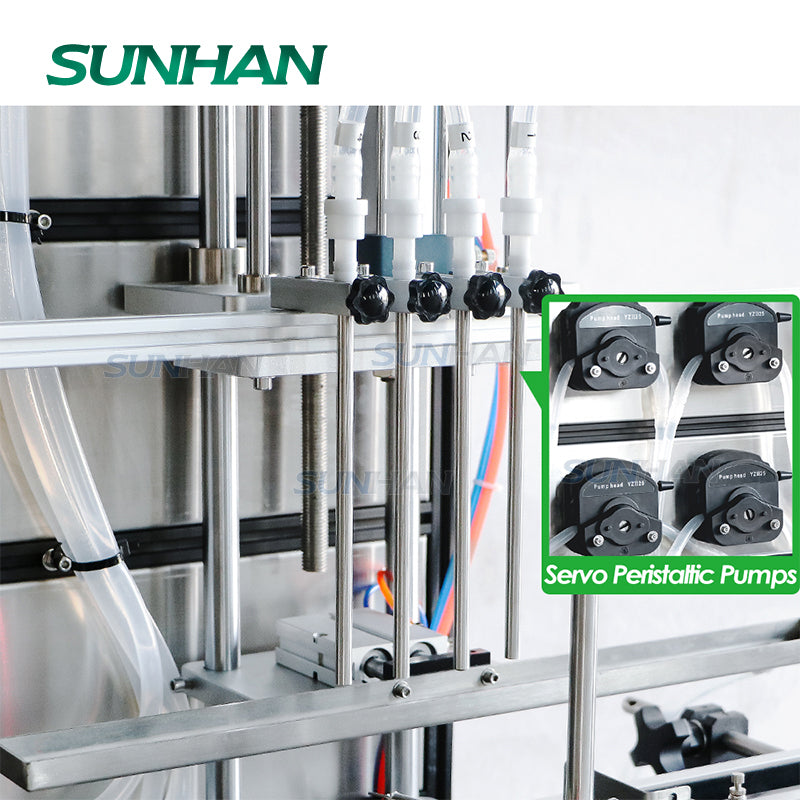

>Liquid Filling Machine

• Machine model:SH-SVPP80C

• Voltage:110/220V 50-60HZ 2KW

• Filling pump:Peristaltic pump

• Max flow rate:2.4L/min*4

• Container size:φ20-100mm H50-300mm

• Recommend filling range:About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.)

• Working capacity:About 10-20BPM(based on 100ml water, this depends on filling range and filling material)

• Size of air compressor connector:OD8mm

• Machine size:About 2000*800*1800mm

• Package size:About 207*800*1740mm

• Package weight:About 251kg

>Aluminum Mesh Feeding Machine

• Machine model:SH-WIM06

• Voltage:220V/110V 50-60Hz

• Power:1kW

• Working speed:About 20-30BPM(depending on product size)

• Suitable bottle height:50-150mm(Customizable)

• Suitable mesh diameter:50-100mm(Customizable)

• Air pressure:0.5-0.8Mpa

• Machine weight:About 200kg

• Machine size:About 1600*1000*1700mm
