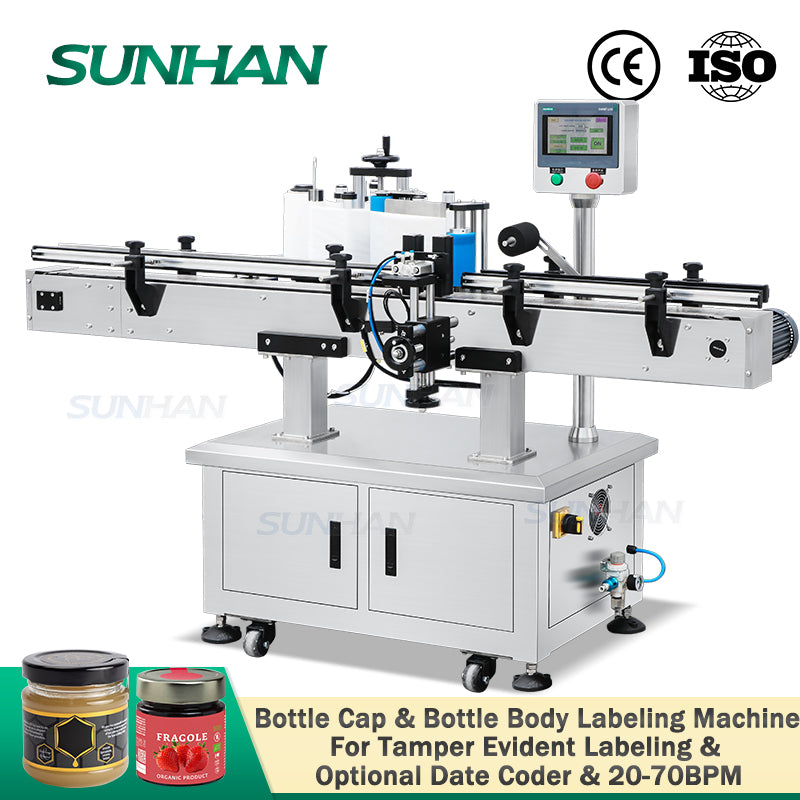

honey jar labeling machine

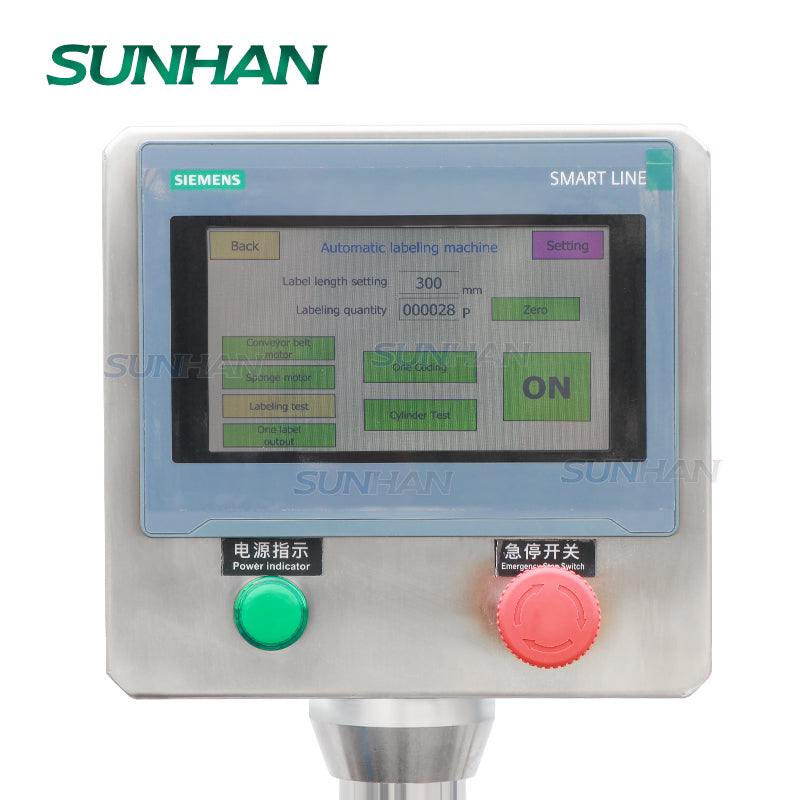

control panel of jar labeling machine

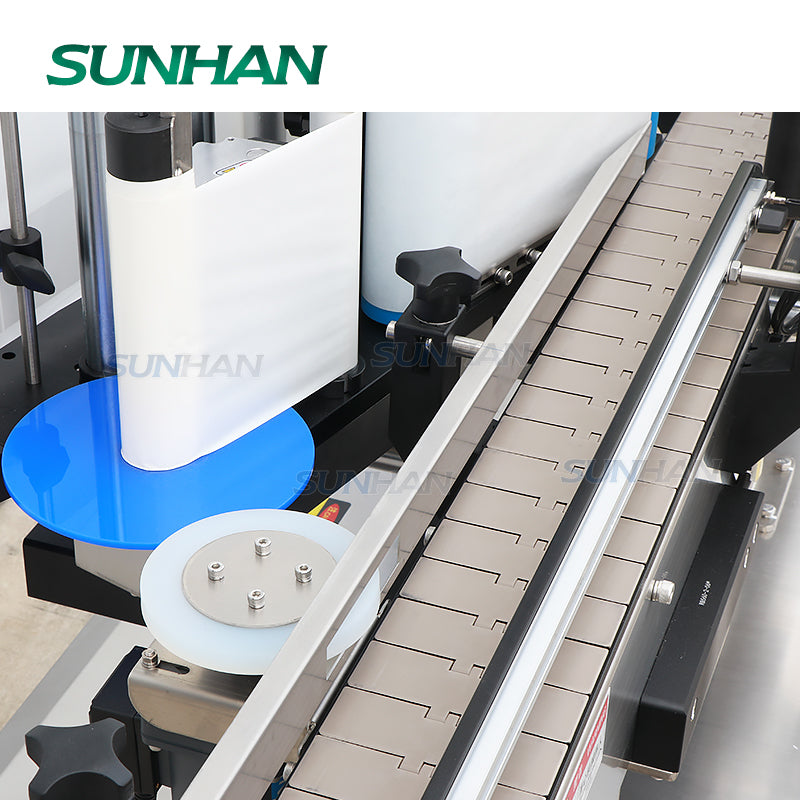

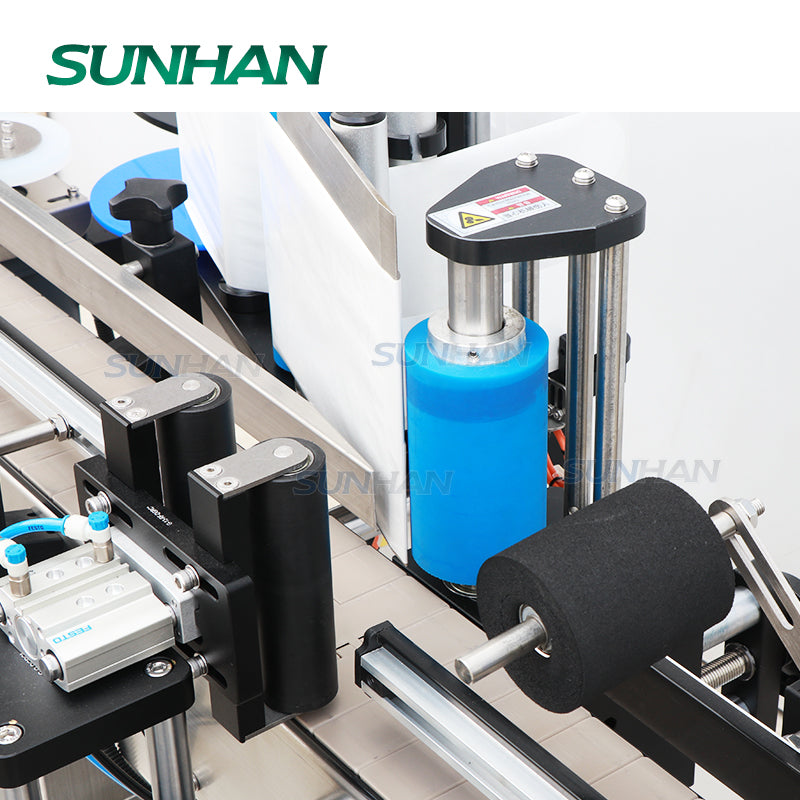

labeling structure of jar labeling machine

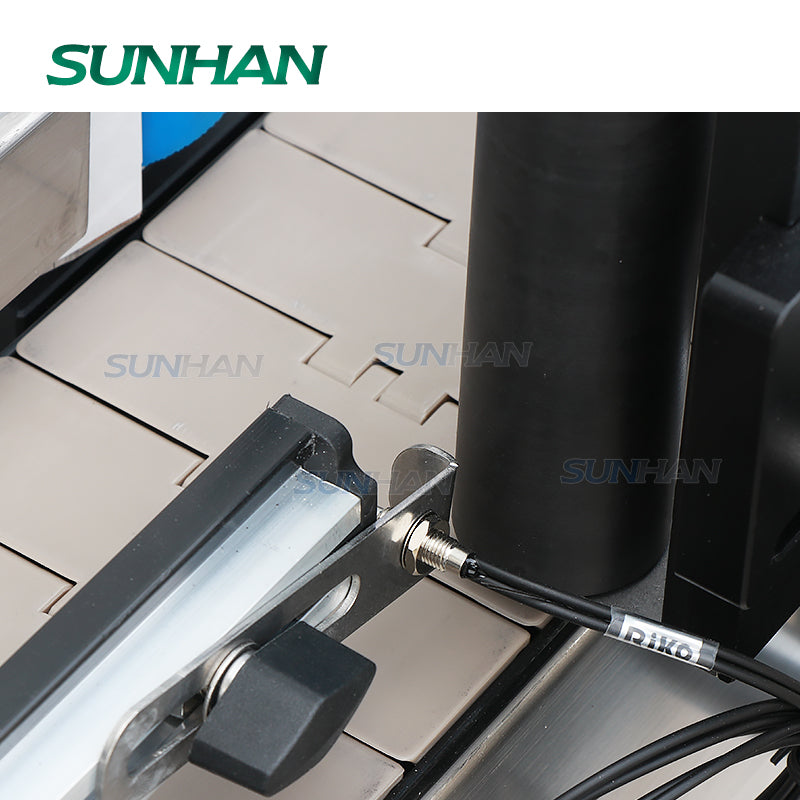

detecting sensor of jar labeling machine
bottle separating & conveyor of jar labeling machine

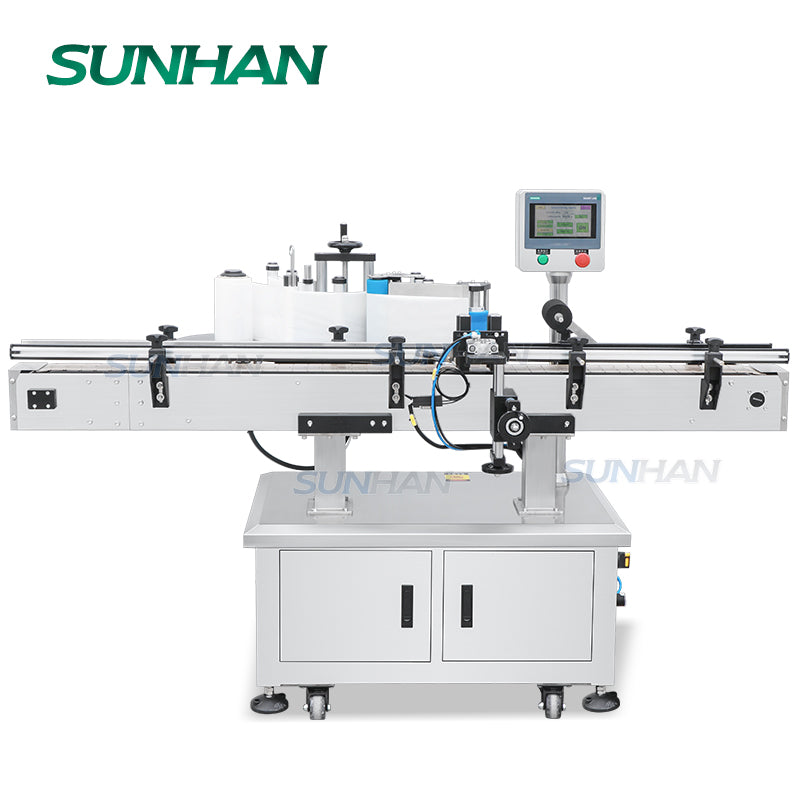

jar labeling machine
honey jar labeling machine
control panel of jar labeling machine
labeling structure of jar labeling machine
detecting sensor of jar labeling machine
bottle separating & conveyor of jar labeling machine
jar labeling machine

SUNHANPACK

Honey Chutneys Peanut Butter Fruit Preserve Pickle Round Glass Jar Tamper-proof Bottle Labeling Machine

Shipping calculated at checkout.
Voltage: 110V
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Designed for labeling stickers on bottle body & caps, this machine is suitable for round bottles and can add date coder to printing production date. It is widely used in jam or hot sauce packaging

Main Feature

▶Equipped with PLC touch screen control panel, the customizable interface is more user-friendly, it shows machine working status more clearly.
▶Designed for the tamper-proof sticker labeling, machine can be customized as needed.
▶Made of high quality machine component like Siemens, Coreken, machine works stably and not hard to find the machine component in local market.
▶It can work with high speed filling and capping machine to finish complete packaging production.

Parameter

  • Model:SH-TB260RA
  • Power supply:AC220V 50Hz/60Hz 1200W
  • Labeling capacity(bottles/min):20-70 bottles/min(depends on bottle size)
  • Suitable Bottle Diameter:Φ30-120mm H=30-200mm
  • Label size(mm): (H)12-150mm(Can be customized to 200mm)
  • Roll inside diameter(mm):Φ76mm
  • Roll outside diameter(mm):Φ300mm
  • Conveyor Size:112*2000mm(W)
  • Machine size:About (L)2000*(W)1000*(H)1360(mm)
  • Machine weight:About 200kg
application of honey jar labeling machine
datasheet of honey jar labeling machine
component of honey jar labeling machine
machine details of honey jar labeling machine-1
machine details of honey jar labeling machine-2
real shot of honey bottle labeler machine
