SUNHANPACK

Automatic Wrap-around Round Essential Oil Bottle Self-adhesive Sticker Labeling Machine For Shampoo Bottles

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Video



Description

This full automatic bottle labeling machine is good for single side and double side labeling on round bottles. It has high working efficiency, can label about 50 bottles/min. This machine can be connected to automatic filling machine and capping machine to achieve automated production. It is good for adhesive sticker but not suitable for glue label or the shrink label. It is suitable for metal bottles, glass bottles and widely used in food, beverage, cosmetic pharmaceutical industries.

Main Feature

▶ Suitable for single side & double side labeling on round bottles.
▶ It can work with automatic filling machine and capping machine to realize automated production.
▶ Can be customized for conical bottles
▶ This machine is suitable for round ink bottles, essential oil bottles, hand gel bottles, eyedrops bottles.

Parameter
Power supply:AC220V 50Hz/60Hz 1500W
Labeling capacity(pcs/min):25-50PCS /min(depends on bottle size)
Labeling accuracy(mm):±1.0mm
Suitable Bottle Diameter:Φ30-100mm
Label size(mm):(L)15-200mm (H)15-150mm
Roll inside diameter(mm):Φ76mm
Roll outside diameter(mm):Φ350mm
Conveyor Size:1950(L)*100mm(W)
Machine size:(L)2000*(W)1400*(H)1300(mm)
Packing Size:2120x940x1500mm

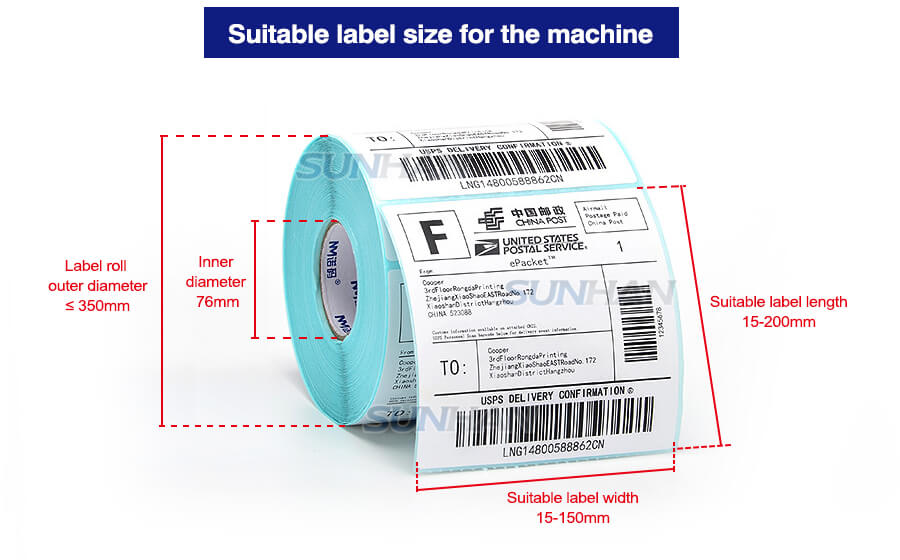

Label Size of Automatic Round Bottle Labeling Machine.jpg


Application of Automatic Round Bottle Labeling Machine.jpg

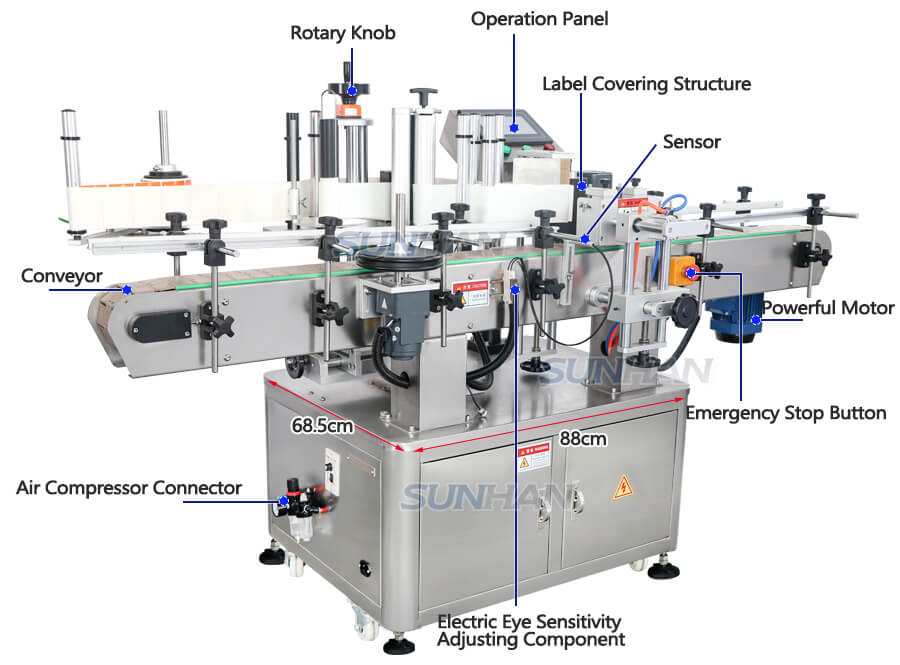

Round Bottle Labeler

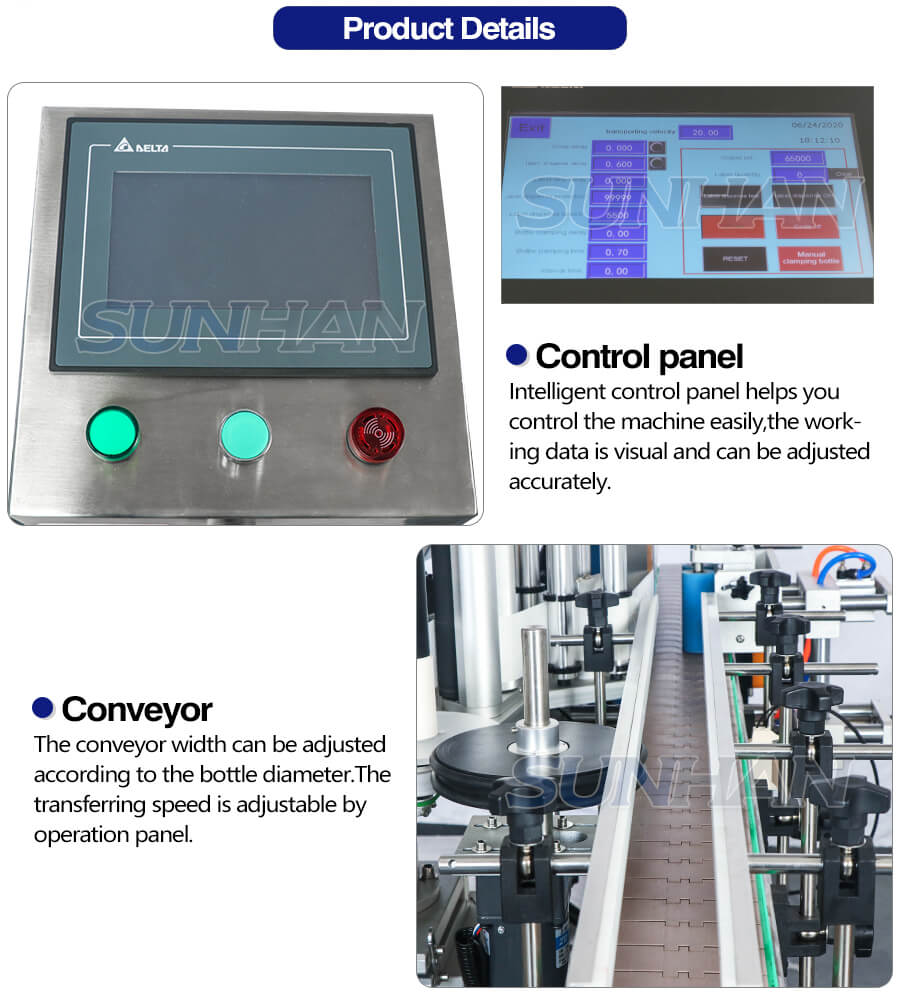

Machine Details of Round Bottle Labeler

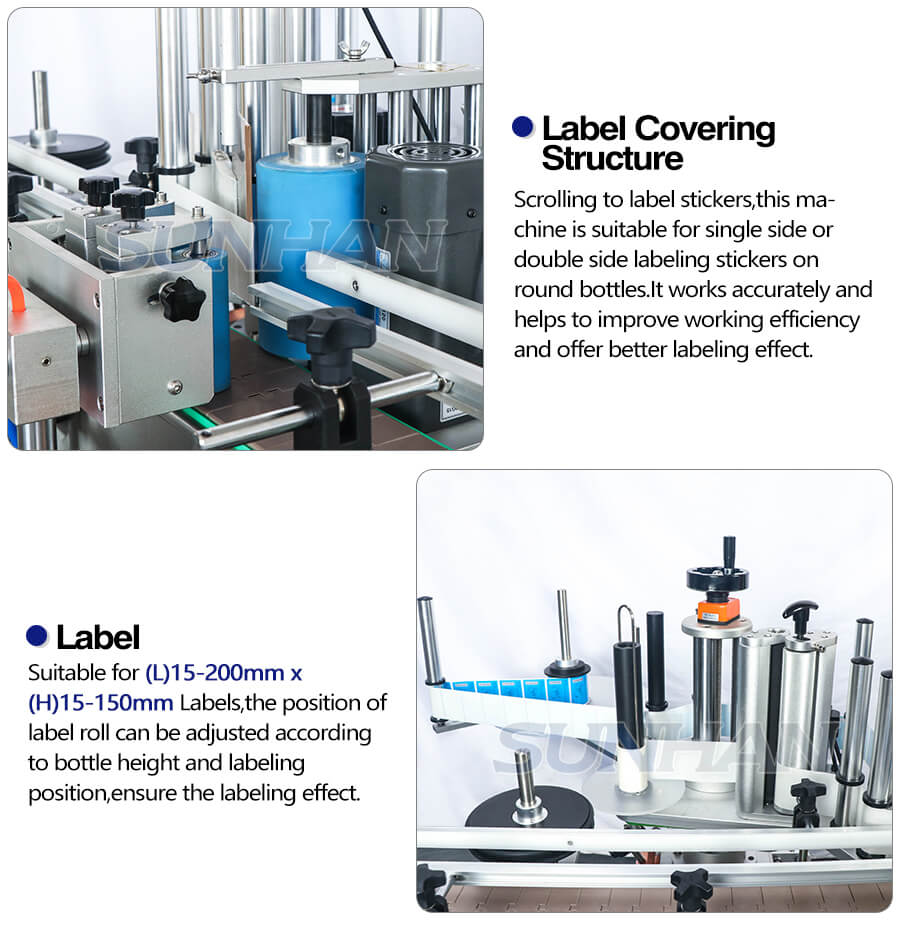

Machine Details of Round Bottle Labeler-2

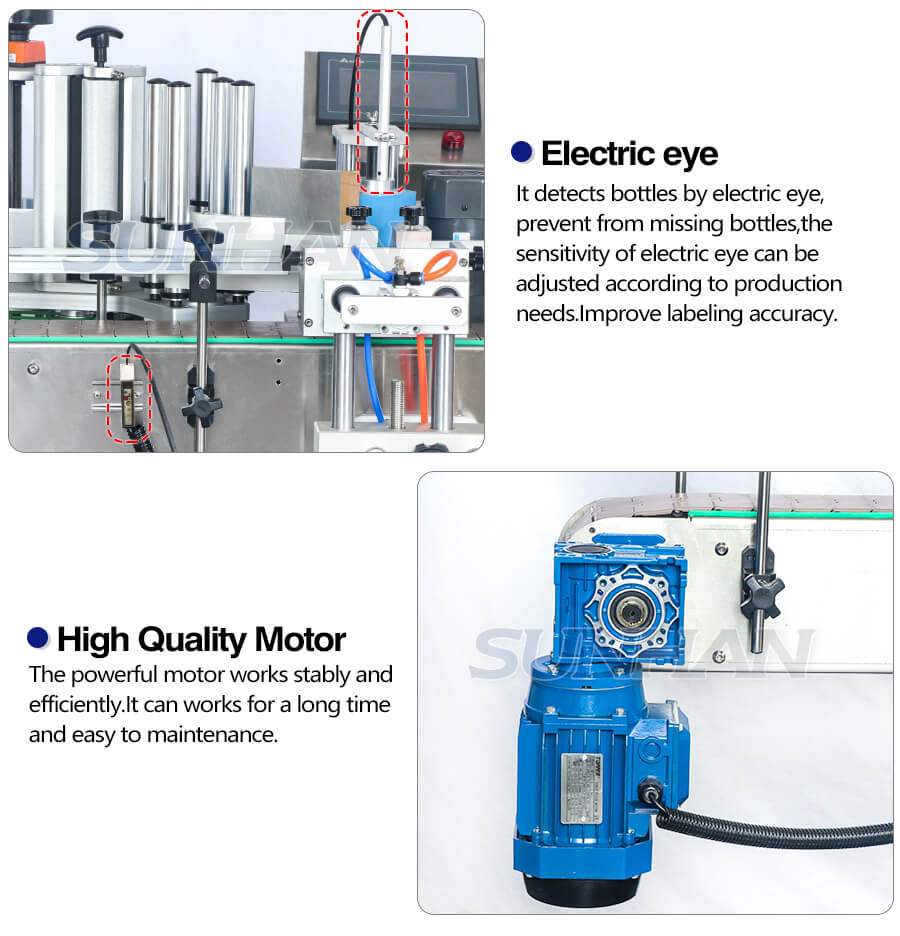

Machine Details of Round Bottle Labeler-3

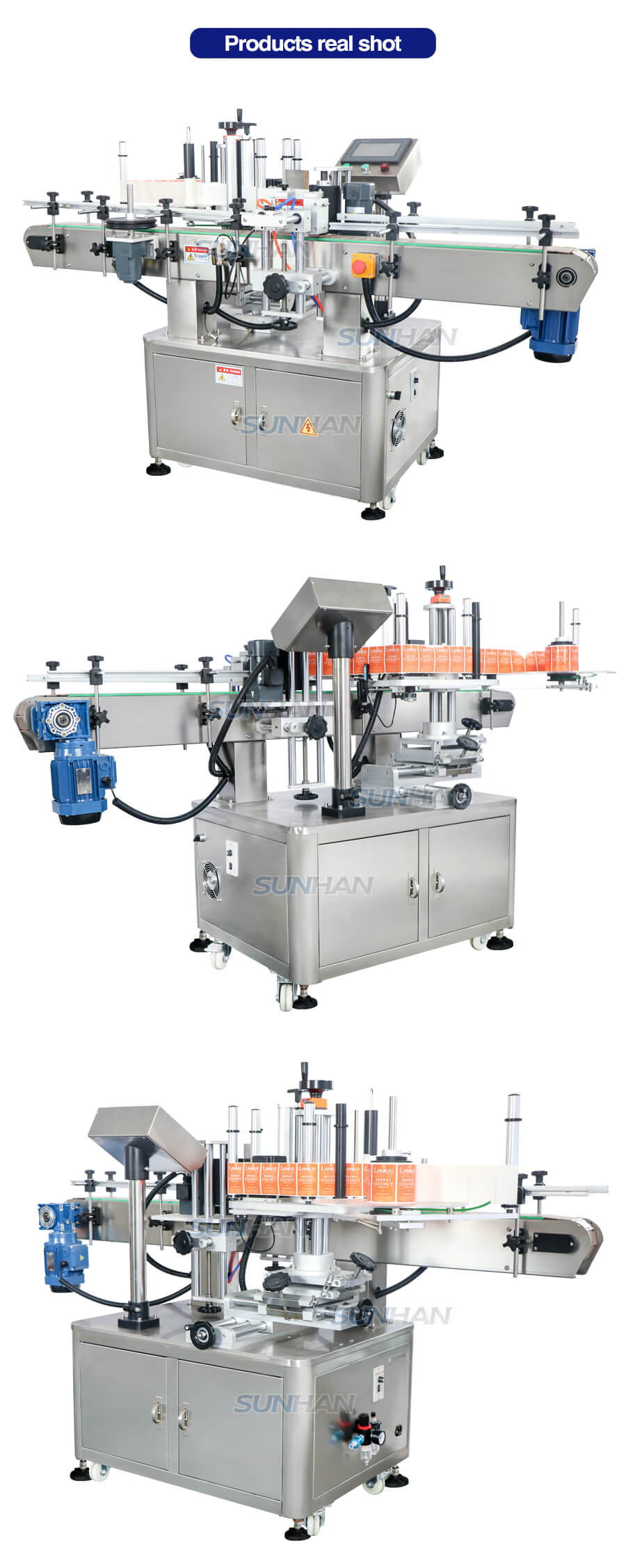

Round Bottle Label Applicator
