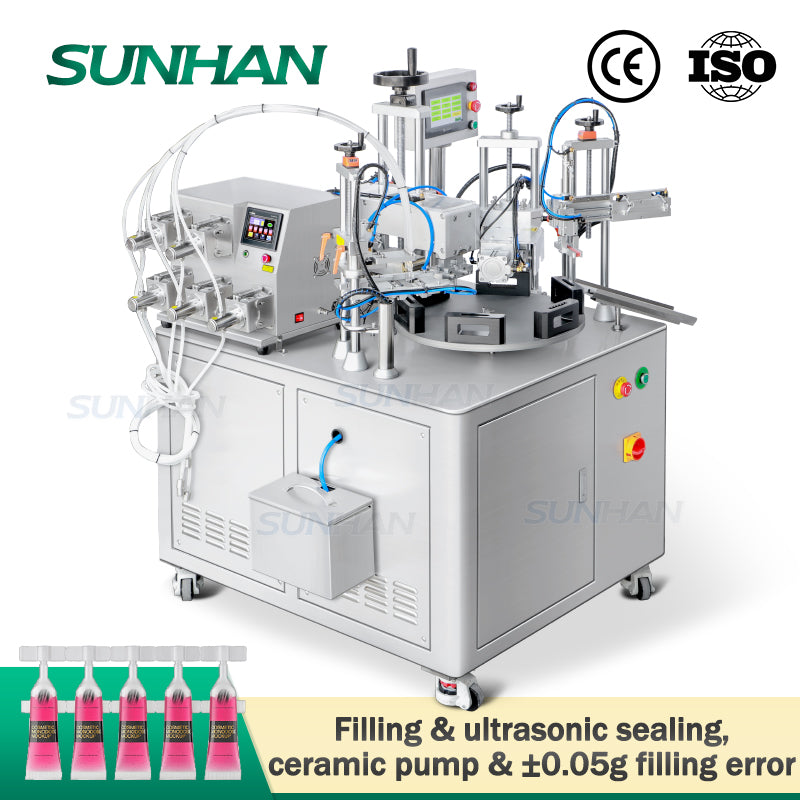

single dose filling sealing machine

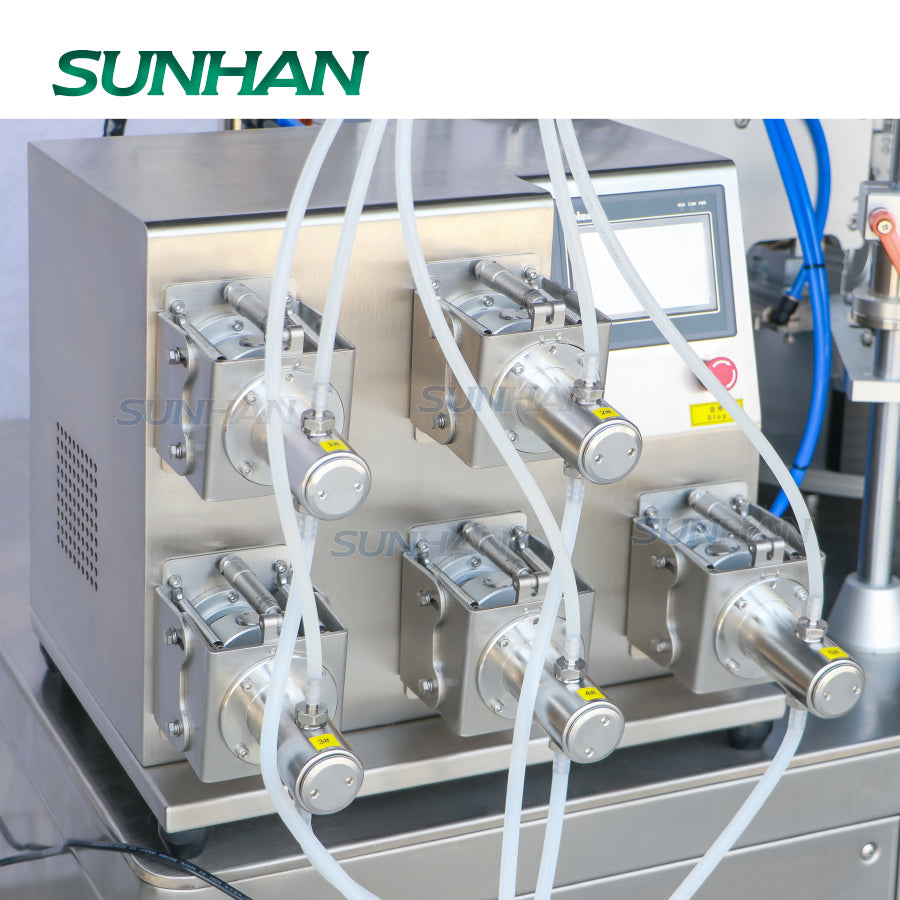

precision ceramic pump of single dose filling sealing machine-1

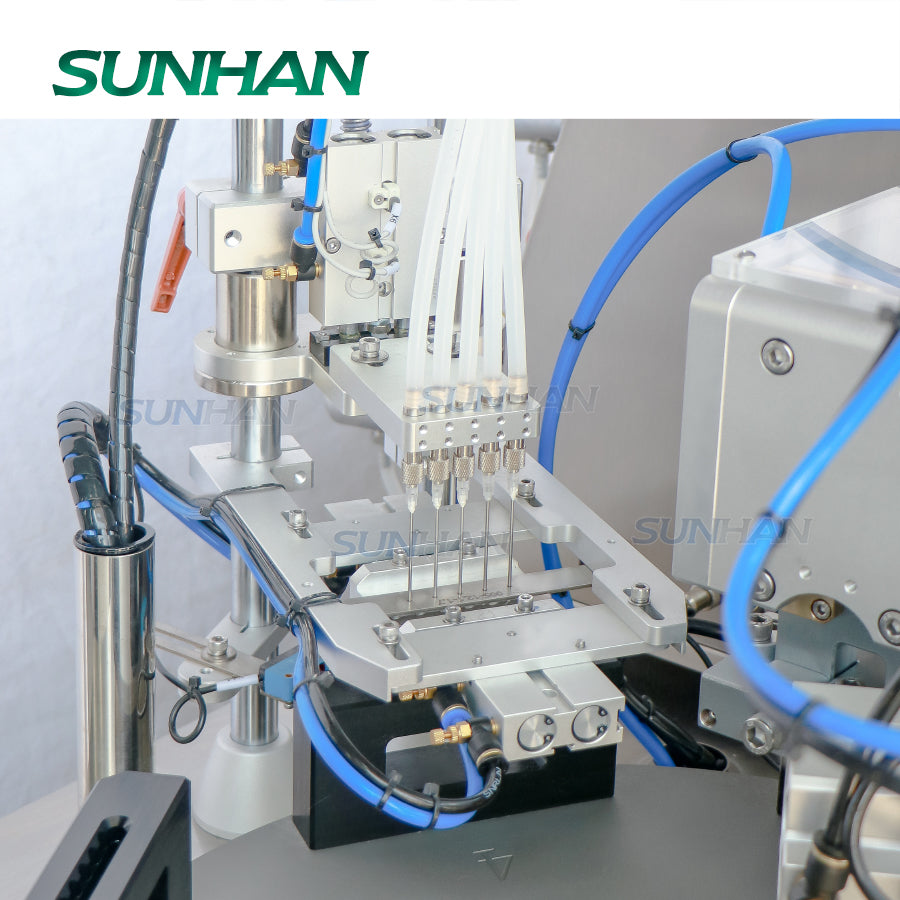

filling nozzles of single dose filling sealing machine-2
ultrasonic sealing structure of single dose filling sealing machine-3

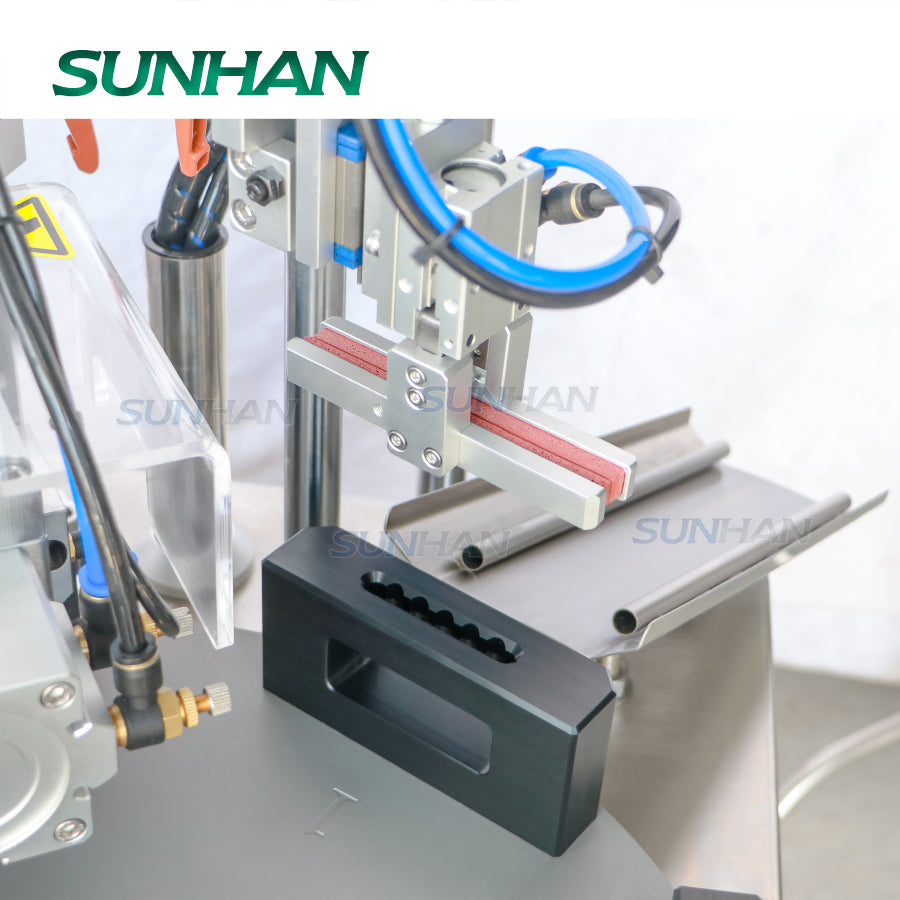

product discharging structure of single dose filling sealing machine-4

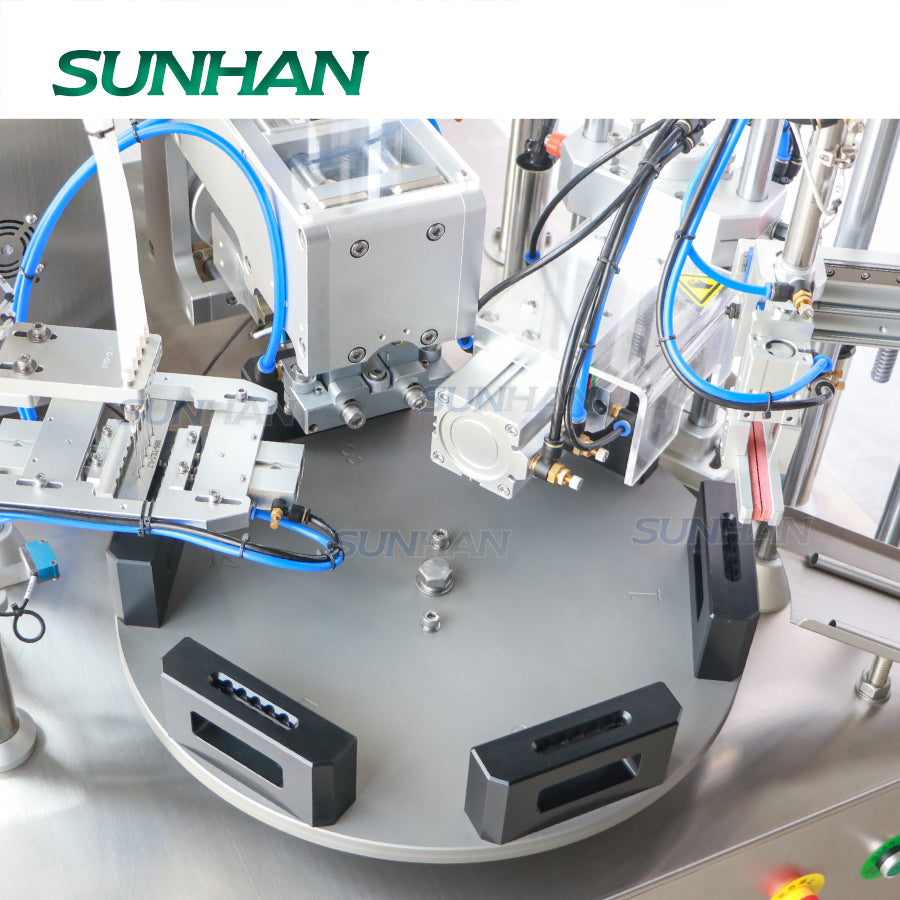

working station of single dose filling sealing machine-5
water circulation cooling box of single dose filling sealing machine-6
eye drops tube filling sealing machine

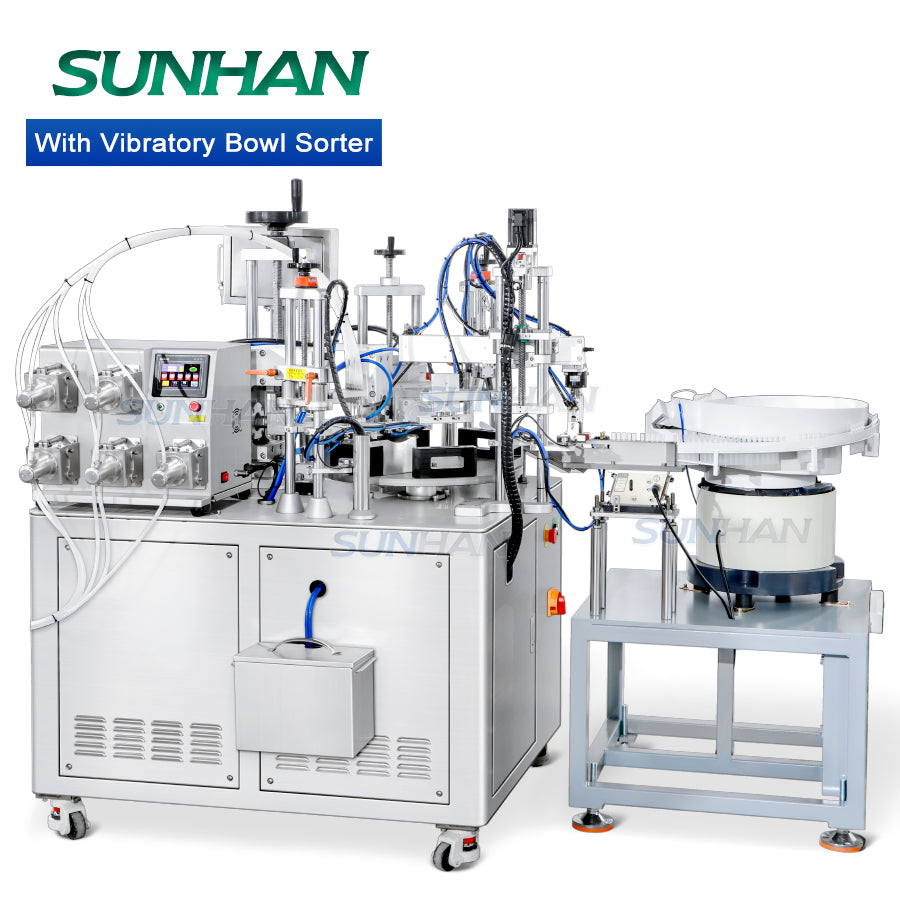

single-use serum filling sealing machine with vibratory bowl sorter

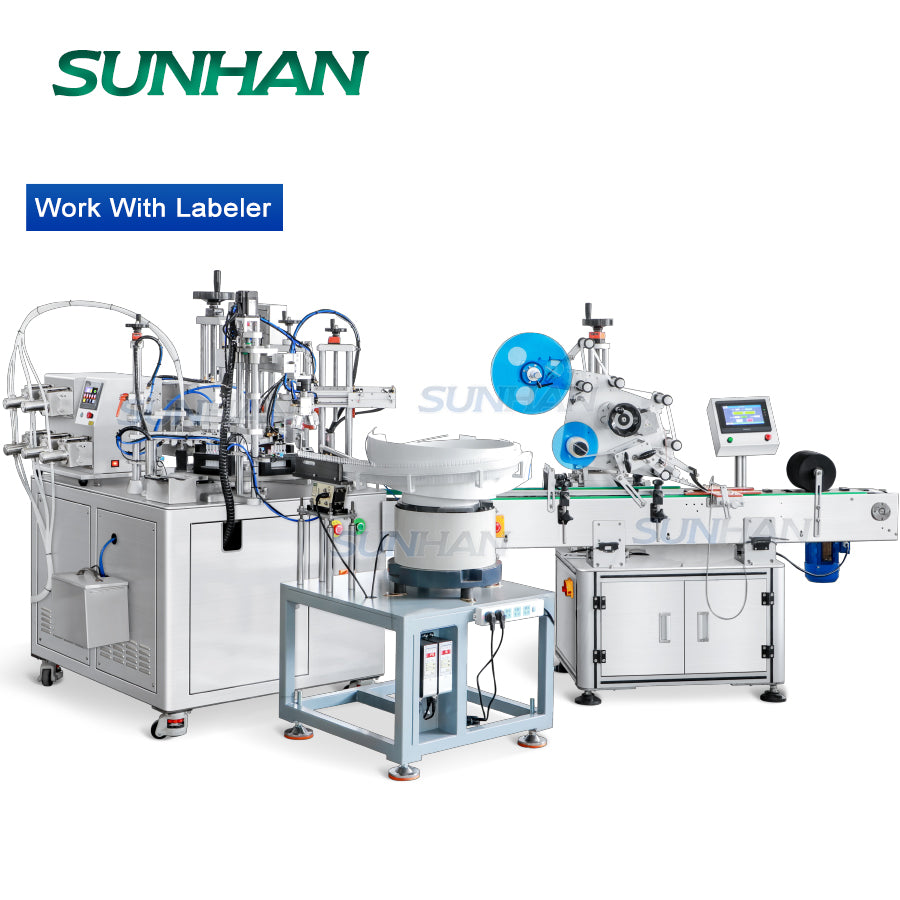

eye essence strip filling sealing machine connected with labeling machine
single dose filling sealing machine
precision ceramic pump of single dose filling sealing machine-1
filling nozzles of single dose filling sealing machine-2
ultrasonic sealing structure of single dose filling sealing machine-3
product discharging structure of single dose filling sealing machine-4
working station of single dose filling sealing machine-5
water circulation cooling box of single dose filling sealing machine-6
eye drops tube filling sealing machine
single-use serum filling sealing machine with vibratory bowl sorter
eye essence strip filling sealing machine connected with labeling machine

SUNHANPACK

SUNHAN SH-FS50U Automatic Single-dose Tube Ceramic Pump Single-use Serum Eye Essence Strip Liquid Filling Sealing Machine

Shipping calculated at checkout.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶This machine is designed for packaging single-dose tube.
▶Machine can finish tube feeding, liquid filling, ultrasonic sealing, tube tails cutting, finished tubes discharging automatically.
▶Filling is controlled by ceramic pump, it has high precision, which is good for small does filling.
▶Machine can be connected to a labeling machine for automated production.

Parameter

  • Machine model:SH-FS50U
  • Power supply:110/220V 50Hz/60Hz Single Phrase
  • Power:2.6KW
  • Air pressure:0.6Mpa
  • Recommend filling range:0.5-15ml
  • Sealing speed:13-15 rows/minute
  • Filling accuracy:±0.05g
  • Sealing height:50-150mm
  • Ultrasonic frequency:20KHz
  • Sealing diameter:50-1350mm
  • Body material:304 stainless steel
  • Machine size:L1187*W1106*H1553mm
  • Machine weight:About 350kgs
application of single-use serum filling sealing machine
datasheet of eye essence strip filling sealing machine
machine component of eye essence strip filling sealing machine
machine details of eye drops tube filling sealing machine-1
machine details of eye drops tube filling sealing machine-2

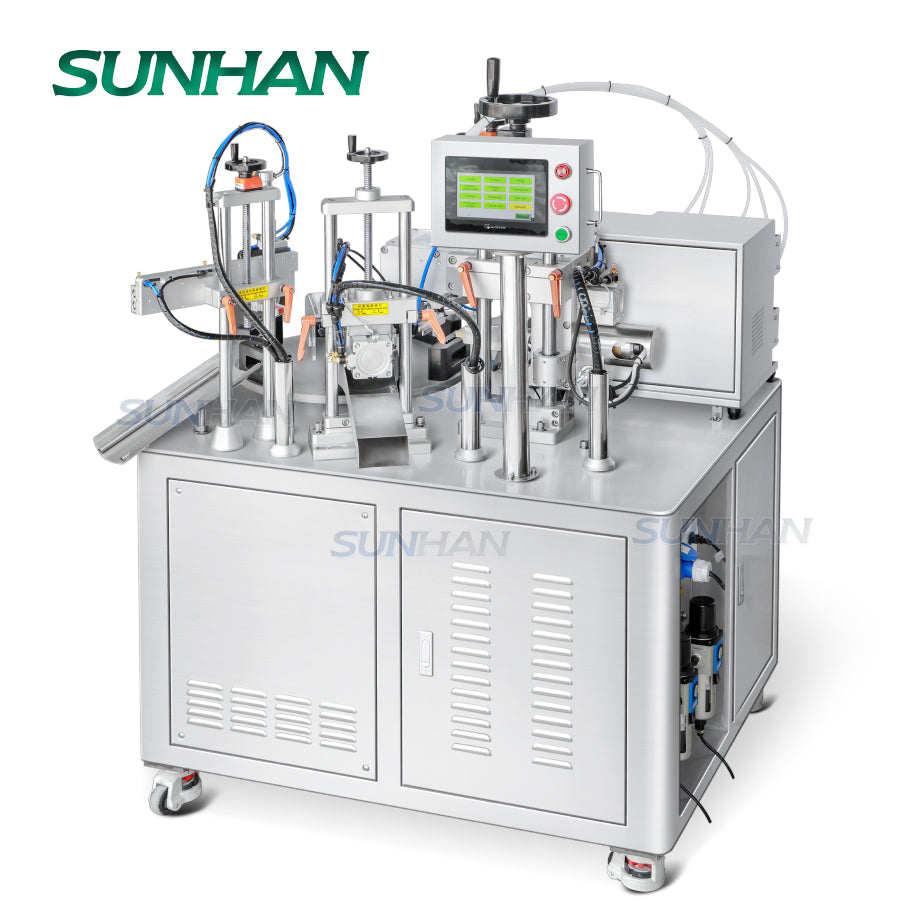

real shot of single dose filling sealing machine-1
real shot of single dose filling sealing machine-2

Our Workshop

Cover area 7000 ㎡ • ISO9001 Quality Assurance System • Quality Control Team
