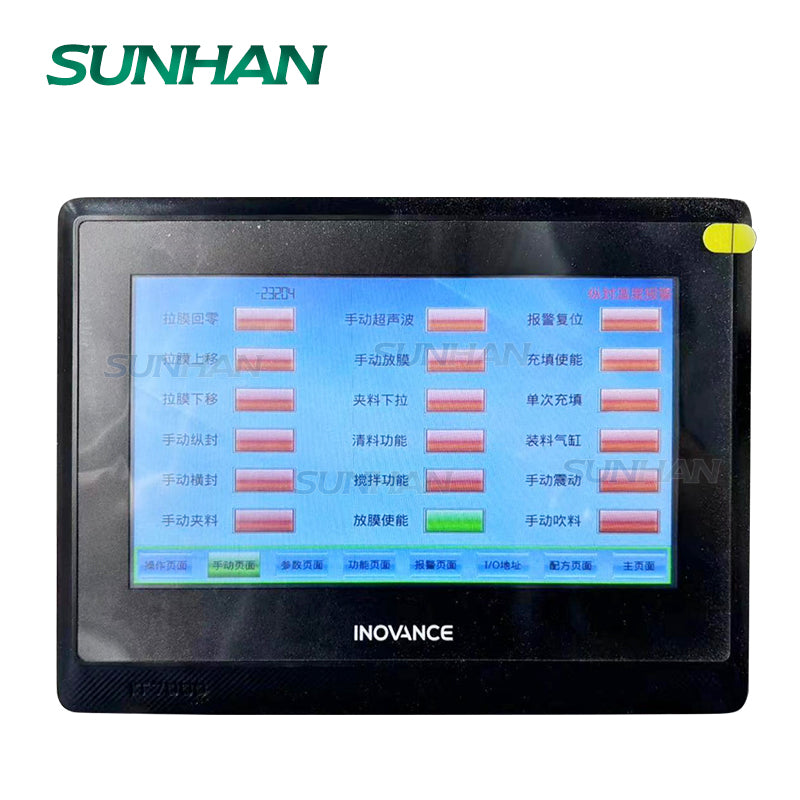

control panel of powder stick packing machine-1

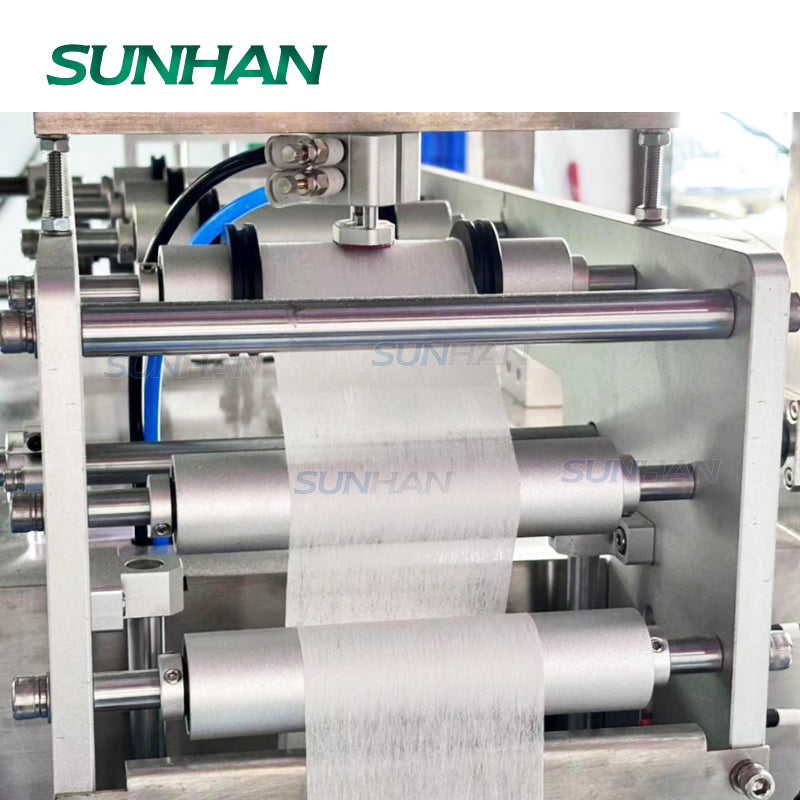

film pulling structure of powder stick packing machine-2

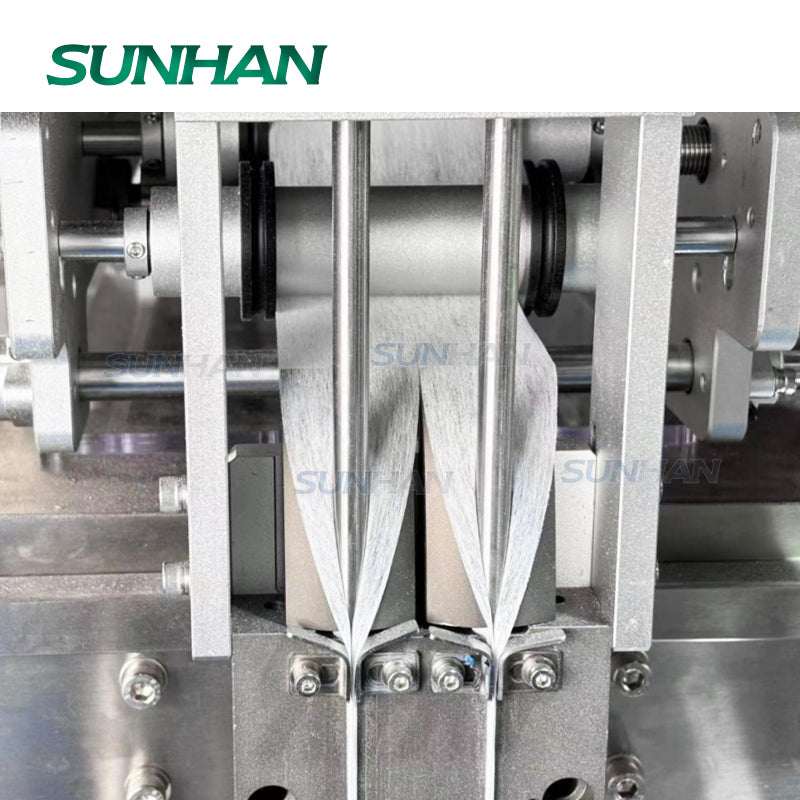

forming structure of powder stick packing machine-3

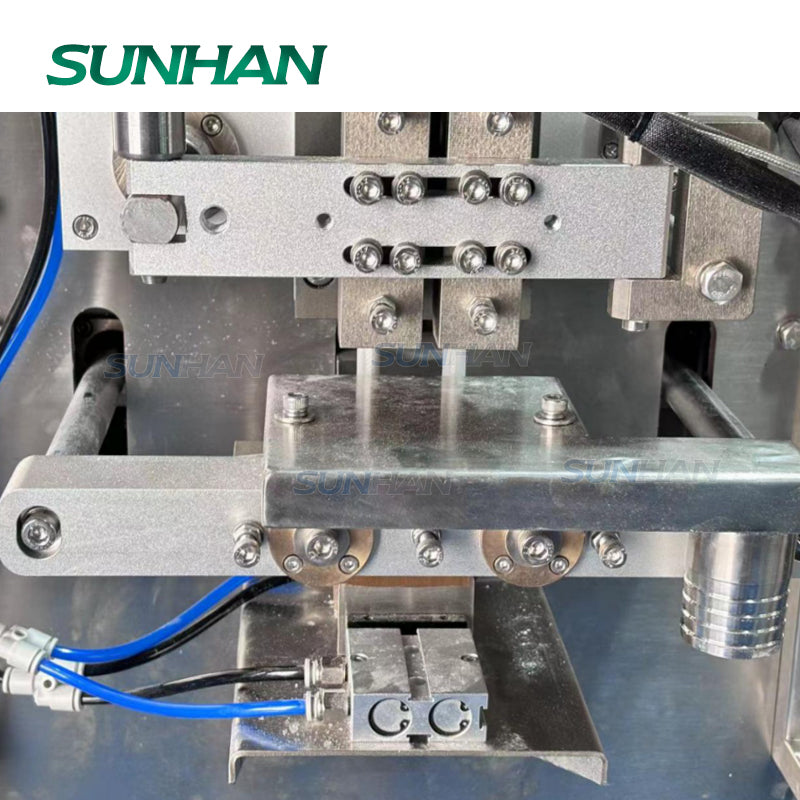

ultrasonic sealing structure of ultrasonic sealing structure-4

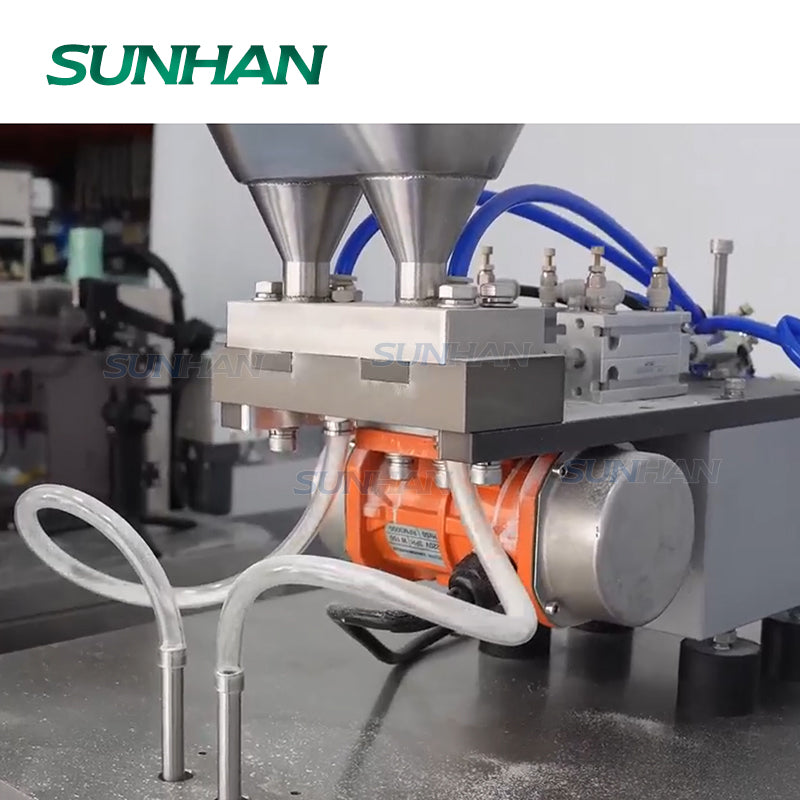

filling structure of ultrasonic sealing structure-5
granule sachet packaging machine
sachet granules filling sealing machine
control panel of powder stick packing machine-1
film pulling structure of powder stick packing machine-2
forming structure of powder stick packing machine-3
ultrasonic sealing structure of ultrasonic sealing structure-4
filling structure of ultrasonic sealing structure-5
granule sachet packaging machine

SUNHANPACK

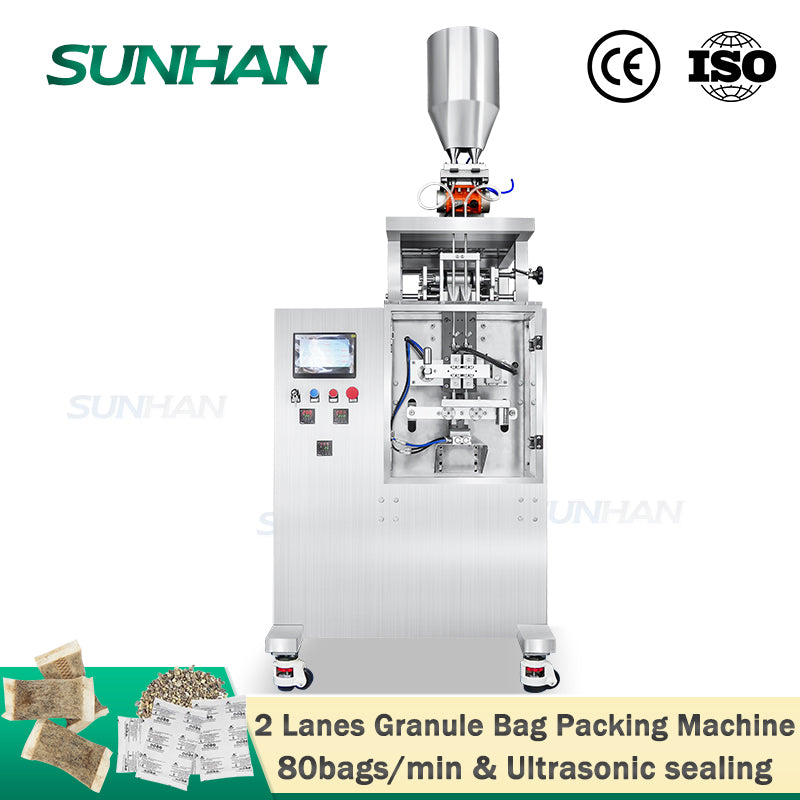

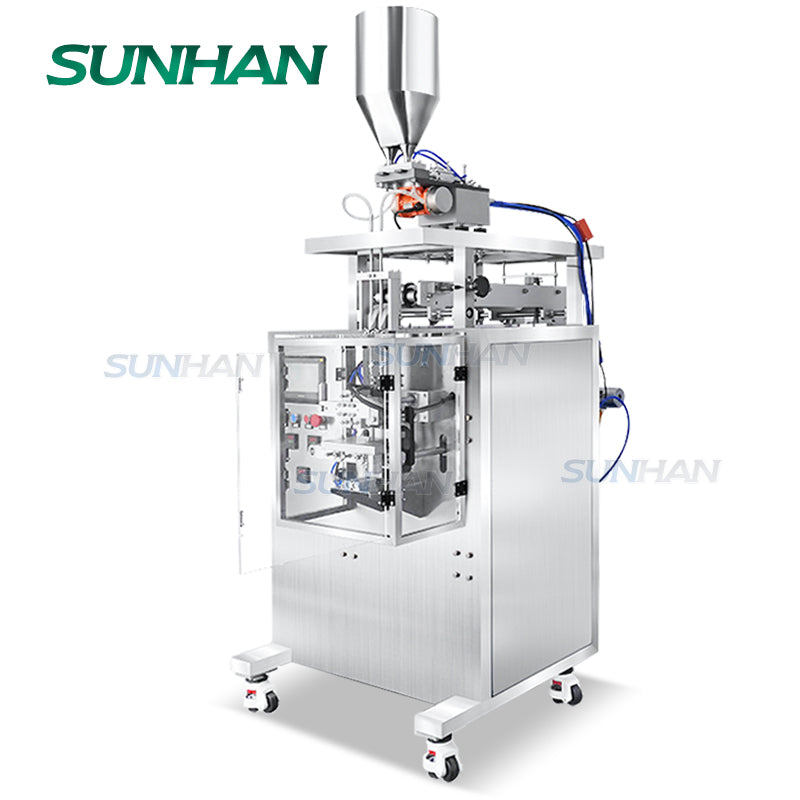

SUNHAN SH-FSFM2 Automatic Servo Vertical Quantitative 2 Lanes Granule Sachet Filling Ultrasonic Sealing Packing Machine

Shipping calculated at checkout.
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

▶This filling sealing machine is designed for packaging powder or small granule into roller film.
▶Equipped with measuring cups, it can fill granules accurately.
▶Using ultrasonic sealing method, it is suitable for non-woven fabric.

Parameter

  • Model: SH-FSFM2
  • Packing Speed: About 80 bags/minute
  • Filling Method: Measuring Cup + Blowing
  • Measuring Range: 0.5 g (Customized)
  • Bag Size: Width-15 mm, Length-30 mm (Adjustable)
  • Sealing Form: Back Seal
  • Film Width Range: Maximum 220 mm
  • Film Thickness: 0.04–0.09 mm
  • Power Supply: 1N+PE / 50HZ / AC220V / 1.3KW
  • External Dimensions (L*W*H): 1040*740*1670 mm
  • Machine Weight: About 200 kg
application of powder stick packing machine
datasheet of granule sachet packaging machine
machine component of granule sachet packaging machine
machine details of 2 lane powder packing machine-1
machine details of 2 lane powder packing machine-2
real shot of sachet granules filling sealing machine
