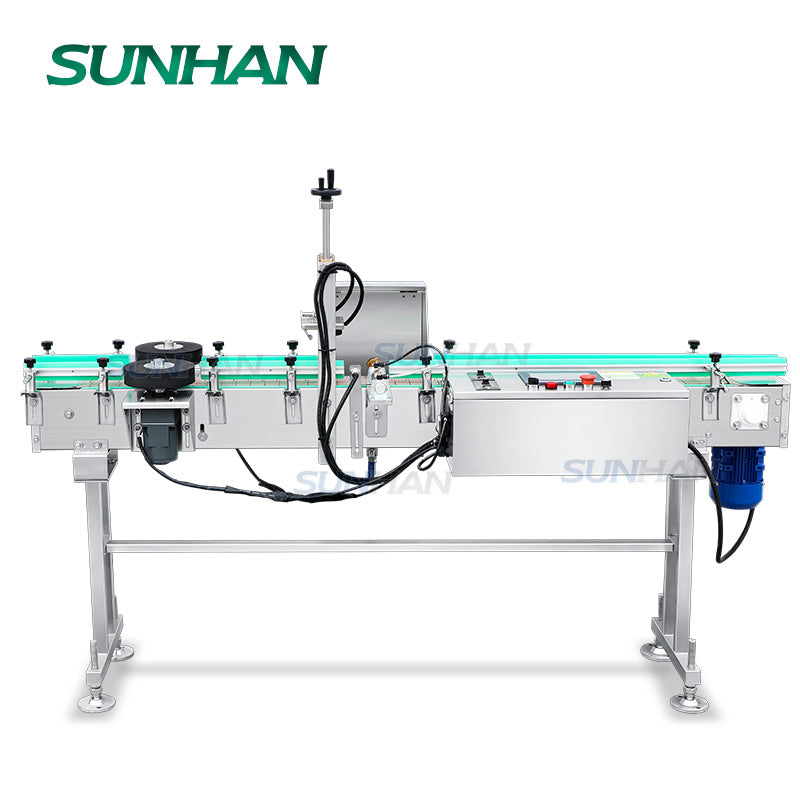

bottle cap detector rejection machine
video of bottle cap detector rejection machine

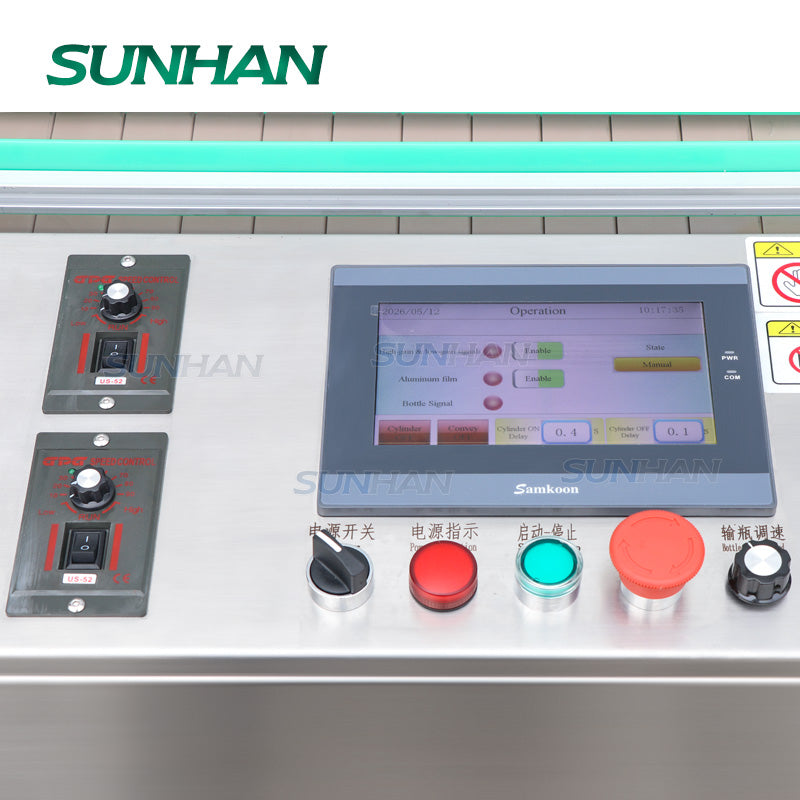

operation panel of inspection rejection system-1

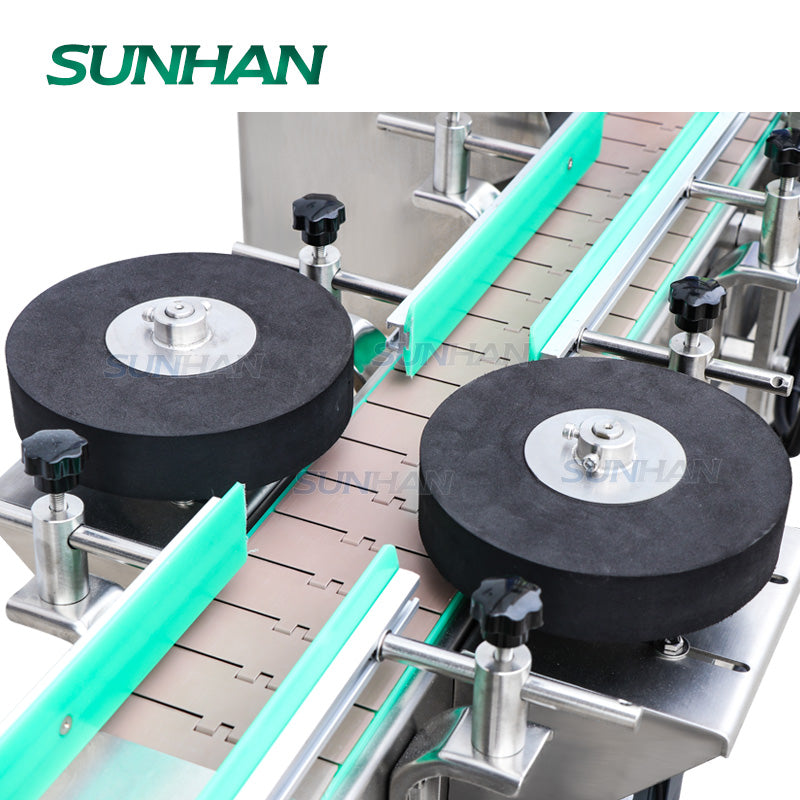

dual sponge bottle separating device of inspection rejection system-2

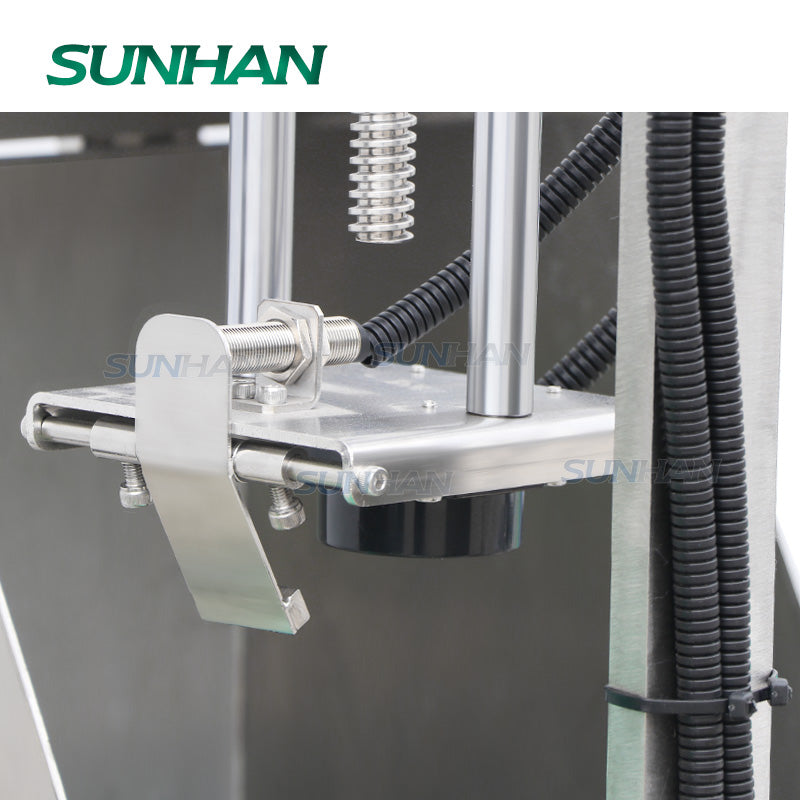

cap and liner inspection module of inspection rejection system-3

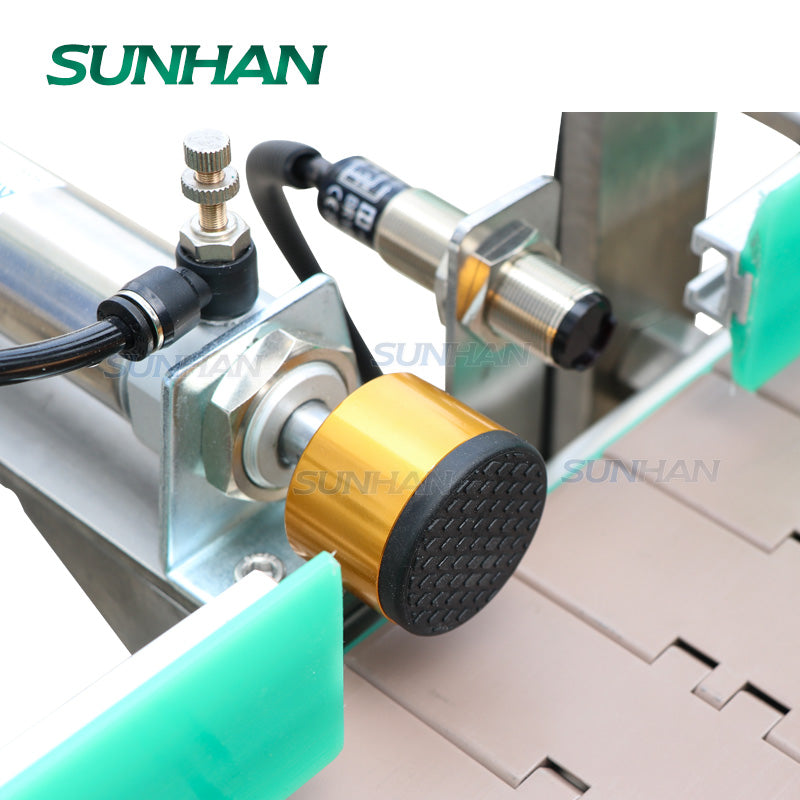

automatic rejection system of inspection rejection system-4

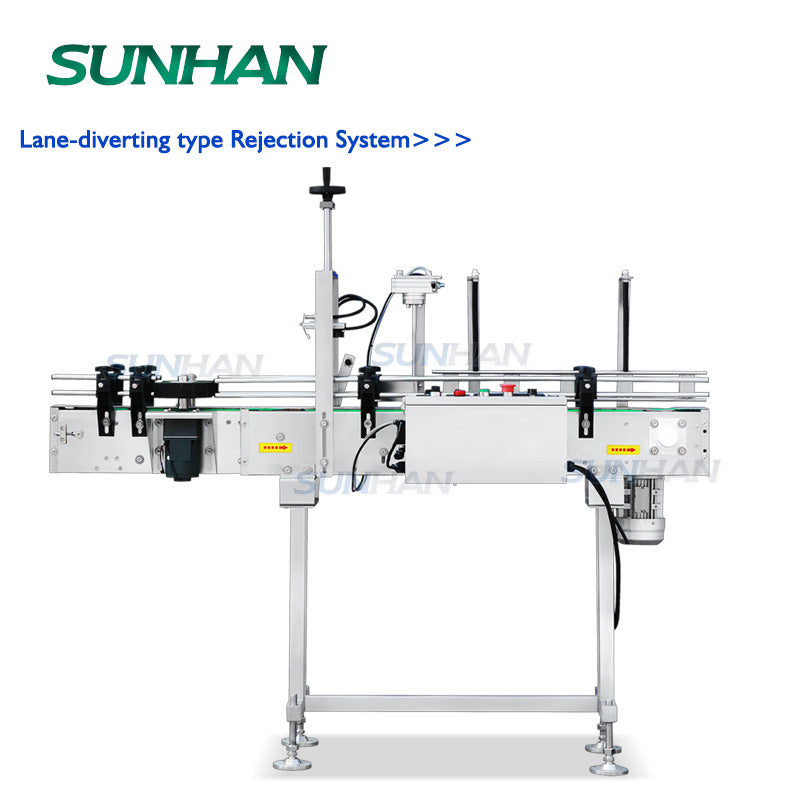

lane-diverting type rejection system
inspection rejection system

SUNHANPACK

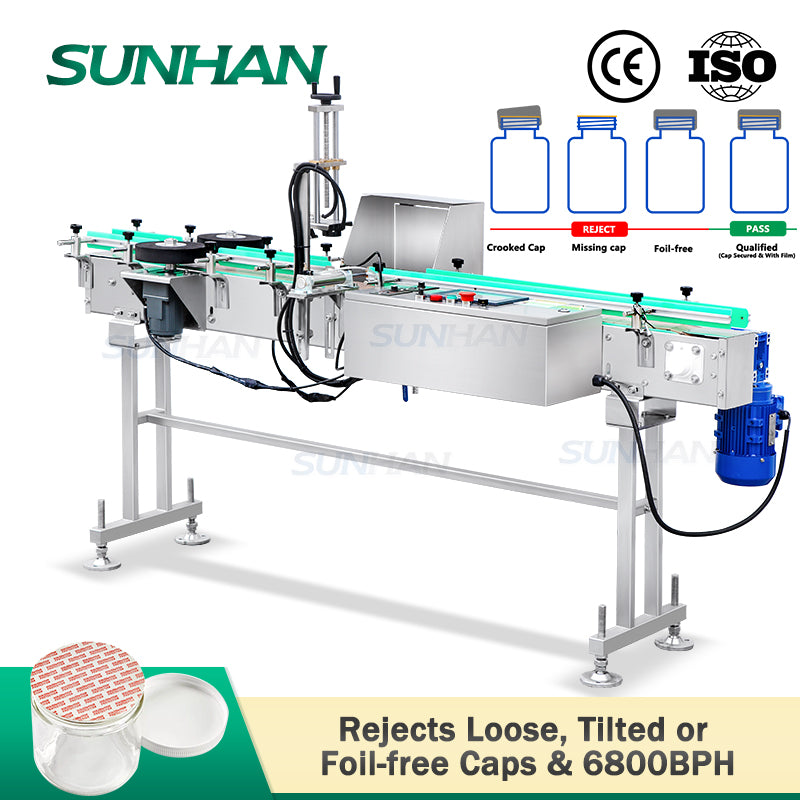

SUNHAN SH-MD2 Automatic Bottles Cap Lid Aluminum Foil Liner Detecting Inspection Machine With Rejection Function

Los gastos de envío se calculan en la pantalla de pago.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Machine can detect missing foil liner, loose caps, and tilted caps to ensure packaging quality.
▶Automatically removes unqualified bottles with customizable rejection structures.
▶With dual sponge separating device spaces bottles evenly for stable inspection.

Parameter

  • Machine Model:SH-MD2
  • Machine Voltage:220V 50HZ 550W
  • Suitable Bottle Size:Φ40-95 mm H80-230 mm
  • Suitable Cap Size:Φ20-70 mm H20-40 mm
  • Working Capacity:≤6800 BPH(Based on product size)
  • Machine Size:About 1500*615*1519 mm
  • Package Size:About 1800*800*520 mm
  • Package Weight:About 250 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of cap lid inspection rejection machine
machine component of bottle cap detector rejection machine
machine details of bottle cap inspection system-1
machine details of bottle cap inspection system-2
real shot of inspection rejection system
