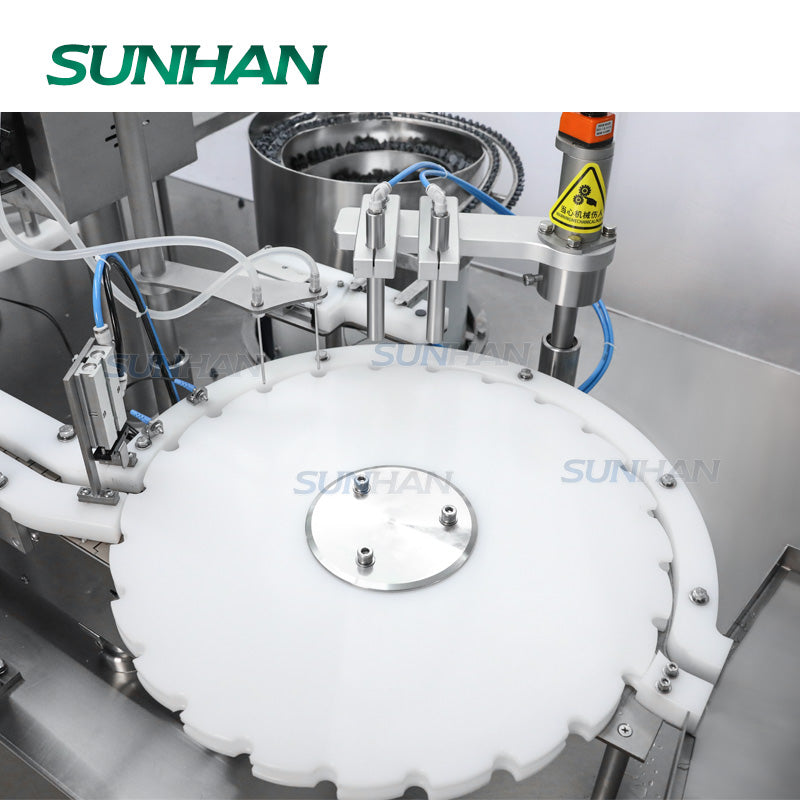

cam system working system of automatic vial filling machine-1

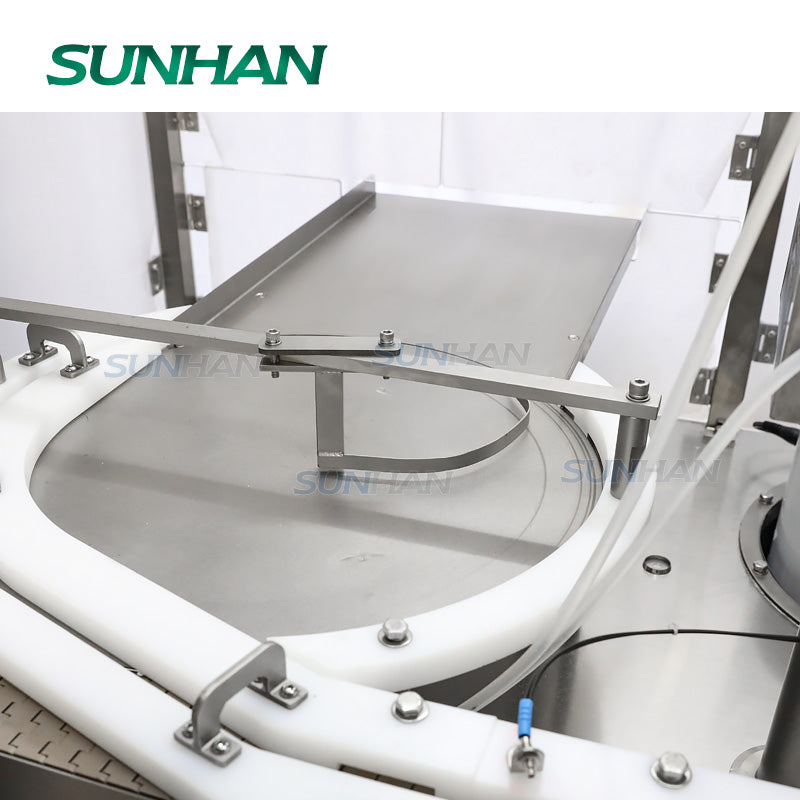

bottle sorting structure of automatic vial filling machine-2

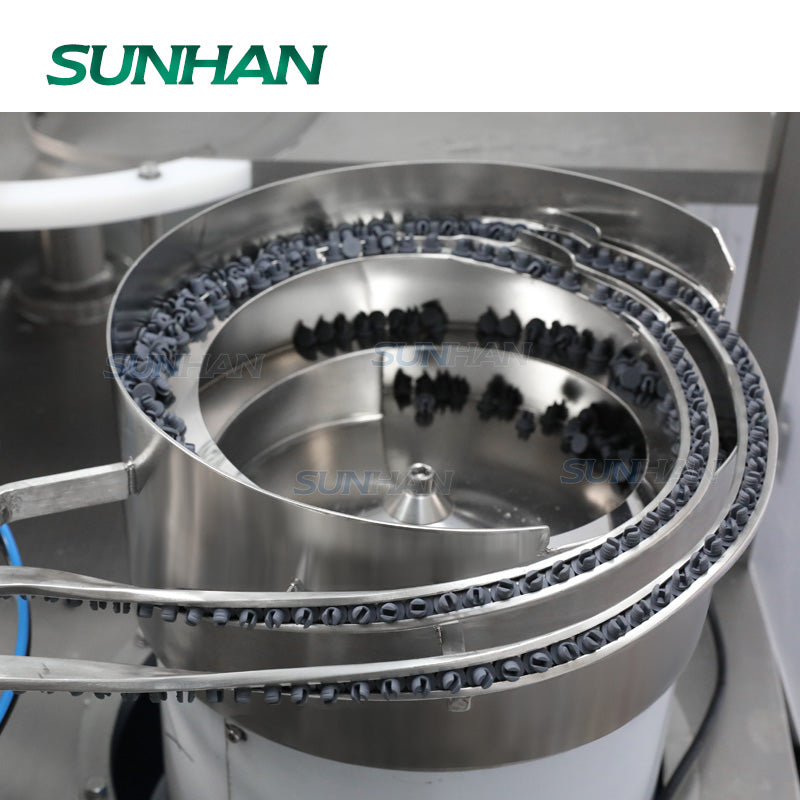

vibratory bowl sorter of automatic vial filling machine-3

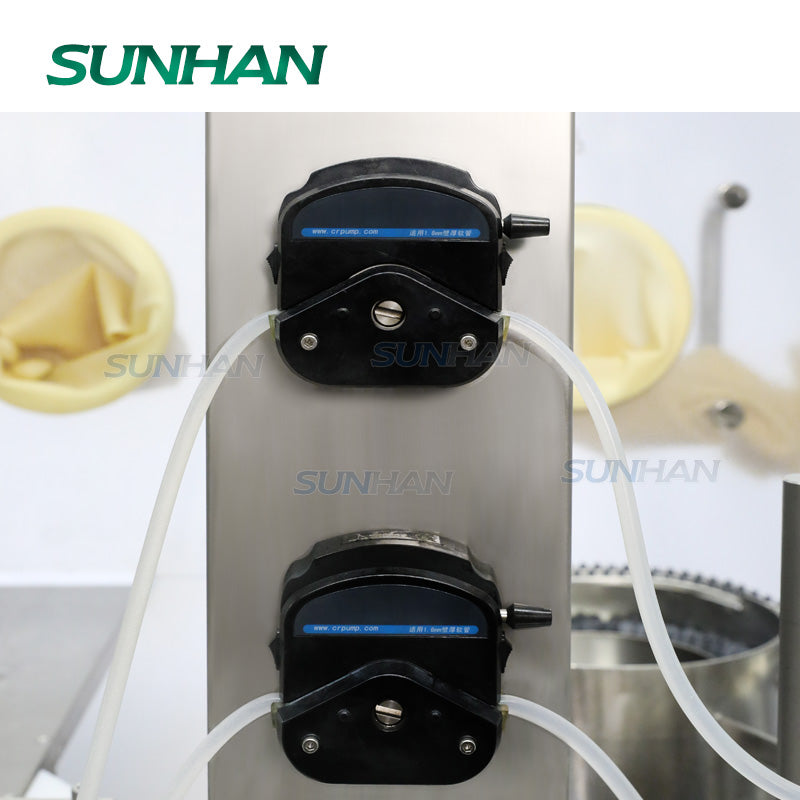

peristaltic pump system of automatic vial filling machine-4

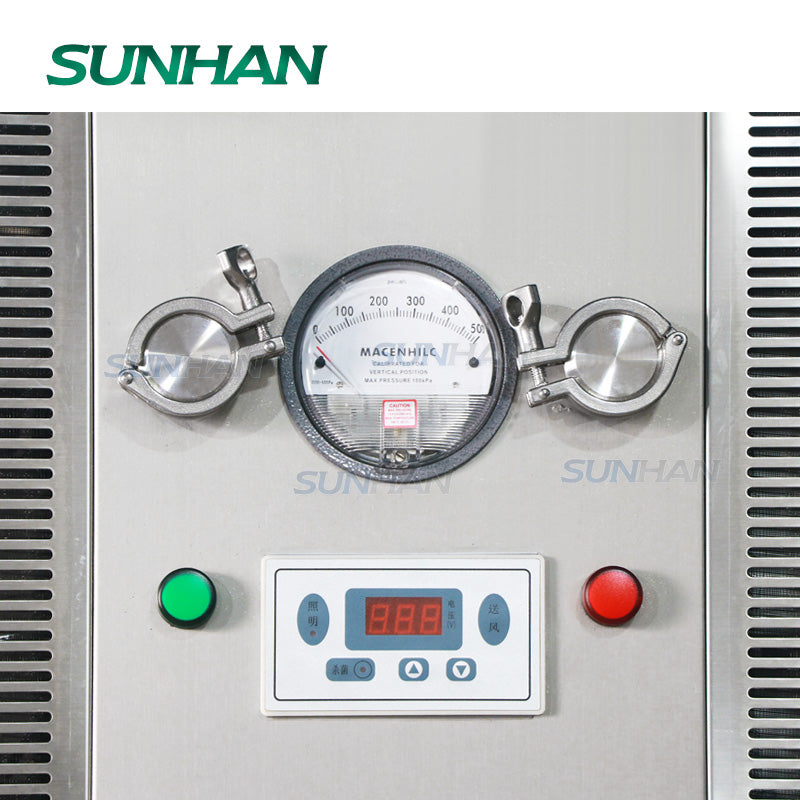

laminar flow hood of automatic vial filling machine-5
vial filling and sealing machine
liquid vial filling capping machine

SUNHANPACK

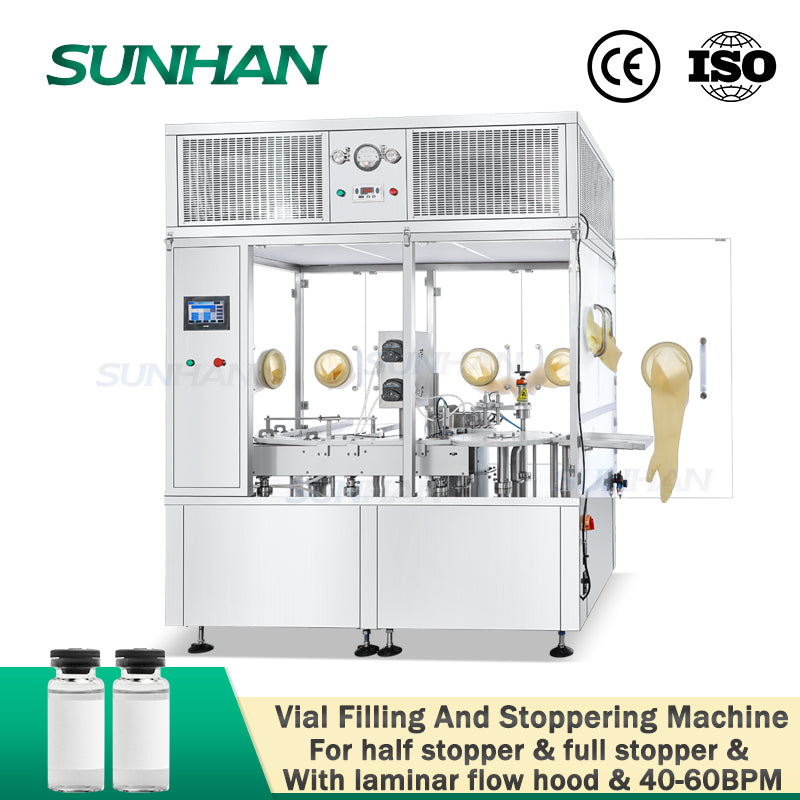

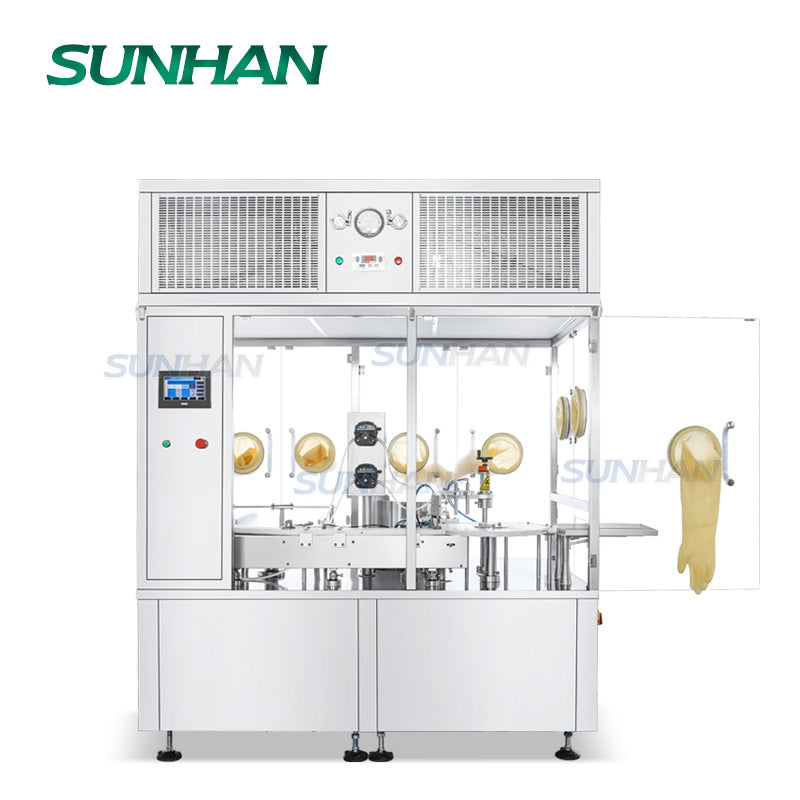

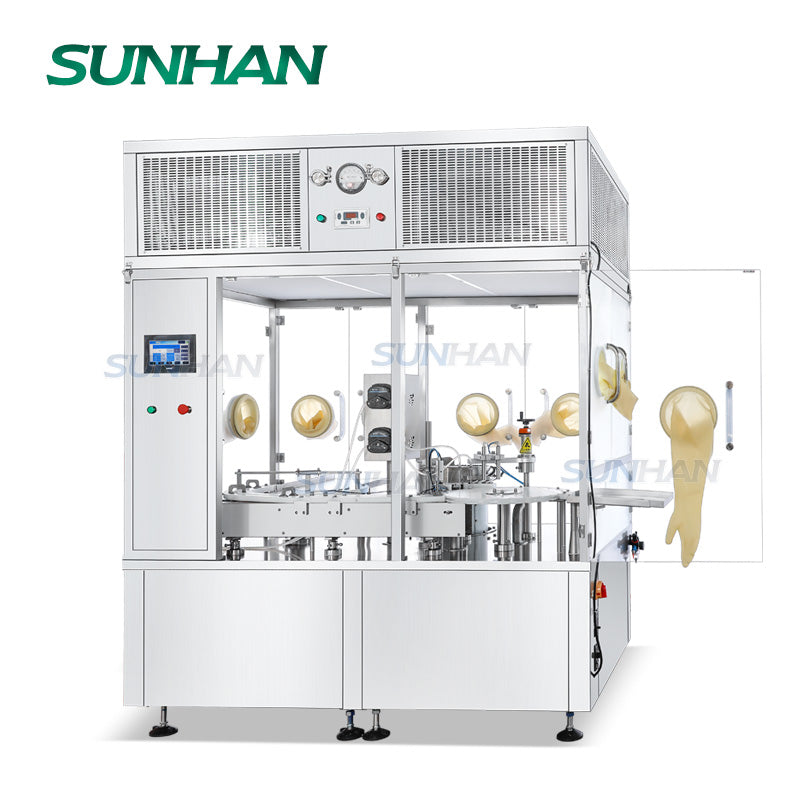

SUNHAN SH-AFC9H Automatic Peristaltic Pump Skin Serum Liquid Vial Filling Rubber Stoppering Sealing Machine With Laminar Flow Hood

Los gastos de envío se calculan en la pantalla de pago.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Machine can finish bottle sorting, liquid filling and partial stoppering functions in one machine. (Can be used for fully stoppering)
▶Cam system controlled operation, enabling reliable performance at 40-60BPM.
▶Filling is controlled by peristaltic pump, liquid will only pass through the tube, ensuring contamination-free and clean production.
▶Equipped with a laminar flow hood & dust cover to ensure product quality.

Parameter

  • Machine Model:SH-AFC9H
  • Voltage:AC 110/220V 50-60Hz
  • Power:<3000W/h
  • Working Speed:About 40-60bottles/min(depending on filling range)
  • Filling Pump:Peristaltic pump
  • Filling Nozzle Quantity:2
  • Filling Range:Customizable
  • Filling Accuracy:±3%
  • Package Size:About 610*1900*1270mm(Laminar Flow Hood)
    About 2110*1320*2110mm(Main Machine)
  • Package Weight:About 181kg(Laminar Flow Hood)+908kg(Main Machine)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

workflow of liquid vial filling capping machine
machine component of vial filling rubber stoppering machine
machine details of automatic vial filling machine-1
machine details of automatic vial filling machine-2
machine details of automatic vial filling machine-3
real shot of vial filIing and sealing machine
