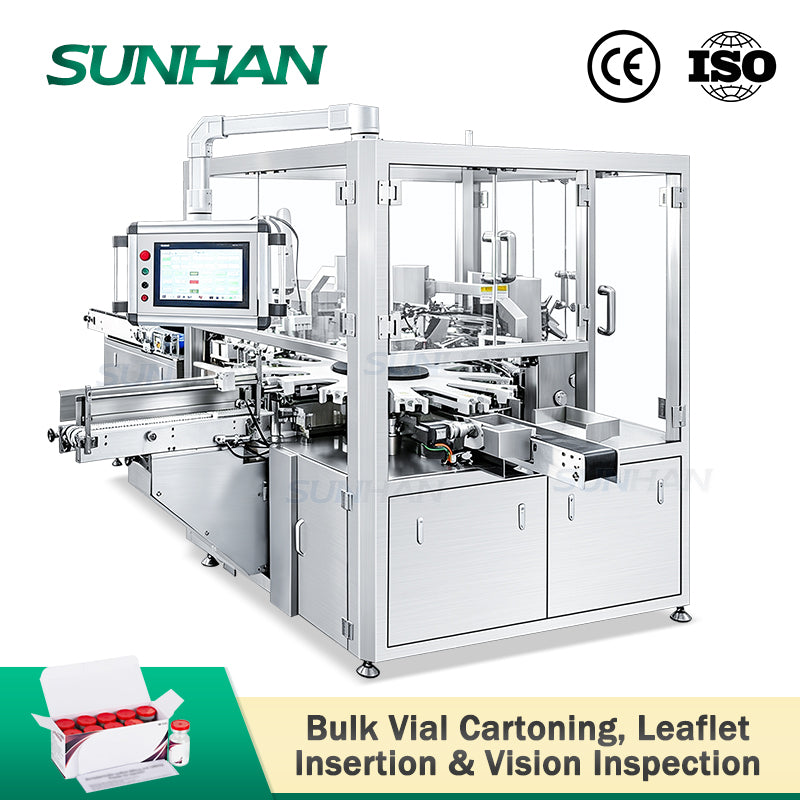

vertical vials cartoning machine
carton feeding & forming unit of vial cartoning packaging machine-1

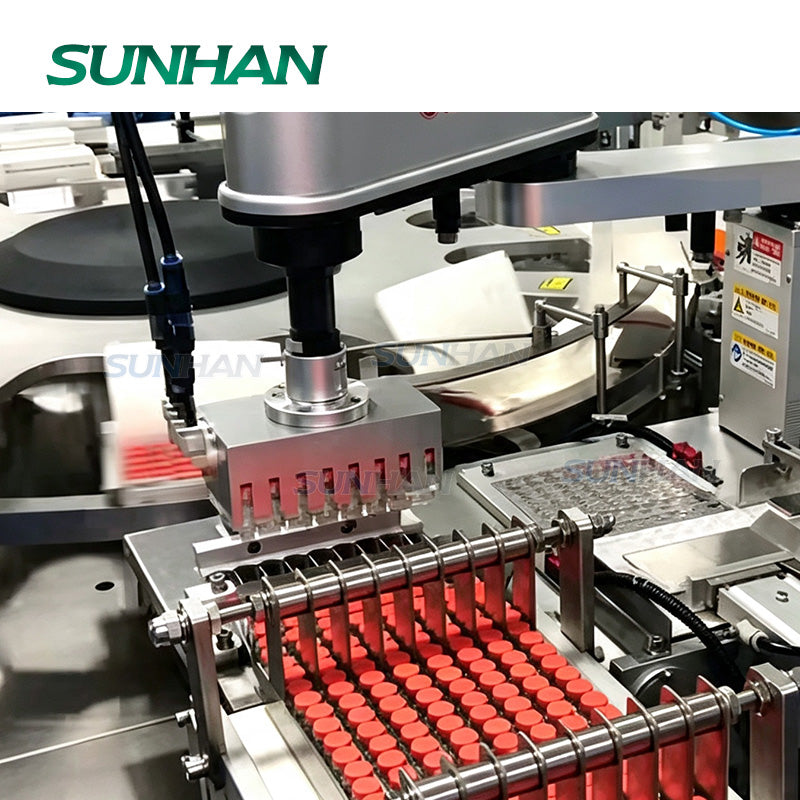

vacuum vial loading system of vial cartoning packaging machine-2

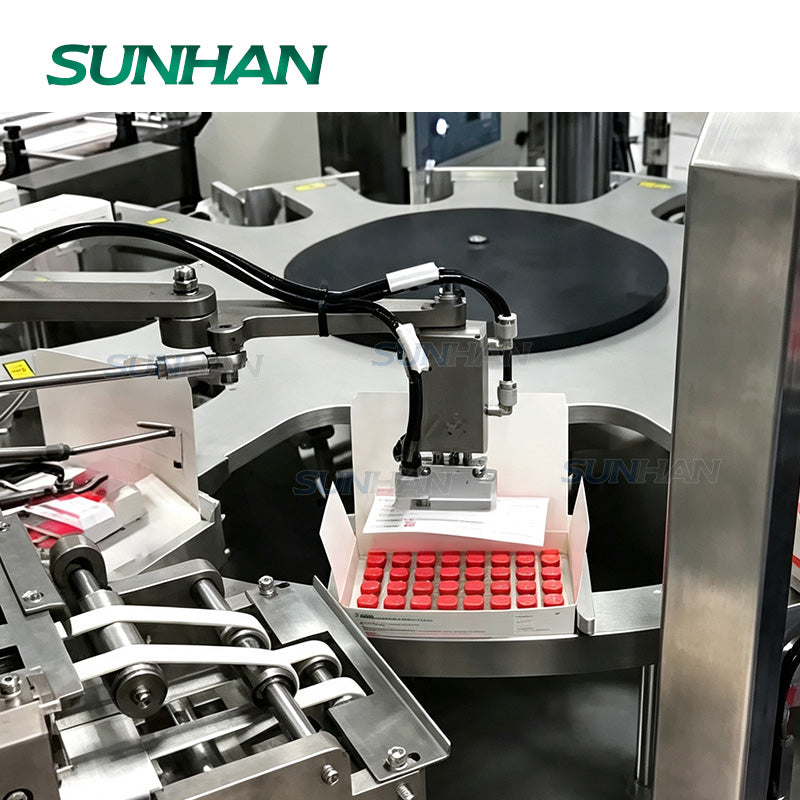

leaflet insertion system of vial cartoning packaging machine-3
carton closing system of vial bottle box cartoner machine-4

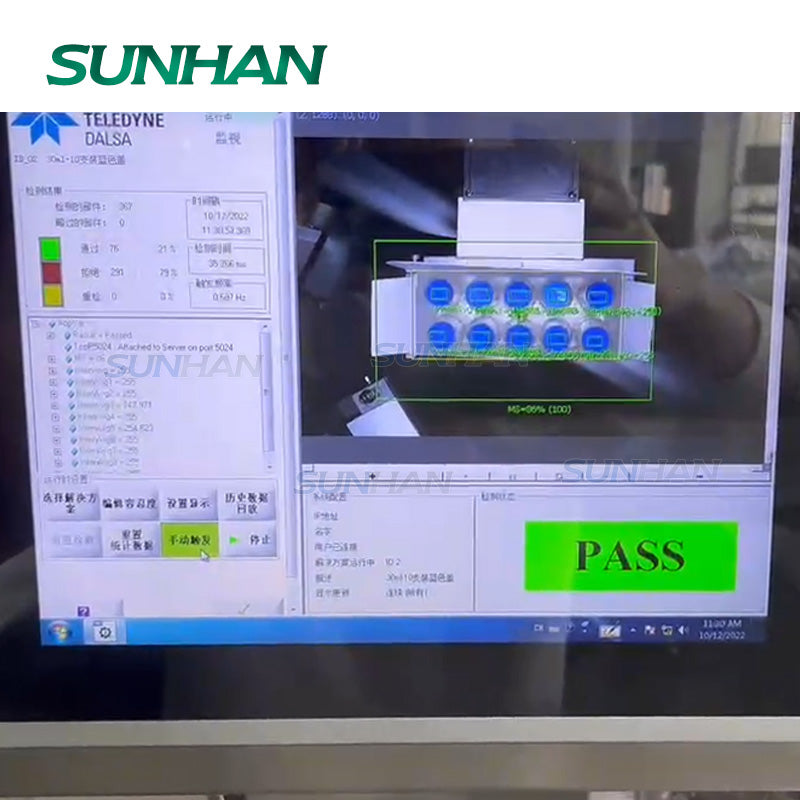

vision inspection of vial bottle box cartoner machine-5
vertical vials cartoning machine
video of vial bottle box cartoner machine
carton feeding & forming unit of vial cartoning packaging machine-1
vacuum vial loading system of vial cartoning packaging machine-2
leaflet insertion system of vial cartoning packaging machine-3
carton closing system of vial bottle box cartoner machine-4
vision inspection of vial bottle box cartoner machine-5

SUNHANPACK

SUNHAN SH-MSZH10 Vertical Cartoner Automatic Glass Vials Bottle Folding Box Sealing Cartoning Packaging Machine With Vision Inspection Reject System

Los gastos de envío se calculan en la pantalla de pago.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Vertical loading structure enables smooth and stable vial feeding, suitable for efficient carton packaging.
▶Vacuum gripper ensures accurate vial handling, reducing product damage during loading.
▶Supports automatic insertion of folded or unfolded leaflets to meet different packaging requirements.
▶Automatically detects missing vials or leaflets and rejects defective cartons.
▶Supports tuck-in closure and hot melt glue sealing for different carton packaging needs.

Parameter

  • Machine Model:SH-MSZH10
  • Machine Voltage:380V 50Hz
  • Total Power:3.5Kw
  • Working speed:20~60 boxs/min
  • Range of Cardboard Box:Min.85×37×40mm/Max.180×60×65mm
  • Size of unfolded leaflet:80~170×125~260 mm
  • Size of folded leaflet:80~170×30~60mm
  • Quality of Operation Manual:55~70g/m²
  • Quality of Cardboard Box:300~350g
  • Machine Dimension:About 7200*2600*1750mm
  • Machine Weight:About 1500Kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of automatic vial cartoning machine

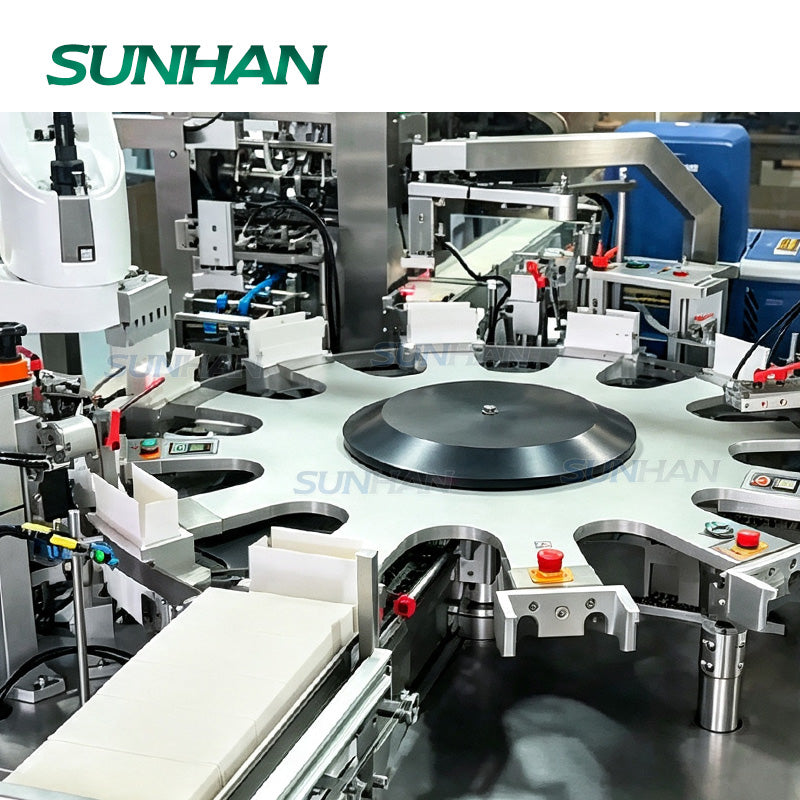

machine component of vertical vials cartoning machine

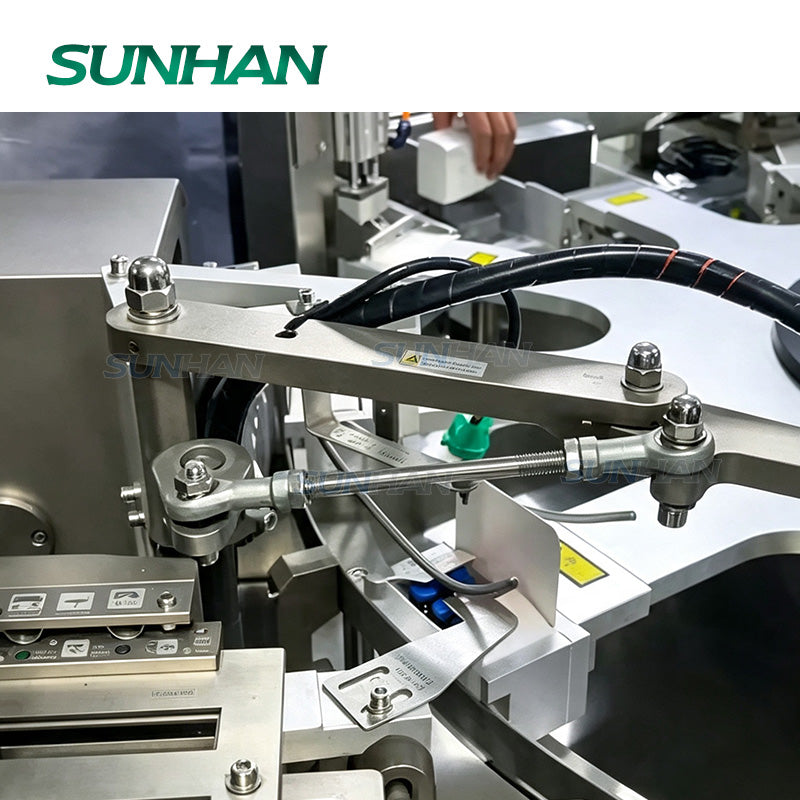

machine details of vial cartoning packaging machine-1
machine details of vial cartoning packaging machine-2
real shot of vial bottle box cartoner machine
