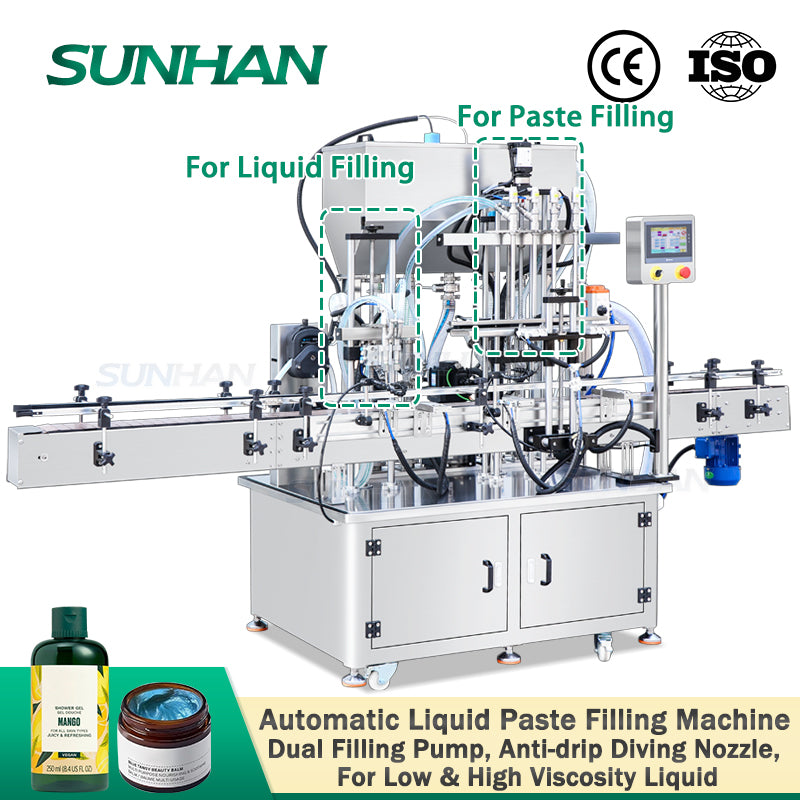

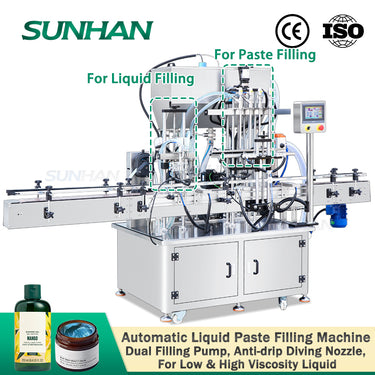

automatic paste liquid filling machine

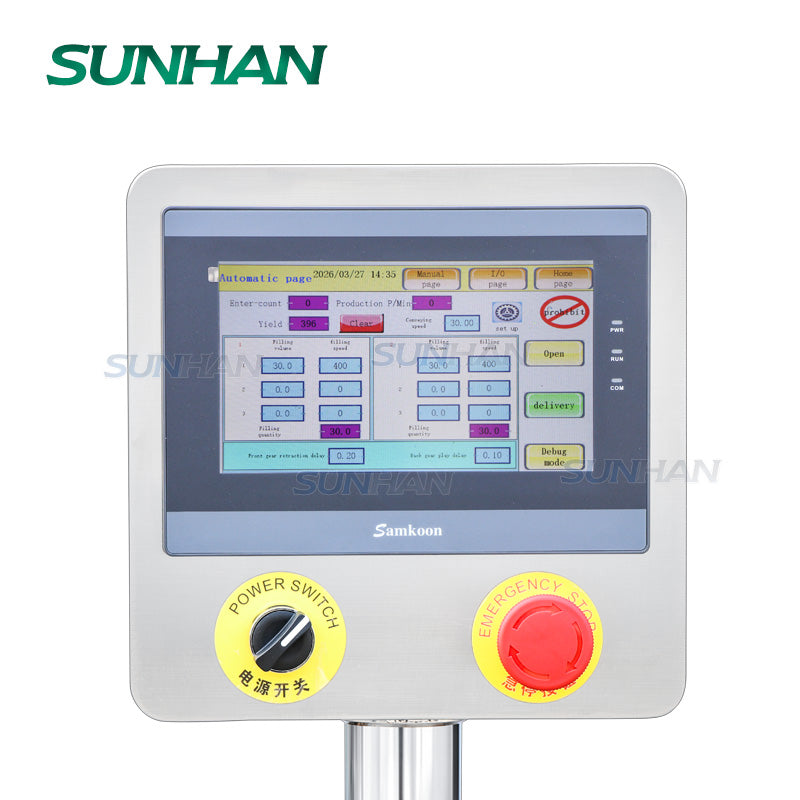

control panel of automatic glycerin liquid filling machine-1

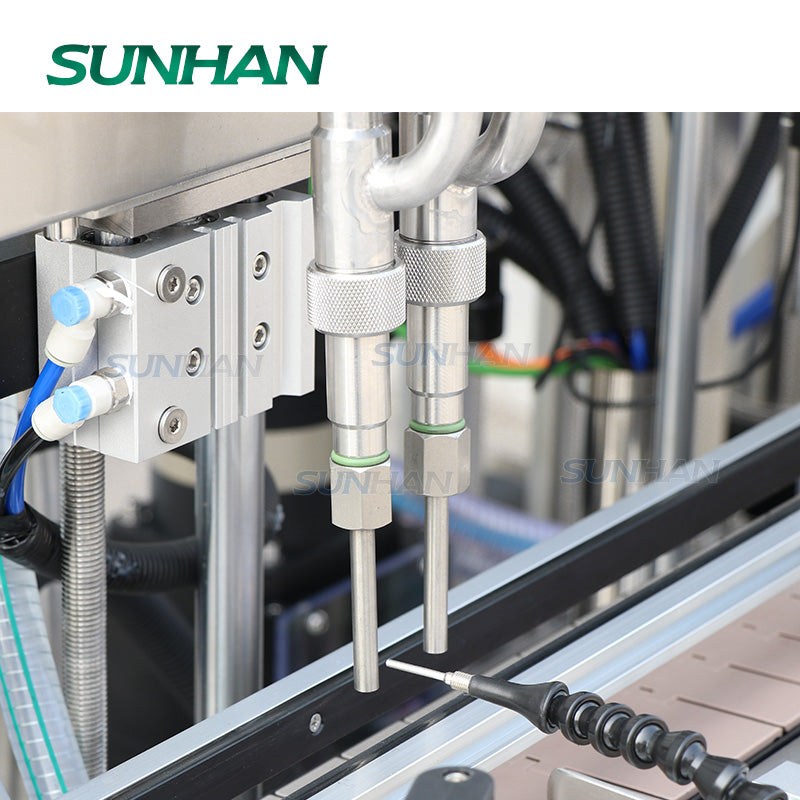

anti-drip servo diving nozzles of automatic glycerin liquid filling machine-2

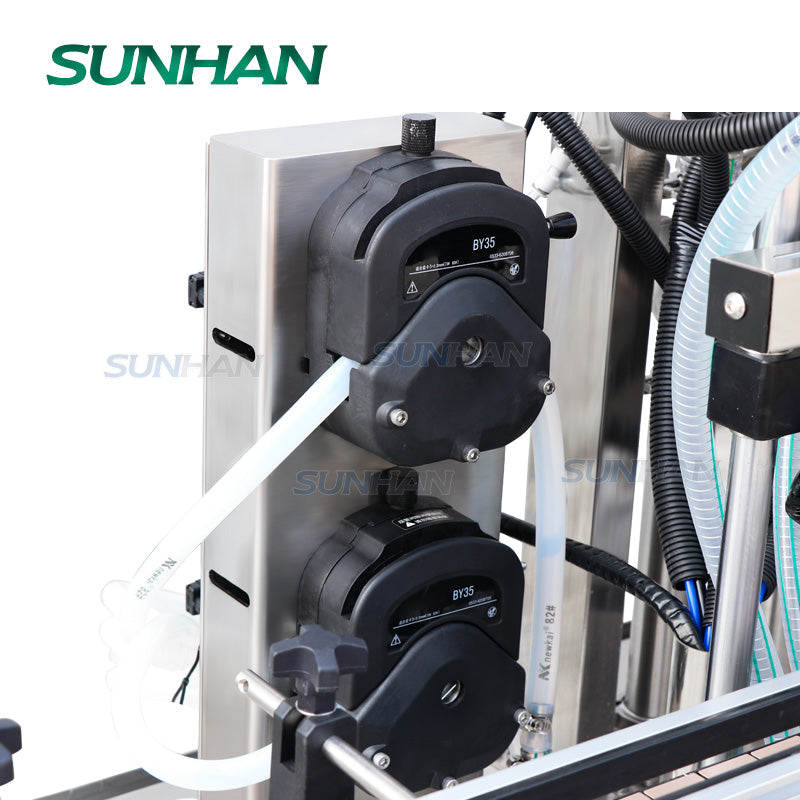

peristaltic pump filling system of automatic glycerin liquid filling machine-3

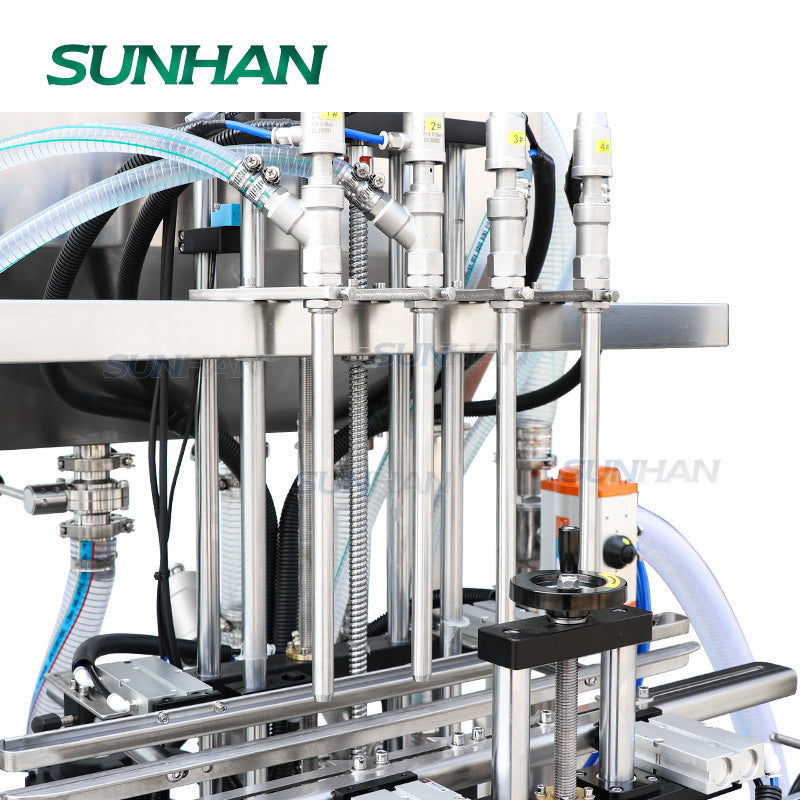

liquid filling nozzles of automatic glycerin liquid filling machine-4

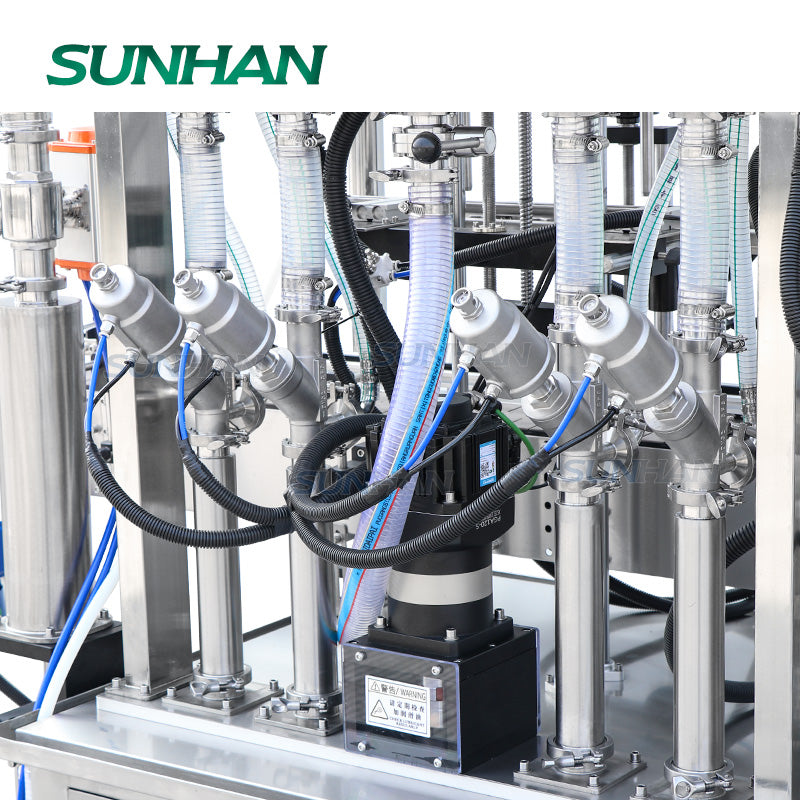

servo piston pump filling system of automatic glycerin liquid filling machine-5

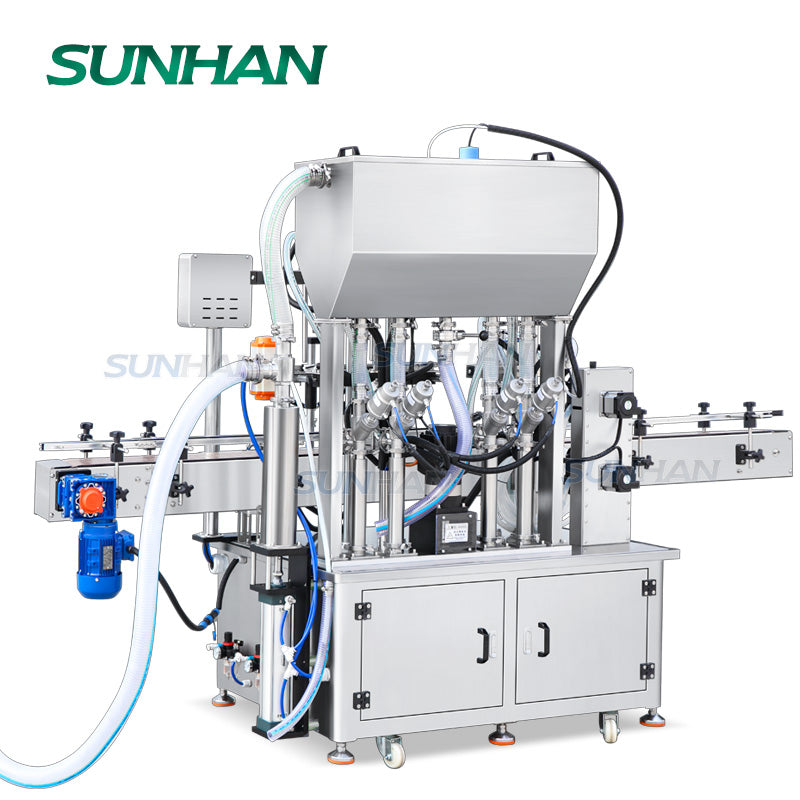

back side of automatic paste liquid filling machine
automatic paste liquid filling machine
video of automatic paste liquid filling machine
control panel of automatic glycerin liquid filling machine-1
anti-drip servo diving nozzles of automatic glycerin liquid filling machine-2
peristaltic pump filling system of automatic glycerin liquid filling machine-3
liquid filling nozzles of automatic glycerin liquid filling machine-4
servo piston pump filling system of automatic glycerin liquid filling machine-5
back side of automatic paste liquid filling machine

SUNHANPACK

SUNHAN SH-SVGT4D Automatic Servo Dual System Glycerin Moisturizing Cream Body Lotion Paste Liquid Filling Machine

Los gastos de envío se calculan en la pantalla de pago.
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Supports both peristaltic pump and servo piston pump filling to handle low & high viscosity products.
▶Ideal for multi-SKU production, quickly switch between different product types and filling requirements.
▶90 L hopper with optional heating and mixing system for smooth filling of thick products.
▶Suitable for packaging various personal care and cosmetic products in bottles.

Parameter

  • Machine Model:SH-SVGT4D
  • Machine Voltage:110/220V 50-60HZ 4KW
  • Filling Pump:Peristaltic Pump / Piston Pump
  • Recommend Filling Range:30-300 ml(can be customized)
  • Max Flow Rate of Peristaltic Pump:12L/min
  • Hopper Size:90L
  • Filling Nozzle quantity:2 / 4
  • Working Capacity:About 20-70 BPM
  • Filling Accuracy:±1%
  • Air Pressure:0.5-0.8 Mpa
  • Machine Size:About 3000*915*1850mm(L*W*H)
  • Package Size:About 1880*1070*2000mm(L*W*H)
  • Package Weight:About 496kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of body lotion paste filling machine
machine component of automatic paste liquid filling machine
machine details of automatic glycerin liquid filling machine-1
machine details of automatic glycerin liquid filling machine-2
machine details of automatic glycerin liquid filling machine-3
real shot of moisturizing cream filling machine
