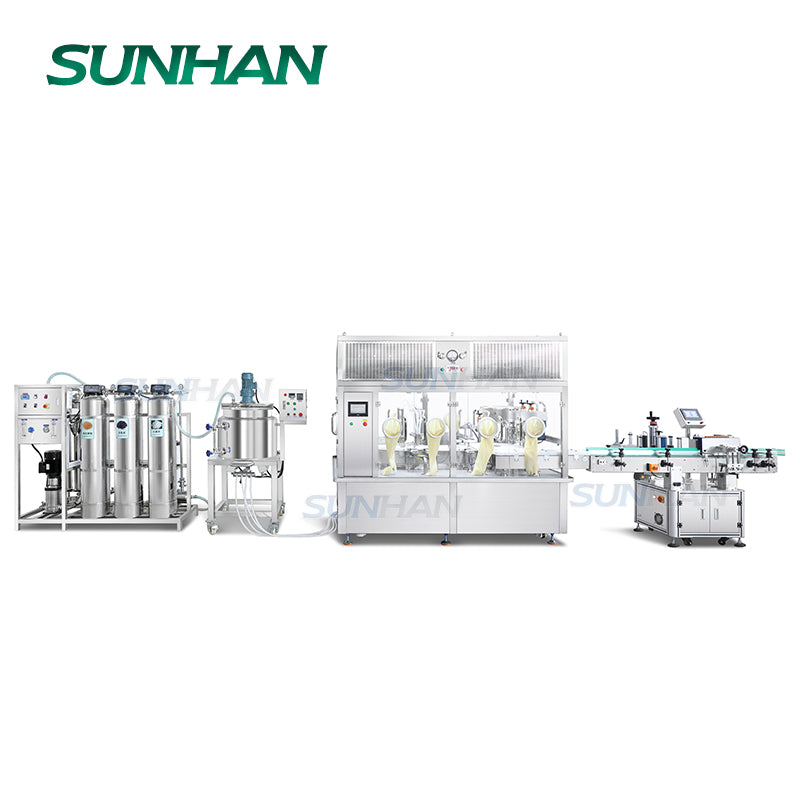

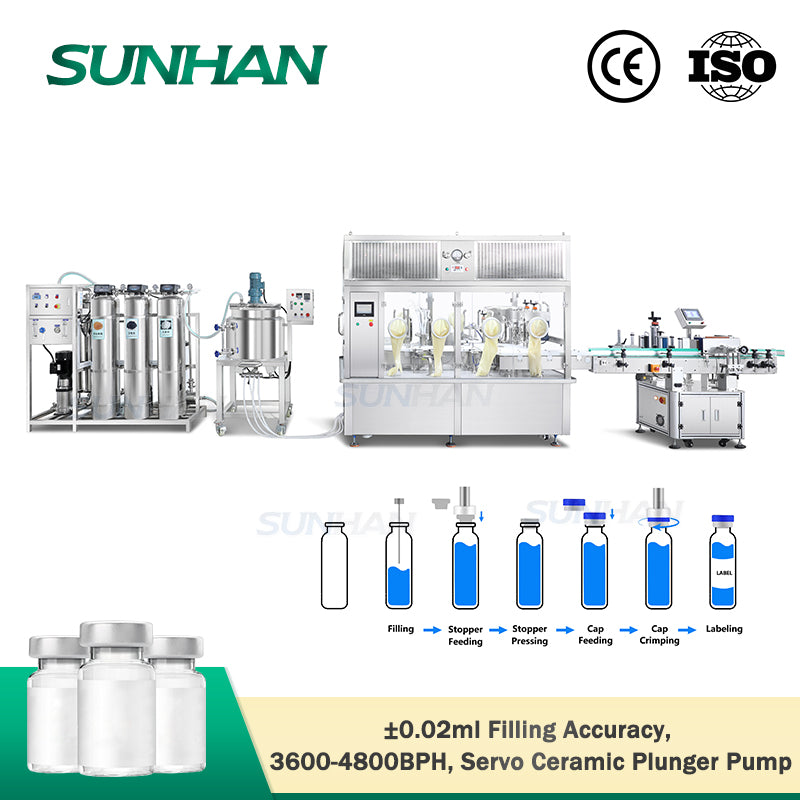

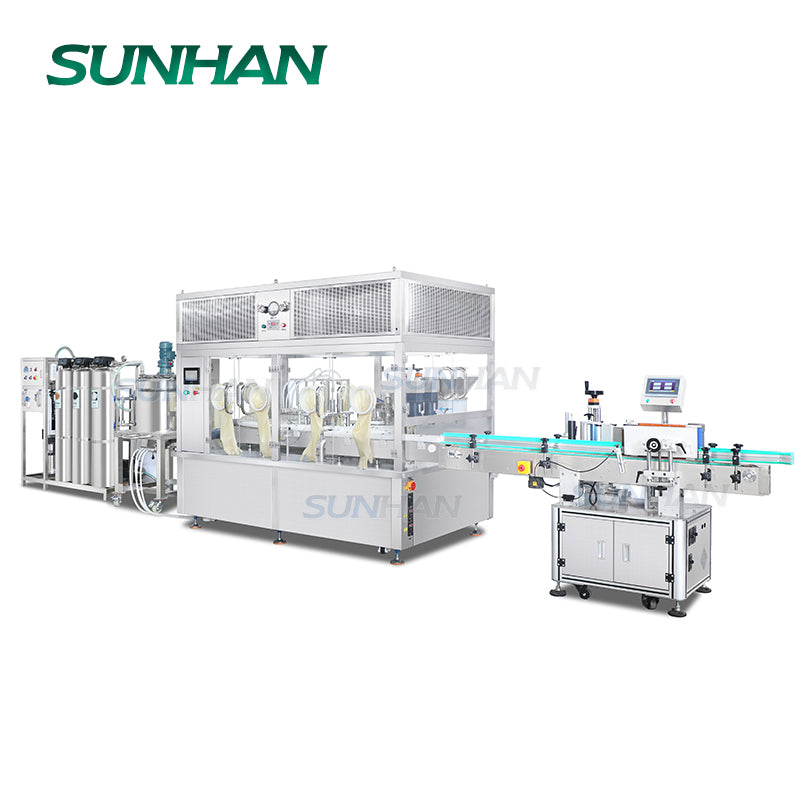

SUNHAN SH-FAL180V14 High Speed Automatic Servo Ceramic Pump Vial Injectable Liquid Filling Stoppering Capping Labeling Production Bottling Line

Main Feature

▶Integrates water purification, mixing, filling, stoppering, capping, and labeling into one automated production line.
▶Servo ceramic plunger pump ensures precise and consistent liquid dosing.
▶Stable output of 3600–4800 BPH with a cam-driven system.

Parameter

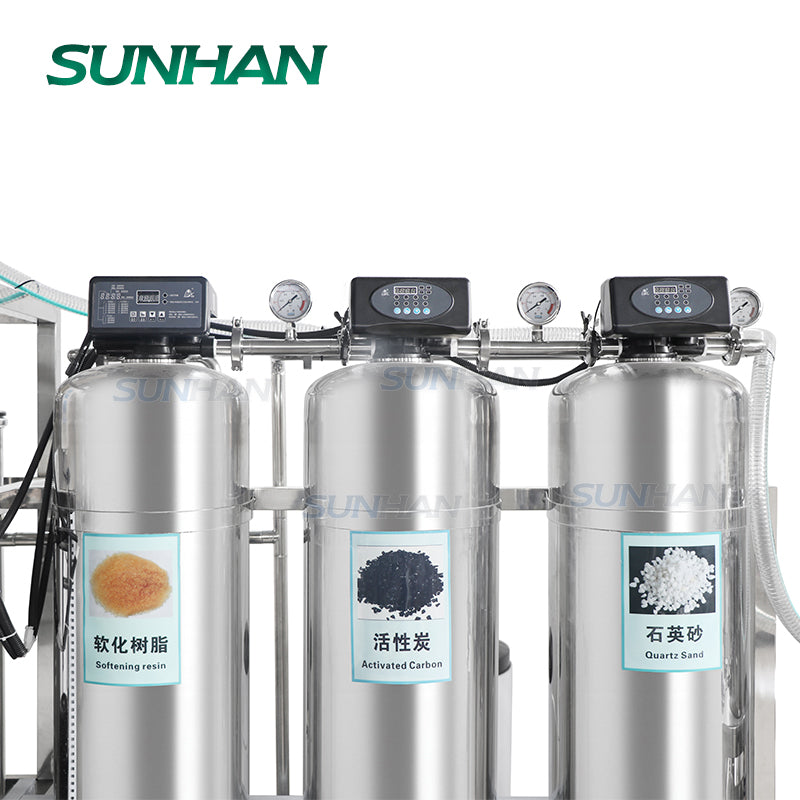

Water Purification System

• Product Model:SH-WP500L

• Power Supply:220V 50HZ

• Product Water Conductivity:1-10us/cm25℃

• Production Capacity:500 L/H

• Desalination Rate:95%

• Recovery Rate:50-60%

• Machine Size:About1900*650*1650 mm(L*W*H)

• Package Size:About 1960*830*1710mm(L*W*H)

• Package Weight:About 488kg

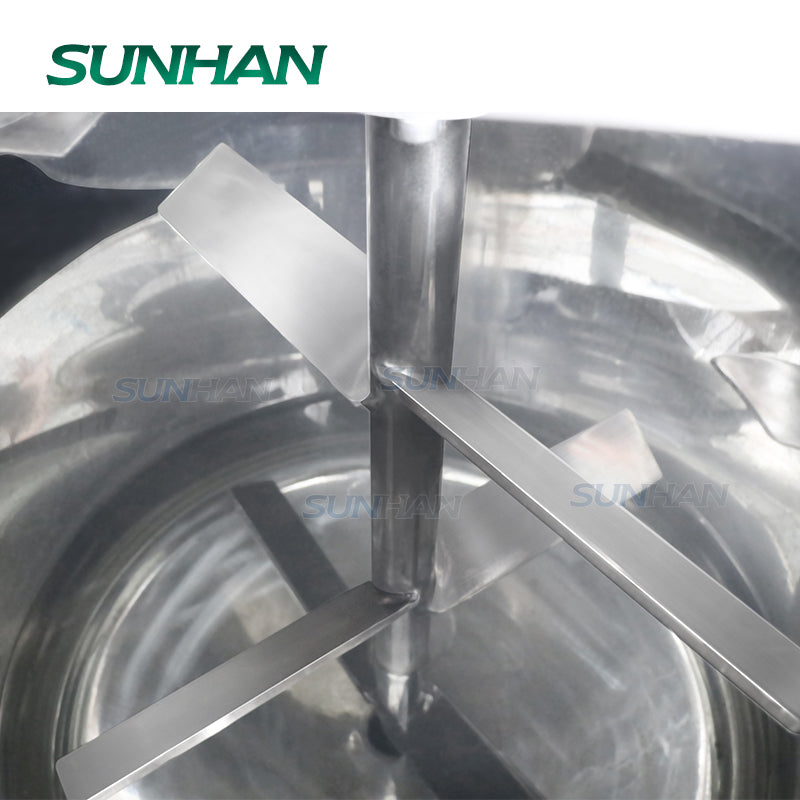

Mixing Tank

• Machine Model:SH-VMB100RH

• Voltage:380V 50Hz (Customizable for 220V &110V)

• Tank Capacity:100L (customizable upon request)

• Wall Thickness:Inner layer: 2 mm , Middle layer: 2 mm , Outer layer: 1.5 mm

• Tank Material:Inner layer made of SUS316L. middle and outer layers made of SUS304

• Heating Power:12 kW

• Heating Temperature:50-200℃

• Mixing Motor Power:0.75kW

• Mixing Speed:Frequency-controlled, adjustable from 0 to 62 RPM

• Machine Size:About 1100*800*1760mm(L*W*H)

• Package Size:About 1160*1000*1910mm(L*W*H)

• Package Weight:About 197kg

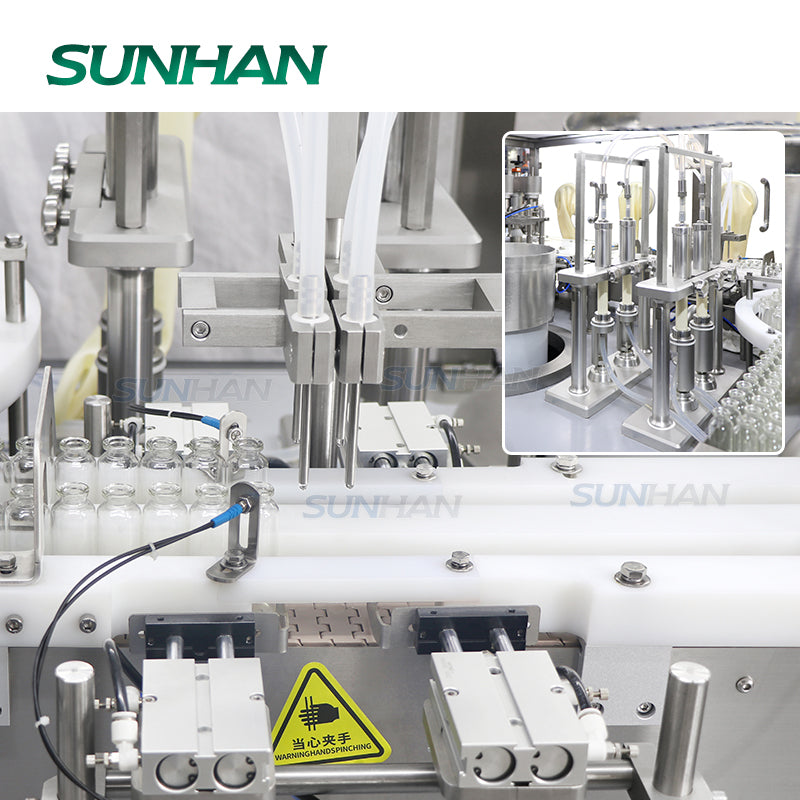

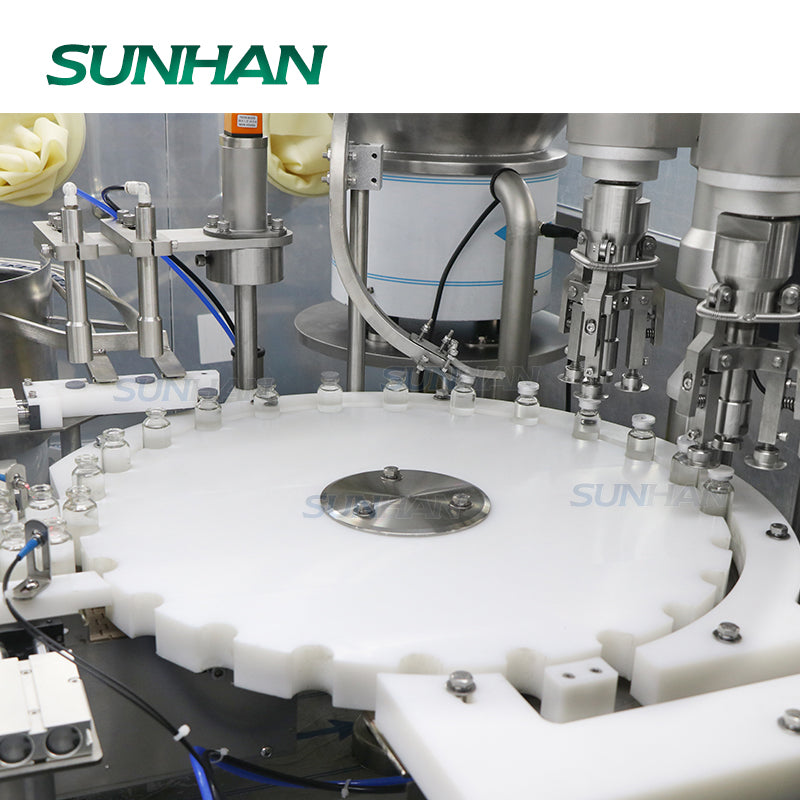

Vial Filling Crimping Machine

• Machine Model:SH-AFC39F

• Voltage:AC 110/220 V 50-60 Hz

• Power:<3000 W/h

• Working Speed:About 60-80 Bottles/min (Depending on filling range)

• Filling Pump:Ceramic Plunger Pump

• Filling Nozzle Quantity:2

• Filling Range:30ml (Customizable)

• Filling Accuracy:±3%

• Machine Size:About 2660*1700*2150mm(L*W*H)

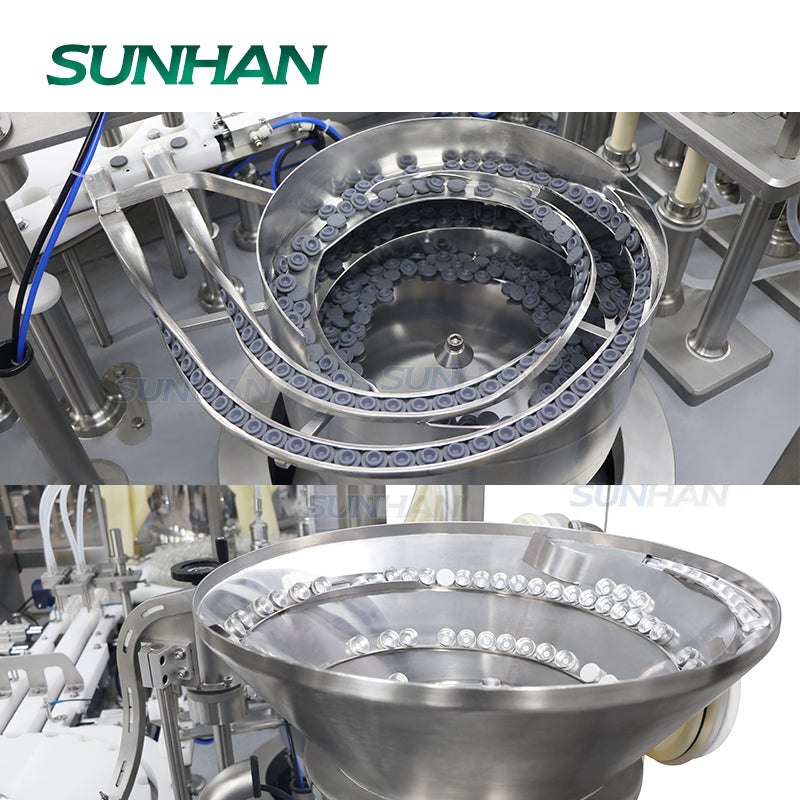

• Package Size:About 1180*690*790 mm (Vibratory Bowl Sorter) About 2890*1730*2340 (Main Machine)

• Package Weight:About 135 kg (Vibratory Bowl Sorter)+1565 kg (Main Machine)

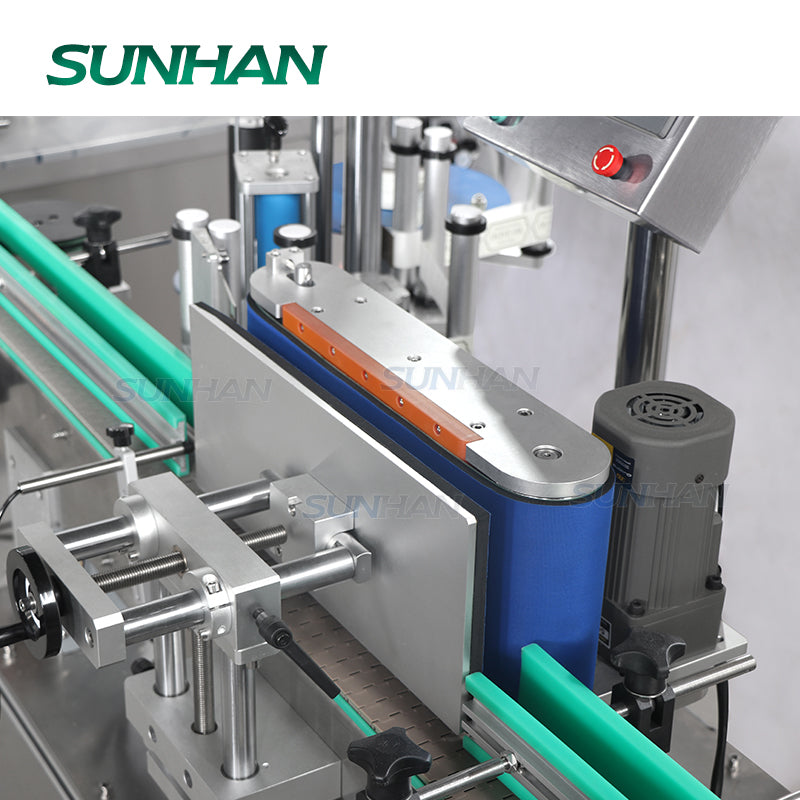

Labeling Machine

• Machine Model:SH-TB821

• Voltage:220V/110V 50-60Hz

• Power:570W

• Labeling Accuracy:±1.0mm

• Labeling Speed:About 40-120 bottles/min(depending on label size)

• Applicable Product Size:φ25-φ120mm (Round bottle)

• Label Size:(W)20-300mm*(H)20-95mm

• Label Roll ID:φ76mm

• Label Roll OD:φ300mm

• Machine Size:About 2040*1180*1370mm(L*W*H)

• Package Size:About 2200*1170*1600mm (L*W*H)

• Package Weight:About 330KG

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
