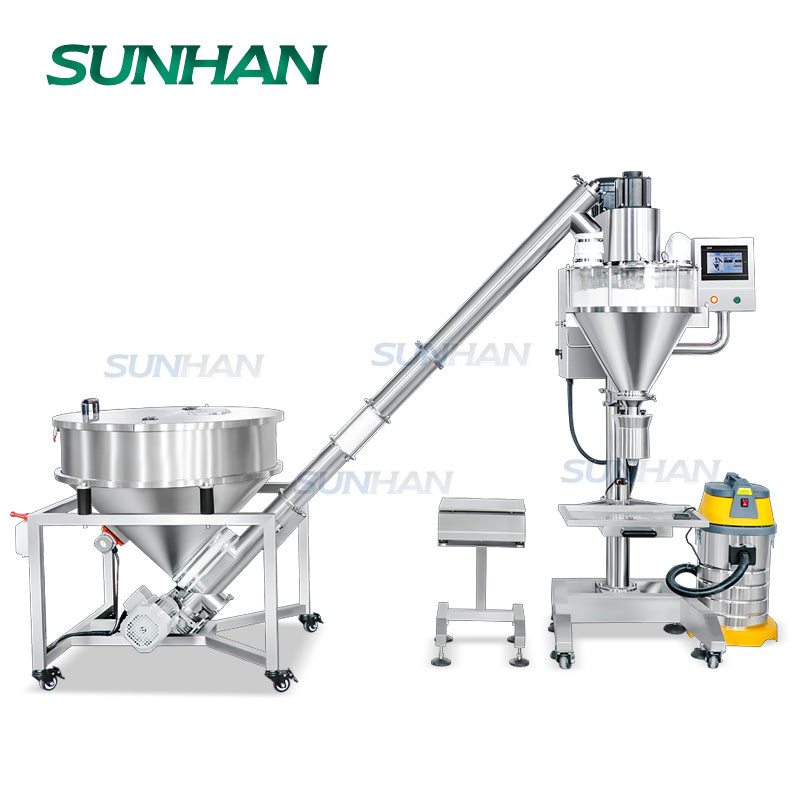

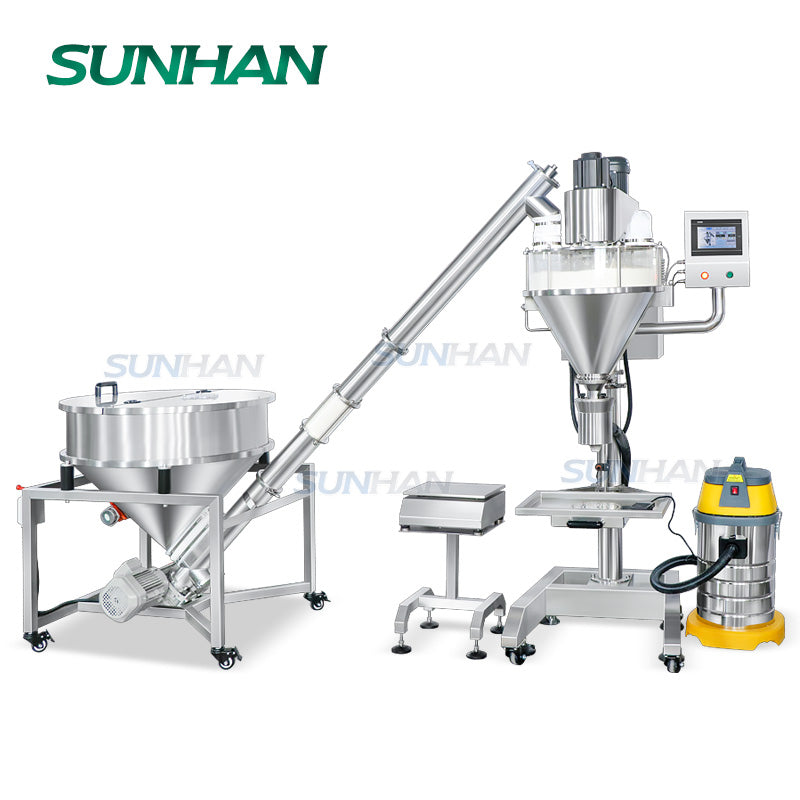

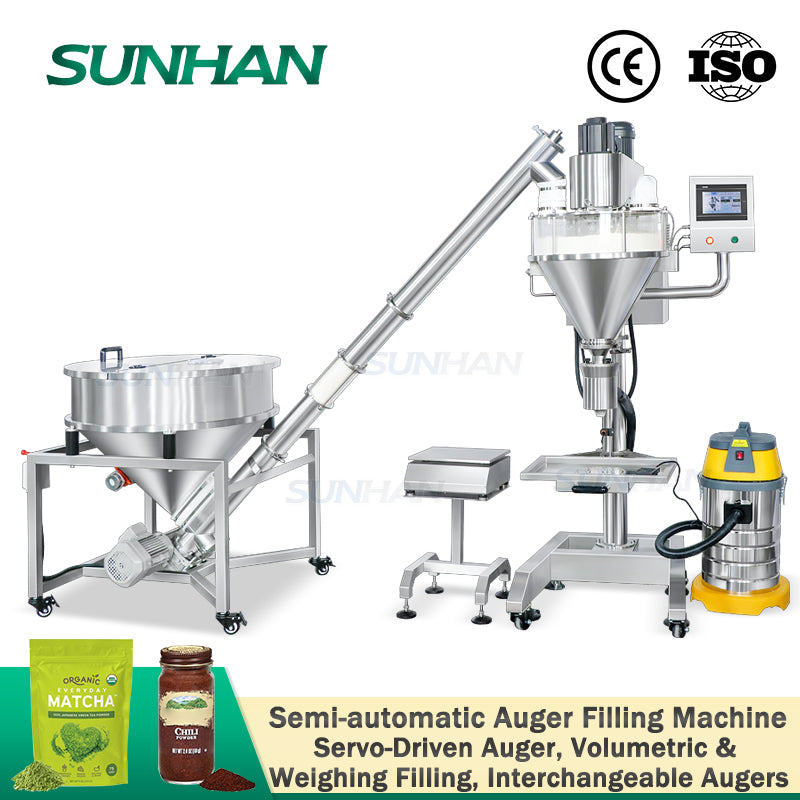

SUNHAN SH-FM750F Semi-automatic Servo Volumetric Weighing Bottles Pouches Powder Auger Filling Packing Machine With Screw Feeder

Main Feature

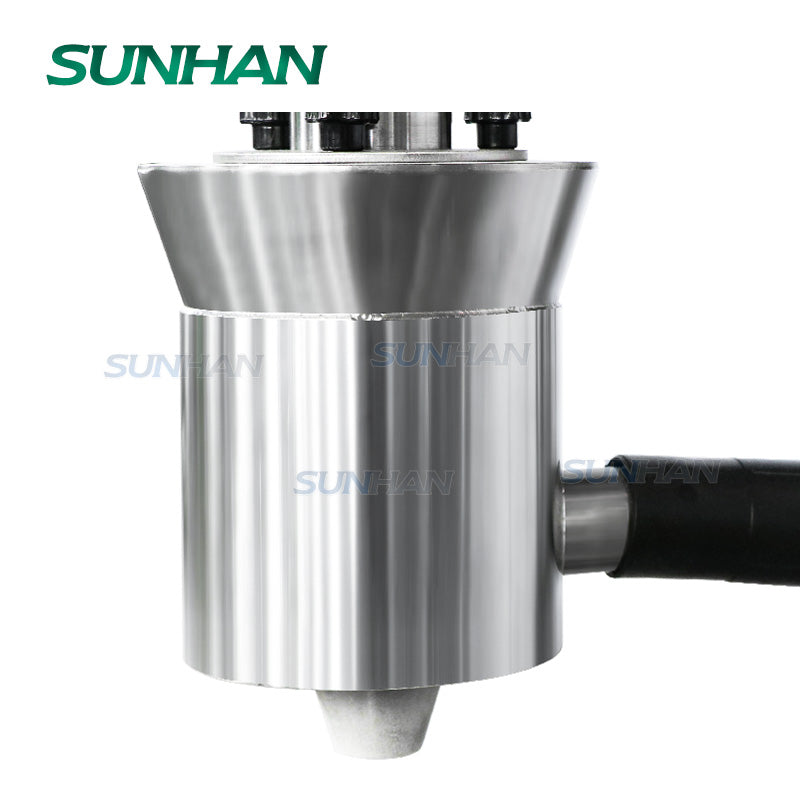

▶Servo-driven auger system ensures accurate and consistent dosing, ideal for a wide range of powder products.
▶Supports both volumetric and optional weighing feedback filling, maintaining filling accuracy even when material density variations.
▶By changing the auger, machine can cover a wide filling range from 5 g to 5000 g, better adapting to diverse production needs.
▶Optional screw feeder enables automatic material supply, improving working efficiency.

Parameter

• Machine model:SH-FM750F

• Machine Supply:380V 50Hz/60Hz

• Powder:2.2 KW

• Production Capacity:Based on filling volume

• Filling Volume:5-50g 50-300g 300-1000g 1000-5000g (Change auger)

• Hopper Size of Filling Machine:50L

• Hopper Size of Feeding Machine:150 L

• Feeder Pipe Diameter:102 mm

• Feeder Ground Height:Customizable

• Number of Filling Heads:1 head (multiple heads are optional)

• Measurement Error:±1%

• Machine Size:About 2950*1150*2000 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
