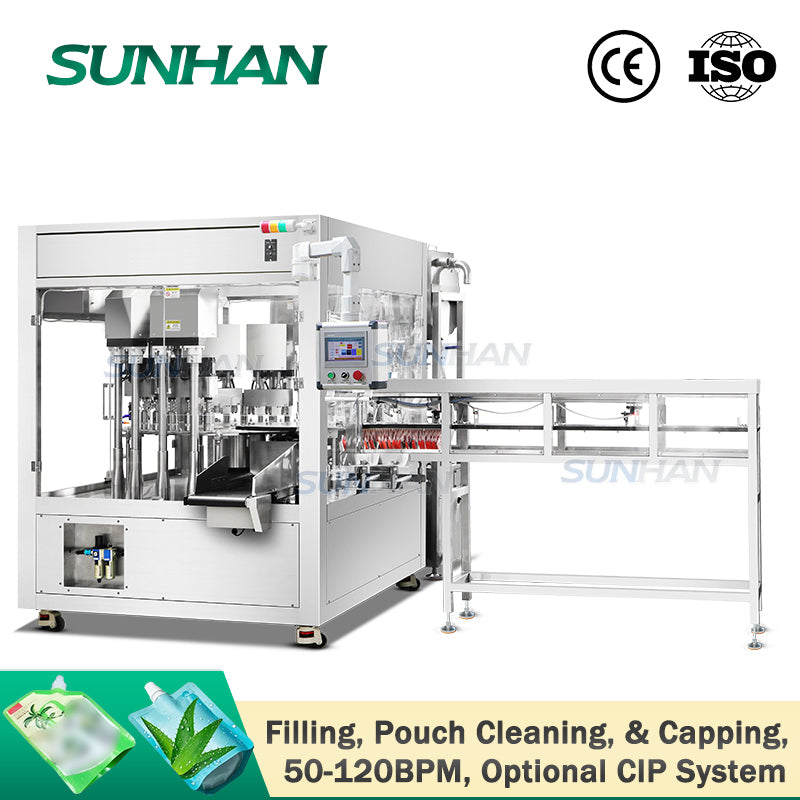

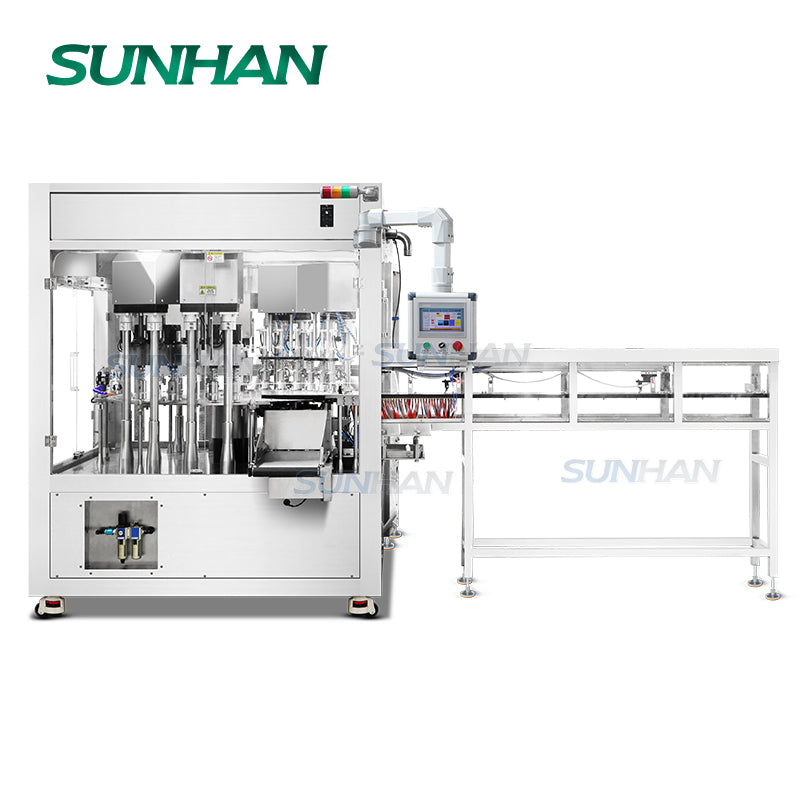

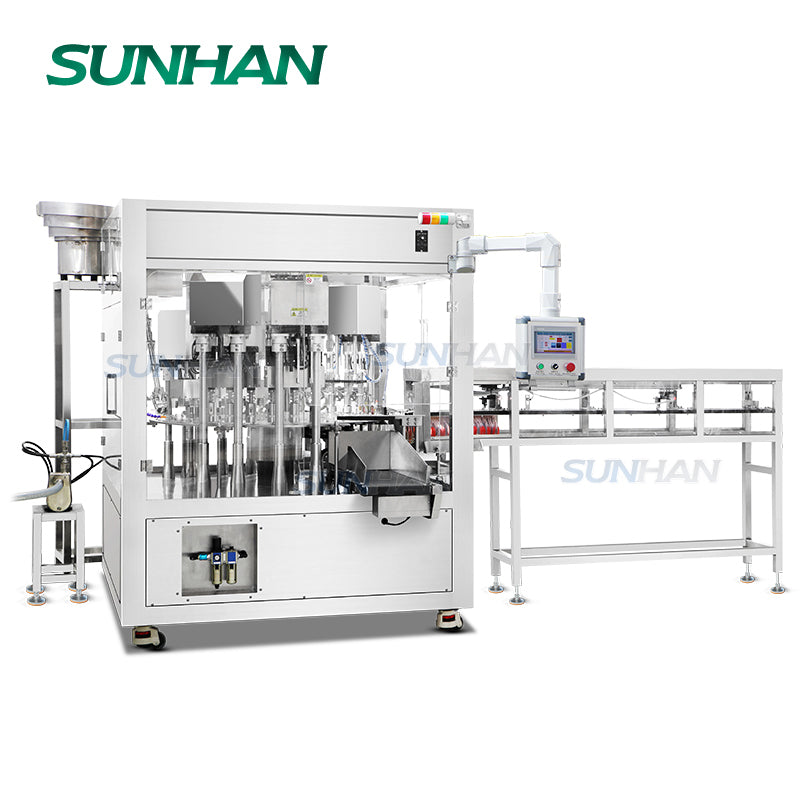

SUNHAN SH-AFC12M High Speed Automatic 6 Heads Rotary Servo Piston Pump Spout Bag Pouch Filling Capping Packing Machine

Main Feature

▶Machine can finish pouch feeding, material filling, pouch cleaning, cap placing and capping in one machine.

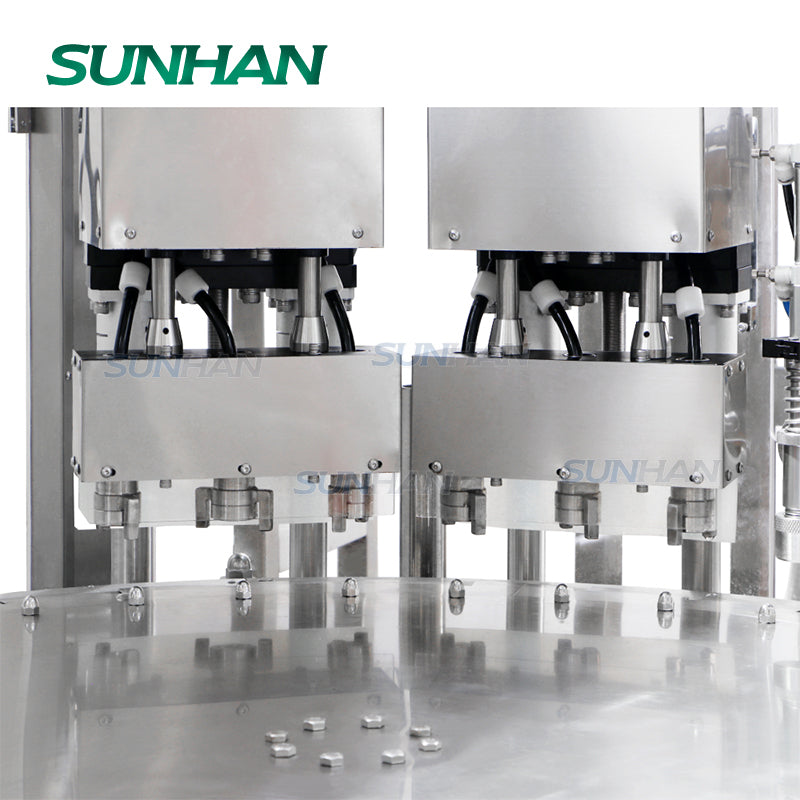

▶Servo filling & capping system, it achieves a high working speed of 50–120 BPM. Ensuring precise filling and consistent capping torque.
▶Changeable molds for multiple pouch sizes, machine can be customized as needed.
▶Optional CIP system for hygienic operation and easy maintenance.

Parameter

• Machine Model:SH-AFC12M

• Voltage:220V/110V 50-60Hz

• Power:5kW

• Filling Range:100-1000 ml(Customizable)

• Production Capacity:30–50g: 100–120 bags/minute;

• 200–300g: 70–100 bags/minute;

• 500g: 60–80 bags/minute;

• 1L: Approx. 50 bags/minute (based on filling volume)

• Filling Accuracy:±1%

• Hopper Capacity:120L(Customizable)

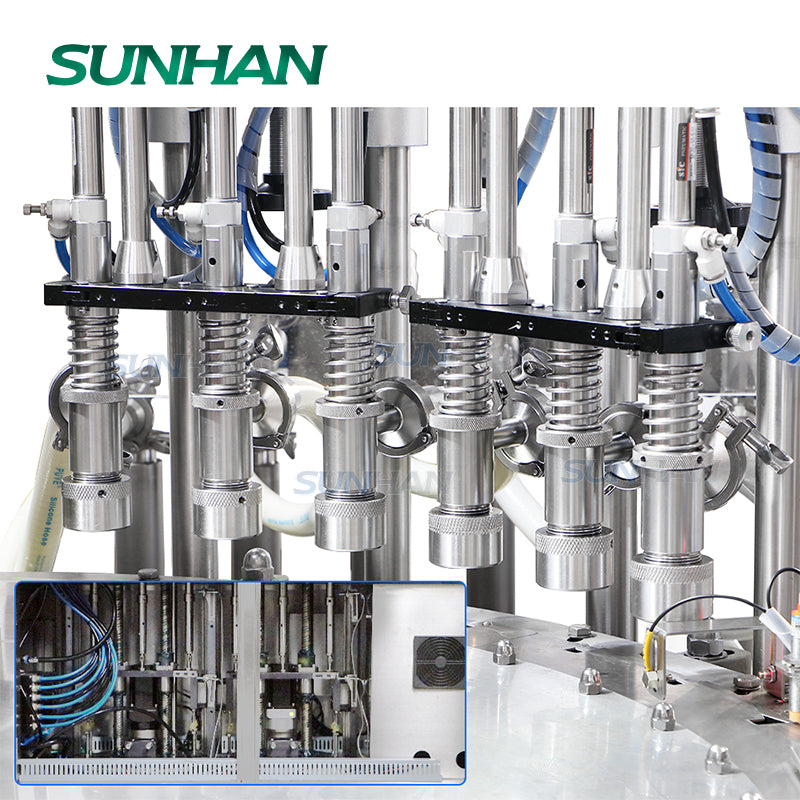

• Filling Pump:Piston Pump

• Filling Nozzle Quantity:6 (Customizable)

• Suitable Cap Diameter:Can be customized

• Suitable Pouch Size:Can be customized

• Frame Material:304 Stainless Steel

• Material Contact Parts:316 Stainless Steel

• Machine Size:About 3525*2400*2090mm(L*W*H)

• Machine Weight:About 1000kg
