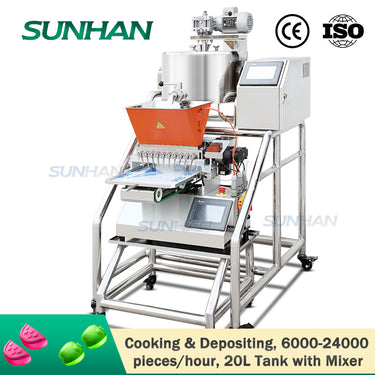

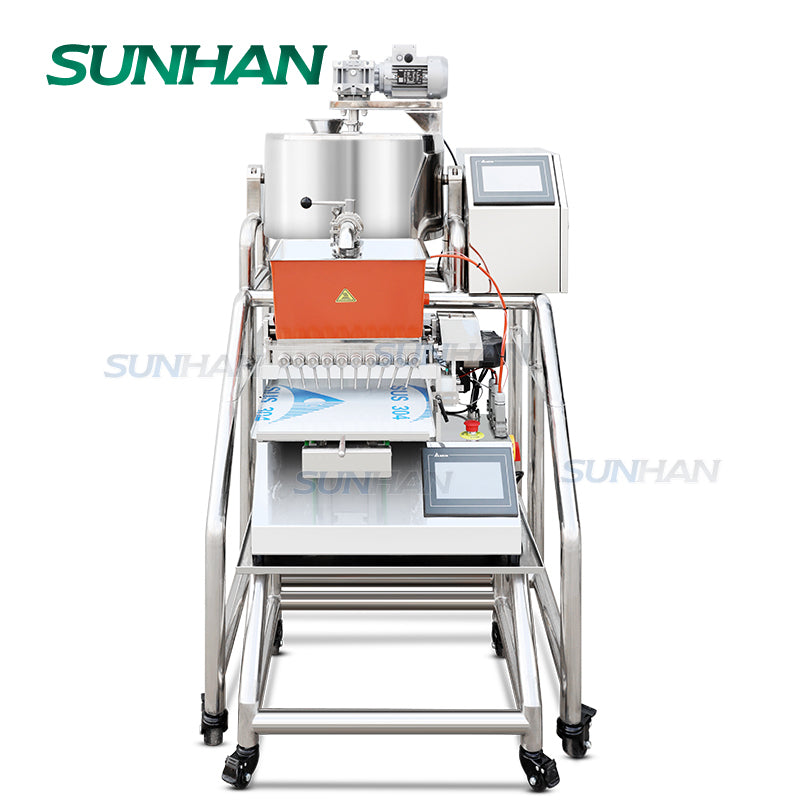

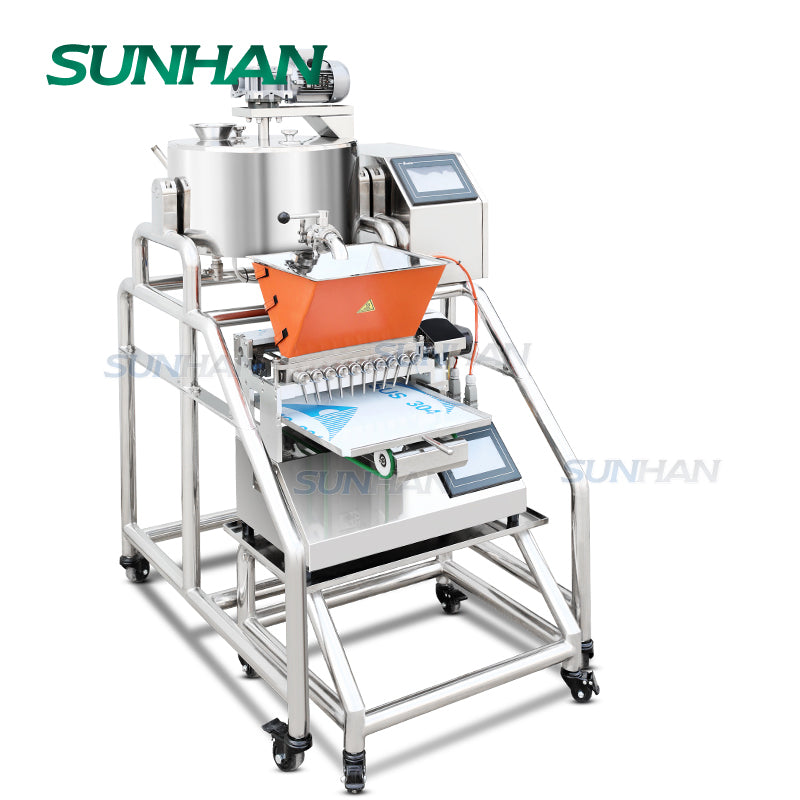

SUNHAN SH-CTF50 Semi Automatic 10 Heads Chocolate Depositor Gummy Candy Cooking Making Mixing Depositing Machine

Main Feature

▶Integrated cooking, depositing and forming in one machine for efficient production.
▶Machine has high working speed, it can reach 6000 to 24000 pieces per hour.
▶Equipped with 10 nozzles and heated hopper to ensure accurate filling.
▶Cooking tank with mixing function and heated hopper maintains optimal material condition.

Parameter

• Machine Model:SH-CTF50

• Voltage:380V 50Hz

• Heating Tubes:2 × 3 kW

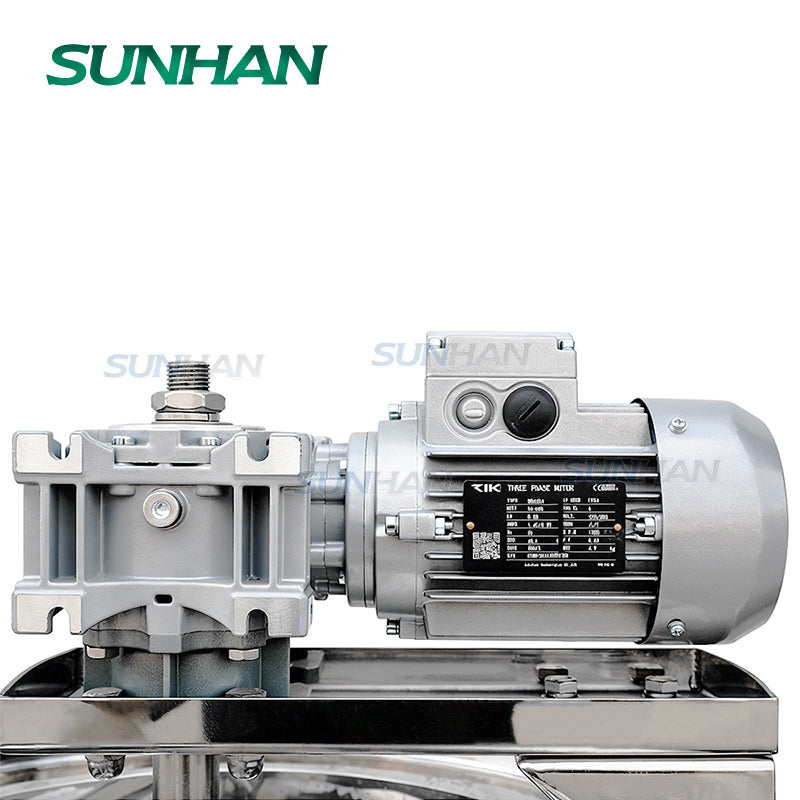

• Stirring Motor:0.37/0.55 kW

• Heating Power:6.5 kW / 380V

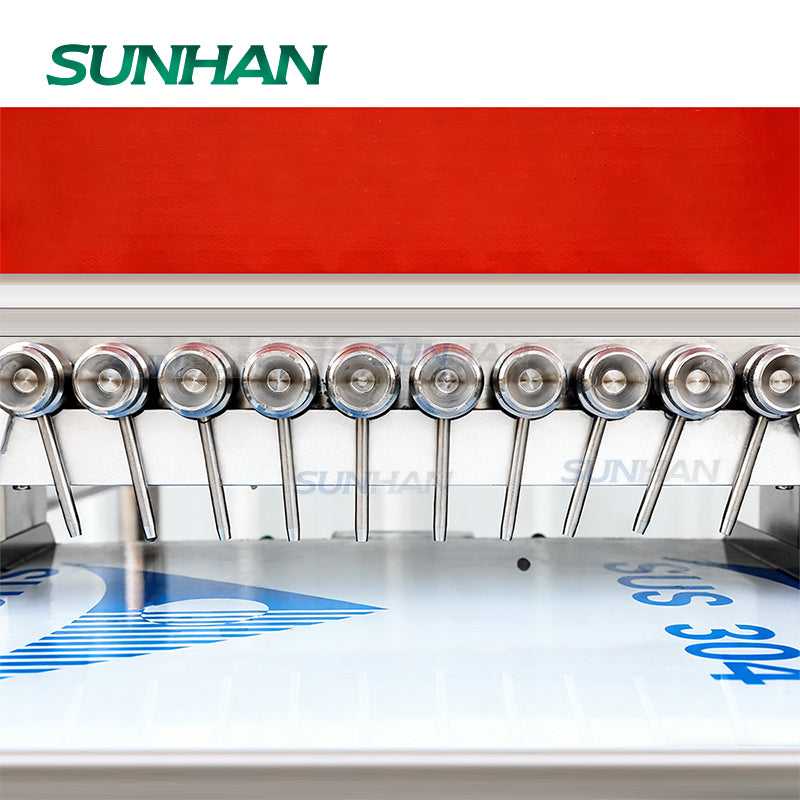

• Depositing Nozzle:10 Nozzles (Can be customized)

• Depositing Times:About 6000-24000 pieces/hour

• Depositing Weight:1-4.5 g for each time

• Hopper Capacity:About 10 L

• Cooking Tank:20L (With Mixer)

• Heating Temperature:Max 130℃

• Machine Material:304 Stainless Steel

• Recipes Quantity:60

• Filling Type:Piston Rod (Non-Pump Type)

• Sample Mold Size:291.5 × 291.5 × 11.3 mm (Customizable, sold separately)

• Sample Cavity Size:15.5 × 15.5 × 10 mm(Customizable)

• Sample Cavity Volume:2.4 ml (Gummy 3.2 g, Chocolate 2.8 g)(Customizable)

• Machine Size:About 650*550*600 mm

• Machine Weight:About 65 kg

• Package Size:About 750*740*900mm

• Package Weight:About 76kg
