SUNHAN SH-AFCL9 Automatic Servo Peristaltic Pump Chemical Liquid Small Bottle Vial Filling Capping Labeling Line With Laminar Flow Hood
Что мы предлагаем
▶ 1 год гарантии
▶ Руководство пользователя
▶Поддержка видеочата один на один
▶Установка и отладка видео
▶Индивидуальное упаковочное решение
SUNHAN Vial Filling Equipment
SUNHAN SH-AFCL9 is an advanced vial filling equipment for precise dosage filling, stoppering, capping, and label placing all in one line. The machine uses the servo peristaltic pump technology that provides accurate results free from contaminants. With a laminar flow hood and automated workflow, this system is ideal for sterile pharmaceutical and laboratory applications.
Main Feature
▶This production line allows carrying out tasks like vials unscrambling, liquid filling, inner plug pressing, outer cover feeding and crimping, labeling, and bottle collecting. As an advanced vial filling equipment, it considerably enhances the efficiency of the process.
▶Equipped with a laminar flow hood, which improves production quality.
▶Labeling system can be equipped with a date coder to print production date or batch.
Parameter
Filling Capping Machine
- Machine Model:SH-AFC39
- Voltage:110/220V 50-60 HZ
- Power:＜3000W/h
- Working Capacity:About 30-60BPM(based on filling volume)
- Filling Pump:Peristaltic pump
- Filling Nozzle quantity:2
- Filling Range:Customized
- Filling Accuracy:±3%
- Machine size:About 2330*1400*2100mm(L*W*H)
- Machine weight:About 900kg
-
Package size: About 2530*1700*1930mm(Main Machine)
About 2200*1270*1680mm(Laminar Flow Hood)
- Package weight:About 1407kg(Main Machine)+418kg(Laminar Flow Hood)=1625kg
Labeling Machine
- Machine Model:SH-TB821
- Voltage:220V/110V 50-60Hz
- Power:570W
- Labeling Accuracy:±1.0mm
- Labeling Speed:About 40-120 bottles/min(depending on label size)
- Applicable Product Size:φ25-φ120mm (Round bottle)
- Label Size:(W)20-300mm*(H)20-95mm
- Label Roll ID:φ76mm
- Label Roll OD:φ300mm
- Machine Size:About 2040*1180*1370mm(L*W*H)
Application
The application of this technology in packaging is very common in producing many types of sterile liquid products. Its uses include the following:
- Pharmaceutical injection (antibiotics, vaccines, biologicals)
- Nutritional fluids (vitamins, amino acids)
- Laboratory sample products
The vial filling equipment is capable of handling different types of vials, such as clear glass vials, amber glass vials, and even custom-made vials with several kinds of closures.
Product Details

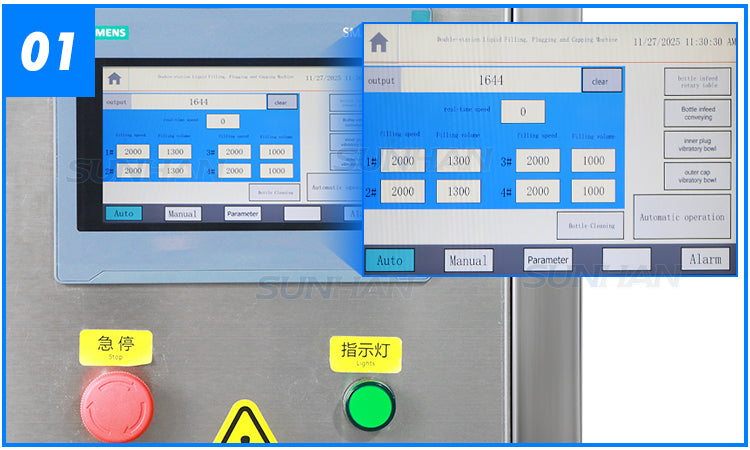

1. TOUCH SCREEN CONTROL PANEL
Offers ease of setting up parameters and monitoring operations for the whole vial filling equipment.

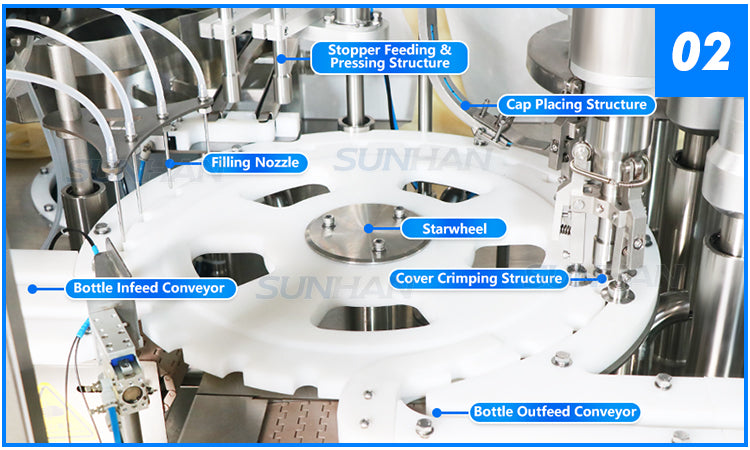

2. FILLING AND CAPPING UNIT
Integrates dosing, stoppering, and capping processes in one rotary unit.

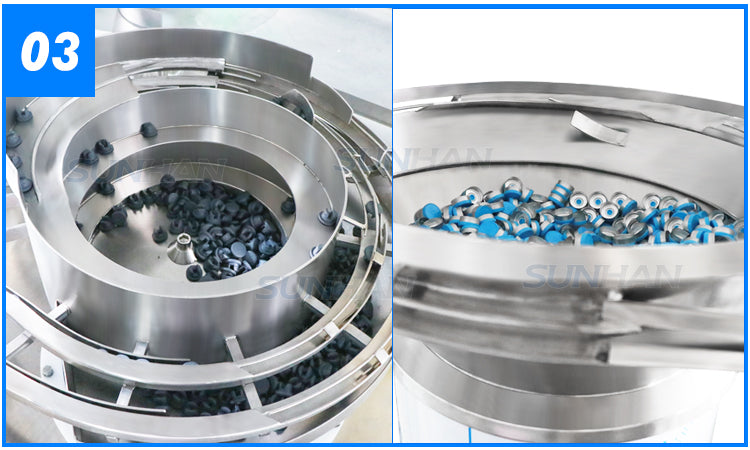

3. VIBRATING BOWL FEEDER
Automatically orients and feeds stoppers and caps for continuous production.

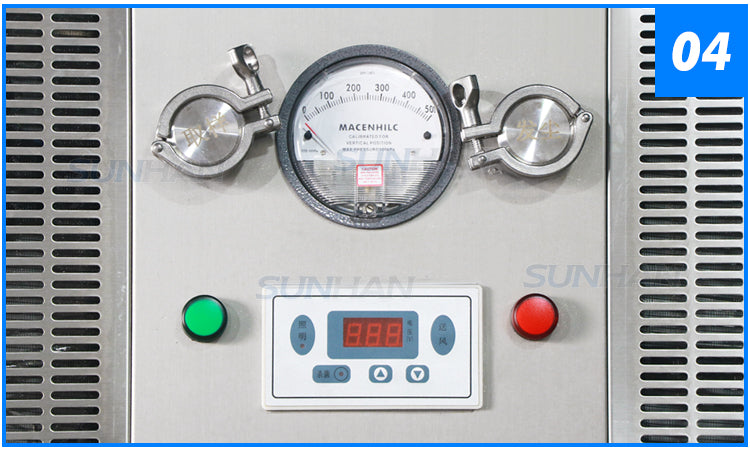

4. LAMINAR FLOW HOOD
Ensures clean air flows through critical areas for quality assurance.
5. DUST-PROTECTION ENCLOSURE
Reduces external contamination and improves overall line cleanliness.

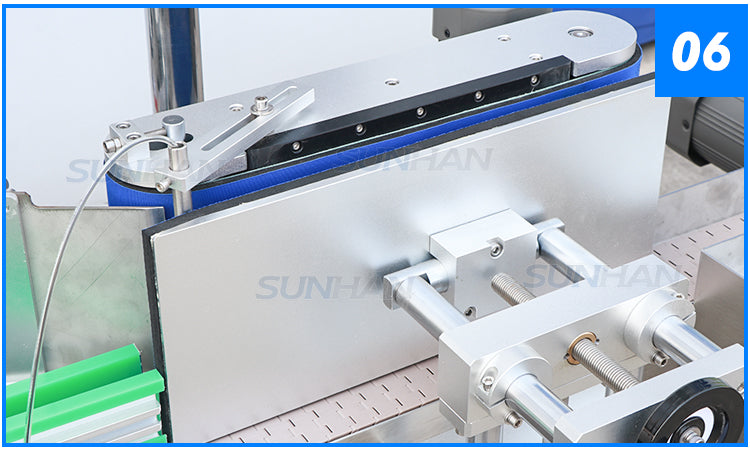

6. SIDE-BELT LABELING STATION
Applies high-speed wrap-around labels to small vials with precision.

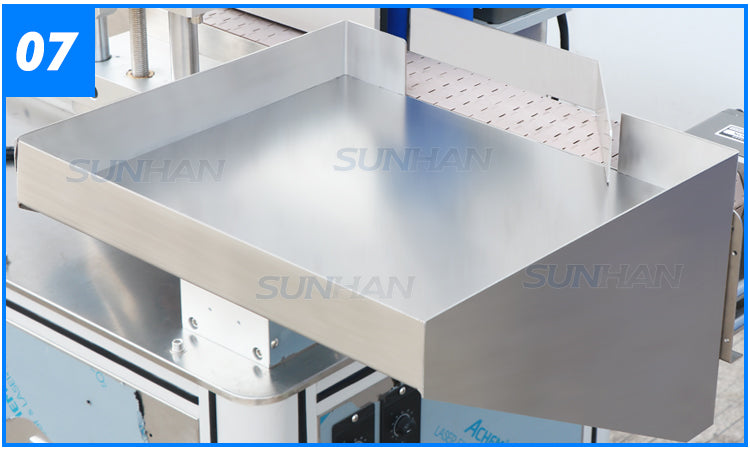

7. COLLECTION TRAY
Gathers finished vials from the vial filling equipment for easy packing and handling.
SUNHAN Vial Filling Equipment Line Customization Solution
For varying manufacturing demands, SUNHAN provides the following customization capabilities for its vial filling equipment:
1. Filling Configuration – Adjustable volume, filling heads, and pump type for different liquids.
2. Vial and Cap Adaptability – Suitable for different vials, stoppers, and caps.
3. Clean Room Requirements – Laminar flow choice or enclosed machine option for stricter cleanliness specifications.
4. Integration Capability – Able to connect with other manufacturing equipment, such as a labeling machine or a coding machine.
Such customizing capabilities help the machine meet different manufacturing needs.
FAQ
Q1: Do you provide after-sales service for the vial filling equipment? What is the warranty period?
Yes, all vial filling equipment purchased from us comes with a one-year warranty. During this period, if any issue occurs, our professional after-sales team will provide one-on-one video support to help you adjust the machine or resolve technical problems efficiently.
Q2: What shipping methods are available for vial filling equipment?
We offer various shipping options for your needs. For express delivery, we partner with FedEx, DHL, UPS, and EMS, with an estimated delivery time of 15–45 working days (longer for remote areas). For sea freight, our sales team will provide an estimated delivery time of 30–60 working days when quoting.
Q3: Can the SUNHAN vial filler accommodate small and big batch productions?
Yes, the SUNHAN vial filling equipment is very flexible and can be used for small and large batch production. The flexibility in filling volume and pump configuration makes the device perfect for any dosage requirement.
Q4: Is it possible to integrate the machine with other packaging equipment?
Yes, the SUNHAN vial filling equipment can easily be integrated with other equipment in the production line, including packaging machines like labelers and coders, among others.
Q5: What kind of maintenance does the SUNHAN device require?
The SUNHAN vial filling equipment is designed for simple maintenance. Regular cleaning and observation of the filling, capping, and labeling units will suffice.
