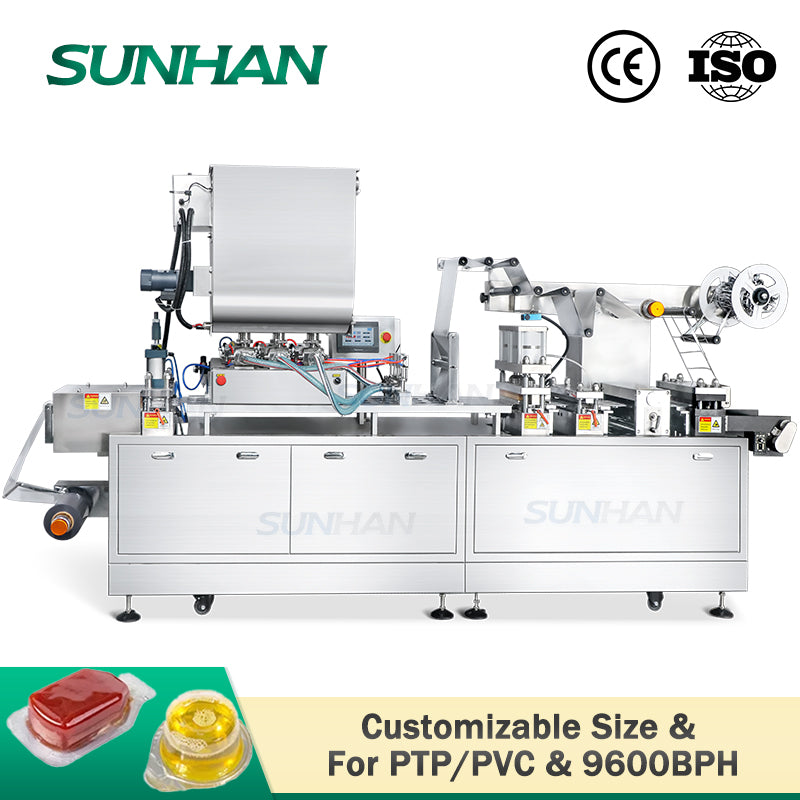

SUNHAN SH-DDP270 Automatic Piston Pump PVC Film Lotion Sauce Cup Paste Blister Forming Filling Sealing Machine

Стоимость доставки рассчитывается при оформлении.

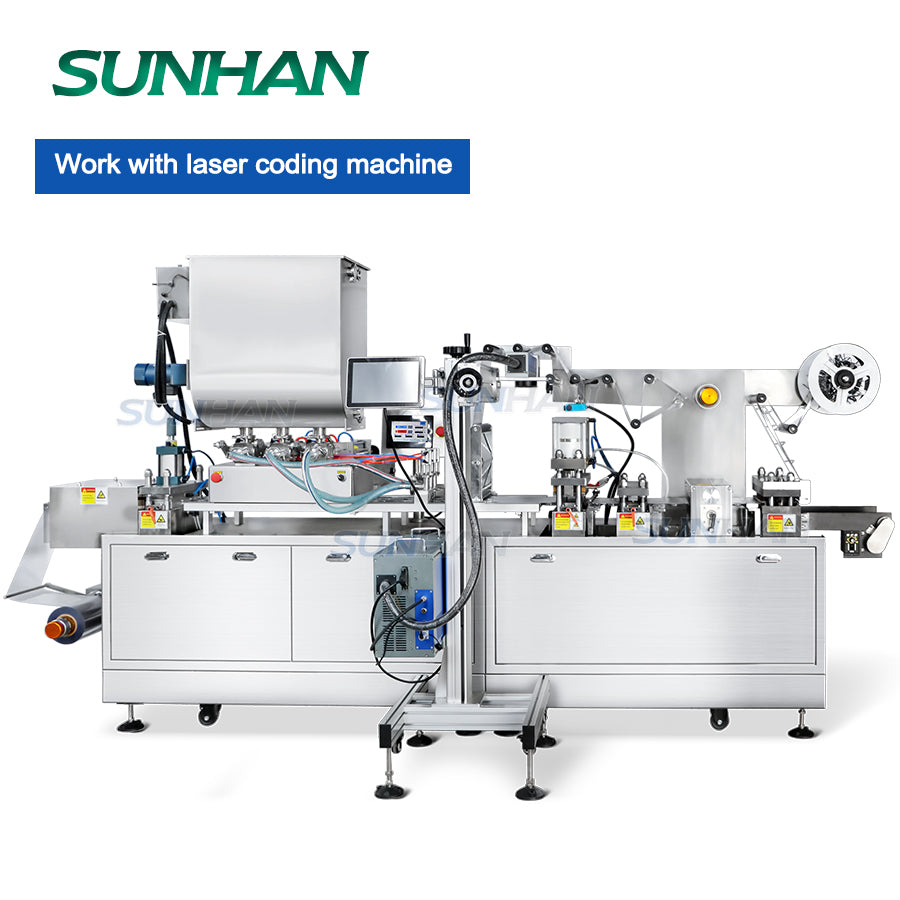

Specification: Without Laser Machine
Что мы предлагаем
  • Гарантия 1 год
  • Руководство пользователя
  • Поддержка индивидуального видеочата
  • Видео по установке и отладке
  • Индивидуальное упаковочное решение

Main Feature

▶This packaging machine can form the blister into pocket, fill material into container, seal container and cut them separately.

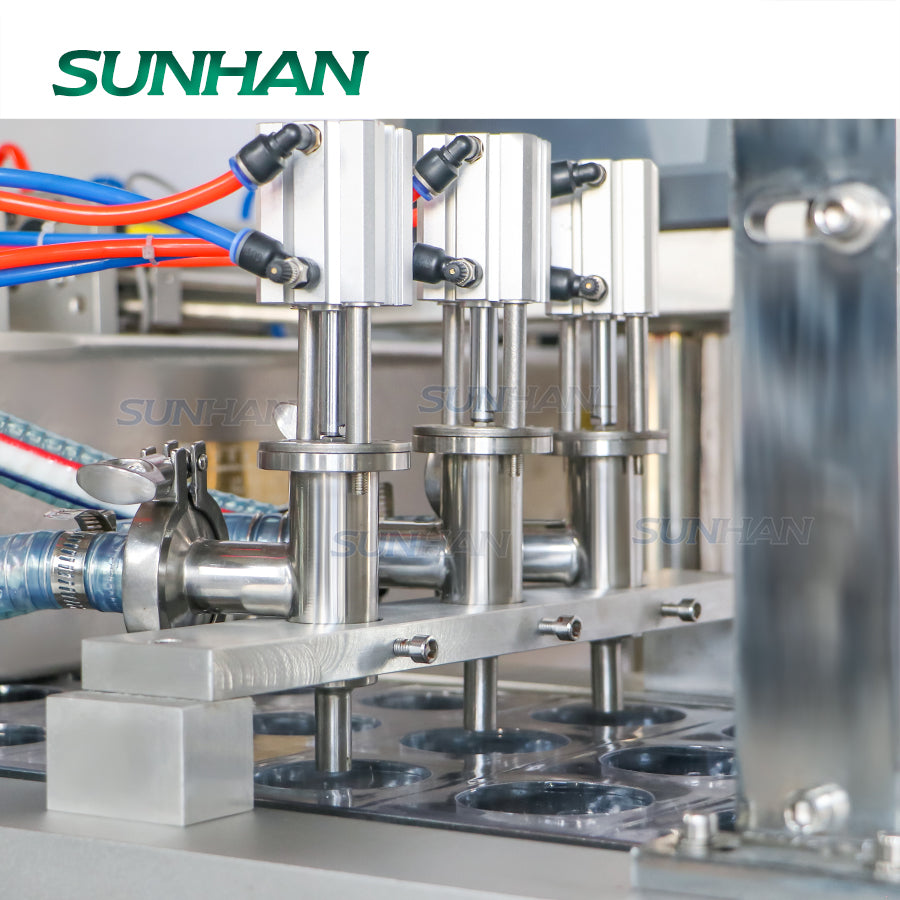

Filling is controlled by piston pump, suitable for filling thicker liquid or paste.
The sealing temperature can be adjusted according to your production needs.

Parameter

  • Machine model:SH-DDP270
  • Blanking frequency:10-50 times/min  1-5 board/time(adjustable)(working storke>80mm, carvity depth>10mm)
  • Work capacity:9600 board/hour(4 board/time, blanking frequency 40 times/min)
  • Stroke adjustable range:Standard:10-120mm, Max: 160mm
  • Board size:Standard: 80 mm×57mm
    Other size: 95×65mm, 103×43mm,120×43mm, Max 270×110mm(Can be customized)
  • Max forming size:270mm×150mm×28mm
  • Packaging material:Non-toxic PVC (plastic sheet): 250mm wide, 0.15-0.5mm thick
    Glued PTP (aluminum foil): 250mm wide, 0.02-0.35mm thick
    Dialysis paper: width 250mm, specification 50-100g
    The reel aperture is: 70-76mm
  • Main machine power:1.5KW
  • Voltage:380V 50HZ  TN-S
  • Air pump capacity:≥0.2m3/min(buy it separately)  pressure: 0.4-0.6Mpa
  • Machine size:About 3600mm×1100mm×1900mm(L×W×H)
  • Machine weight:About 1500KG
application of lotion cup filling sealing machine
datasheet of blister cup filling sealing machine

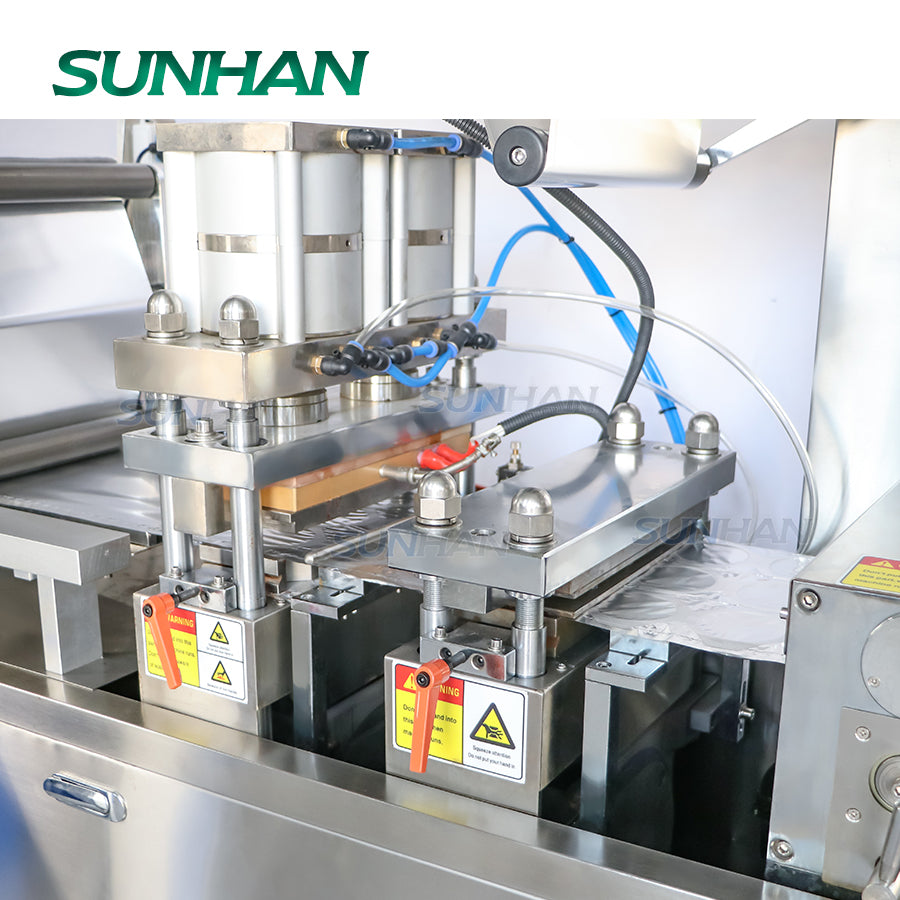

machine details of sauce cup filling sealing machine-1

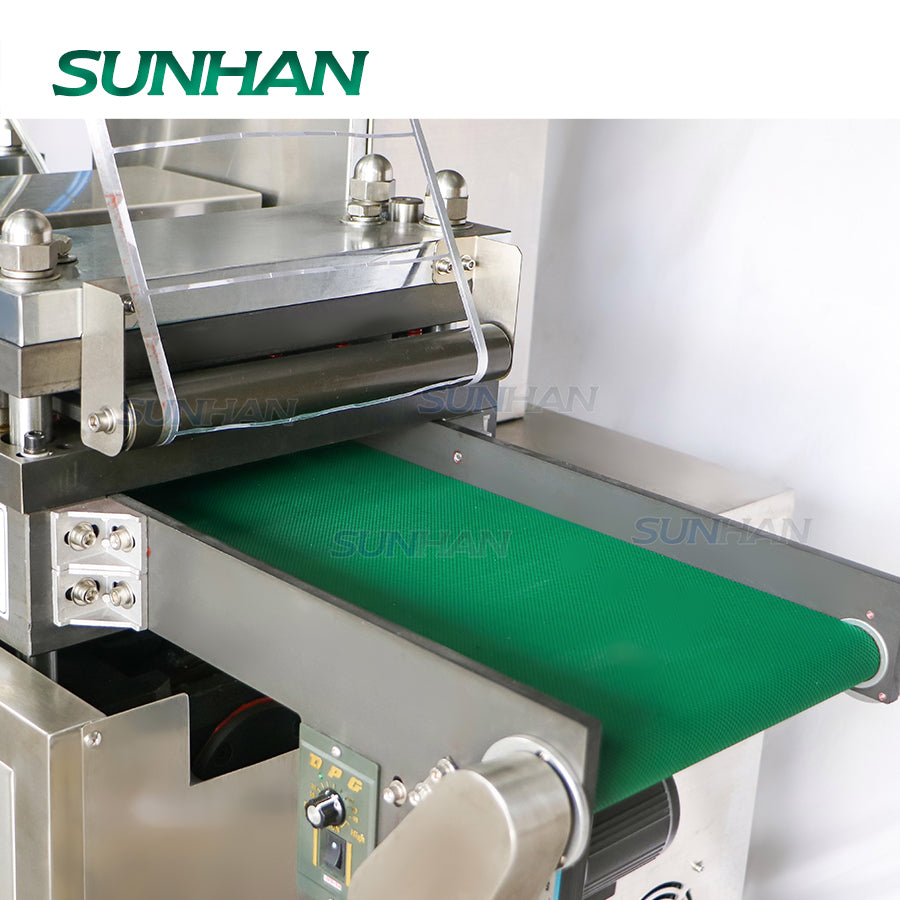

machine details of sauce cup filling sealing machine-2
real shot of paste blister packaging machine
