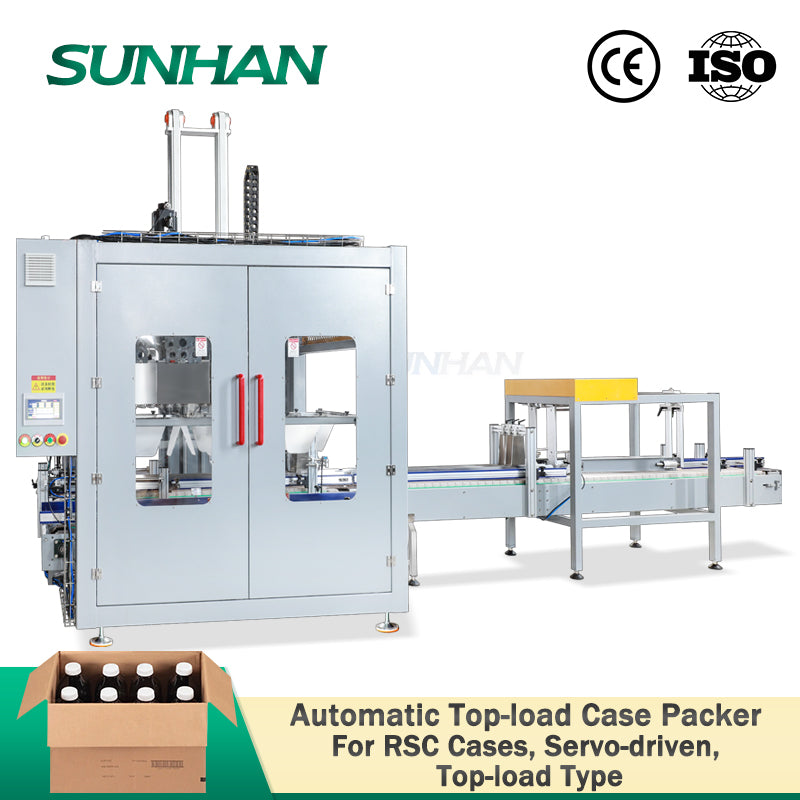

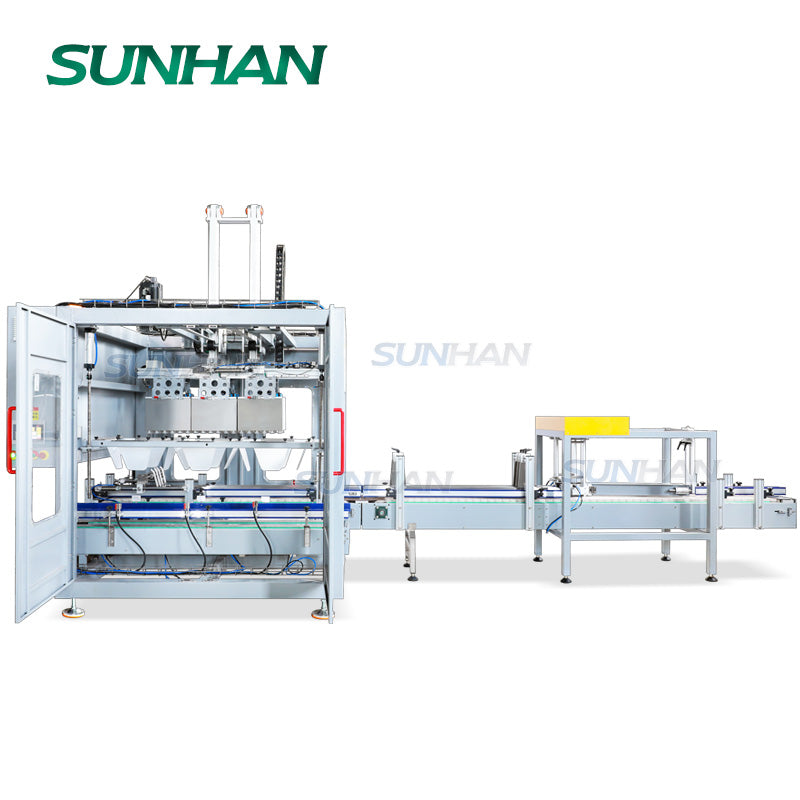

SUNHAN SH-CPL Full Automatic Servo Pick and Place Bottle Can Vertical Top Load Case Packer Grab Type Packing Machines
$47,999.00 USD
/
送料はチェックアウト時に計算されます。
私たちが提供するもの
▶ 1年保証
▶ ユーザーマニュアル
▶1対1のビデオチャットサポート
▶インストールとデバッグのビデオ
▶カスタマイズされた包装ソリューション
Main Feature
▶Equipped with a dual-servo system to ensure accurate, stable, and synchronized pick-and-place movements, achieving a speed of 9–12 cases per minute.
▶Vertical top-load pick-and-place system loads products from above, avoiding compression issues caused by horizontal pushing systems.

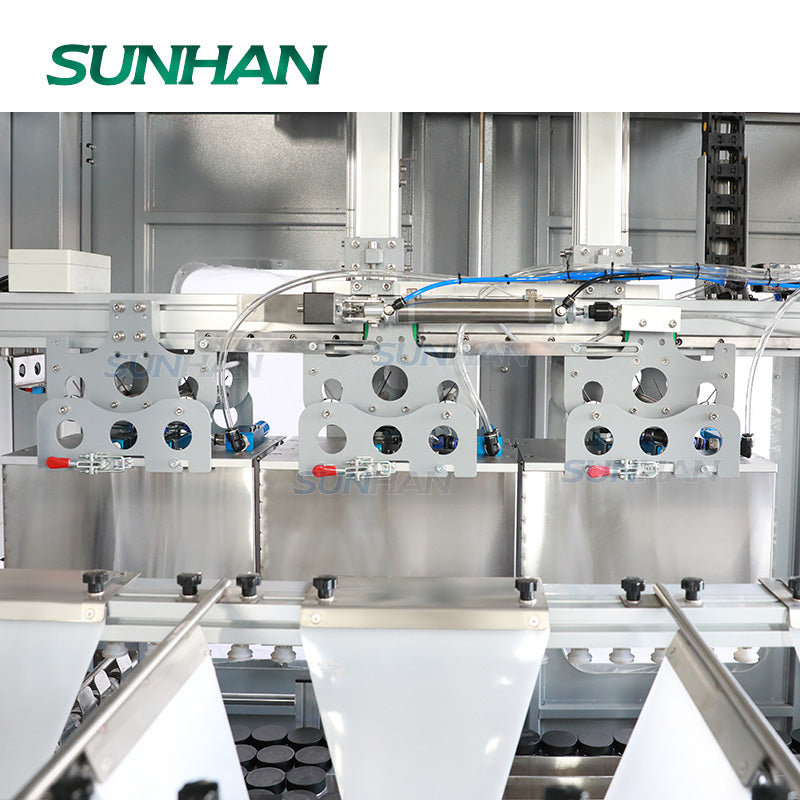

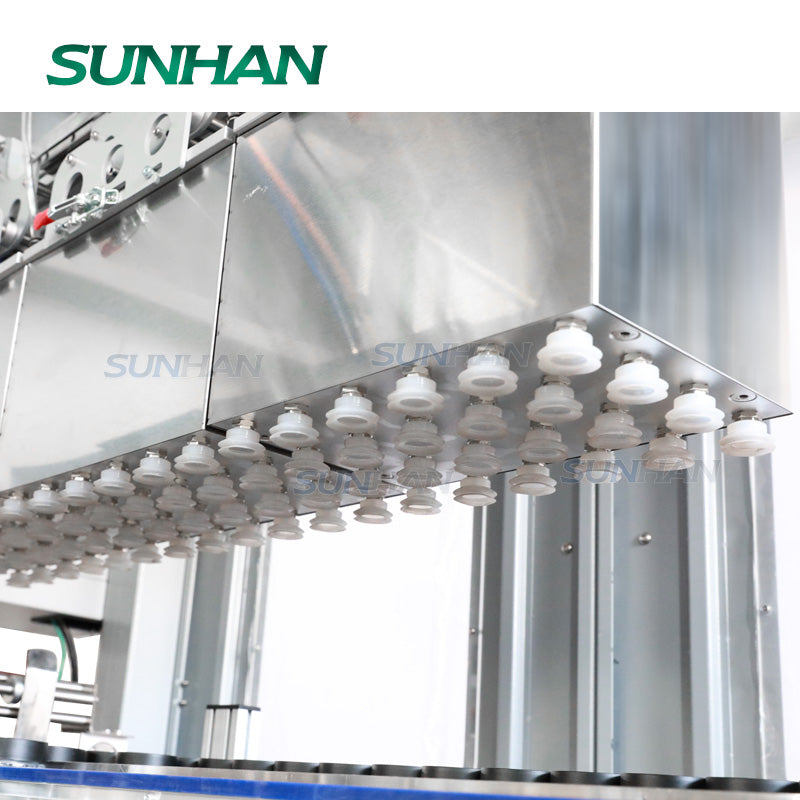

▶Vacuum grippers can be customized according to different product types, ensuring secure and stable handling.
Parameter
- Model:SH-CPL
- Power Supply:3-phase, 220V/380V, 50/60Hz, 5kW
- Air Consumption:0.45 m³/min at 0.6 MPa
- Applicable Container Types:Various bottles and cans
- Packing Speed:10-15 cartons per minute

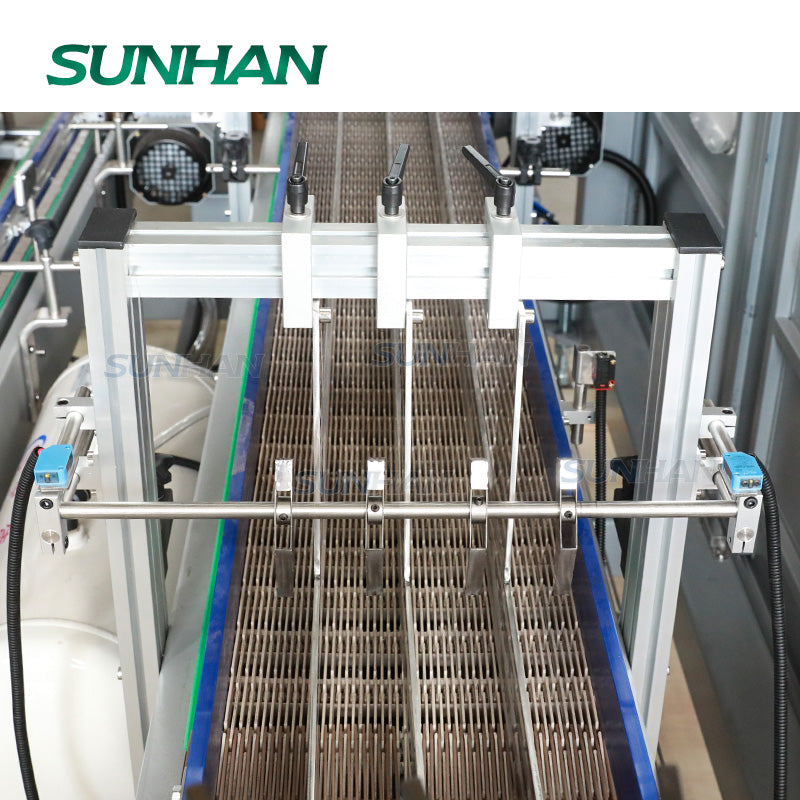

- Infeed Conveyor Height:1100 mm ±50 mm
- Gripping Units:3–6 sets (customizable)
- Machine Dimensions:5500–7500 × 1600 × 2500 mm
- Machine Weight:2000 kg
- Package Size: About 2390*1800*2460mm(Main Machine)
About 3550*890*1560(Conveyor)
- Package Weight: About 1148kg(Main Machine)
About 433kg(Conveyor)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
