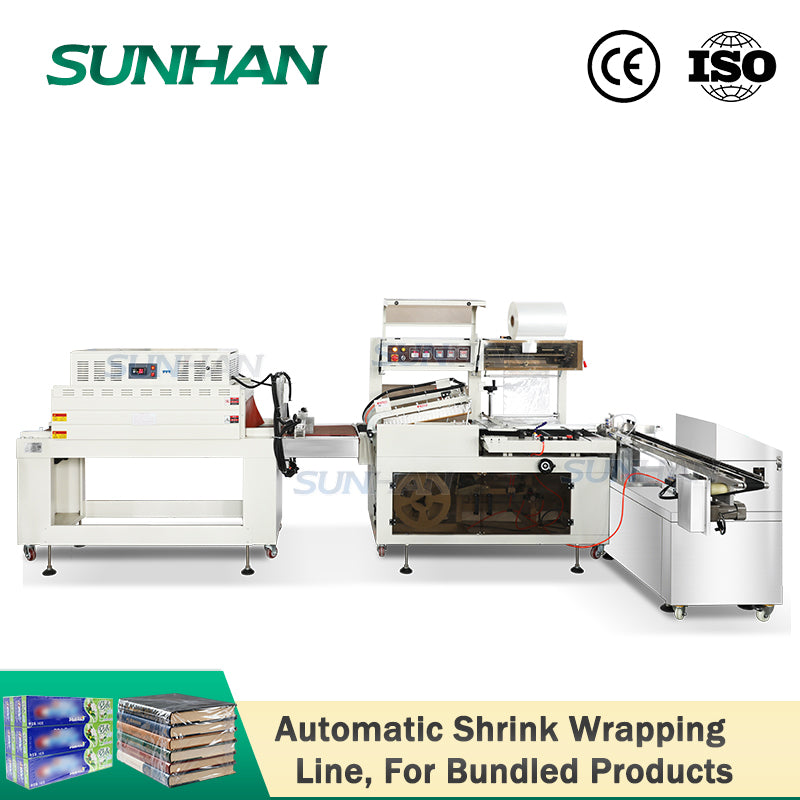

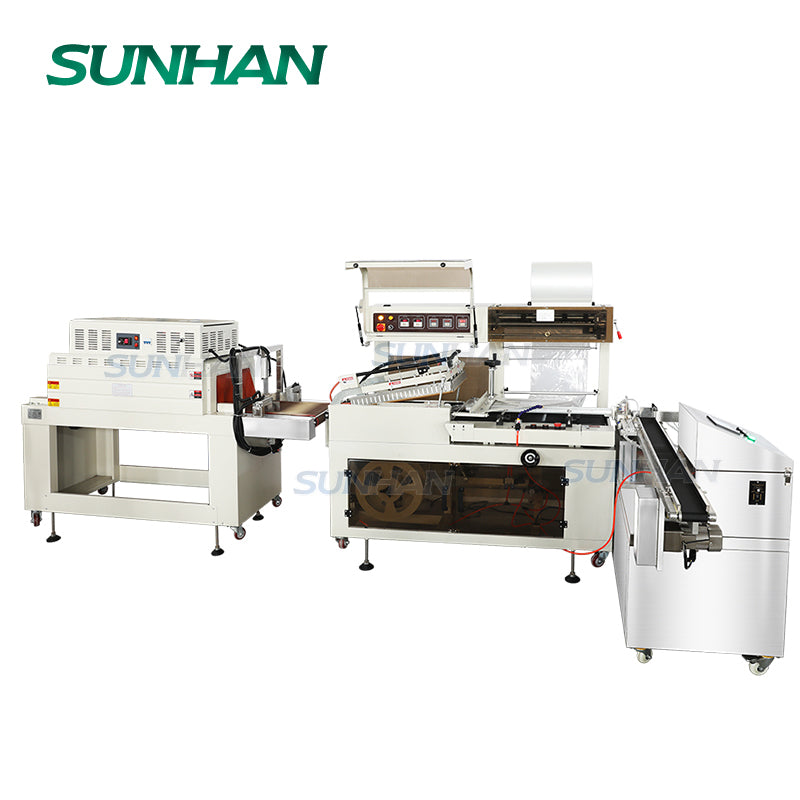

SUNHAN SH-SPL9 Automatic Cosmetic Box Heat Shrink Sleeve Wrapping Side Sealing Cutting Packaging Production Line
$9,849.00 USD
/
送料はチェックアウト時に計算されます。
私たちが提供するもの
▶ 1年保証
▶ ユーザーマニュアル
▶1対1のビデオチャットサポート
▶インストールとデバッグのビデオ
▶カスタマイズされた包装ソリューション
Main Feature
▶Integrates automatic feeding, sealing, and shrinking processes for efficient, continuous production with stable performance.

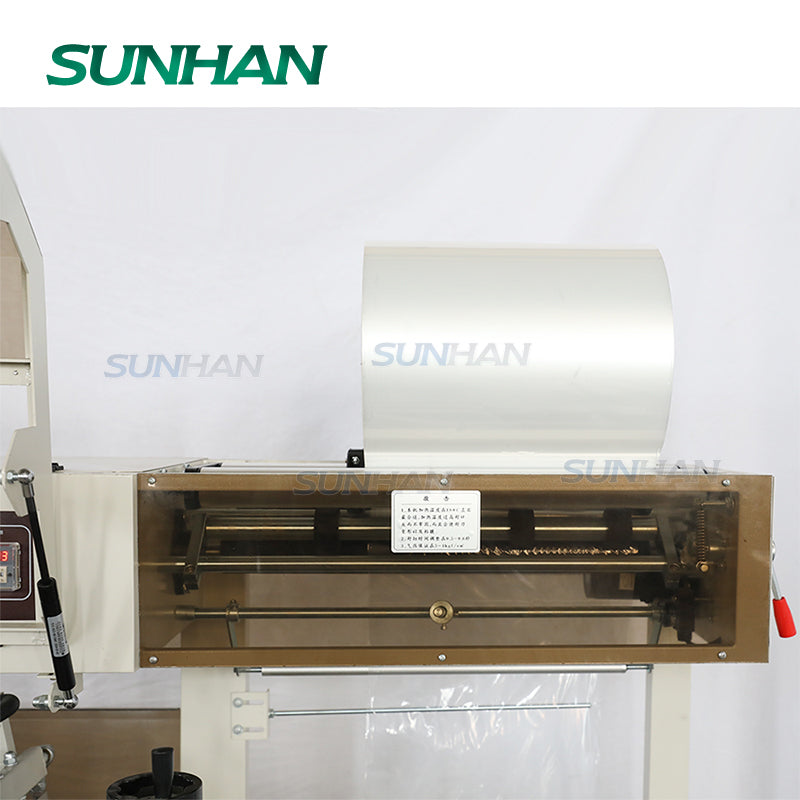

▶Triangle folding device ensures smooth film feeding and accurate film shaping.
▶Dual-adjustable hot air circulation system ensures even heat distribution for smooth, wrinkle-free shrink wrapping.
Parameter

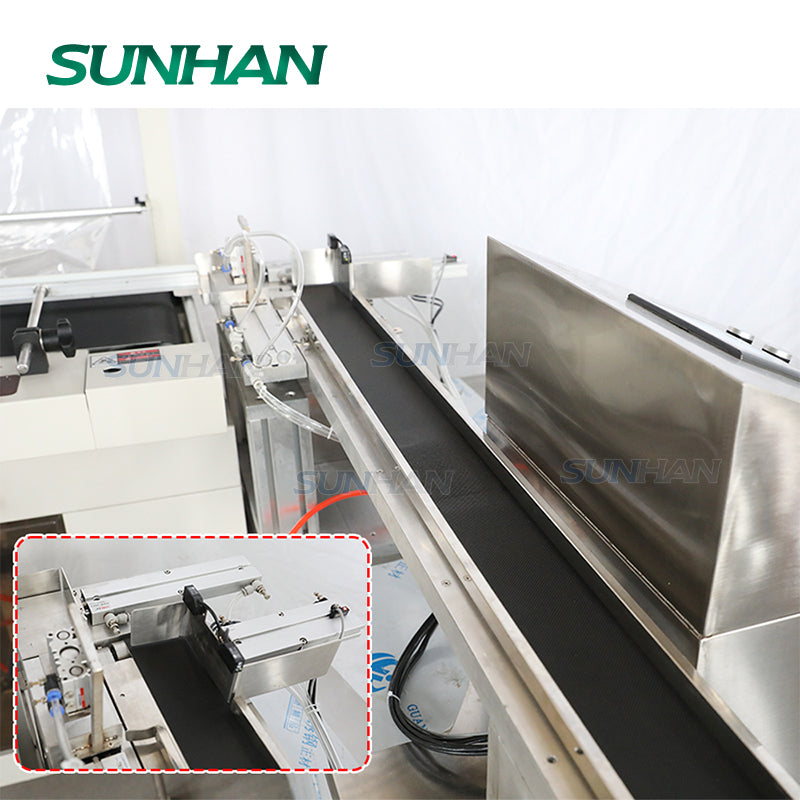

Automatic Infeed System
- Voltage:110V/220V 50-60Hz
- Machine Material:Stainless Steel
- Conveyor Length:Customizable
- Conveyor Speed:Customizable
- Machine Size:Customizable

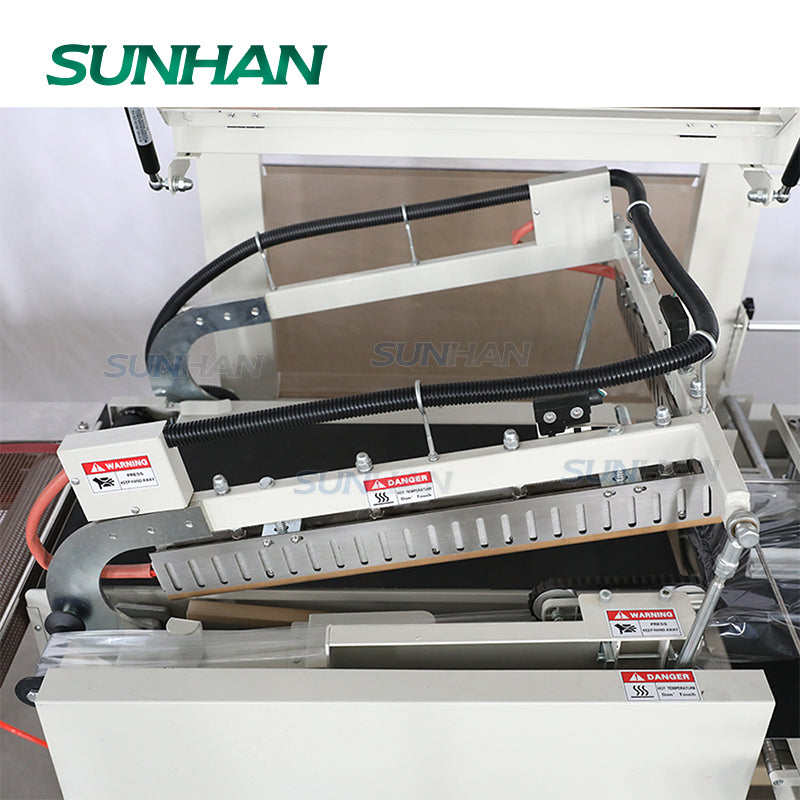

Sealing and Cutting Machine
- Machine model:SH-FQL450A
- Power Supply:220V, 50/60Hz, 1.6kw
- Sealing and Cutting Speed:15-30 bags/min
- Suitable Shrink Film Material:POF
- Air Pressure:0.6 MPa (this machine should be connected to an air compressor)
- Maximum Packing Height:140mm
- Sealing and Cutting Size:560*440mm
- Machine Size:About 1660*920*1450mm
- Machine Weight:About 300kg

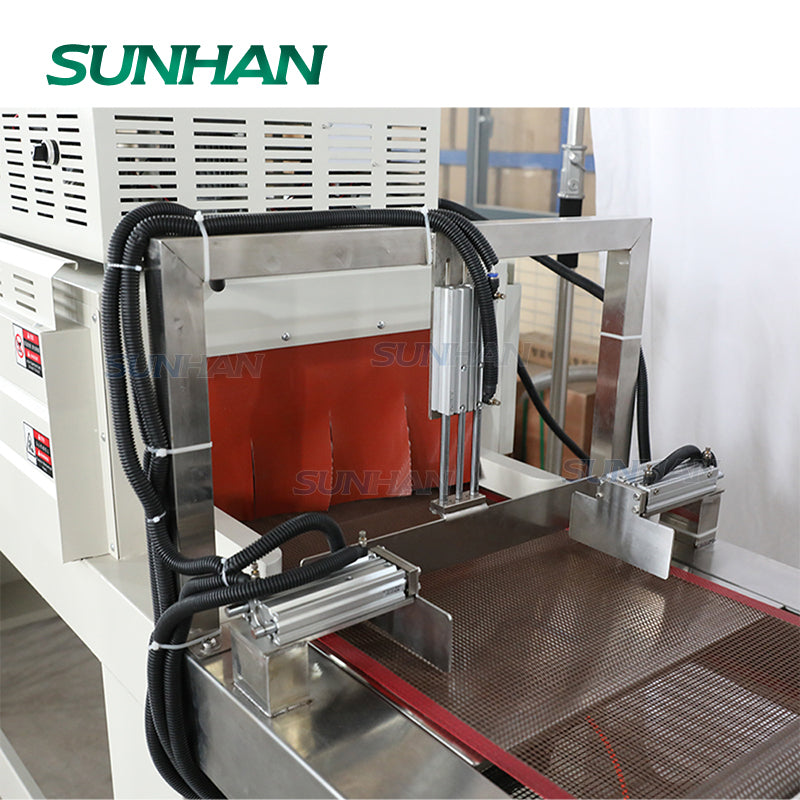

Heat Shrink Tunnel
- Model:SH-BS4522
- Voltage:380V 50-60Hz
- Power:12 kW
- Tunnel Size:About 1200*145*220 mm
- Conveying Speed:0-10 m/min
- Transport Load:30 kg
- Suitable Film:PVC/POF/PE
- Machine Size:About 2300*700*1370mm
- Machine Welght:About 200kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
