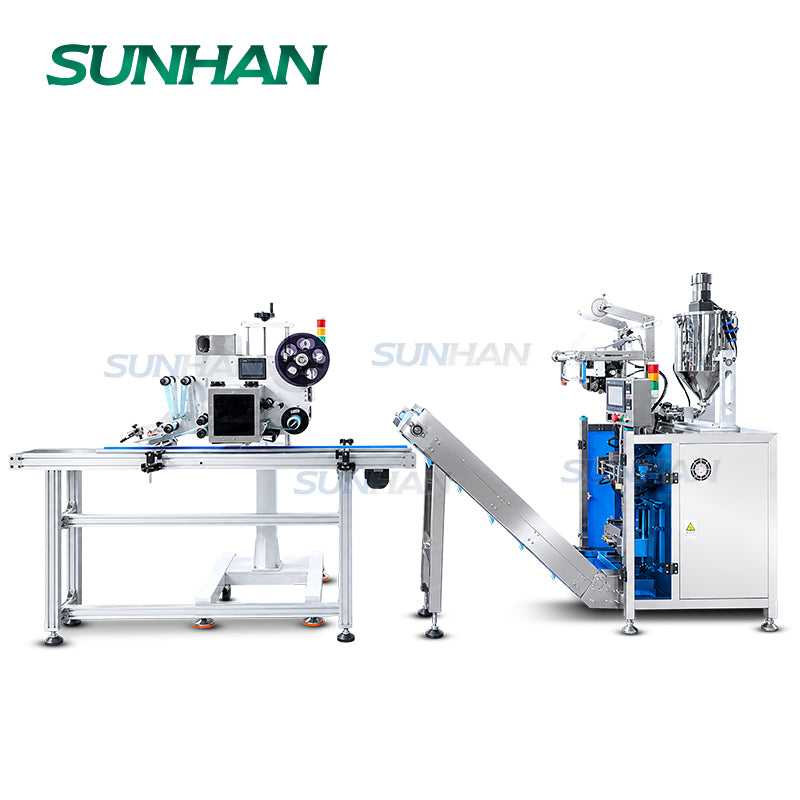

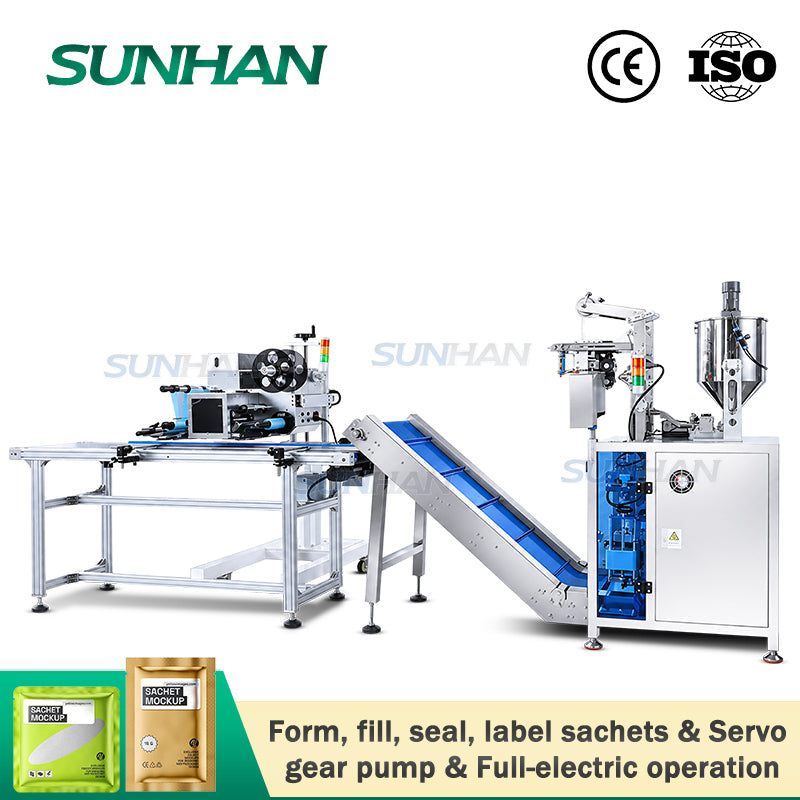

SUNHAN SH-FSL220 Full Electric Automatic Servo Gear Pump Paste Sachet Filling Sealing Flat Surface Labeling Production Packing Line

Main Feature

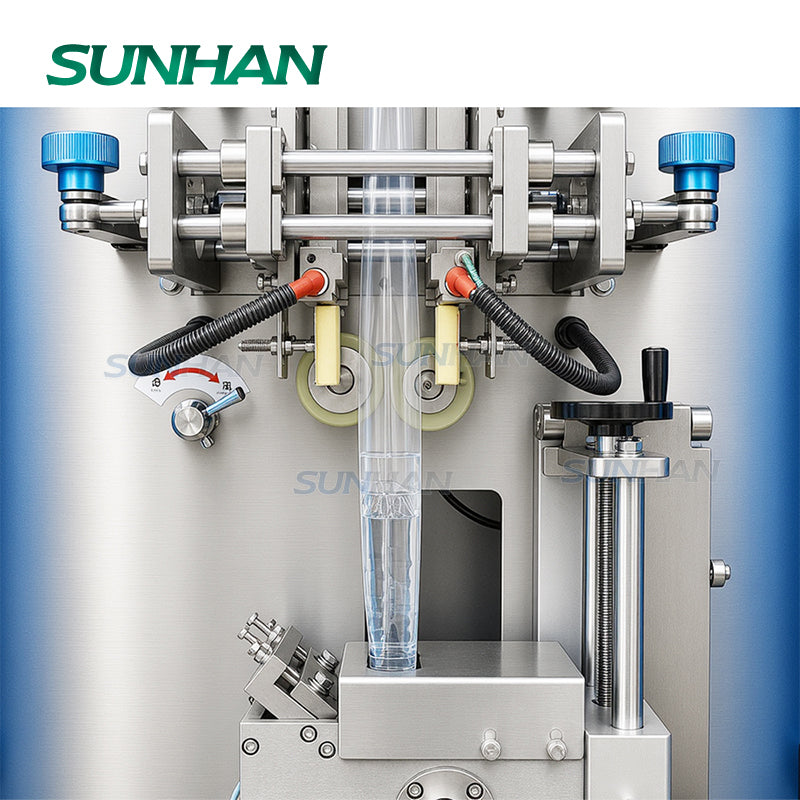

▶Integrates sachet forming, paste filling, sealing, coding and labeling into one automated process.
▶Servo gear pump provides accurate filling for pastes at speeds of up to 1500 sachets per hour.

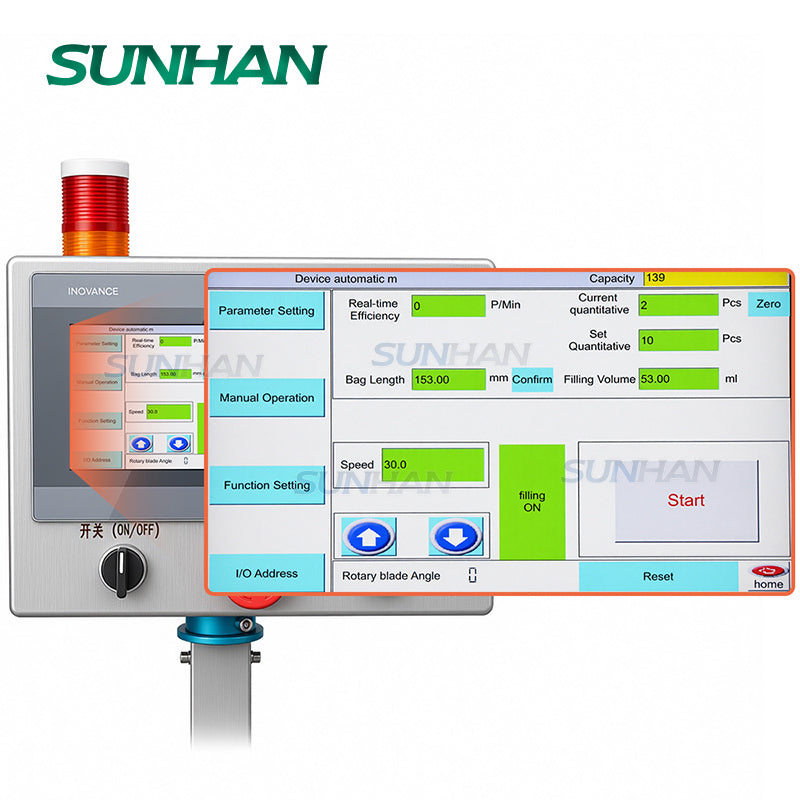

▶Product information can be edited conveniently on a computer, with support for QR codes, barcodes, production dates and logos.

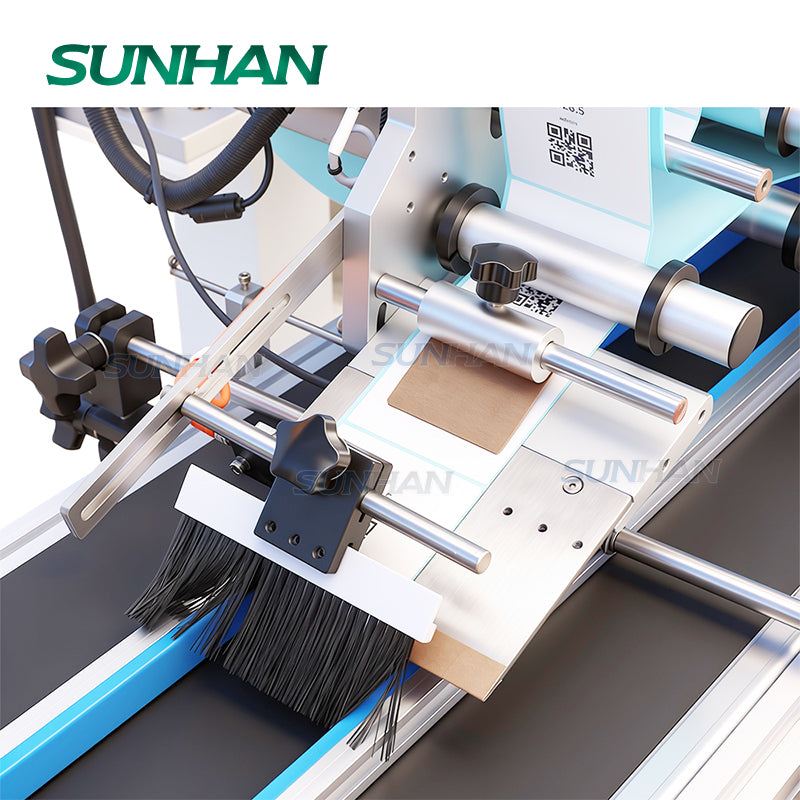

▶Designed for flat sachet surfaces, with a brush-assisted labeling process that helps press labels firmly.
▶Uses a full electric control system without pneumatic components, simplifying operation, reducing air consumption and making maintenance more convenient.

Parameter

>Sachet Packaging Machine

• Machine model:SH-FP220E

• Machine voltage:110/220V 50-60HZ

• Power:2.5 KW

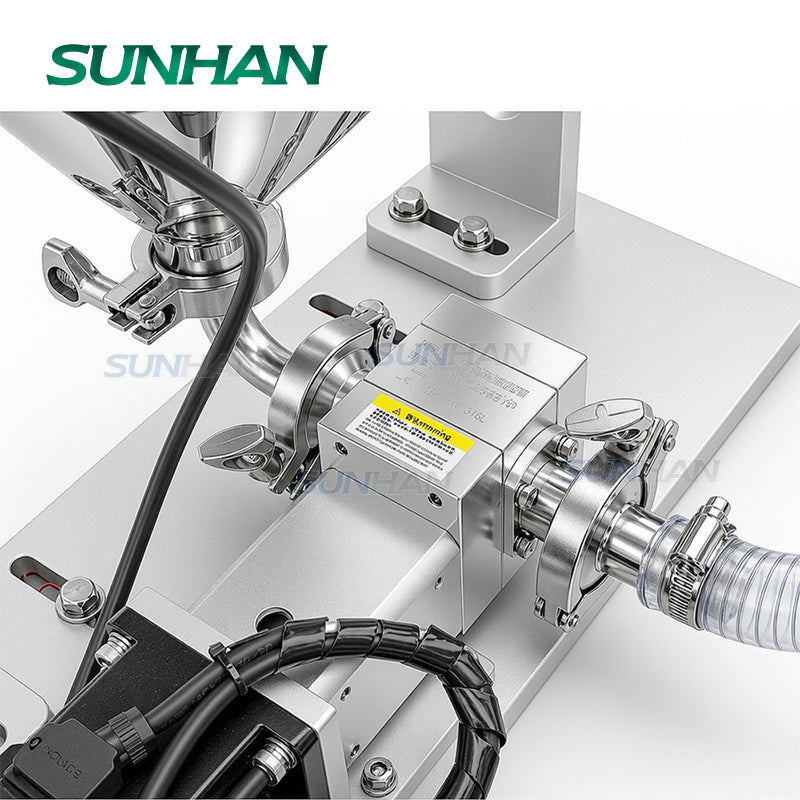

• Metering Method:Servo Gear Pump

• Packaging Form:Side Sealing (Can Be Customized)

• Dosage Range:10-20ml (Can Be Customized)

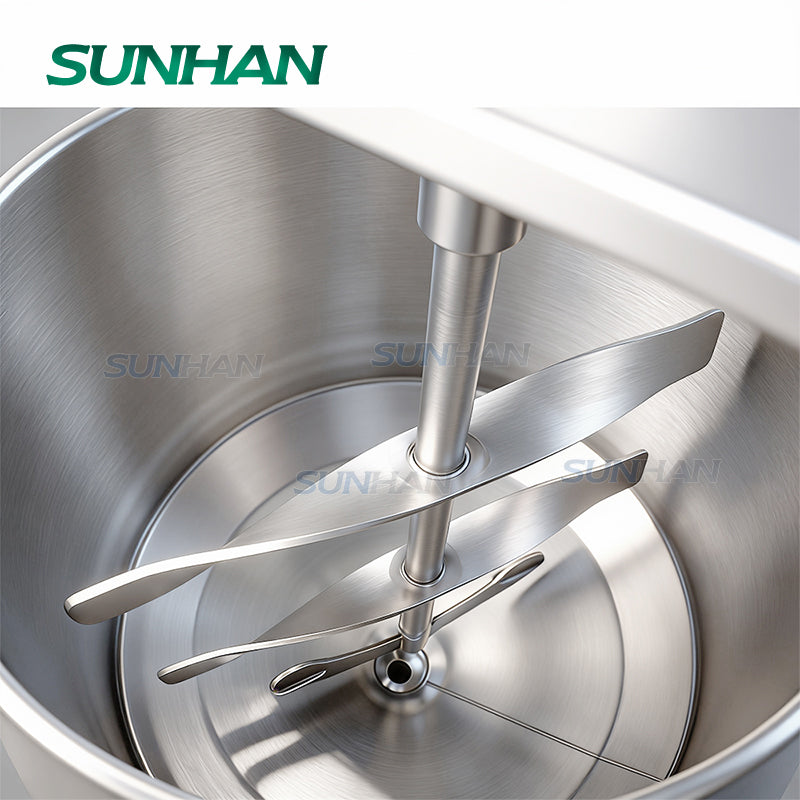

• Hopper Size:30L(With mixer)

• Bag Size:Length 20-145 mm, Bag width 20-110 mm

• Packaging Speed:60-90 Bags/Minute (Depending on the actual material)

• Machine Size:L900*W 700*H 1720 mm

• Machine Weight:250 KG

• Package Size:1060*780*1750mm(Packaging machine)

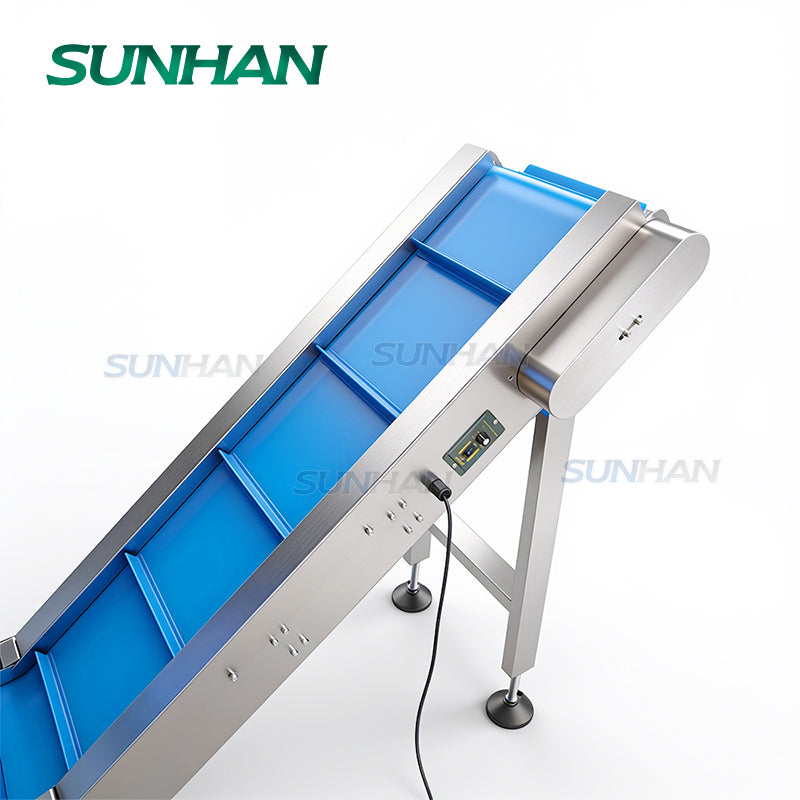

  1650*650*1550mm(Conveyor)

• Package Weight:305+93kg=398kg

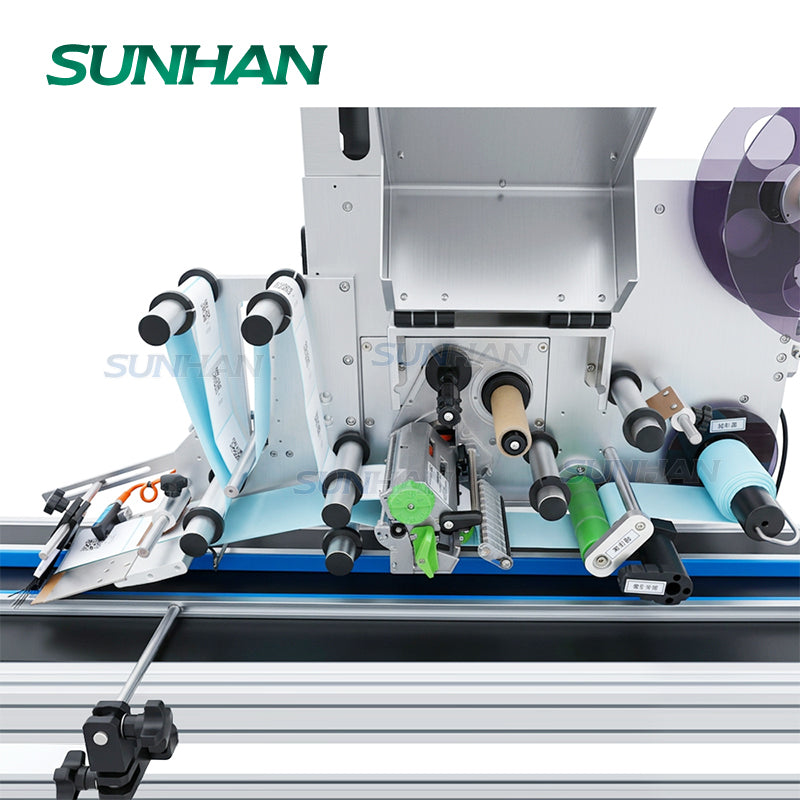

>Cache Printing Labeling Machine

• Machine model:SH-TB160POPB

• Power supply:110/220V 50-60HZ 600W

• Printing method:Thermal transfer/thermal sensitive

• Printing resolution:200dpi / 300dpi

• Printing speed:2-10 inches/S / 2-7 inches/S

• Printing range:25-180mm(L)*25-104mm(W)

• Paper roll size:ID= Φ76mm OD=250mm

• Backing paper size:25.4-106mm(W) *0.06-0.30mm(thickness)

• Ribbon:450m(L)* 25-110mm(W), Max OD=90mm
  (when winding the ribbon, the coated side faces outward)

• Connection size:USB2.0 / network port

• Labeling speed:10-25pcs/min

• Labeling accuracy:±1-3mm (excluding product and label errors)

• Label size:25-180mm(W)*25-104mm(H)

• Print content:Text, serial number, date, pattern, one (two-dimensional) barcode and other identifications

• Package size:2150*1260*1810mm

• Package weight:315kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
