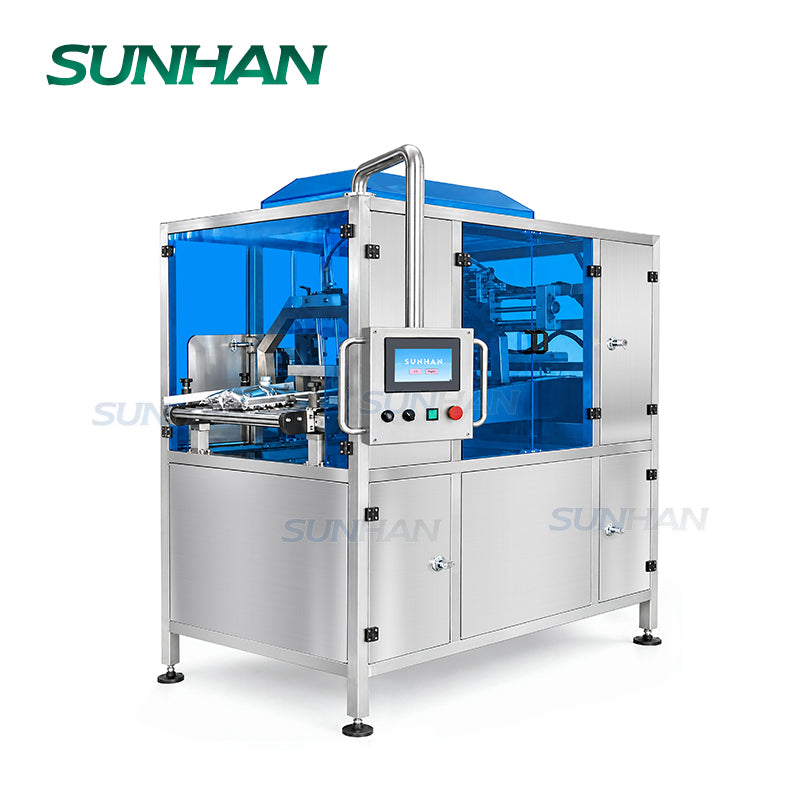

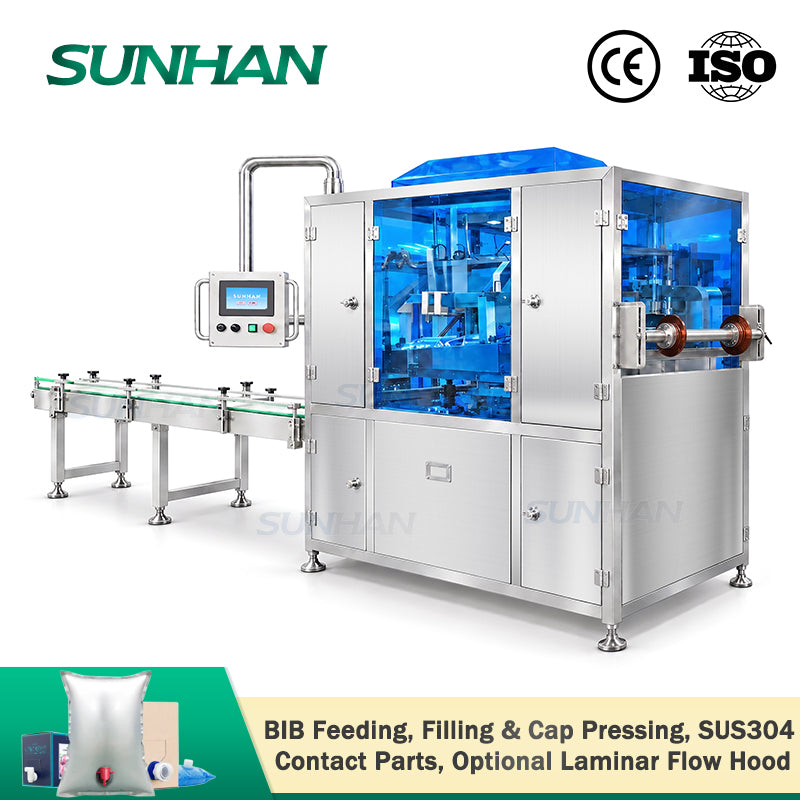

SUNHAN SH-BIB02 Full Automatic Single Head Beverage Juice Wine Bag in Box Liquid Filling Capping Packing Machine
$68,999.00 USD
/
送料はチェックアウト時に計算されます。
私たちが提供するもの
▶ 1年保証
▶ ユーザーマニュアル
▶1対1のビデオチャットサポート
▶インストールとデバッグのビデオ
▶カスタマイズされた包装ソリューション
Main Feature

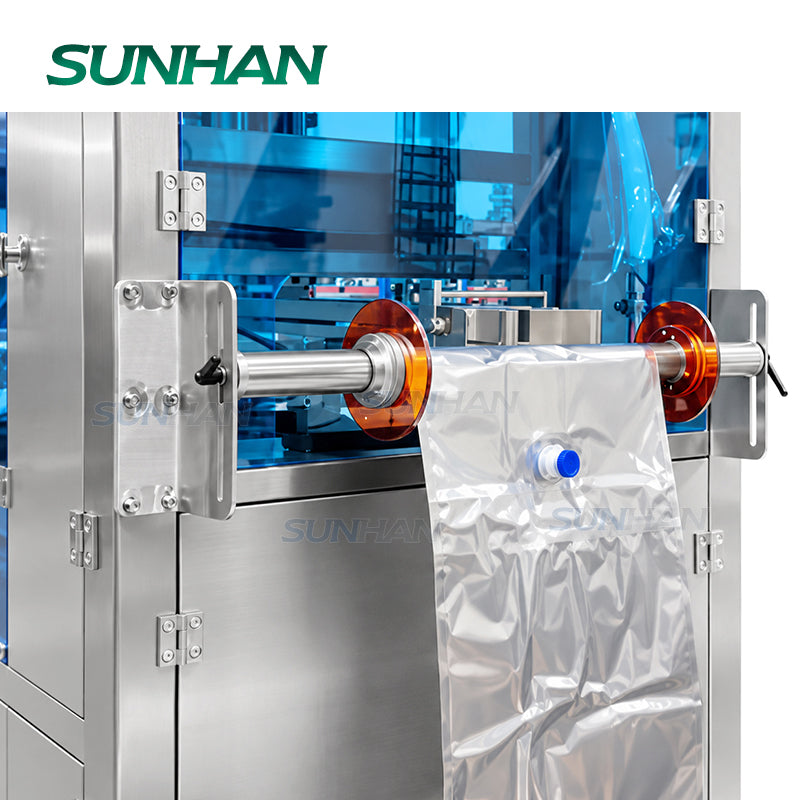

▶Automatically feeds connected bags with bag-tension control and spout positioning to keep bags aligned during processing.
▶Flow meter filling control supports filling volumes of 1–4.5 L.

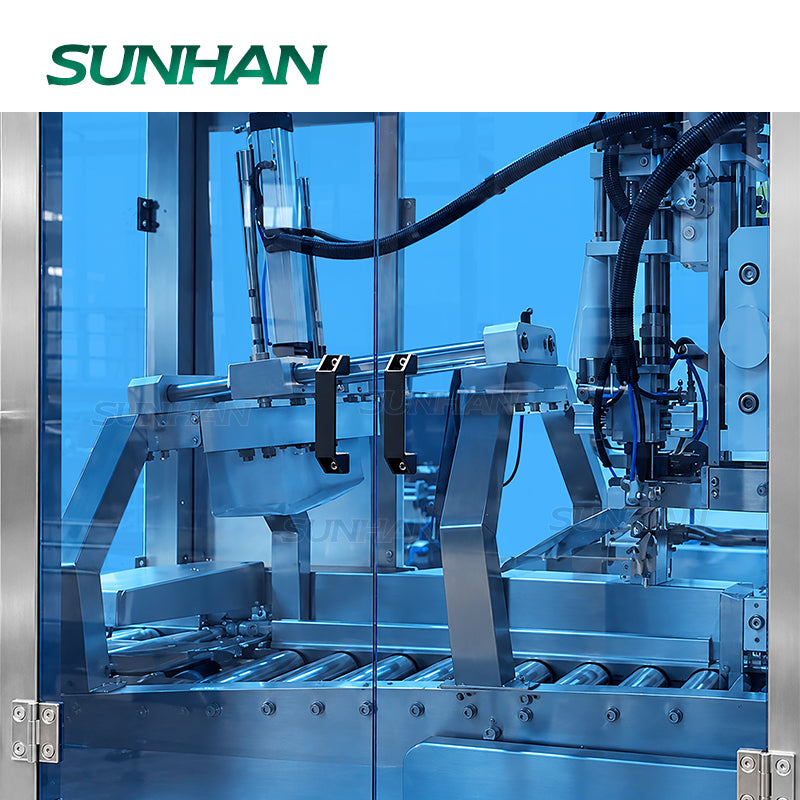

▶Automatically removes caps before filling and presses them back into position after filling.

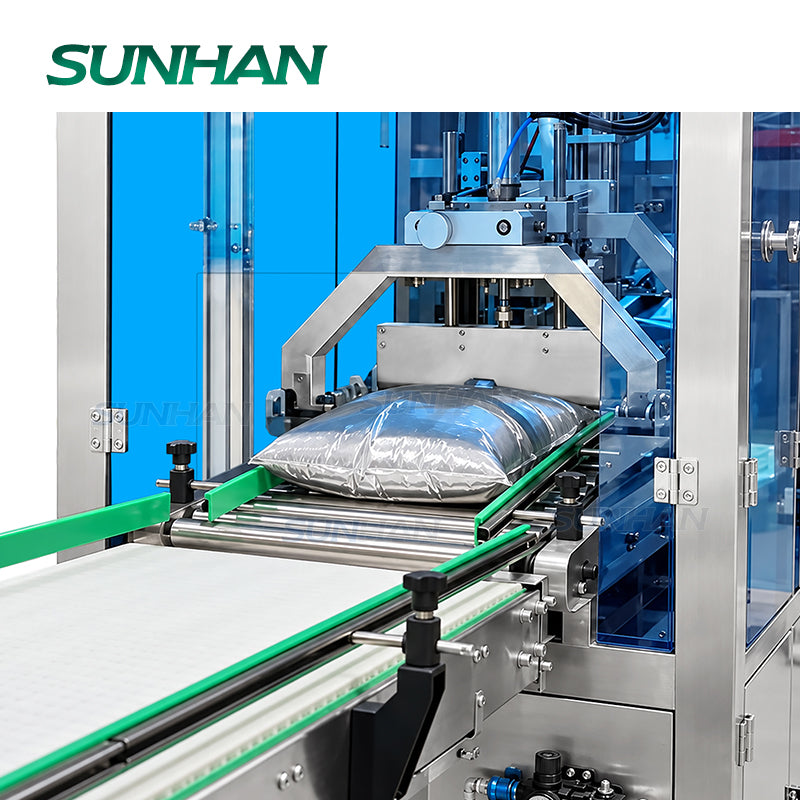

▶Separates filled bags from the connected web with bag-length positioning and cutting-error detection.
▶Product-contact parts are made of SUS304 stainless steel.
Parameter
- Machine Model:SH-BIB02
- Power Supply:AC 220 V / 50 Hz
- Power:≤1.5 kW
- Filling Range:1–4.5 L
- Filling Method:Flow Meter Filling
- Production Capacity:250–280 bags/hour
- Filling Accuracy:≤±0.2–0.5%
- Working Air Pressure:0.6–0.8 MPa
- Air Consumption:≤0.1 m³/min
- Bag Type:Connected Web Bags
- Nitrogen Flushing:Optional
- Laminar Flow Hood:Optional
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
