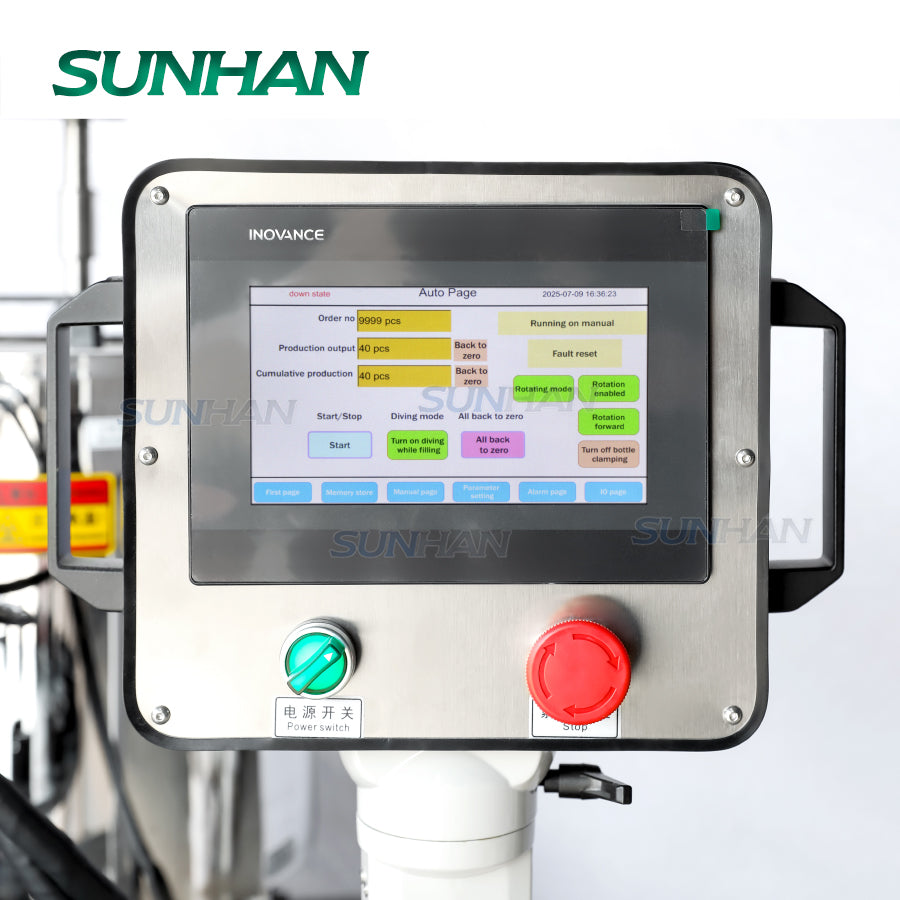

control panel of lip gloss swirl filling machine-1

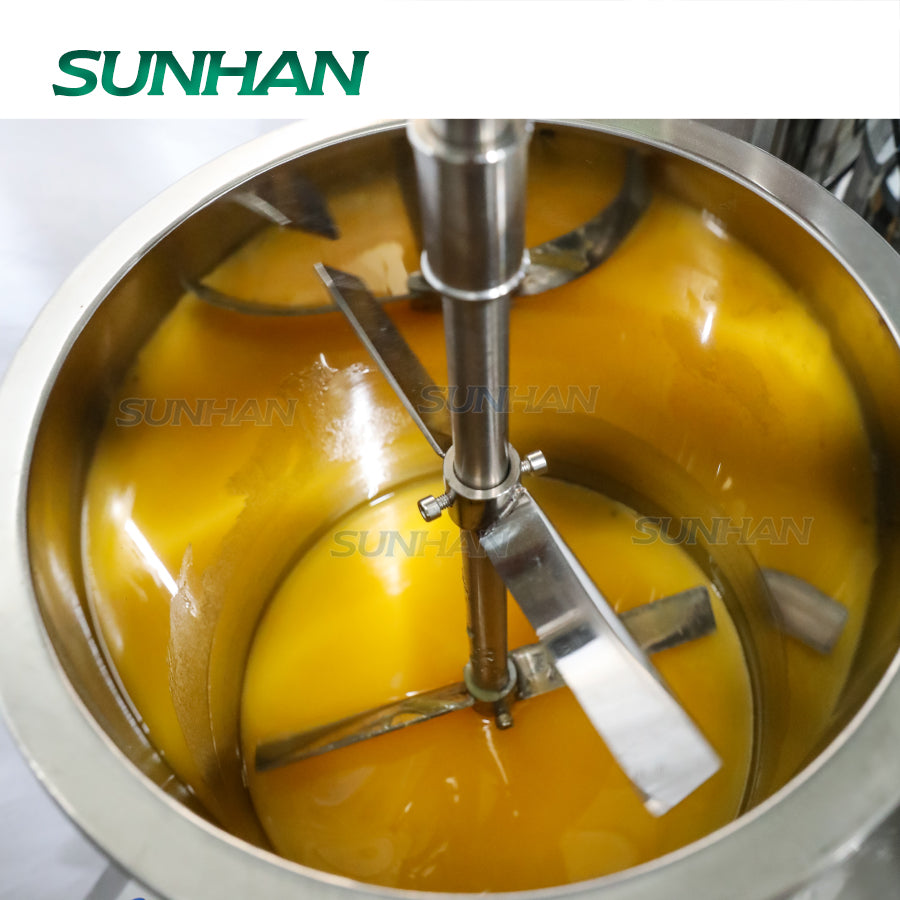

double feeding hoppers of lip gloss swirl filling machine-2

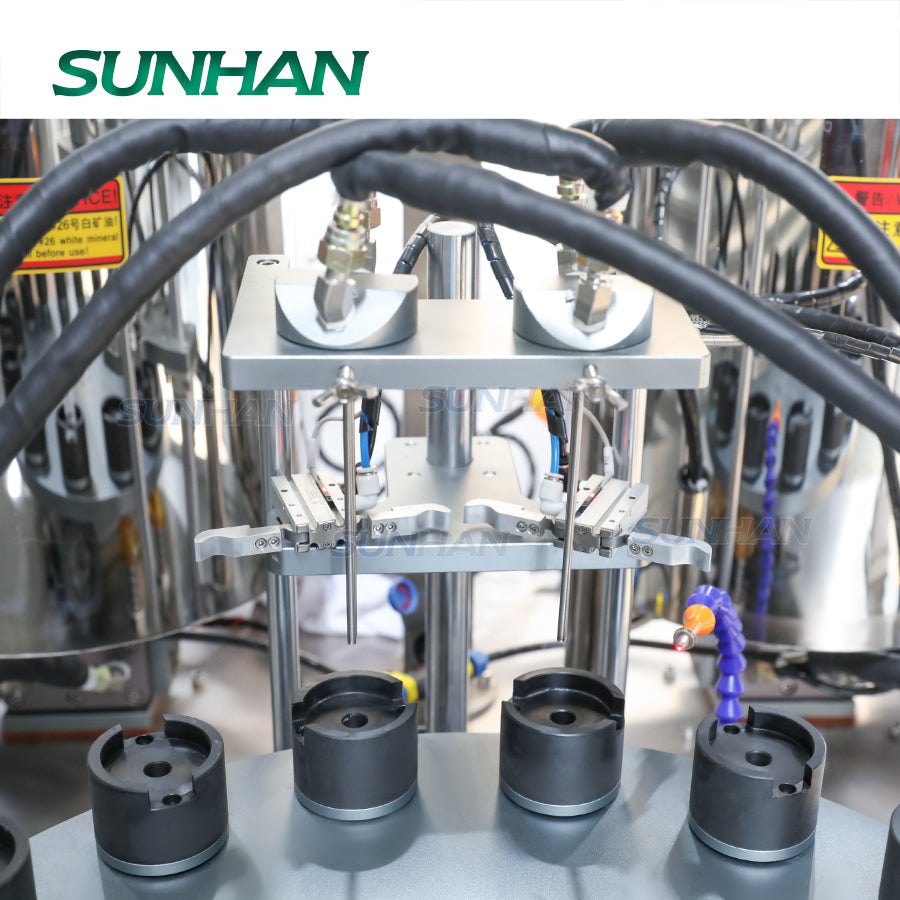

double diving filling nozzles of lip gloss swirl filling machine-3

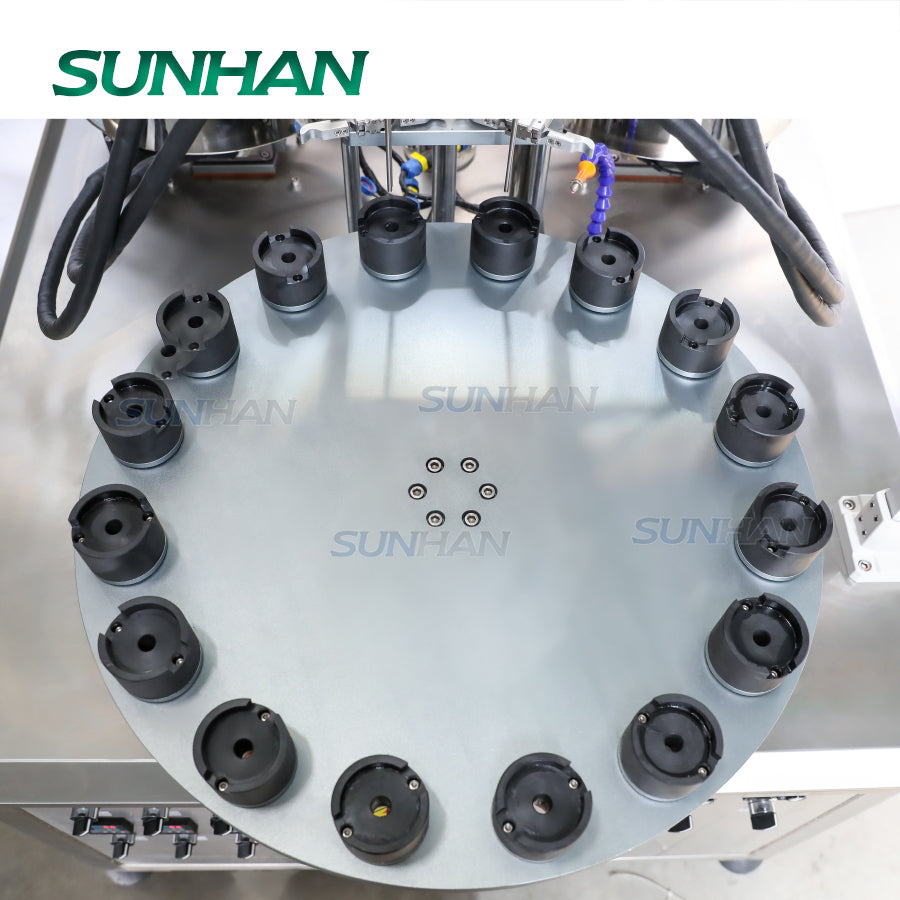

fixing molds of lip gloss swirl filling machine-4

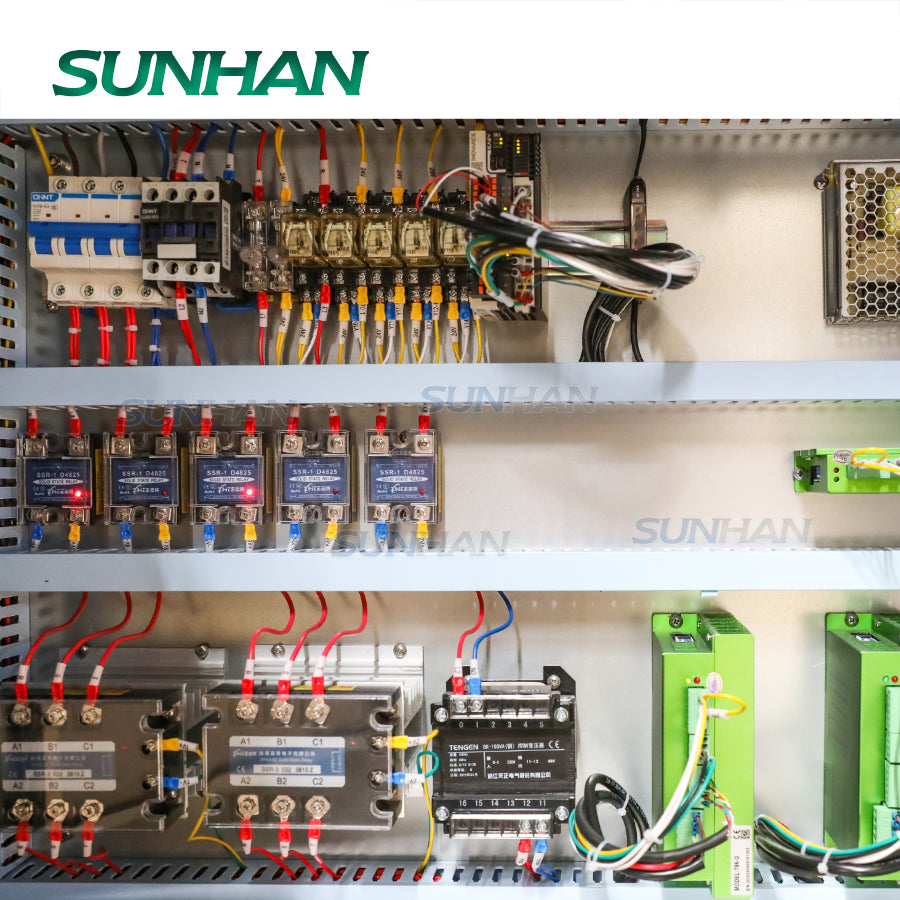

electric circuit of lip gloss swirl filling machine-5

rotary tube filling machine for lip gloss

SUNHANPACK

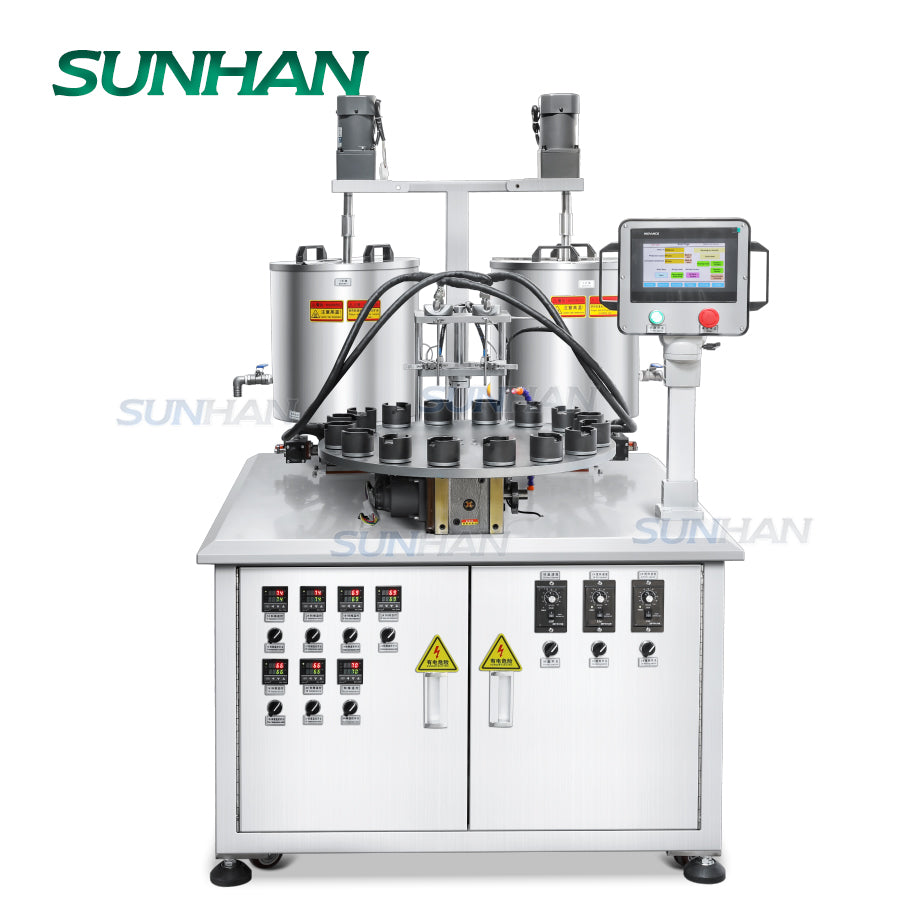

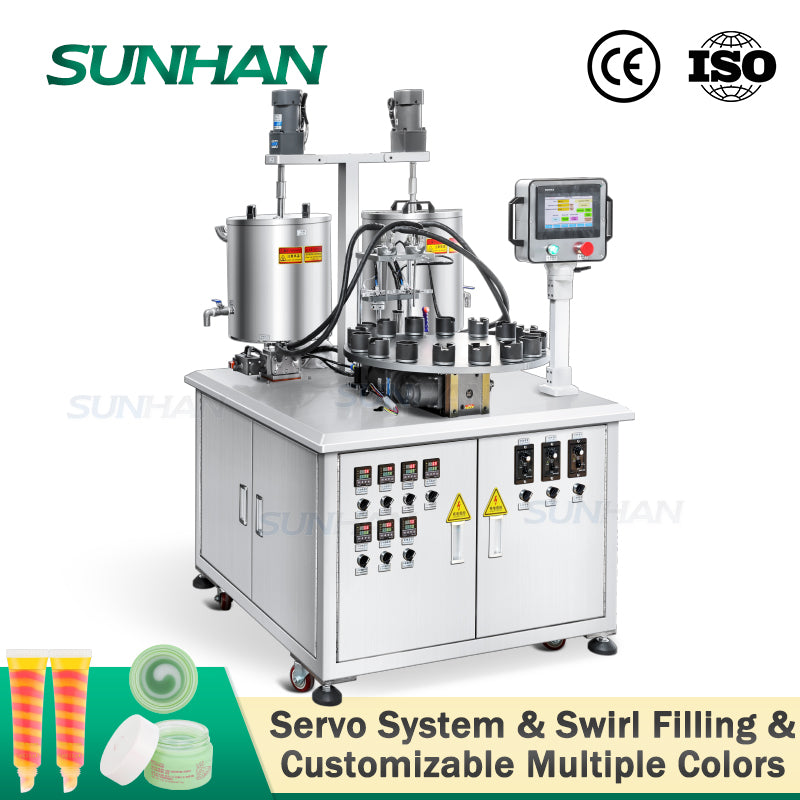

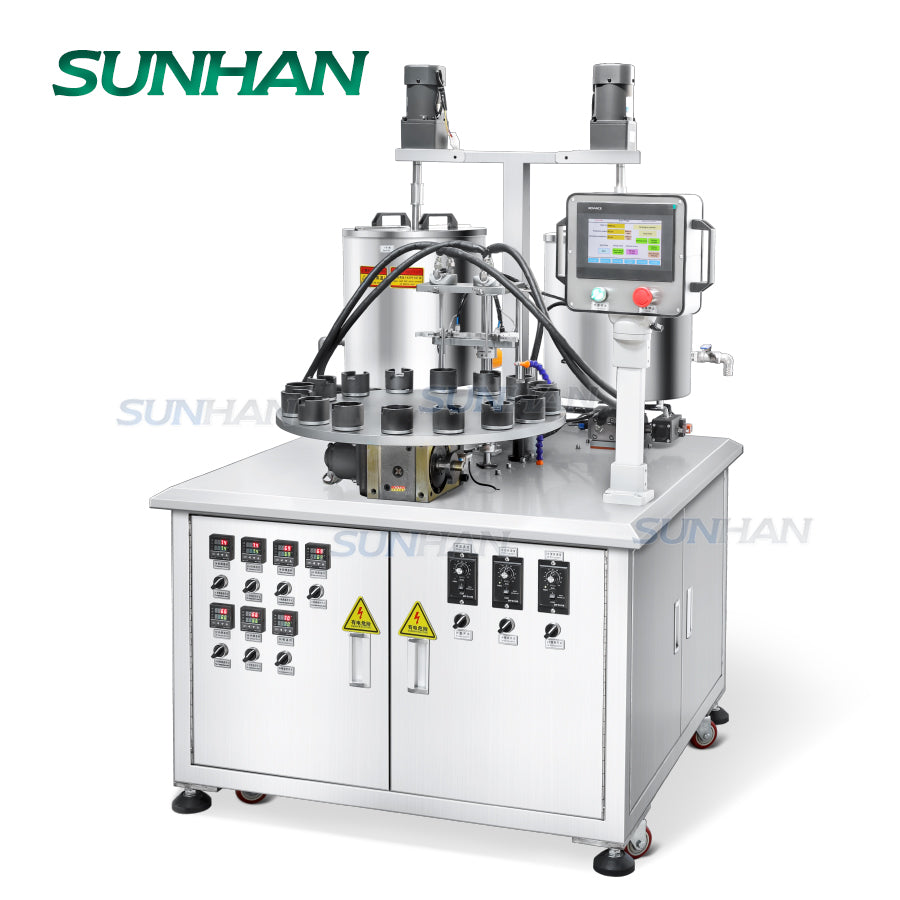

SUNHAN SH-LG2C Automatic Servo Piston Pump 2-color Cosmetic Gels Foundation Cream Lip Gloss Spiral Filler Swirl Filling Machine

Versand wird beim Checkout berechnet

Voltage: 110V 110V 220V

Produktvarianten

What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

▶This machine is specially designed for swirl filling of two-color products.
▶Servo piston pump controls filling, filling volume can be set directly. Has high filling accuracy.
▶With heating and mixing hopper to ensure smooth production.

Parameter

Machine Model:SH-LG2C
Voltage:AC 380V/220V 50Hz
Power:5.4kW
Filling Speed:About 8-24pcs/min
Filling Range:3-20ml
Filling Pump:Servo Piston Pump
Filling Accuracy:±0.1ml
Feeding Hopper:20L, SUS304
Heating Temperature:0-150℃ (optimal operating temperature is 80-120℃)
Stirring Speed:0-65r/min
Material Contact Parts:SUS304
Air Consumption:3-6kg/cm²
Machine Size:About 900*1350*1900mm
Machine Weight:About 300kg
Package Size:About 1170*1100*1740mm
Package Weight:About 348kg

application of rotary tube filling machine for lip gloss

datasheet of swirl cream gel filling machine

machine details of lip gloss swirl filling machine-1

machine details of lip gloss swirl filling machine-2

real shot of lip gloss spiral filling machine-1

real shot of lip gloss spiral filling machine-2
