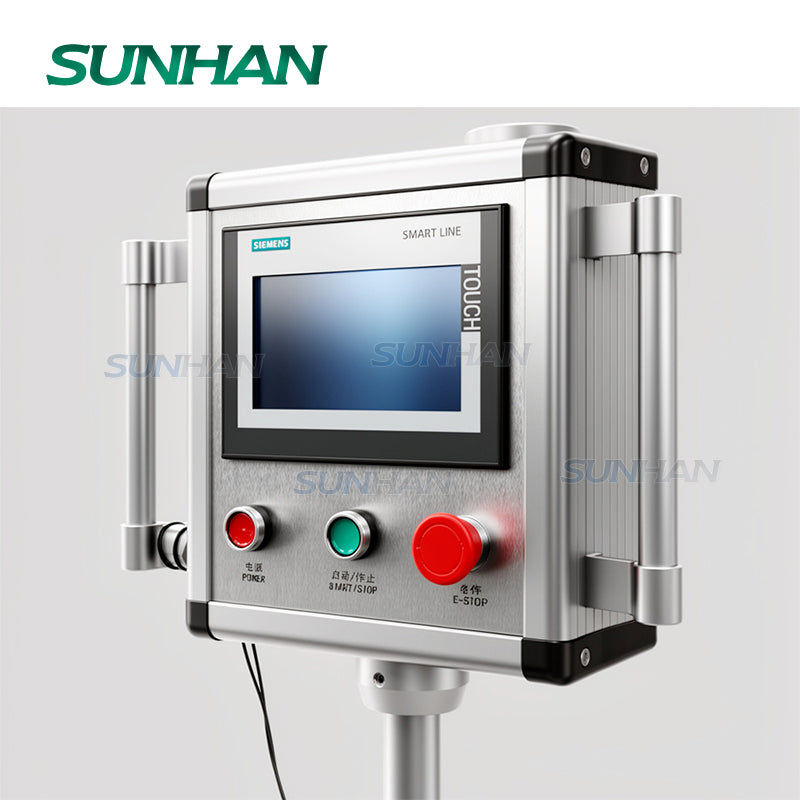

control panel of trigger pump capping machine for cleaner-1

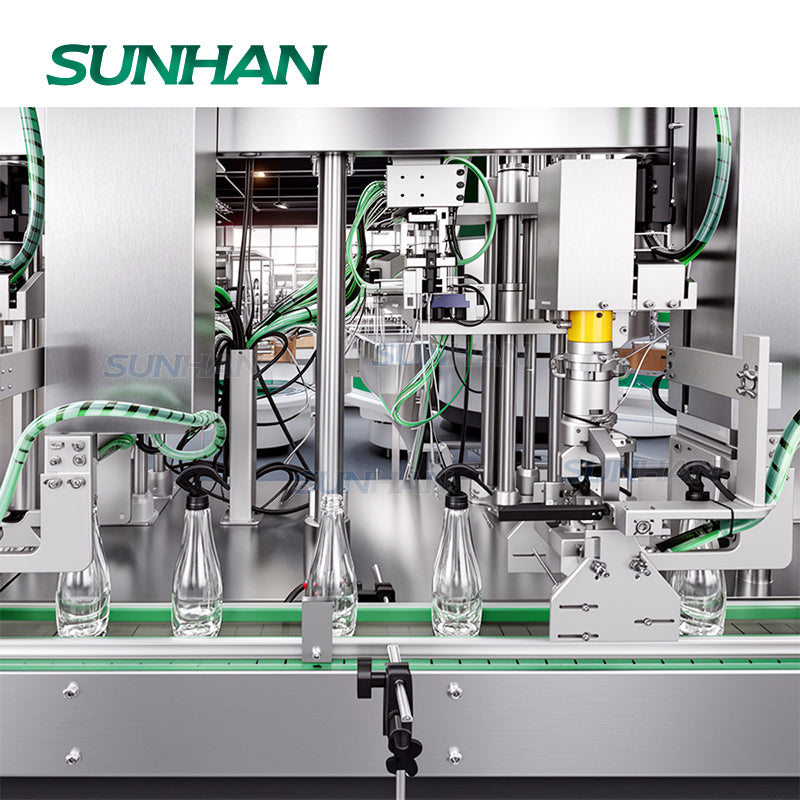

dual capping heads of trigger pump capping machine for cleaner-2

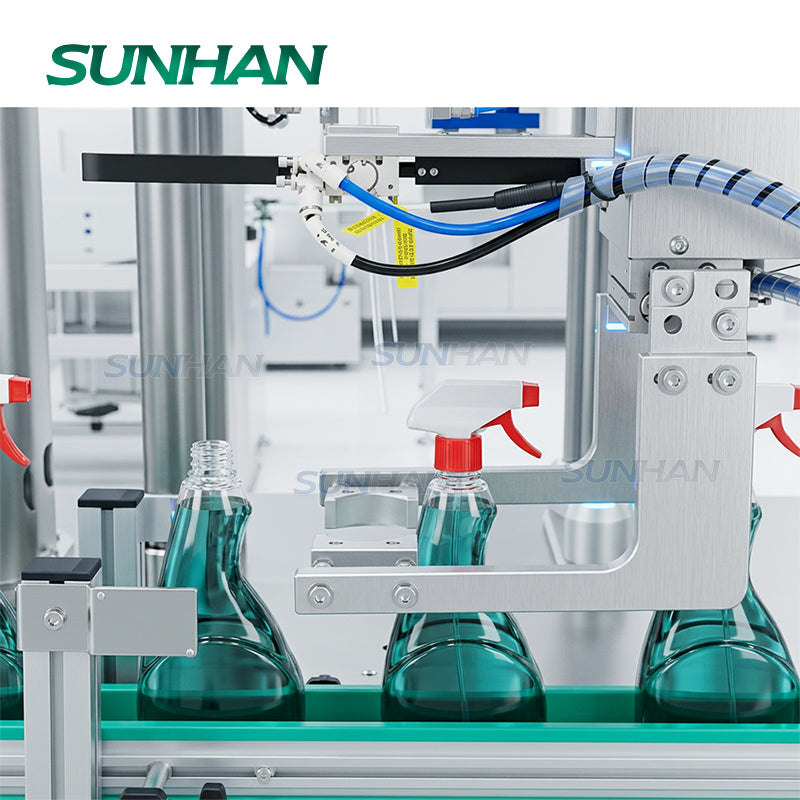

orientation & protection of trigger capping machine for disinfectant-3

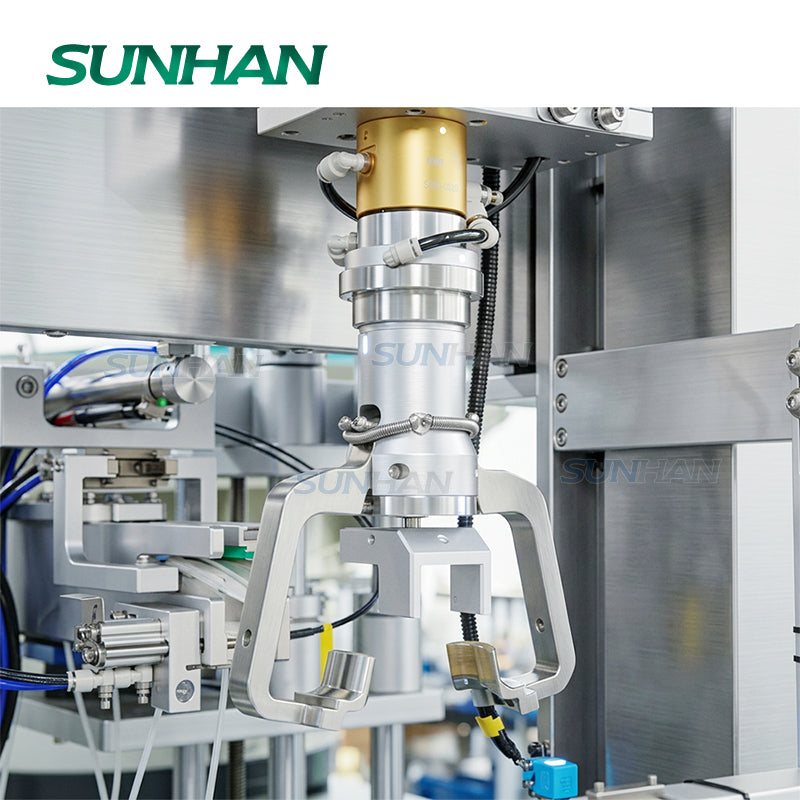

capping gripper of trigger capping machine for disinfectant-4

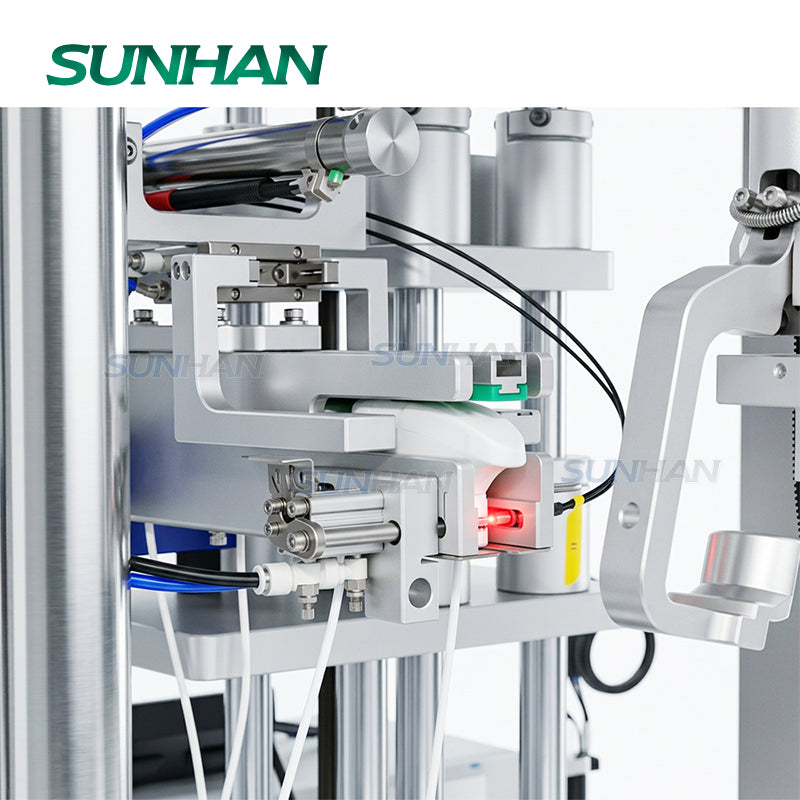

lid delivery device of pump cap screw capping machine-5
trigger spray bottle capping machine

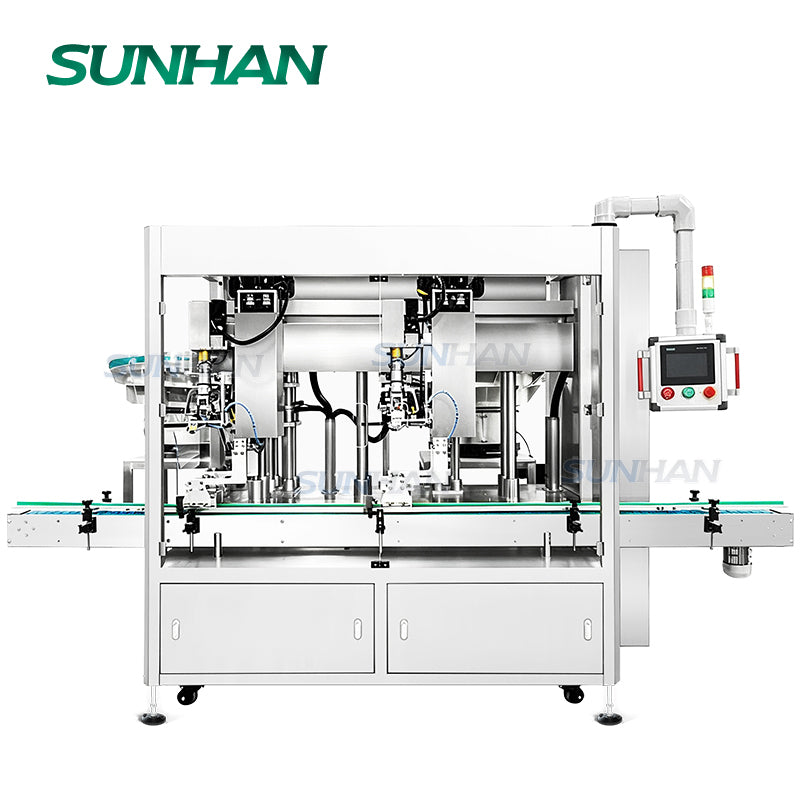

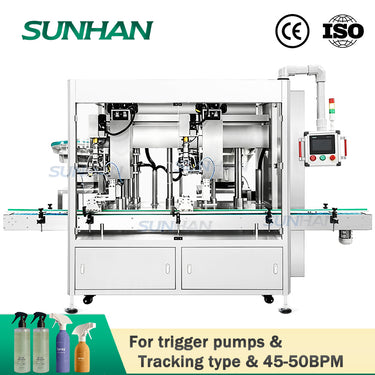

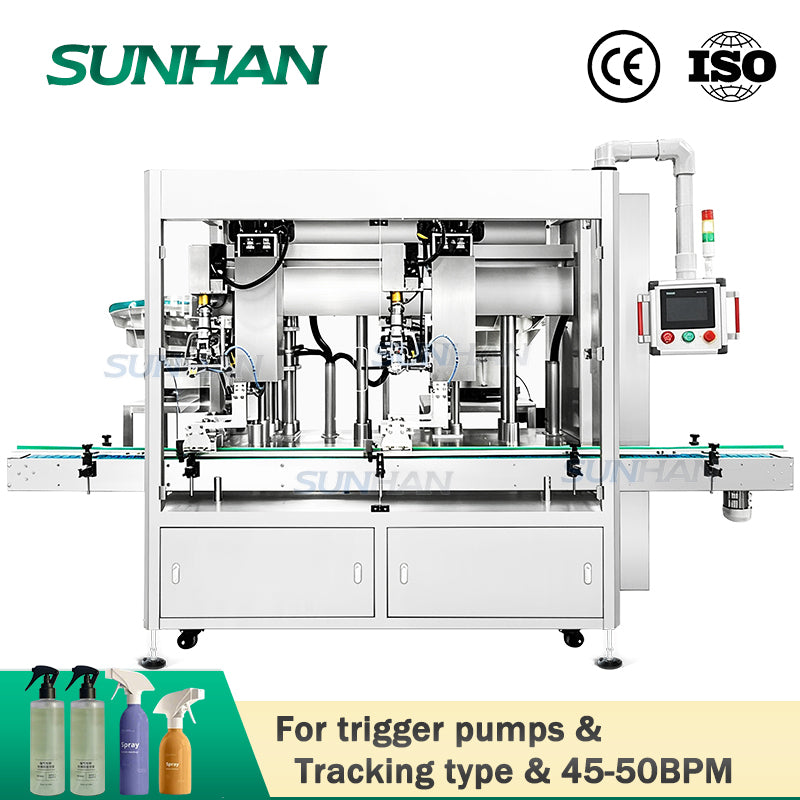

trigger pump tracking capping machine
video of trigger pump tracking capping machine
control panel of trigger pump capping machine for cleaner-1
dual capping heads of trigger pump capping machine for cleaner-2
orientation & protection of trigger capping machine for disinfectant-3
capping gripper of trigger capping machine for disinfectant-4
lid delivery device of pump cap screw capping machine-5
trigger spray bottle capping machine

SUNHANPACK

SUNHAN SH-VTXG3 Automatic Double Head Disinfectant Household Cleaner Tracking Type Trigger Sprayer Pump Cap Capping Machine

Versand wird beim Checkout berechnet
Voltage: 110V
What we offer
  • 1 Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Customized Packaging Solution

Main Feature

▶Equipped with two independent capping heads, the machine simultaneously processes two bottles, achieving stable production speeds of 2700-3000 bottles/hour.
▶Automatically arranges and delivers pump caps, ensuring smooth cap supply and improving production efficiency.
▶The tracking system accurately aligns dip tubes and pump caps before capping, preventing misalignment.
▶The pneumatic chuck securely grips caps during the capping process, ensuring consistent torque control and reliable sealing performance.

Parameter

  • Model:SH-VTXG3
  • Cap Sorting Method:Elevator cap feeding+Vibratory bowl cap sorting
  • Program Control:PLC+Touch Screen
  • Working Speed:45-50 bottles/min
  • Suitable Bottle Type:Customized based on samples provided by the customer (Note: Different caps require replacing the vibratory bowl, cap dropping track, and upper cap plate）
  • Pump / Cap Placement Method:Gripped by finger air cylinder, straightening the dip tube and inserting it into the bottle.
  • Power:Approx. 6 kW
  • Voltage:AC 220V,50/60 Hz
  • Conveyor Belt:82.6 mm wide POM chain plate belt; Speed: 0-15 m/min

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of trigger capping machine for disinfectant
machine component of trigger pump tracking capping machine
machine details of trigger spray bottle capping machine-1
machine details of trigger spray bottle capping machine-2
real shot of pump cap screw capping machine
