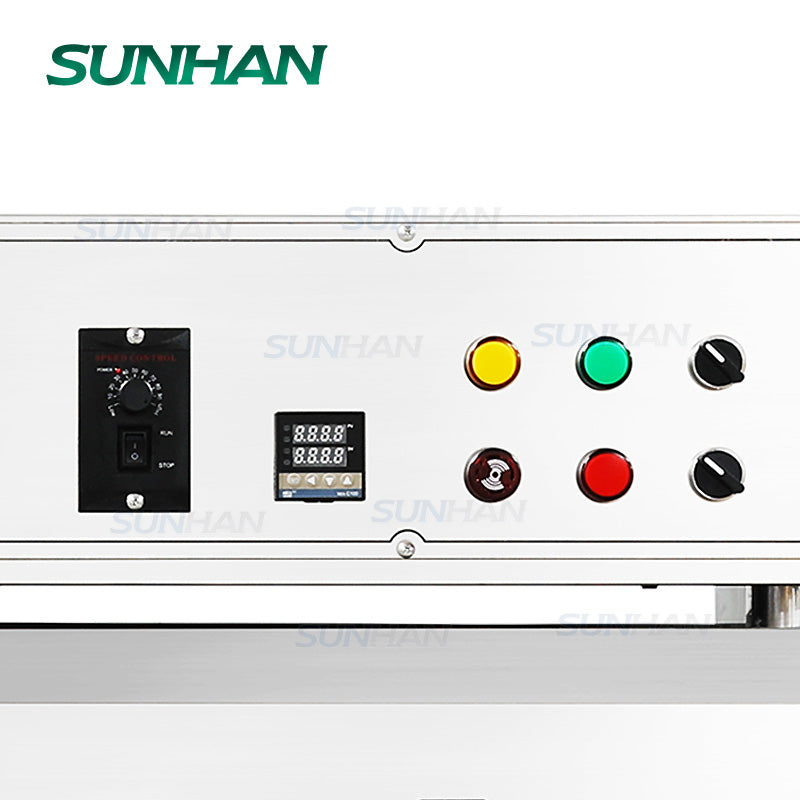

operation panel of steam heating shrink tunnel-1

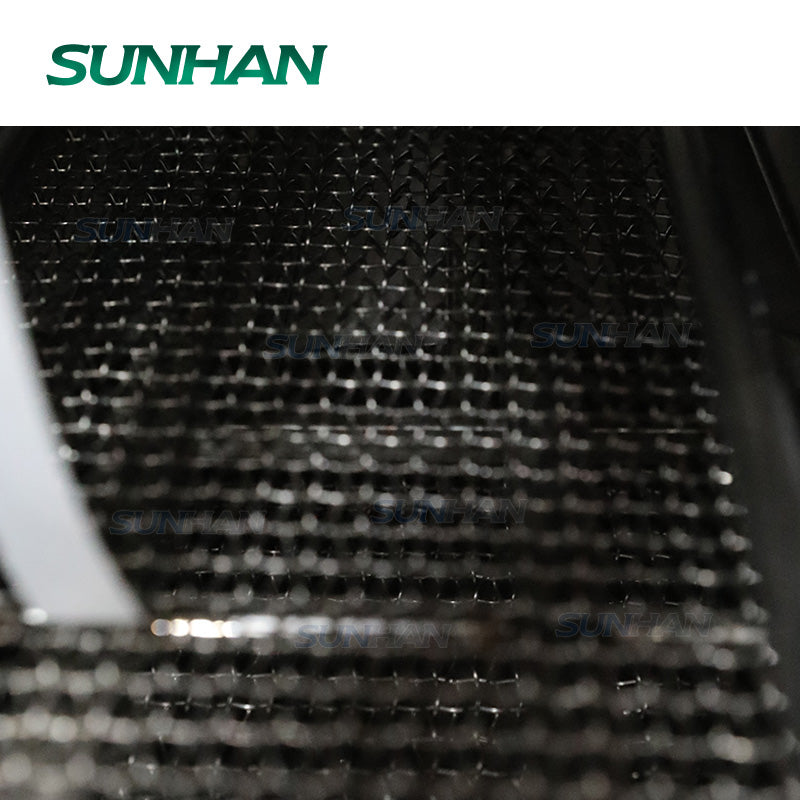

mesh chain of steam heating shrink tunnel-2

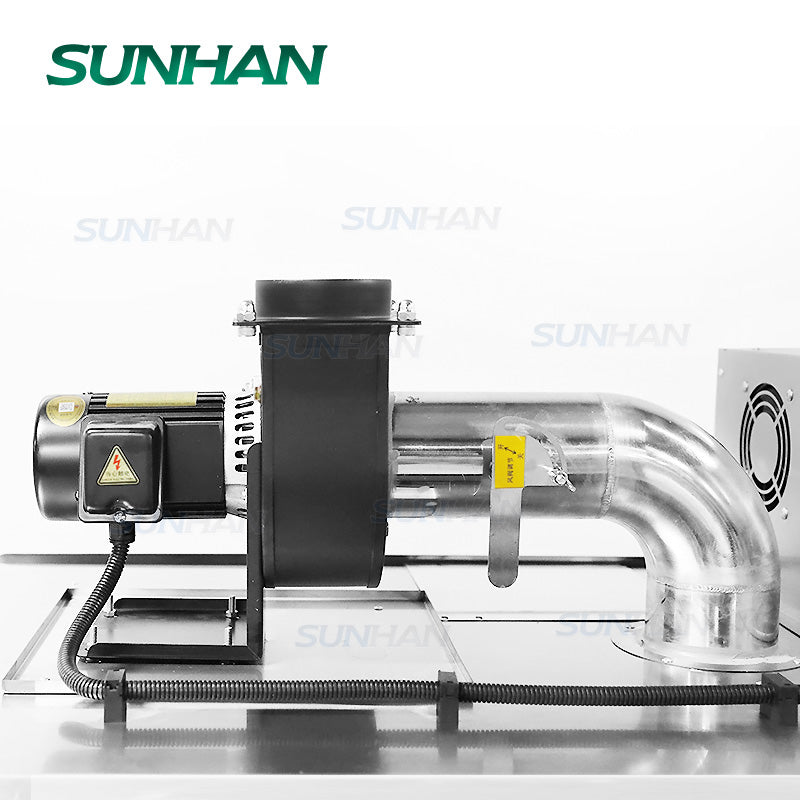

steam exhaust of steam heating shrink tunnel-3

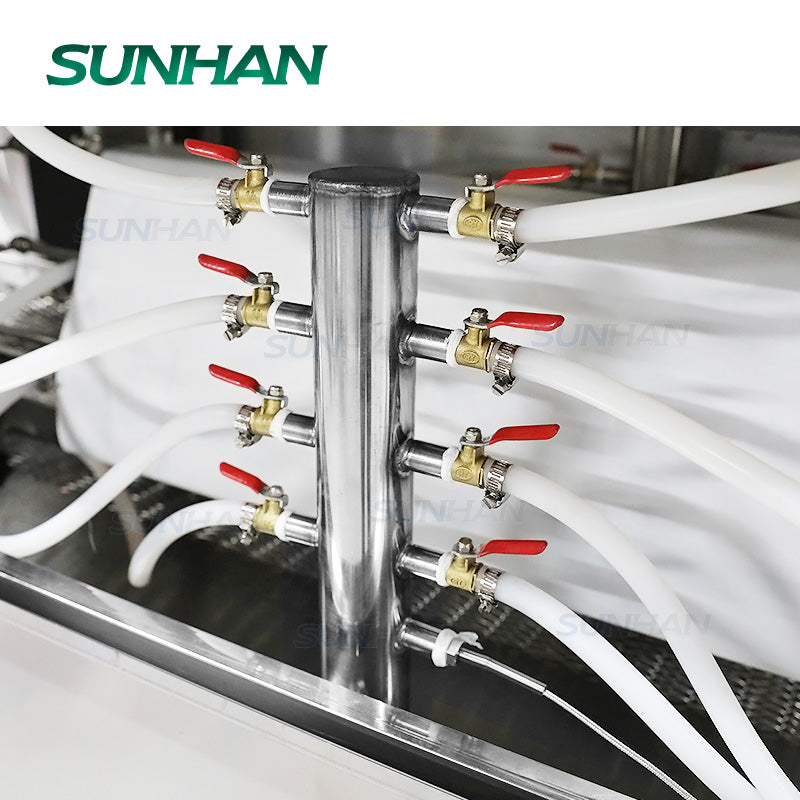

steam adjustable device of steam heating shrink tunnel-4

SUNHANPACK

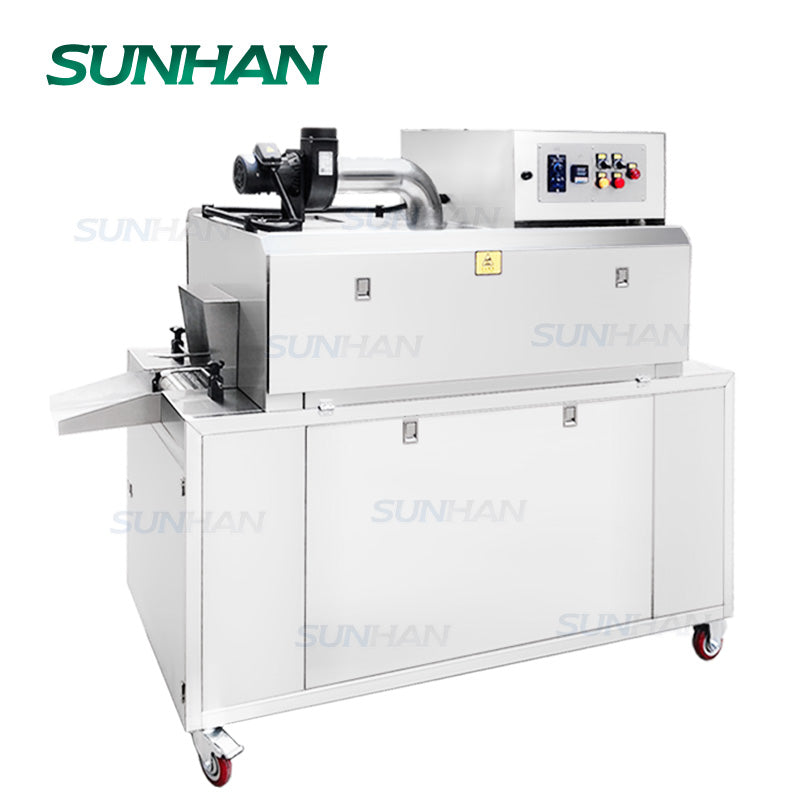

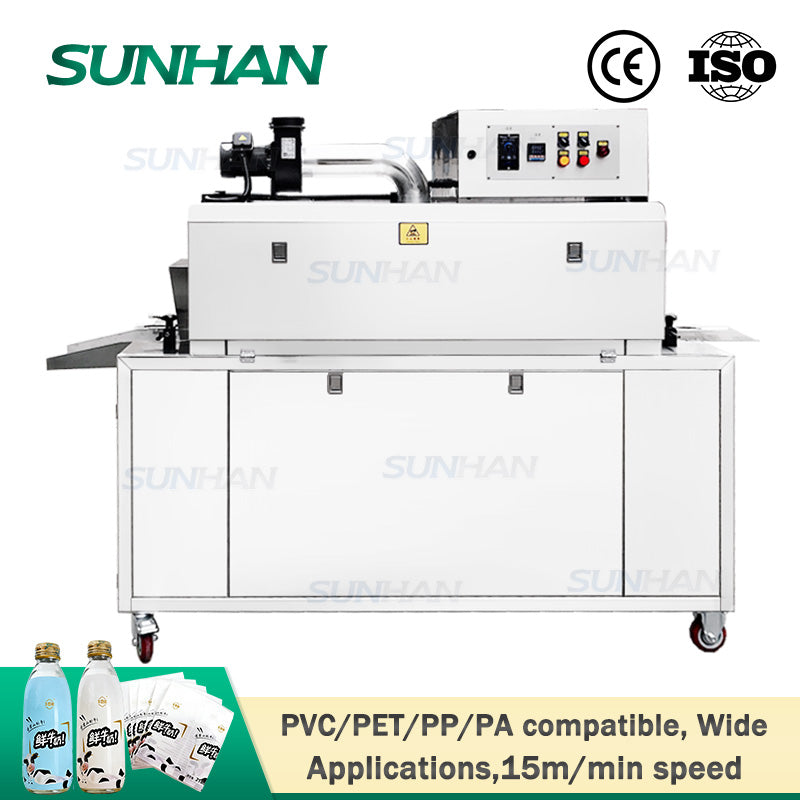

SUNHAN SH-ZQ15 Semi Automatic Bottle Jar Label Steam Heating Shrink Sleeve Tunnel Film Wrapping Packaging Machine

Versand wird beim Checkout berechnet

Voltage: 220V 220V 380V

Produktvarianten

What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

▶Suitable for PVC, PET, PP, and PA shrink materials, meeting diverse packaging requirements.
▶Steam nozzle position and injection direction are adjustable for uniform and perfect shrinking results.
▶Production capacity up to 15 m/min, operates within 0-100°C, ensuring continuous and efficient sleeve shrinking operation.
▶Waterproof entrance and exit design with high-temperature cloth shielding reduces steam leakage and improves thermal efficiency.

Parameter

Model: SH-ZQ15
Rated voltage: 380v 50Hz (Three-phase four wire)
Production capacity: 0-15m/min
Movement type: linear
Maximum power: 24KW
Maximum packaging size: 20*20cm
Temperature control: 0-100°
Dimensions: About 2135*706*1490mm
Product weight: About 150Kg
Applicable packaging materials: PVC, PET, PP, PA

machine details of bottle label steam shrinking tunnel-1

machine details of bottle label steam shrinking tunnel-2

machine details of bottle label steam shrinking tunnel-3

machine details of bottle label steam shrinking tunnel-4

real shot of steam heating shrink tunnel-1

machine details of steam heating shrink tunnel-2
