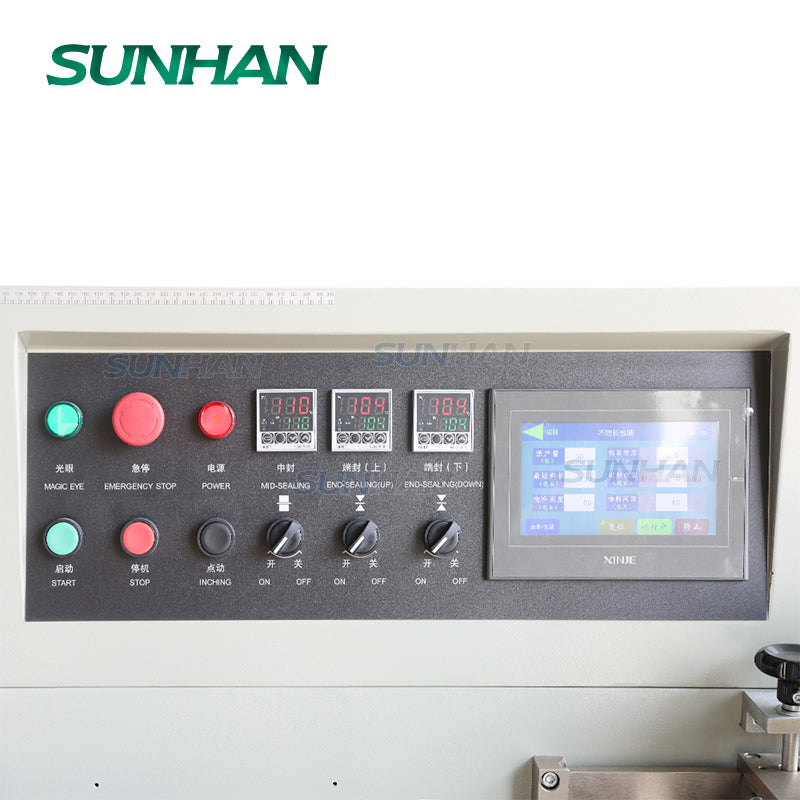

operation panel of horizontal flow packaging machine-1

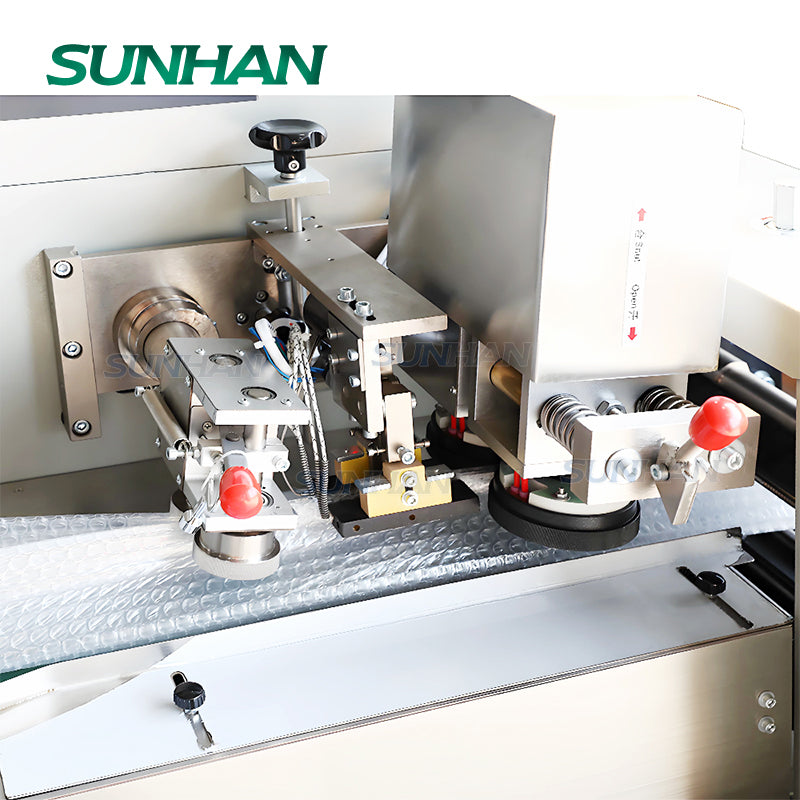

bag forming & sealing structure of horizontal flow packaging machine-2

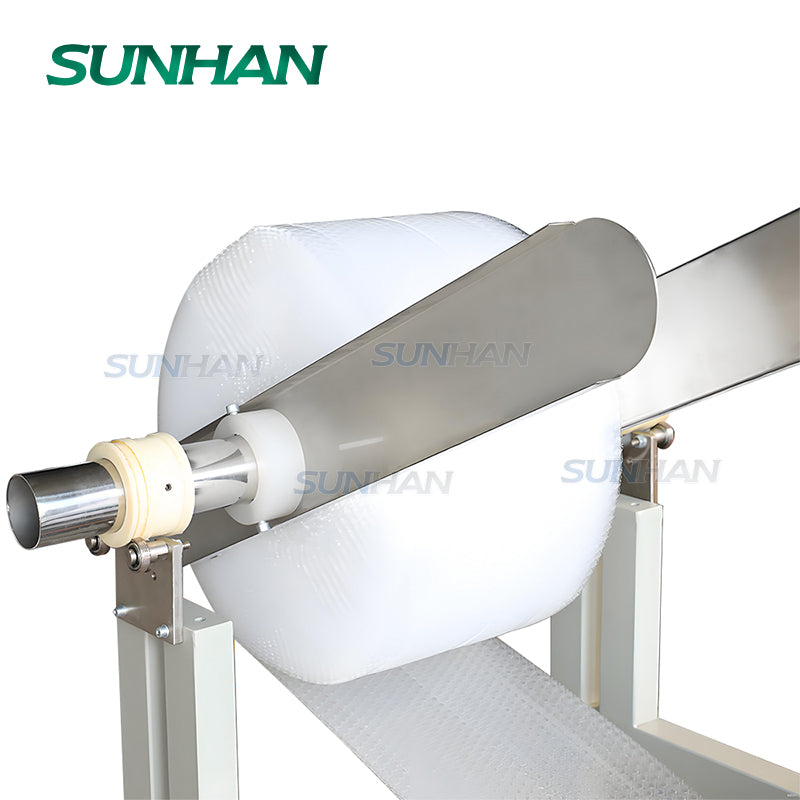

fill roll holder of horizontal flow packaging machine-3

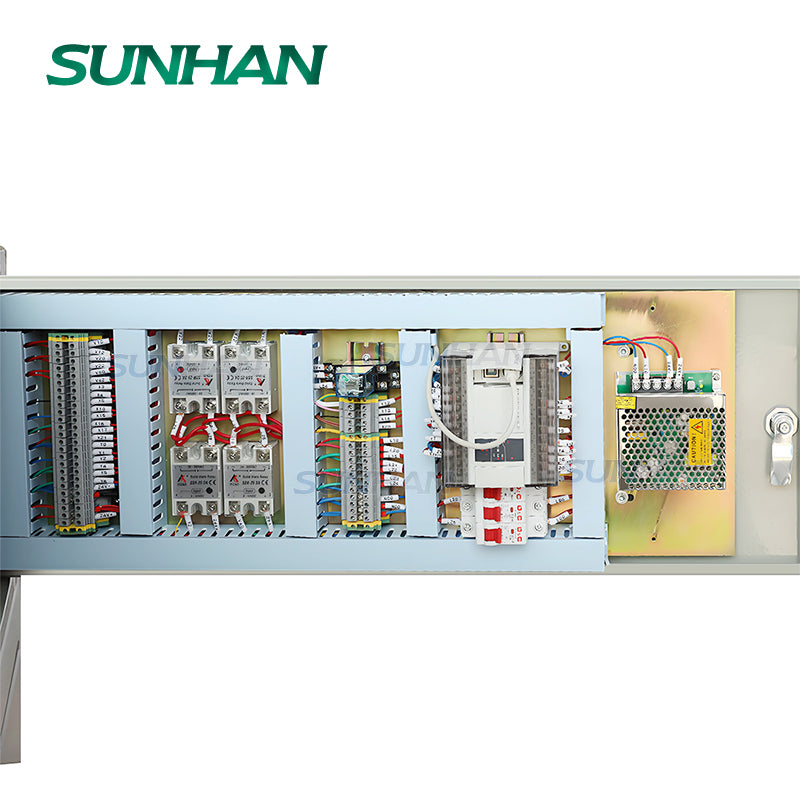

electronics of horizontal flow packaging machine-4

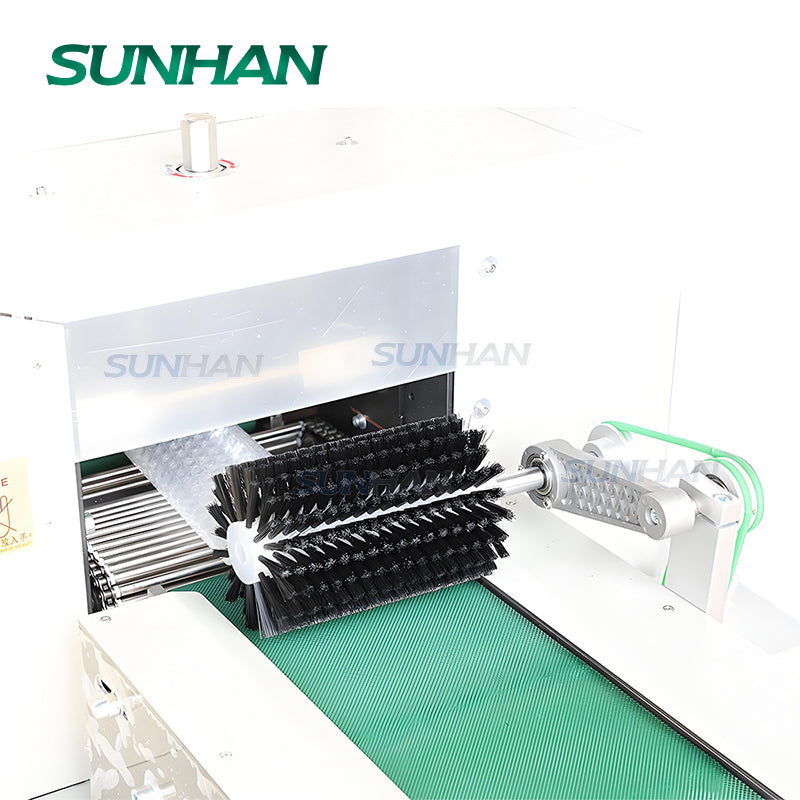

discharge brush of horizontal flow packaging machine-5
bubble film flow wrapper machine
flow pack wrapping machine

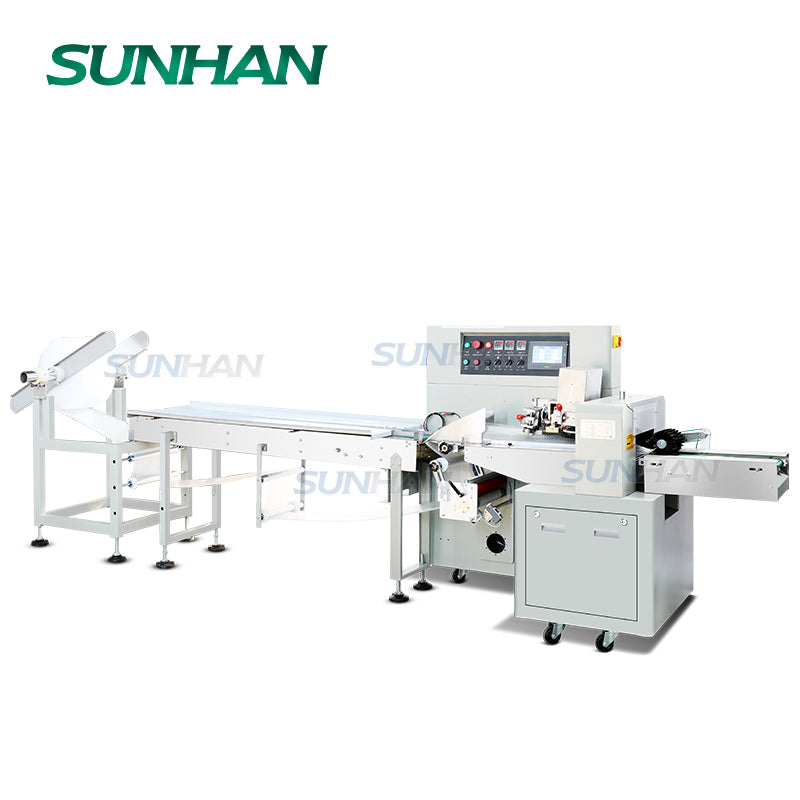

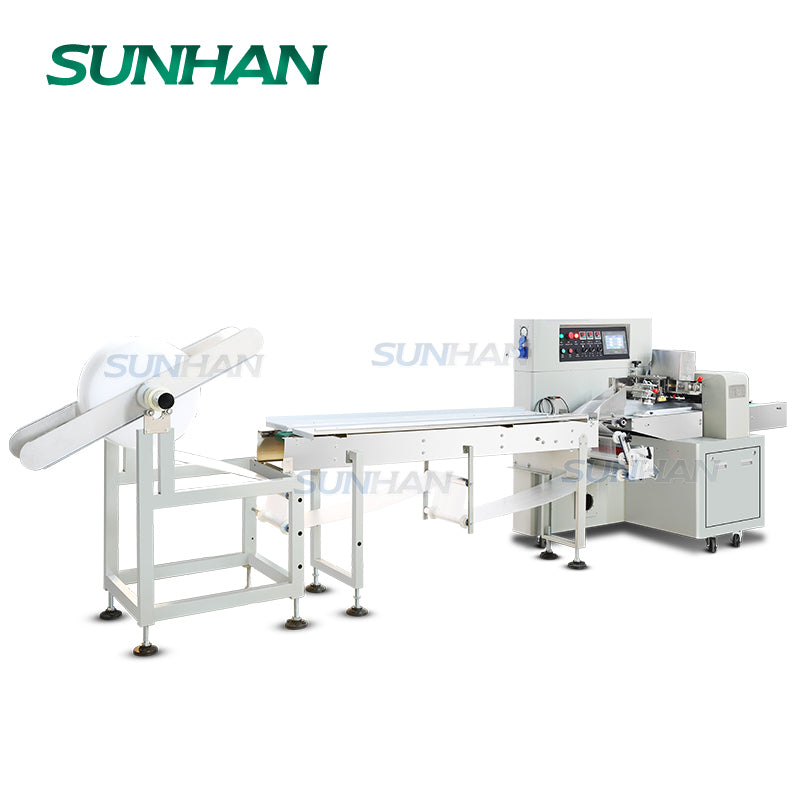

horizontal flow wrapping machine
operation panel of horizontal flow packaging machine-1
bag forming & sealing structure of horizontal flow packaging machine-2
fill roll holder of horizontal flow packaging machine-3
electronics of horizontal flow packaging machine-4
discharge brush of horizontal flow packaging machine-5
bubble film flow wrapper machine
flow pack wrapping machine

SUNHANPACK

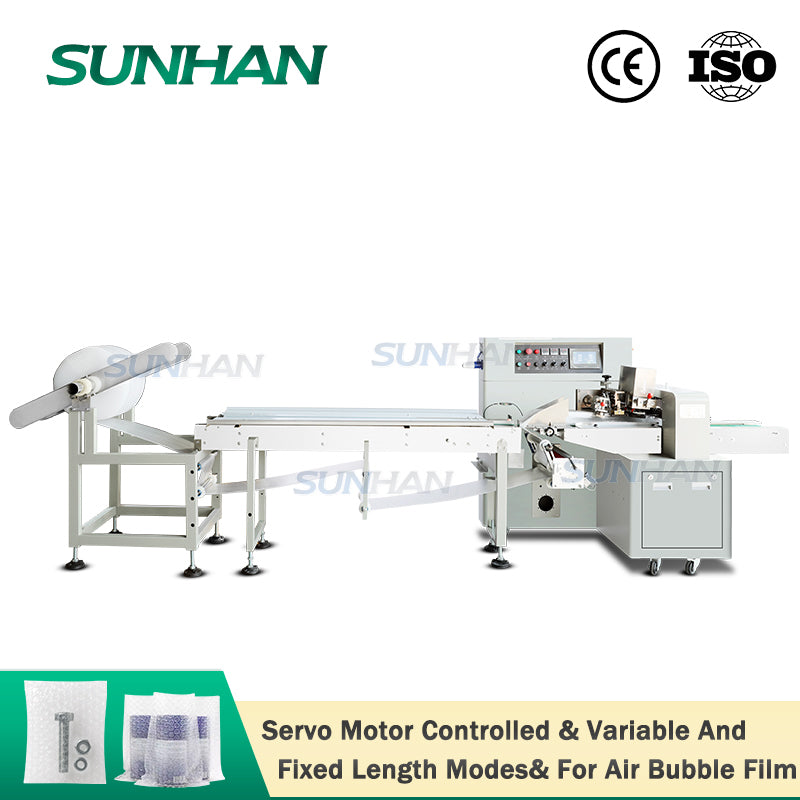

SUNHAN SH-ZB350S Automatic Servo Horizontal Wrapper Air Bubble Film Flow Pack Forming Sealing Wrapping Machine

Versand wird beim Checkout berechnet
Voltage: 110V
Sizing guide
What we offer

▶ 1 Year Warranty

▶ User Manual

▶One-to-one Video Chat Support

▶Install & Debug Video

▶Customized Packaging Solution

Main Feature

▶This packaging machine can finish bubble film forming, sealing and bubble bags cutting automatically.
▶Machine supports variable, fixed, and color mark length packaging.
▶Servo motor controls packaging, it has high working accuracy.

Parameter

  • Machine model:SH-ZB350S
  • Power Supply:110V, 50/60Hz, 6.3KW
  • Film Width:Max. 340mm (590mm / 790mm optional)
  • Bag Length:≥120mm
  • Bag Width:30–110mm
  • Product Height:Max. 60mm
  • Film Roll Diameter:Max. 320mm
  • Packaging Speed:5–20 bags/min
  • Machine Dimensions:(L)4715 × (W)804 × (H)1550mm
  • Machine Weight:Approx. 650kg
application of flow pack wrapping machine
datasheet of horizontal flow wrapping machine
machine details of bubble film flow wrapper machine-1
machine details of bubble film flow wrapper machine-2
real shot of horizontal flow packaging machine
